Avalue · High Performance Computing

HPS-GNRD4A

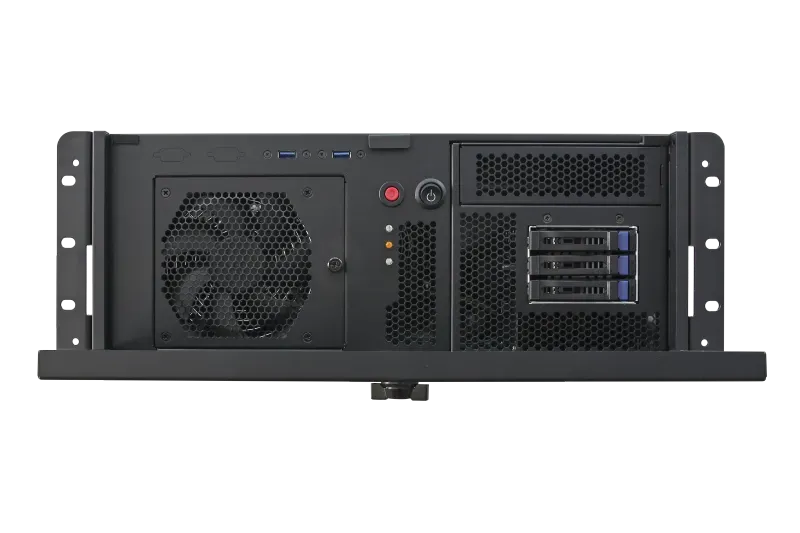

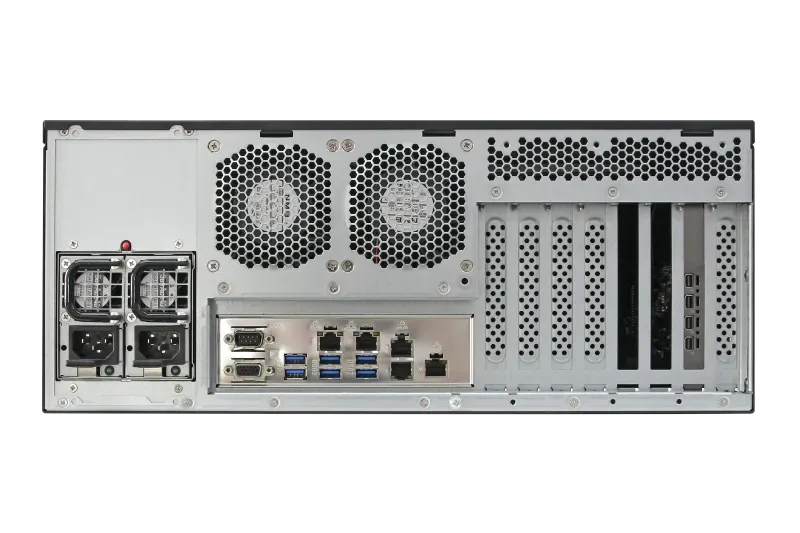

HPS-GNRD4A FrontHPS-GNRD4A FrontHPS-GNRD4A Front

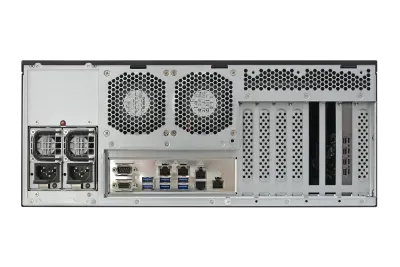

HPS-GNRD4A, Image 1HPS-GNRD4A, Image 2HPS-GNRD4A, Image 3
Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

  • 19" 4U rackmount workstation (430 x 174.8 x 650 mm)
  • Dual Intel® Xeon® 6 6500P/6700P (LGA4710, max. TDP 350W each)
  • Avalue HPM-GNRDE dual-socket server board, IPMI 2.0 (AST2600)
  • 16 x DDR5 6400MHz RDIMM & 8000MHz MRDIMM up to 4TB
  • 1 x 1300W PS2 ATX PSU or 1 x 1600W CRPS
  • 5 x PCIe Gen5 x16 + 1 x PCIe Gen5 x8 slots
  • 3 x front-accessible 2.5" storage bays + 2 x M.2 NVMe
  • 2 x Intel I210AT 1GbE + E610-XAT2 (2 x 10GbE)
  • Windows 11 / Server 2025 / Ubuntu 24.04 / RHEL

Product Description

The Avalue HPS-GNRD4A is a 19" 4U rackmount workstation built around the Avalue HPM-GNRDE dual-socket server board for two Intel® Xeon® 6 6500P/6700P processors (max. TDP up to 350W each), designed as a high-core-count, GPU/accelerator-ready node for HPC and edge data centers.

With 16 x DDR5 6400MHz RDIMM / 8000MHz MRDIMM up to 4TB, a 1300W ATX or 1600W CRPS PSU and IPMI 2.0 via an ASPEED AST2600 BMC, it packages two-socket Xeon 6 performance into a 430 x 174.8 x 650 mm chassis.

It provides 5 x PCIe Gen5 x16 and 1 x PCIe Gen5 x8 slots, dual M.2 NVMe, 3 x front-accessible 2.5" bays, triple Intel Ethernet (2 x I210AT 1GbE + E610-XAT2 dual 10GbE), USB 3.2 Gen2 and VGA, running Windows 11 / Windows Server 2025, Ubuntu 24.04 LTS or RHEL.

Technical Specifications

Processor

Dual Intel LGA4710 Sockets support Intel® Xeon® 6 6500P & 6700P series Processor (Max. TDP at 350W each)

System Memory

16 x DDR5 6400 MHz RDIMM & 8000 MHz MRDIMM Up to 4TB

BIOS

AMI UEFI BIOS

Watchdog Timer

System reset event 0 ~ 6553 seconds

H/W Status Monitor

CPU temperature, fan speed and voltage monitoring, fan speed control, case open detection

TPM

TPM 2.0 onboard

IPMI

IPMI 2.0 with AST 2600 BMC controller onboard

SBC

HPM-GNRDE

USB

2 x USB 3.2 Gen1 ports

Power Button

1 x Power button

Reset Button

1 x Reset button

LED Indicator

1 x Power status indicator

1 x Disk activity indicator

1 x Network activity indicator

USB

6 x USB 3.2 Gen2 ports

COM Port

1 x RS232 port

VGA

1 x VGA port

RJ-45

5 x RJ45: MGMT port for dedicated IPMI access only, LAN1 for 1GbE shared with IPMI, LAN2 for 1GbE, LAN3 and 4 for 10GbE

Graphic Chipset

AST 2600 BMC controller

Resolution

1 x VGA port VGA: 1920 x 1200 @ 60Hz 32bpp

Power Supply Unit

1 x 1300W PS2 ATX PSU (Default)

1 x 1600W CRPS (Option)

Expansion

5 x PCIe Gen5 x16 slots & 1 x PCIe Gen5 x8 slot

Slot 1, PCIe 5.0 x16 from 1st CPU

Slot 2, PCIe 5.0 x16 from 2nd CPU

Slot 3, PCIe 5.0 x16 from 2nd CPU

Slot 4, PCIe 5.0 x16 from 2nd CPU

Slot 5, PCIe 5.0 x16 from 2nd CPU

Slot 6, PCIe 5.0 x8 from 1st CPU

M.2

1 x M.2 M-Key PCIe 5.0 x4 NVMe SSD from 1st CPU, 2242/2260/2280/22110 form factor

1 x M.2 M-Key PCIe 5.0 x4 NVMe SSD from 1st CPU, 2242/2260/2280 form factor

2.5 Drive Bay

3 x Front accessible 2.5" storage bays

LAN Chipset

1 x Intel I210AT GbE Ethernet port shared with IPMI management port

1 x Intel I210AT 1GbE controller

1 x Intel E610-XAT2 10GbE controller supports 2 x 10GbE Ethernet ports

LAN Port

5 x RJ45: MGMT port for dedicated IPMI access only, LAN1 for 1GbE shared with IPMI, LAN2 for 2.5GbE, LAN3 and 4 for 10GbE

Operating Temp.

0 ~ 35°C (L6 system with 1300W ATX PSU)

0 ~ 40°C (L6 system with 1600W CRPS)

Storage Temp.

-40°C 24hrs IEC60068-2-1 Cold test Test: Ab

70°C/ RH95% 24hrs IEC 60068-2-3 Test: Ca

Operating Humidity

35°C @ 95% Relative Humidity, Non-condensing

Weight

25.8KG

Dimension (W x L x D)

19" 4U Chassis 430mm(W) x 174.8mm(H) x 650mm(D)

482.6mm(W) x 174.8mm(H) x 650mm(D) with ear mount

OS

Windows 11 SAC and LTSC

Windows Server 2025

Ubuntu 24.04 LTS or later

Red Hat Enterprise Linux (RHEL)

Ordering Information

HPS-GNRD4AD-A1R: L6 19" 4U Rackmount w/HPM-GNRDEA/1300W/1x5.25"/3x2.5"

HPS-GNRD4AU-A1R: L6 19" 4U Rackmount w/HPM-GNRDEA/1600W R/1x5.25"/3x2.5"

What is HPS-GNRD4A?

The HPS-GNRD4A is a high performance computing manufactured by Avalue, designed specifically for rackmount-tower-workstation applications. The Avalue HPS-GNRD4A is a 19" 4U rackmount workstation built around the Avalue HPM-GNRDE dual-socket server board for two Intel® Xeon® 6 6500P/6700P processors (max. TDP up to 350W each), designed as a high-core-count, GPU/accelerator-ready node for HPC and edge data centers. With 16 x DDR5 6400MHz RDIMM / 8000MHz MRDIMM up to 4TB, a 1300W ATX or 1600W CRPS PSU and IPMI 2.0 via an ASPEED AST2600 BMC, it packages two-socket Xeon 6 performance into a 430 x 174.8 x 650 mm chassis. It provides 5 x PCIe Gen5 x16 and 1 x PCIe Gen5 x8 slots, dual M.2 NVMe, 3 x front-accessible 2.5" bays, triple Intel Ethernet (2 x I210AT 1GbE + E610-XAT2 dual 10GbE), USB 3.2 Gen2 and VGA, running Windows 11 / Windows Server 2025, Ubuntu 24.04 LTS or RHEL.

Key Features & Benefits

  • 19" 4U rackmount workstation (430 x 174.8 x 650 mm)
  • Dual Intel® Xeon® 6 6500P/6700P (LGA4710, max. TDP 350W each)
  • Avalue HPM-GNRDE dual-socket server board, IPMI 2.0 (AST2600)
  • 16 x DDR5 6400MHz RDIMM & 8000MHz MRDIMM up to 4TB
  • 1 x 1300W PS2 ATX PSU or 1 x 1600W CRPS
  • 5 x PCIe Gen5 x16 + 1 x PCIe Gen5 x8 slots
  • 3 x front-accessible 2.5" storage bays + 2 x M.2 NVMe
  • 2 x Intel I210AT 1GbE + E610-XAT2 (2 x 10GbE)
  • Windows 11 / Server 2025 / Ubuntu 24.04 / RHEL

Applications & Use Cases

The HPS-GNRD4A is ideal for various industrial automation applications:

  • High-performance computing and data processing tasks
  • Memory-intensive applications and multitasking
  • Data logging and storage-intensive operations
  • Industrial computing and data processing
  • Edge computing and IoT applications
  • Real-time monitoring and control
  • Industrial automation systems
