HPS-GNRU1A

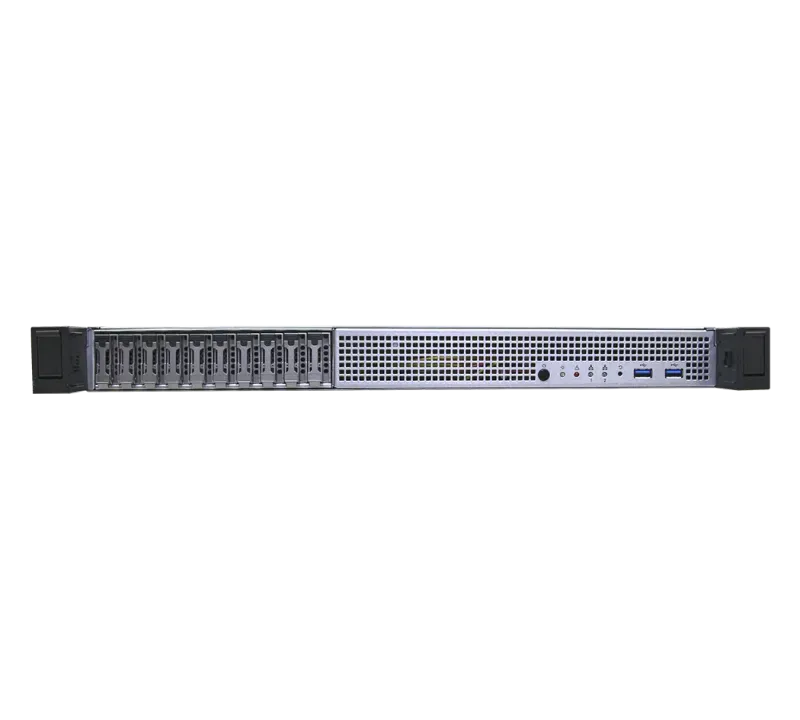

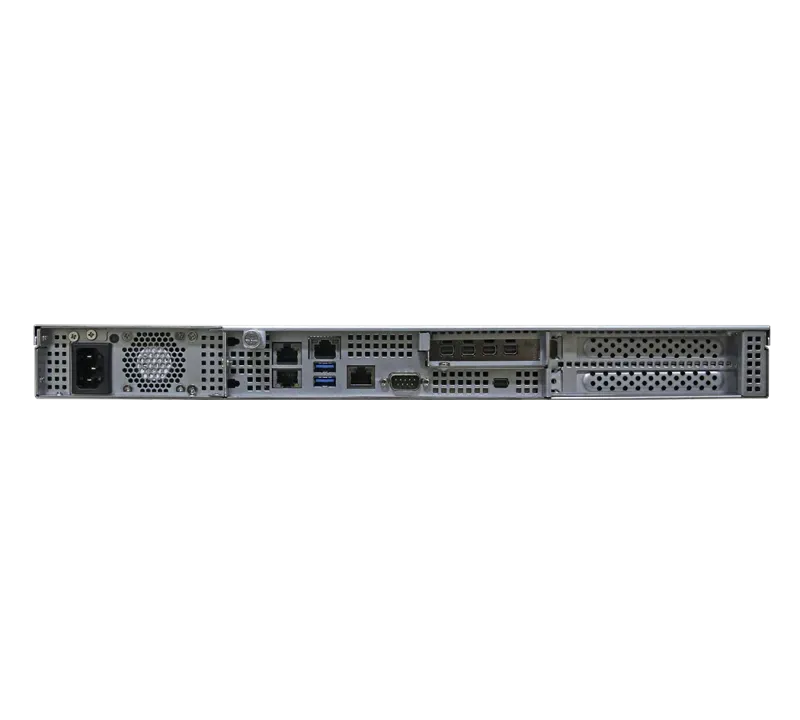

HPS-GNRU1A FrontHPS-GNRU1A FrontHPS-GNRU1A Front
HPS-GNRU1A, Image 1HPS-GNRU1A, Image 2HPS-GNRU1A, Image 3
Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

  • 1U compact rackmount server (438 x 43.5 x 596.9 mm)
  • Single Intel® Xeon® 6 6500P/6700P/6700E (LGA4710, max. TDP 350W)
  • Avalue HPM-GNRUP server board, IPMI 2.0 (AST2600 BMC)
  • 8 x DDR5 6400MHz RDIMM & 8000MHz MRDIMM up to 2TB
  • 10 x NVMe E1.S hot-swap drive bays
  • 1 x 850W PSU (single or CRPS option)
  • 2 x PCIe Gen5 x16 FHFL + 1 x PCIe Gen5 x8 HHHL via riser
  • Intel I210AT 1GbE + E610-XAT2 (2 x 10GbE)
  • Windows 11 / Server 2025 / Ubuntu 24.04 / RHEL

Product Description

The Avalue HPS-GNRU1A is a 1U compact rackmount server built around the Avalue HPM-GNRUP server board with a single Intel® Xeon® 6 6500P/6700P/6700E processor (max. TDP up to 350W), designed as a dense, NVMe-rich storage and compute node for edge data centers.

With 8 x DDR5 6400MHz RDIMM / 8000MHz MRDIMM up to 2TB, an 850W PSU, 10 hot-swap E1.S NVMe bays and IPMI 2.0 via an ASPEED AST2600 BMC, it packages Xeon 6 performance into a 438 x 43.5 x 596.9 mm chassis.

It provides 2 x PCIe Gen5 x16 (FHFL) and 1 x PCIe Gen5 x8 (HHHL) via riser cards, dual Intel Ethernet (I210AT 1GbE + E610-XAT2 dual 10GbE), USB 3.2 Gen1 and a Mini DP, running Windows 11 / Windows Server 2025, Ubuntu 24.04 LTS or RHEL.

Technical Specifications

Processor

Intel LGA4710 Socket supports Intel® Xeon® 6 6500P/6700P/6700E series Processor (Max. TDP at 350W)

System Memory

8 x DDR5 6400 MHz RDIMM & 8000 MHz MRDIMM Up to 2TB

BIOS

AMI UEFI BIOS

Watchdog Timer

System reset event 0 ~ 6553 seconds

H/W Status Monitor

CPU temperature, fan speed and voltage monitoring, fan speed control, case open detection

TPM

TPM 2.0 onboard

IPMI

IPMI 2.0 with AST 2600 BMC controller onboard

SBC

HPM-GNRUP

USB

2 x USB 3.2 Gen1 ports

Power Button

1 x Power button

Reset Button

1 x Reset button

LED Indicator

1 x Power status indicator

1 x Status indicator

2 x Network activity indicator

USB

2 x USB 3.2 Gen1 ports

COM Port

1 x RS232 port

DP

1 x MiniDP port

RJ-45

4 x RJ45: 1 x MGMT port for dedicated IPMI access only, 1 x 1GbE port shared with IPMI access, 2 x 10GbE ports

Graphic Chipset

AST 2600 BMC controller

Resolution

1 x MiniDP port 1920 x 1200 @ 60Hz 32bpp

Power Supply Unit

1 x 850W 1U Single PSU (Default) - 850W with Input 100-240Vac

1 x 850W Slimtype CRPS (Option) - 700W with Input 100-240Vac / 850W with Input 180-240Vac

Expansion

2 x PCIe Gen5 x16 slots via riser card & 1 x PCIe Gen5 x8 slot via riser card

M.2

2 x M.2 M-Key Slot to support PCIe 5.0 x4 NVMe SSD 2242/2260/2280/22110 form factor (on HPS-GNRU1A8-A1-01R / HPS-GNRU1AR-A1-01R)

2.5 Drive Bay

4 x 2.5" U.2 NVMe SSD front accessible drive bays (on HPS-GNRU1A8-A1-01R / HPS-GNRU1AR-A1-01R)

Other Storage Device

10 x E1.S NVMe front accessible drive bays (on HPS-GNRU1A8-A1R / HPS-GNRU1AR-A1R)

LAN Chipset

1 x Intel I210AT GbE Ethernet port shared with IPMI management port

1 x Intel E610-XAT2 10GbE controller supports 2 x 10GbE Ethernet ports

LAN Port

4 x RJ45: 1 x MGMT port for dedicated IPMI access only, 1 x 1GbE port shared with IPMI access, 2 x 10GbE ports

Operating Temp.

0 ~ 40°C (L6 system with 850W Single PSU) with Air shroud

Storage Temp.

-40°C 24hrs IEC60068-2-1 Cold test Test: Ab

70°C/ RH95% 24hrs IEC 60068-2-3 Test: Ca

Operating Humidity

35°C @ 95% Relative Humidity, Non-condensing

Dimension (W x L x D)

1U Chassis 438mm(W) x 43.5mm(H) x 596.9mm(D)

OS

Windows 11 SAC and LTSC

Windows Server 2025

Ubuntu 24.04 LTS or later

Red Hat Enterprise Linux (RHEL)

Ordering Information

HPS-GNRU1A8-A1R: L6 1U Rackmount w/HPM-GNRUPA/850W/10xE1.S

HPS-GNRU1A8-A1-01R: L6 1U Rackmount w/HPM-GNRUPA/850W/4x2.5"/2xM.2

HPS-GNRU1AR-A1R: L6 1U Rackmount w/HPM-GNRUPA/850W R/10xE1.S

HPS-GNRU1AR-A1-01R: L6 1U Rackmount w/HPM-GNRUPA/850W R/4x2.5"/2xM.2

What is HPS-GNRU1A?

The HPS-GNRU1A is a high performance computing manufactured by Avalue, designed specifically for rackmount-tower-workstation applications. The Avalue HPS-GNRU1A is a 1U compact rackmount server built around the Avalue HPM-GNRUP server board with a single Intel® Xeon® 6 6500P/6700P/6700E processor (max. TDP up to 350W), designed as a dense, NVMe-rich storage and compute node for edge data centers. With 8 x DDR5 6400MHz RDIMM / 8000MHz MRDIMM up to 2TB, an 850W PSU, 10 hot-swap E1.S NVMe bays and IPMI 2.0 via an ASPEED AST2600 BMC, it packages Xeon 6 performance into a 438 x 43.5 x 596.9 mm chassis. It provides 2 x PCIe Gen5 x16 (FHFL) and 1 x PCIe Gen5 x8 (HHHL) via riser cards, dual Intel Ethernet (I210AT 1GbE + E610-XAT2 dual 10GbE), USB 3.2 Gen1 and a Mini DP, running Windows 11 / Windows Server 2025, Ubuntu 24.04 LTS or RHEL.

Key Features & Benefits

  • 1U compact rackmount server (438 x 43.5 x 596.9 mm)
  • Single Intel® Xeon® 6 6500P/6700P/6700E (LGA4710, max. TDP 350W)
  • Avalue HPM-GNRUP server board, IPMI 2.0 (AST2600 BMC)
  • 8 x DDR5 6400MHz RDIMM & 8000MHz MRDIMM up to 2TB
  • 10 x NVMe E1.S hot-swap drive bays
  • 1 x 850W PSU (single or CRPS option)
  • 2 x PCIe Gen5 x16 FHFL + 1 x PCIe Gen5 x8 HHHL via riser
  • Intel I210AT 1GbE + E610-XAT2 (2 x 10GbE)
  • Windows 11 / Server 2025 / Ubuntu 24.04 / RHEL

Applications & Use Cases

The HPS-GNRU1A is ideal for various industrial automation applications:

  • High-performance computing and data processing tasks
  • Memory-intensive applications and multitasking
  • Industrial computing and data processing
  • Edge computing and IoT applications
  • Real-time monitoring and control
  • Industrial automation systems
