HPS-GNRU1A

Series: HPS

Manufactured byAvalue

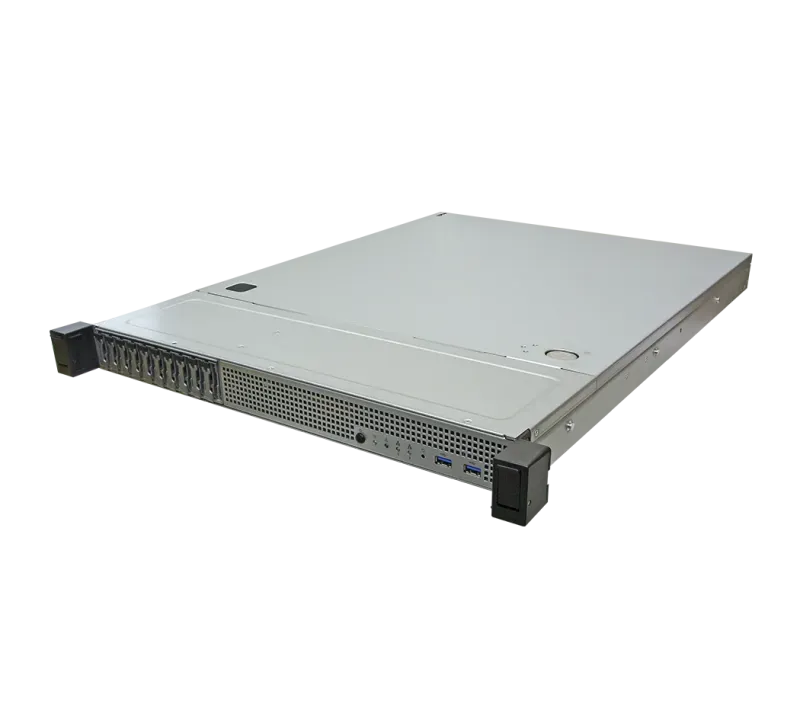

The Avalue HPS-GNRU1A is a 1U compact rackmount server built around the Avalue HPM-GNRUP server board with a single Intel® Xeon® 6 6500P/6700P/6700E processor (max. TDP up to 350W), designed as a dense, NVMe-rich storage and compute node for edge data centers. With 8 x DDR5 6400MHz RDIMM / 8000MHz MRDIMM up to 2TB, an 850W PSU, 10 hot-swap E1.S NVMe bays and IPMI 2.0 via an ASPEED AST2600 BMC, it packages Xeon 6 performance into a 438 x 43.5 x 596.9 mm chassis. It provides 2 x PCIe Gen5 x16 (FHFL) and 1 x PCIe Gen5 x8 (HHHL) via riser cards, dual Intel Ethernet (I210AT 1GbE + E610-XAT2 dual 10GbE), USB 3.2 Gen1 and a Mini DP, running Windows 11 / Windows Server 2025, Ubuntu 24.04 LTS or RHEL.

Key Features

1U compact rackmount server (438 x 43.5 x 596.9 mm)
Single Intel® Xeon® 6 6500P/6700P/6700E (LGA4710, max. TDP 350W)
Avalue HPM-GNRUP server board, IPMI 2.0 (AST2600 BMC)
8 x DDR5 6400MHz RDIMM & 8000MHz MRDIMM up to 2TB
10 x NVMe E1.S hot-swap drive bays
1 x 850W PSU (single or CRPS option)
2 x PCIe Gen5 x16 FHFL + 1 x PCIe Gen5 x8 HHHL via riser
Intel I210AT 1GbE + E610-XAT2 (2 x 10GbE)
Windows 11 / Server 2025 / Ubuntu 24.04 / RHEL

Technical Specifications

System Information

Processor	Intel LGA4710 Socket supports Intel® Xeon® 6 6500P/6700P/6700E series Processor (Max. TDP at 350W)
System Memory	8 x DDR5 6400 MHz RDIMM & 8000 MHz MRDIMM Up to 2TB
BIOS	AMI UEFI BIOS
Watchdog Timer	System reset event 0 ~ 6553 seconds
H/W Status Monitor	CPU temperature, fan speed and voltage monitoring, fan speed control, case open detection
TPM	TPM 2.0 onboard
IPMI	IPMI 2.0 with AST 2600 BMC controller onboard
SBC	HPM-GNRUP

Front I/O

USB	2 x USB 3.2 Gen1 ports
Power Button	1 x Power button
Reset Button	1 x Reset button
LED Indicator	1 x Power status indicator, 1 x Status indicator, 2 x Network activity indicator

Rear I/O

USB	2 x USB 3.2 Gen1 ports
COM Port	1 x RS232 port
DP	1 x MiniDP port
RJ-45	4 x RJ45: 1 x MGMT port for dedicated IPMI access only, 1 x 1GbE port shared with IPMI access, 2 x 10GbE ports

Display

Graphic Chipset	AST 2600 BMC controller
Resolution	1 x MiniDP port 1920 x 1200 @ 60Hz 32bpp

Power Requirement

Power Supply Unit	1 x 850W 1U Single PSU (Default) - 850W with Input 100-240Vac, 1 x 850W Slimtype CRPS (Option) - 700W with Input 100-240Vac / 850W with Input 180-240Vac

Expansion

Expansion	2 x PCIe Gen5 x16 slots via riser card & 1 x PCIe Gen5 x8 slot via riser card

Storage

M.2	2 x M.2 M-Key Slot to support PCIe 5.0 x4 NVMe SSD 2242/2260/2280/22110 form factor (on HPS-GNRU1A8-A1-01R / HPS-GNRU1AR-A1-01R)
2.5 Drive Bay	4 x 2.5" U.2 NVMe SSD front accessible drive bays (on HPS-GNRU1A8-A1-01R / HPS-GNRU1AR-A1-01R)
Other Storage Device	10 x E1.S NVMe front accessible drive bays (on HPS-GNRU1A8-A1R / HPS-GNRU1AR-A1R)

Ethernet

LAN Chipset	1 x Intel I210AT GbE Ethernet port shared with IPMI management port, 1 x Intel E610-XAT2 10GbE controller supports 2 x 10GbE Ethernet ports
LAN Port	4 x RJ45: 1 x MGMT port for dedicated IPMI access only, 1 x 1GbE port shared with IPMI access, 2 x 10GbE ports

Mechanical & Environmental

Operating Temp.	0 ~ 40°C (L6 system with 850W Single PSU) with Air shroud
Storage Temp.	-40°C 24hrs IEC60068-2-1 Cold test Test: Ab, 70°C/ RH95% 24hrs IEC 60068-2-3 Test: Ca
Operating Humidity	35°C @ 95% Relative Humidity, Non-condensing
Dimension (W x L x D)	1U Chassis 438mm(W) x 43.5mm(H) x 596.9mm(D)

Software Support

OS	Windows 11 SAC and LTSC, Windows Server 2025, Ubuntu 24.04 LTS or later, Red Hat Enterprise Linux (RHEL)

Ordering Information

Ordering Information	HPS-GNRU1A8-A1R: L6 1U Rackmount w/HPM-GNRUPA/850W/10xE1.S, HPS-GNRU1A8-A1-01R: L6 1U Rackmount w/HPM-GNRUPA/850W/4x2.5"/2xM.2, HPS-GNRU1AR-A1R: L6 1U Rackmount w/HPM-GNRUPA/850W R/10xE1.S, HPS-GNRU1AR-A1-01R: L6 1U Rackmount w/HPM-GNRUPA/850W R/4x2.5"/2xM.2
