HPS-GNRU4A

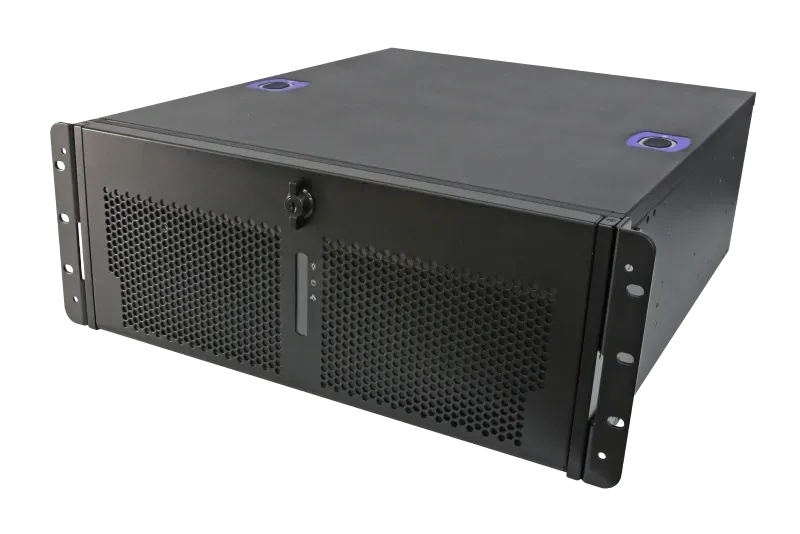

HPS-GNRU4A FrontHPS-GNRU4A FrontHPS-GNRU4A Front
HPS-GNRU4A, Image 1HPS-GNRU4A, Image 2HPS-GNRU4A, Image 3
Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

  • 19" 4U rackmount workstation (430 x 174.8 x 528 mm)
  • Single Intel® Xeon® 6 6500P/6700P (LGA4710, max. TDP 350W)
  • Avalue HPM-GNRUA server board, IPMI 2.0 (AST2600 BMC)
  • 8 x DDR5 6400MHz RDIMM & 8000MHz MRDIMM up to 2TB
  • 1 x 1300W PS2 ATX PSU
  • 4 x PCIe Gen5 x16 slots
  • 3 x front-accessible 2.5" storage bays + 2 x M.2 NVMe
  • Intel I210AT 1GbE + E610-XAT2 (2 x 10GbE)
  • Windows 11 / Server 2025 / Ubuntu 24.04 / RHEL

Product Description

The Avalue HPS-GNRU4A is a 19" 4U rackmount workstation built around the Avalue HPM-GNRUA server board with a single Intel® Xeon® 6 6500P/6700P processor (max. TDP up to 350W), designed as a GPU/accelerator-ready compute node for HPC and edge data centers.

With 8 x DDR5 6400MHz RDIMM / 8000MHz MRDIMM up to 2TB, a 1300W ATX PSU and IPMI 2.0 via an ASPEED AST2600 BMC, it packages Xeon 6 performance into a 430 x 174.8 x 528 mm chassis.

It provides 4 x PCIe Gen5 x16 slots, 2 x M.2 NVMe, 3 x front-accessible 2.5" bays, dual Intel Ethernet (I210AT 1GbE + E610-XAT2 dual 10GbE), USB 3.2 Gen1 and VGA, running Windows 11 / Windows Server 2025, Ubuntu 24.04 LTS or RHEL.

Technical Specifications

Processor

Intel LGA4710 Socket supports Intel® Xeon® 6 6500P & 6700P series Processor (Max. TDP at 350W)

System Memory

8 x DDR5 6400 MHz RDIMM & 8000 MHz MRDIMM Up to 2TB

BIOS

AMI UEFI BIOS

Watchdog Timer

System reset event 0 ~ 6553 seconds

H/W Status Monitor

CPU temperature, fan speed and voltage monitoring, fan speed control, case open detection

TPM

TPM 2.0 onboard

IPMI

IPMI 2.0 with AST 2600 BMC controller onboard

SBC

HPM-GNRUA

USB

2 x USB 3.2 Gen1 ports

Power Button

1 x Power button

Reset Button

1 x Reset button

LED Indicator

1 x Power status indicator

1 x Disk activity indicator

1 x Network activity indicator

USB

2 x USB 3.2 Gen1 ports

COM Port

1 x RS232 port

VGA

1 x VGA port

RJ-45

4 x RJ45: MGMT port for dedicated IPMI access only, LAN1 for 1GbE shared with IPMI, LAN2 and 3 for 10GbE

Graphic Chipset

AST2600 BMC controller

Resolution

1 x VGA port VGA: 1920 x 1200 @ 60Hz 32bpp

Power Supply Unit

1 x 1300W PS2 ATX PSU

Expansion

4 x PCIe Gen5 x16 slots

Slot 1, PCIe Gen5 x16

Slot 3, PCIe Gen5 x16

Slot 5, PCIe Gen5 x16

Slot 7, PCIe Gen5 x16 (closest to the CPU)

M.2

2 x M.2 M-Key slots to support 1 x PCIe 5.0 x4 NVMe SSD from 1st CPU, 2260/2280/22110 form factor

2.5 Drive Bay

3 x Front accessible 2.5" storage bays

LAN Chipset

1 x Intel I210AT 1GbE controller

1 x Intel E610-XAT2 10GbE controller supports 2 x 10GbE Ethernet ports

LAN Port

4 x RJ45: MGMT port for dedicated IPMI access only, LAN1 for 1GbE shared with IPMI, LAN2 and 3 for 10GbE

Operating Temp.

0 ~ 35°C (L6 system)

Storage Temp.

-40°C 24hrs IEC60068-2-1 Cold test Test: Ab

70°C/ RH95% 24hrs IEC 60068-2-3 Test: Ca

Operating Humidity

35°C @ 95% Relative Humidity, Non-condensing

Weight

19.5KG

Dimension (W x L x D)

19" 4U Chassis 430mm(W) x 174.8mm(H) x 528mm(D)

482.6mm(W) x 174.8mm(H) x 528mm(D) with ear mount

OS

Windows 11 SAC and LTSC

Windows Server 2025

Ubuntu 24.04 LTS or later

Red Hat Enterprise Linux (RHEL)

Ordering Information

HPS-GNRU4AD-A1R: L6 19" 4U Rackmount w/HPM-GNRUAA/1300W/1x5.25"/3x2.5"

What is HPS-GNRU4A?

The HPS-GNRU4A is a high performance computing manufactured by Avalue, designed specifically for rackmount-tower-workstation applications. The Avalue HPS-GNRU4A is a 19" 4U rackmount workstation built around the Avalue HPM-GNRUA server board with a single Intel® Xeon® 6 6500P/6700P processor (max. TDP up to 350W), designed as a GPU/accelerator-ready compute node for HPC and edge data centers. With 8 x DDR5 6400MHz RDIMM / 8000MHz MRDIMM up to 2TB, a 1300W ATX PSU and IPMI 2.0 via an ASPEED AST2600 BMC, it packages Xeon 6 performance into a 430 x 174.8 x 528 mm chassis. It provides 4 x PCIe Gen5 x16 slots, 2 x M.2 NVMe, 3 x front-accessible 2.5" bays, dual Intel Ethernet (I210AT 1GbE + E610-XAT2 dual 10GbE), USB 3.2 Gen1 and VGA, running Windows 11 / Windows Server 2025, Ubuntu 24.04 LTS or RHEL.

Key Features & Benefits

  • 19" 4U rackmount workstation (430 x 174.8 x 528 mm)
  • Single Intel® Xeon® 6 6500P/6700P (LGA4710, max. TDP 350W)
  • Avalue HPM-GNRUA server board, IPMI 2.0 (AST2600 BMC)
  • 8 x DDR5 6400MHz RDIMM & 8000MHz MRDIMM up to 2TB
  • 1 x 1300W PS2 ATX PSU
  • 4 x PCIe Gen5 x16 slots
  • 3 x front-accessible 2.5" storage bays + 2 x M.2 NVMe
  • Intel I210AT 1GbE + E610-XAT2 (2 x 10GbE)
  • Windows 11 / Server 2025 / Ubuntu 24.04 / RHEL

Applications & Use Cases

The HPS-GNRU4A is ideal for various industrial automation applications:

  • High-performance computing and data processing tasks
  • Memory-intensive applications and multitasking
  • Data logging and storage-intensive operations
  • Industrial computing and data processing
  • Edge computing and IoT applications
  • Real-time monitoring and control
  • Industrial automation systems
