Avalue · High Performance Computing

HPM-246UA

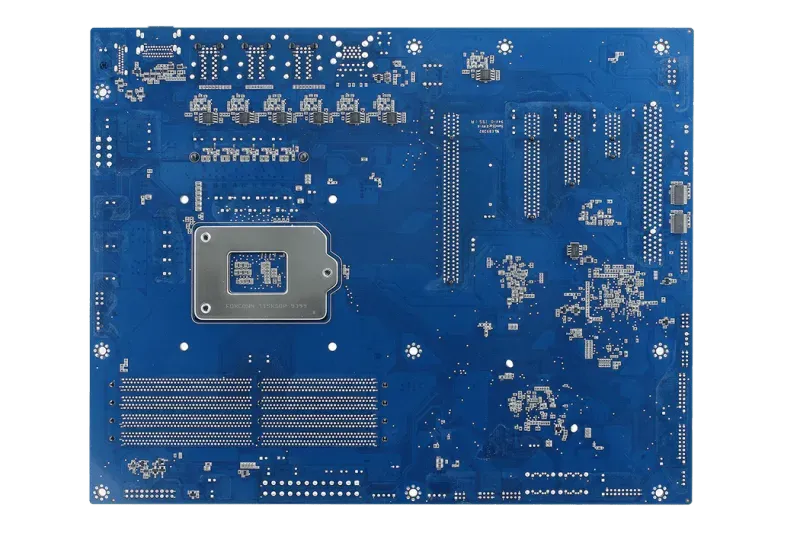

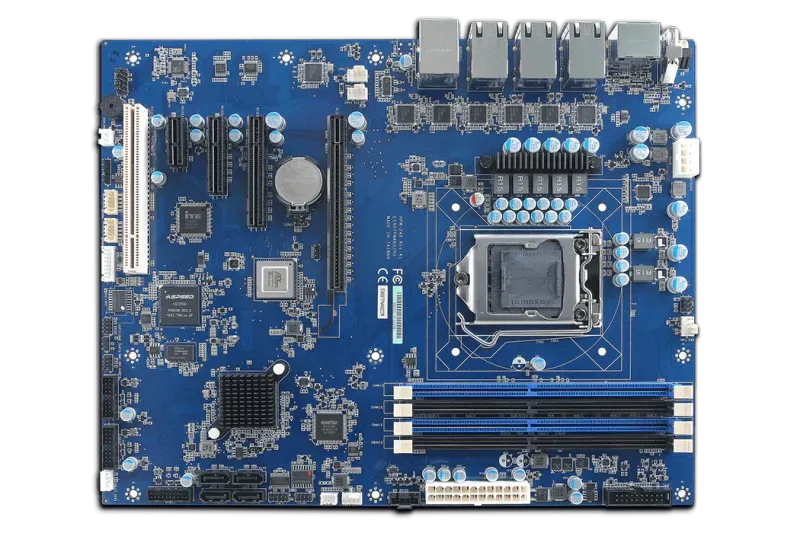

HPM-246UA FrontHPM-246UA Front

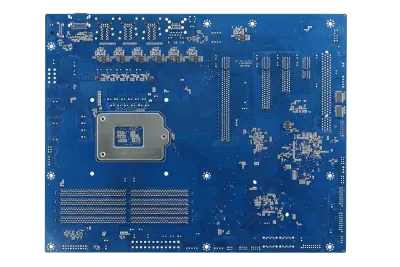

HPM-246UA, Image 1HPM-246UA, Image 2
Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

  • Single 8th/9th Gen Intel® Core/Xeon® E ATX server board with IPMI 2.0
  • Intel LGA1151 socket (max. TDP 95W), Intel® C246 chipset
  • 4 x DDR4 2666MHz ECC/Non-ECC DIMM up to 128GB
  • TPM 2.0 onboard; IPMI 2.0 with AST2500 BMC controller
  • 7 x Intel I210AT 1GbE controllers
  • Flexible PCIe Gen3/Gen2 expansion + 1 x PCI 3.0
  • 4 x SATA III, 2 x USB 3.2 Gen2 + 6 x USB 3.2 Gen1
  • 3 x DP++ (up to 4096x2304@60Hz)
  • 12" x 9.6" (304.8 x 243.84 mm); Windows 10 IoT / Server

Product Description

The Avalue HPM-246UA is a single-socket ATX server board built on the Intel LGA1151 socket for 8th/9th Generation Intel® Core™ i7/i5/i3, Pentium®, Celeron® and Xeon® E processors (max.

TDP up to 95W) with the Intel® C246 chipset, designed as a network-dense, manageable x86 platform for edge servers and networking appliances.

With 4 x DDR4 2666MHz ECC/Non-ECC DIMM up to 128GB, onboard TPM 2.0 and IPMI 2.0 via an ASPEED AST2500 BMC, it pairs efficient Core/Xeon-E performance with seven Intel GbE ports in a 12" x 9.6" board.

It provides flexible PCIe Gen3/Gen2 expansion plus a PCI 3.0 slot, 4 x SATA III, 7 x Intel I210AT 1GbE, triple DP++ (4K) display, and USB 3.2 Gen2/Gen1, running Windows 10 IoT or Windows Server 2016/2019.

Technical Specifications

Processor

Intel LGA1151 Socket supports 8th/9th Generation Intel® Core i7/i5/i3/Pentium/Celeron/Xeon E Processor (Max. TDP at 95W)

Platform Controller Hub

Intel® C246 Chipset

System Memory

4 x DDR4 2666MHz ECC and Non-ECC DIMM support up to 128GB (ECC memory supported by specific CPU SKUs)

I/O Chipset

Nuvoton NCT6106D

Watchdog Timer

System reset event 5~255 seconds/5~255 minutes

BIOS

AMI UEFI BIOS

H/W Status Monitor

CPU temperature, fan speed and voltage monitoring, fan speed control, case open detection

TPM

TPM 2.0 onboard

IPMI

IPMI 2.0 with AST 2500 BMC controller onboard

USB

2 x USB 3.2 Gen2 ports

DP

3 x DP++ ports

RJ-45

7 x RJ45 (LAN1 shares IPMI port)

Graphic Chipset

Intel 8th/9th Generation CPU integrated, AST 2500 BMC controller

Resolution

3 x DP++ ports DP: 4096 x 2304 @ 60Hz

HDMI: 4096 x 2160 @ 30Hz

1 x VGA port VGA: 1920 x 1200 @ 60Hz 32bpp

Expansion

1 x PCIe Gen3 x16 slot, 1 x PCIe Gen2 x8 slot, 1 x PCIe Gen3 x4 slot, 1 x PCIe Gen3 x1 slot, 1 x PCI 3.0 slot

Slot 1, PCI 3.0

Slot 2, PCIe Gen 3.0 x1

Slot 3, PCIe Gen 3.0 x4

Slot 4, PCIe Gen 2.0 x8

Slot 5, PCIe Gen 3.0 x16 (closest to CPU)

USB

6 x Internal USB 3.2 Gen1 ports

SATA

4 x SATA III

Serial

2 x Internal RS232 ports

VGA

1 x Internal VGA port

CMOS Battery

1 x Horizontal Socket Type CMOS Battery Holder with CR2450

LAN Chipset

7 x Intel I210AT 1GbE controllers

LAN Port

7 x RJ45 (LAN1 shares IPMI port)

Operating Temp.

0 ~ 60°C (32 ~ 140°F)

Storage Temp.

-25 ~ 70°C

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Weight

0.7KG

Power Connector

1 x Std. 24 Pin ATX connector

1 x 8 Pin SSI 12V connector

Dimension (L x W)

12" x 9.6" (304.8mm x 243.84mm), PCB thickness is 2.0mm

OS

Windows 10 IoT Enterprise

Windows Server 2016

Windows Server 2019

Ordering Information

HPM-246UAA-A1R: ATX LGA1151 Intel 8th/9th Gen. C246 w/4xDDR4/1xPCIex16/7x1GbE/8xUSB3.2/4xSATA3.0

HPM-246UAL-A1R: ATX LGA1151 Intel 8th/9th Gen. C246 Lite version w/4xDDR4/1xPCIex16/3x1GbE/8xUSB3.2/4xSATA3.0

What is HPM-246UA?

The HPM-246UA is a high performance computing manufactured by Avalue, designed specifically for server-board applications. The Avalue HPM-246UA is a single-socket ATX server board built on the Intel LGA1151 socket for 8th/9th Generation Intel® Core™ i7/i5/i3, Pentium®, Celeron® and Xeon® E processors (max. TDP up to 95W) with the Intel® C246 chipset, designed as a network-dense, manageable x86 platform for edge servers and networking appliances. With 4 x DDR4 2666MHz ECC/Non-ECC DIMM up to 128GB, onboard TPM 2.0 and IPMI 2.0 via an ASPEED AST2500 BMC, it pairs efficient Core/Xeon-E performance with seven Intel GbE ports in a 12" x 9.6" board. It provides flexible PCIe Gen3/Gen2 expansion plus a PCI 3.0 slot, 4 x SATA III, 7 x Intel I210AT 1GbE, triple DP++ (4K) display, and USB 3.2 Gen2/Gen1, running Windows 10 IoT or Windows Server 2016/2019.

Key Features & Benefits

  • Single 8th/9th Gen Intel® Core/Xeon® E ATX server board with IPMI 2.0
  • Intel LGA1151 socket (max. TDP 95W), Intel® C246 chipset
  • 4 x DDR4 2666MHz ECC/Non-ECC DIMM up to 128GB
  • TPM 2.0 onboard; IPMI 2.0 with AST2500 BMC controller
  • 7 x Intel I210AT 1GbE controllers
  • Flexible PCIe Gen3/Gen2 expansion + 1 x PCI 3.0
  • 4 x SATA III, 2 x USB 3.2 Gen2 + 6 x USB 3.2 Gen1
  • 3 x DP++ (up to 4096x2304@60Hz)
  • 12" x 9.6" (304.8 x 243.84 mm); Windows 10 IoT / Server

Applications & Use Cases

The HPM-246UA is ideal for various industrial automation applications:

  • High-performance computing and data processing tasks
  • Peripheral device connectivity and data transfer
  • Memory-intensive applications and multitasking
  • Internet of Things (IoT) and edge computing
  • Industrial computing and data processing
  • Edge computing and IoT applications
  • Real-time monitoring and control
  • Industrial automation systems
