HPM-621UA

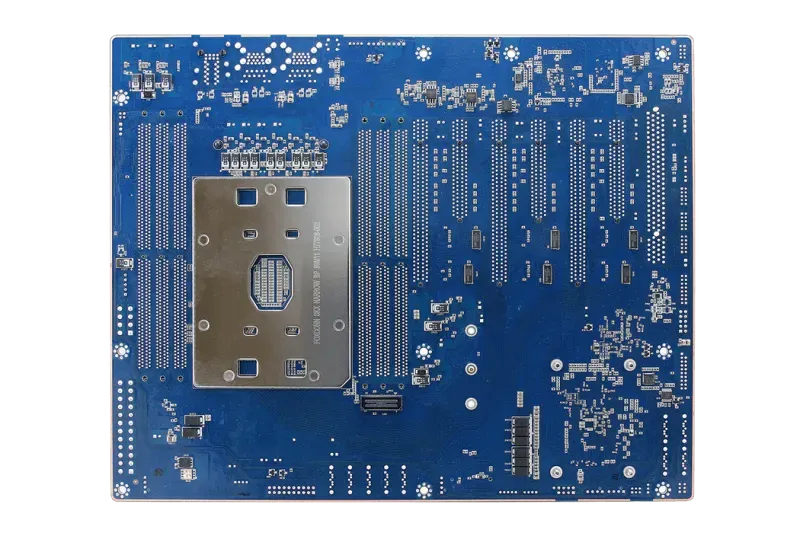

HPM-621UA FrontHPM-621UA Front

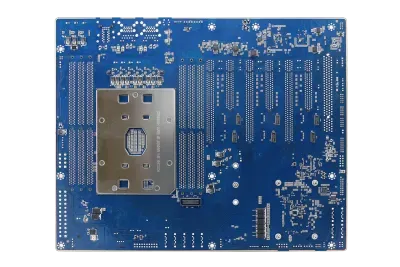

HPM-621UA, Image 1HPM-621UA, Image 2
Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

  • Single 1st/2nd Gen Intel® Xeon® Scalable ATX server board with IPMI 2.0
  • Intel FCLGA3647 socket (max. TDP 150W), Intel® C621 chipset
  • 6 x DDR4 2933/2666/2400/2133MHz RDIMM/LRDIMM up to 768GB
  • TPM 2.0 onboard; IPMI 2.0 with AST2500 BMC controller
  • 4 x Intel I210AT 1GbE controllers
  • Flexible PCIe Gen3: 3 x x16 or 6 x x8 + 1 x PCI 3.0
  • 1 x M.2 M-Key PCIe 3.0 x4 NVMe (2242/2260/2280)
  • 9 x SATA III (RAID 0/1/5/10)
  • 12" x 9.6" (304.8 x 243.84 mm); Windows 10 IoT / Server / Ubuntu

Product Description

The Avalue HPM-621UA is a single-socket ATX server board built on the Intel FCLGA3647 socket for 1st and 2nd Generation Intel® Xeon® Scalable processors (max. TDP up to 150W) with the Intel® C621 chipset, designed as a manageable, storage-rich x86 compute platform for edge servers and HPC nodes.

With 6 x DDR4 2933/2666/2400/2133MHz RDIMM/LRDIMM up to 768GB, onboard TPM 2.0 and IPMI 2.0 via an ASPEED AST2500 BMC, it delivers reliable server-class performance in a 12" x 9.6" board.

It provides flexible PCIe Gen3 expansion (up to 3 x x16 or 6 x x8 plus a PCI 3.0 slot), an M.2 M-Key PCIe 3.0 x4 NVMe, 9 x SATA III (RAID 0/1/5/10), quad Intel I210AT 1GbE, and USB 3.2 Gen1/USB 2.0, running Windows 10 IoT, Windows Server 2016/2019 or Ubuntu 18.04 LTS or later.

Technical Specifications

Processor

Intel FCLGA3647 Socket supports 1st and 2nd Generation Intel® Xeon® Scalable Processor (Max. TDP at 150W)

Platform Controller Hub

Intel® C621 Chipset

System Memory

6 x DDR4 2933/ 2666/ 2400/ 2133 MHz RDIMM/ LRDIMM up to 768GB

Watchdog Timer

System reset event 0 ~ 6553 seconds

BIOS

AMI UEFI BIOS

H/W Status Monitor

CPU temperature, fan speed and voltage monitoring, fan speed control, case open detection

TPM

TPM 2.0 onboard

IPMI

IPMI 2.0 with AST 2500 BMC controller onboard

USB

4 x USB 3.2 Gen1 ports

RJ-45

4 x RJ45 (LAN1 shares IPMI port)

Graphic Chipset

AST 2500 BMC controller

Resolution

1 x VGA port, VGA: 1920 x 1200 @ 60Hz 32bpp

Expansion

1 x PCI 3.0 slot, 3 x PCIe Gen3 x16 slots or 6 x PCIe Gen3 x8 slots

Slot 1, PCI 3.0

Slot 2, PCIe 3.0 x8

Slot 3, PCIe 3.0 x16 (switches to x8 when Slot 2 is used)

Slot 4, PCIe 3.0 x8

Slot 5, PCIe 3.0 x16 (switches to x8 when Slot 4 is used)

Slot 6, PCIe 3.0 x8

Slot 7, PCIe 3.0 x16 (closest to CPU, switches to x8 when Slot 6 is used)

M.2

1 x M.2 M-Key PCIe 3.0 x4 NVMe SSD, 2242/2260/2280 form factor

USB

2 x Internal USB 2.0 ports

2 x Internal USB 3.2 Gen1 ports

SATA

9 x SATA III Support RAID 0,1,5,10

Serial

2 x Internal RS232 ports

VGA

1 x Internal VGA port

CMOS Battery

1 x Horizontal Socket Type CMOS Battery Holder with CR2450

LAN Chipset

4 x Intel I210AT 1GbE controllers

LAN Port

4 x RJ45 (LAN1 shares IPMI port)

Operating Temp.

0 ~ 60°C (32 ~ 140°F)

Storage Temp.

-40 ~ 85°C

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Weight

0.97KG

Power Connector

1 x Std. 24 Pin ATX connector

1 x 8 Pin SSI 12V connector

Dimension (L x W)

12" x 9.6" (304.8mm x 243.84mm), PCB thickness is 2.0mm

OS

Windows 10 IoT Enterprise

Windows Server 2016

Windows Server 2019

Ubuntu 18.04 LTS or Later

Ordering Information

HPM-621UAA-A1R: ATX 1xLGA3647 Intel 1st/2nd Gen. C621 w/6xDDR4/3xPCIe x16/4x1GbE/6xUSB3.2/9xSATA3.0
