HPM-GNRDE

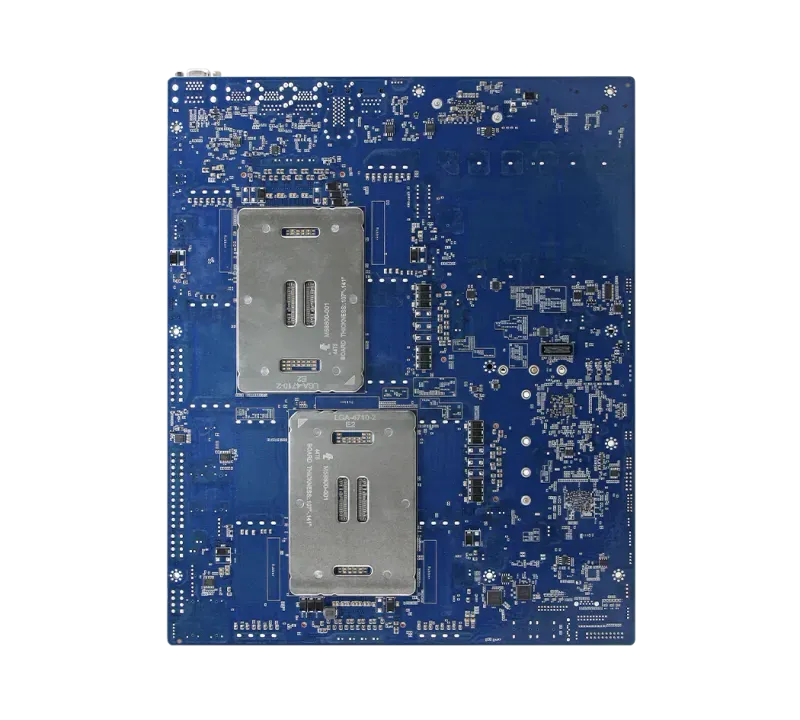

HPM-GNRDE FrontHPM-GNRDE Front
HPM-GNRDE, Image 1HPM-GNRDE, Image 2
Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

  • Dual Intel® Xeon® 6 EATX server board with IPMI 2.0
  • 2 x Intel LGA4710 sockets, Xeon® 6 6500P & 6700P (max. TDP 350W each)
  • 16 x DDR5 6400MHz RDIMM & 8000MHz MRDIMM up to 4TB
  • TPM 2.0 onboard; IPMI 2.0 with AST2600 BMC controller
  • 2 x Intel I210AT 1GbE + 1 x Intel E610-XAT2 (2 x 10GbE)
  • 5 x PCIe Gen5 x16 + 1 x PCIe Gen5 x8 slot
  • 2 x M.2 M-Key PCIe 5.0 x4 NVMe
  • 9 x SATA III + 4 x Slim SAS 8i + 3 x MCIO x8
  • 12" x 14.5" (304.8 x 368.3 mm); Windows 11 / Server 2025 / Ubuntu / RHEL

Product Description

The Avalue HPM-GNRDE is a dual-socket EATX server board built on twin Intel LGA4710 sockets for Intel® Xeon® 6 6500P & 6700P series processors (max. TDP up to 350W each), designed as a high-core-count, expansion-rich x86 platform for HPC and edge data-center nodes.

With 16 x DDR5 6400MHz RDIMM / 8000MHz MRDIMM up to 4TB, onboard TPM 2.0 and IPMI 2.0 via an ASPEED AST2600 BMC, it delivers two-socket Xeon 6 performance in a 12" x 14.5" board.

It provides 5 x PCIe Gen5 x16 and 1 x PCIe Gen5 x8 slot, dual M.2 M-Key PCIe 5.0 x4 NVMe, 9 x SATA III, 4 x Slim SAS 8i + 3 x MCIO x8, triple Intel Ethernet (2 x I210AT 1GbE + E610-XAT2 dual 10GbE), and USB 3.2 Gen2, running Windows 11 / Windows Server 2025, Ubuntu 24.04 or RHEL 8.0+.

Technical Specifications

Processor

Dual Intel LGA4710 Sockets support Intel® Xeon® 6 6500P & 6700P series Processor (Max. TDP at 350W each)

System Memory

16 x DDR5 6400 MHz RDIMM & 8000 MHz MRDIMM Up to 4TB

Watchdog Timer

System reset event 0 ~ 6553 seconds

BIOS

AMI UEFI BIOS

H/W Status Monitor

CPU temperature, fan speed and voltage monitoring, fan speed control, case open detection

TPM

TPM 2.0 onboard

IPMI

IPMI 2.0 with AST 2600 BMC controller onboard

USB

6 x USB 3.2 Gen2 ports

COM Port

1 x RS232 port

RJ-45

5 x RJ45 MGMT port for dedicated IPMI access only, LAN1 port for 1GbE shared with IPMI access, LAN2 port for 1GbE, LAN3 and 4 ports for 10GbE

VGA

1 x VGA port

Graphic Chipset

AST2600 BMC controller

Resolution

1 x VGA port, VGA: 1920 x 1200 @ 60Hz 32bpp

Expansion

5 x PCIe Gen5 x16 slots & 1 x PCIe Gen5 x8 slot

Slot 1, PCIe 5.0 x16 from 1st CPU

Slot 2, PCIe 5.0 x16 from 2nd CPU

Slot 3, PCIe 5.0 x16 from 2nd CPU

Slot 4, PCIe 5.0 x16 from 2nd CPU

Slot 5, PCIe 5.0 x16 from 2nd CPU

Slot 6, PCIe 5.0 x8 from 1st CPU

M.2

1 x M.2 M-Key PCIe 5.0 x4 NVMe SSD from 1st CPU, 2242/2260/2280/22110 form factor

1 x M.2 M-Key PCIe 5.0 x4 NVMe SSD from 1st CPU, 2242/2260/2280 form factor

USB

4 x Internal USB 3.2 Gen1 ports

1 x Internal USB 3.2 Gen1 type A receptacle

SATA

9 x SATA III (2 x Mini-SAS HD 4i for 4 x SATA only & 1 x 7pin SATA connector)

Serial

1 x Internal RS232 port (S/W disable, only supported Ubuntu 24.02 if enable function)

Other

4 x Slim SAS 8i (SFF-8654) connectors (from 1st CPU)

3 x MCIO x8 connectors (SFF-TA-1016) (from 2nd CPU)

CMOS Battery

1 x Horizontal Socket Type CMOS Battery Holder with CR2450

LAN Chipset

2 x Intel I210AT 1GbE controllers

1 x Intel E610-XAT2 10GbE controller supports 2 x 10GbE Ethernet ports

LAN Port

5 x RJ45 MGMT port for dedicated IPMI access only, LAN1 port for 1GbE shared with IPMI access, LAN2 port for 1GbE, LAN3 and 4 ports for 10GbE

Operating Temp.

0 ~ 50°C (32 ~ 122°F) to support up to 350W TDP CPU

0 ~ 50°C (32 ~ 122°F) to support up to 270W TDP CPU

Storage Temp.

-40 ~ 85°C

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Power Connector

1 x Std. 24 Pin ATX connector

4 x 8 Pin SSI 12V connectors

Dimension (L x W)

12" x 14.5" (304.8mm x 368.3mm), PCB thickness is 2.8mm

OS

Windows 11 SAC and LTSC

Windows Server 2025

Ubuntu 24.04

Red Hat Enterprise Linux (RHEL) 8.0 or above

Ordering Information

HPM-GNRDEA-A1R: EATX 2xLGA4710 Intel Xeon 65/67P/E610 16xDDR5/5xPCIex16/2x10GbE/2x1GbE/11xUSB3/9xSATA3

HPM-GNRDEL-A1R: EATX 2xLGA4710 Intel Xeon 65/67P 16xDDR5/5xPCIex16/2x1GbE/11xUSB3/9xSATA3

What is HPM-GNRDE?

The HPM-GNRDE is a high performance computing manufactured by Avalue, designed specifically for server-board applications. The Avalue HPM-GNRDE is a dual-socket EATX server board built on twin Intel LGA4710 sockets for Intel® Xeon® 6 6500P & 6700P series processors (max. TDP up to 350W each), designed as a high-core-count, expansion-rich x86 platform for HPC and edge data-center nodes. With 16 x DDR5 6400MHz RDIMM / 8000MHz MRDIMM up to 4TB, onboard TPM 2.0 and IPMI 2.0 via an ASPEED AST2600 BMC, it delivers two-socket Xeon 6 performance in a 12" x 14.5" board. It provides 5 x PCIe Gen5 x16 and 1 x PCIe Gen5 x8 slot, dual M.2 M-Key PCIe 5.0 x4 NVMe, 9 x SATA III, 4 x Slim SAS 8i + 3 x MCIO x8, triple Intel Ethernet (2 x I210AT 1GbE + E610-XAT2 dual 10GbE), and USB 3.2 Gen2, running Windows 11 / Windows Server 2025, Ubuntu 24.04 or RHEL 8.0+.

Key Features & Benefits

  • Dual Intel® Xeon® 6 EATX server board with IPMI 2.0
  • 2 x Intel LGA4710 sockets, Xeon® 6 6500P & 6700P (max. TDP 350W each)
  • 16 x DDR5 6400MHz RDIMM & 8000MHz MRDIMM up to 4TB
  • TPM 2.0 onboard; IPMI 2.0 with AST2600 BMC controller
  • 2 x Intel I210AT 1GbE + 1 x Intel E610-XAT2 (2 x 10GbE)
  • 5 x PCIe Gen5 x16 + 1 x PCIe Gen5 x8 slot
  • 2 x M.2 M-Key PCIe 5.0 x4 NVMe
  • 9 x SATA III + 4 x Slim SAS 8i + 3 x MCIO x8
  • 12" x 14.5" (304.8 x 368.3 mm); Windows 11 / Server 2025 / Ubuntu / RHEL

Applications & Use Cases

The HPM-GNRDE is ideal for various industrial automation applications:

  • High-performance computing and data processing tasks
  • Memory-intensive applications and multitasking
  • Industrial computing and data processing
  • Edge computing and IoT applications
  • Real-time monitoring and control
  • Industrial automation systems

Frequently Asked Questions
