HPM-GNRDE

Series: HPM

Manufactured byAvalue

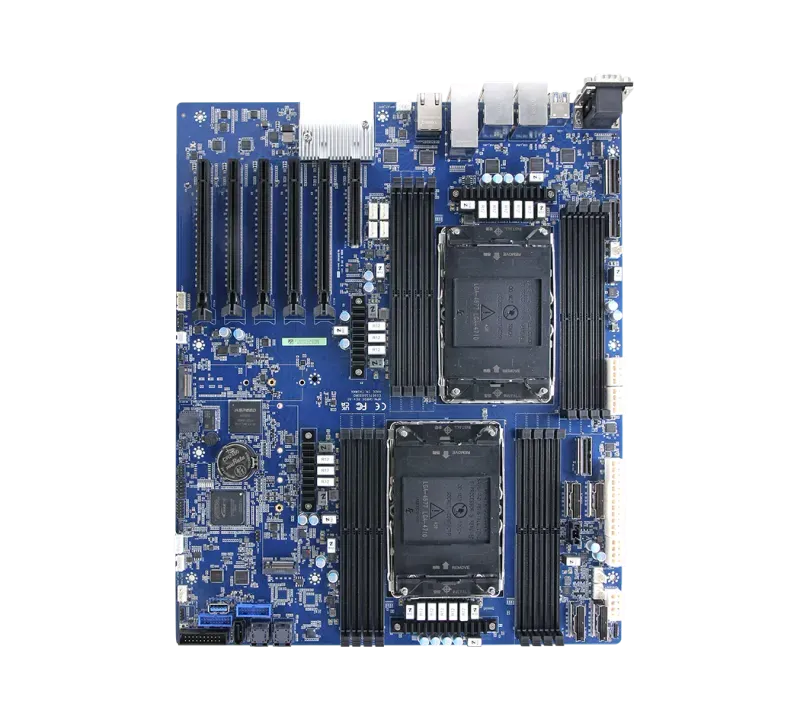

The Avalue HPM-GNRDE is a dual-socket EATX server board built on twin Intel LGA4710 sockets for Intel® Xeon® 6 6500P & 6700P series processors (max. TDP up to 350W each), designed as a high-core-count, expansion-rich x86 platform for HPC and edge data-center nodes. With 16 x DDR5 6400MHz RDIMM / 8000MHz MRDIMM up to 4TB, onboard TPM 2.0 and IPMI 2.0 via an ASPEED AST2600 BMC, it delivers two-socket Xeon 6 performance in a 12" x 14.5" board. It provides 5 x PCIe Gen5 x16 and 1 x PCIe Gen5 x8 slot, dual M.2 M-Key PCIe 5.0 x4 NVMe, 9 x SATA III, 4 x Slim SAS 8i + 3 x MCIO x8, triple Intel Ethernet (2 x I210AT 1GbE + E610-XAT2 dual 10GbE), and USB 3.2 Gen2, running Windows 11 / Windows Server 2025, Ubuntu 24.04 or RHEL 8.0+.

Key Features

Dual Intel® Xeon® 6 EATX server board with IPMI 2.0
2 x Intel LGA4710 sockets, Xeon® 6 6500P & 6700P (max. TDP 350W each)
16 x DDR5 6400MHz RDIMM & 8000MHz MRDIMM up to 4TB
TPM 2.0 onboard; IPMI 2.0 with AST2600 BMC controller
2 x Intel I210AT 1GbE + 1 x Intel E610-XAT2 (2 x 10GbE)
5 x PCIe Gen5 x16 + 1 x PCIe Gen5 x8 slot
2 x M.2 M-Key PCIe 5.0 x4 NVMe
9 x SATA III + 4 x Slim SAS 8i + 3 x MCIO x8
12" x 14.5" (304.8 x 368.3 mm); Windows 11 / Server 2025 / Ubuntu / RHEL

Technical Specifications

System Information

Processor	Dual Intel LGA4710 Sockets support Intel® Xeon® 6 6500P & 6700P series Processor (Max. TDP at 350W each)
System Memory	16 x DDR5 6400 MHz RDIMM & 8000 MHz MRDIMM Up to 4TB
Watchdog Timer	System reset event 0 ~ 6553 seconds
BIOS	AMI UEFI BIOS
H/W Status Monitor	CPU temperature, fan speed and voltage monitoring, fan speed control, case open detection
TPM	TPM 2.0 onboard
IPMI	IPMI 2.0 with AST 2600 BMC controller onboard

Rear I/O

USB	6 x USB 3.2 Gen2 ports
COM Port	1 x RS232 port
RJ-45	5 x RJ45 MGMT port for dedicated IPMI access only, LAN1 port for 1GbE shared with IPMI access, LAN2 port for 1GbE, LAN3 and 4 ports for 10GbE
VGA	1 x VGA port

Display

Graphic Chipset	AST2600 BMC controller
Resolution	1 x VGA port, VGA: 1920 x 1200 @ 60Hz 32bpp

Expansion

Expansion	5 x PCIe Gen5 x16 slots & 1 x PCIe Gen5 x8 slot, Slot 1, PCIe 5.0 x16 from 1st CPU, Slot 2, PCIe 5.0 x16 from 2nd CPU, Slot 3, PCIe 5.0 x16 from 2nd CPU, Slot 4, PCIe 5.0 x16 from 2nd CPU, Slot 5, PCIe 5.0 x16 from 2nd CPU, Slot 6, PCIe 5.0 x8 from 1st CPU

Storage

M.2	1 x M.2 M-Key PCIe 5.0 x4 NVMe SSD from 1st CPU, 2242/2260/2280/22110 form factor, 1 x M.2 M-Key PCIe 5.0 x4 NVMe SSD from 1st CPU, 2242/2260/2280 form factor

I/O

USB	4 x Internal USB 3.2 Gen1 ports, 1 x Internal USB 3.2 Gen1 type A receptacle
SATA	9 x SATA III (2 x Mini-SAS HD 4i for 4 x SATA only & 1 x 7pin SATA connector)
Serial	1 x Internal RS232 port (S/W disable, only supported Ubuntu 24.02 if enable function)
Other	4 x Slim SAS 8i (SFF-8654) connectors (from 1st CPU), 3 x MCIO x8 connectors (SFF-TA-1016) (from 2nd CPU)
CMOS Battery	1 x Horizontal Socket Type CMOS Battery Holder with CR2450

Ethernet

LAN Chipset	2 x Intel I210AT 1GbE controllers, 1 x Intel E610-XAT2 10GbE controller supports 2 x 10GbE Ethernet ports
LAN Port	5 x RJ45 MGMT port for dedicated IPMI access only, LAN1 port for 1GbE shared with IPMI access, LAN2 port for 1GbE, LAN3 and 4 ports for 10GbE

Mechanical & Environmental

Operating Temp.	0 ~ 50°C (32 ~ 122°F) to support up to 350W TDP CPU, 0 ~ 50°C (32 ~ 122°F) to support up to 270W TDP CPU
Storage Temp.	-40 ~ 85°C
Operating Humidity	40°C @ 95% Relative Humidity, Non-condensing
Power Connector	1 x Std. 24 Pin ATX connector, 4 x 8 Pin SSI 12V connectors
Dimension (L x W)	12" x 14.5" (304.8mm x 368.3mm), PCB thickness is 2.8mm

Software Support

OS	Windows 11 SAC and LTSC, Windows Server 2025, Ubuntu 24.04, Red Hat Enterprise Linux (RHEL) 8.0 or above

Ordering Information

Ordering Information	HPM-GNRDEA-A1R: EATX 2xLGA4710 Intel Xeon 65/67P/E610 16xDDR5/5xPCIex16/2x10GbE/2x1GbE/11xUSB3/9xSATA3, HPM-GNRDEL-A1R: EATX 2xLGA4710 Intel Xeon 65/67P 16xDDR5/5xPCIex16/2x1GbE/11xUSB3/9xSATA3
