Avalue · High Performance Computing

HPM-GNRUA

HPM-GNRUA FrontHPM-GNRUA Front

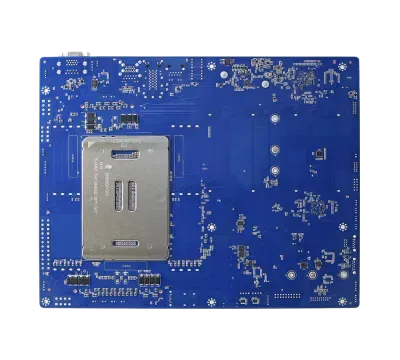

HPM-GNRUA, Image 1HPM-GNRUA, Image 2
Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

  • Single Intel® Xeon® 6 ATX server board with IPMI 2.0
  • Intel LGA4710 socket, Xeon® 6 6500P & 6700P series (max. TDP 350W)
  • 8 x DDR5 6400MHz RDIMM & 8000MHz MRDIMM up to 2TB
  • TPM 2.0 onboard; IPMI 2.0 with AST2600 BMC controller
  • 1 x Intel I210AT 1GbE + 1 x Intel E610-XAT2 (2 x 10GbE)
  • 4 x PCIe Gen5 x16 slots
  • 2 x M.2 M-Key PCIe 5.0 x4 NVMe (2260/2280/22110)
  • 5 x SATA III (MiniSAS HD 4i + 7-pin SATA), 1 x Slim SAS 4i
  • 12" x 9.6" (304.8 x 243.84 mm); Windows 11 / Server 2025 / Ubuntu / RHEL

Product Description

The Avalue HPM-GNRUA is a single-socket ATX server board built on the Intel LGA4710 socket for Intel® Xeon® 6 6500P & 6700P series processors (max. TDP up to 350W), designed as a high-density, manageable compute platform for edge servers and HPC nodes.

With 8 x DDR5 6400MHz RDIMM / 8000MHz MRDIMM up to 2TB, onboard TPM 2.0 and IPMI 2.0 via an ASPEED AST2600 BMC, it delivers data-center-class x86 performance in a 12" x 9.6" board.

It provides 4 x PCIe Gen5 x16 slots, 2 x M.2 M-Key PCIe 5.0 x4 NVMe, 5 x SATA III, dual Intel Ethernet (I210AT 1GbE + E610-XAT2 dual 10GbE), USB 3.2 Gen1, and a Slim SAS 4i connector, running Windows 11 / Windows Server 2025, Ubuntu 24.04 or RHEL 8.0+.

Technical Specifications

Processor

Intel LGA4710 Socket supports Intel® Xeon® 6 6500P & 6700P series Processor (Max. TDP at 350W)

System Memory

8 x DDR5 6400 MHz RDIMM & 8000 MHz MRDIMM Up to 2TB

Watchdog Timer

System reset event 0 ~ 6553 seconds

BIOS

AMI UEFI BIOS

H/W Status Monitor

CPU temperature, fan speed and voltage monitoring, fan speed control, case open detection

TPM

TPM 2.0 onboard

IPMI

IPMI 2.0 with AST 2600 BMC controller onboard

USB

2 x USB 3.2 Gen1 ports

COM Port

1 x RS232 port

RJ-45

4 x RJ45 MGMT port for dedicated IPMI access only, LAN1 port for 1GbE shared with IPMI access, LAN2 and 3 ports for 10GbE

VGA

1 x VGA port

Graphic Chipset

AST2600 BMC controller

Resolution

1 x VGA port, VGA: 1920 x 1200 @ 60Hz 32bpp

Expansion

4 x PCIe Gen5 x16 slots

Slot 1, PCIe Gen5 x16

Slot 3, PCIe Gen5 x16

Slot 5, PCIe Gen5 x16

Slot 7, PCIe Gen5 x16 (closest to the CPU)

M.2

2 x M.2 M-Key slots to support 1 x PCIe 5.0 x4 NVMe SSD from 1st CPU, 2260/2280/22110 form factor

USB

4 x Internal USB 3.2 Gen1 ports

SATA

5 x SATA III (1 x Mini-SAS HD 4i for 4 x SATA only & 1 x 7pin SATA connector)

Serial

1 x Internal RS232 port

Other

1 x Slim SAS 4i (SFF-8654) connector

CMOS Battery

1 x Horizontal Socket Type CMOS Battery Holder with CR2450

LAN Chipset

1 x Intel I210AT 1GbE controller

1 x Intel E610-XAT2 10GbE controller supports 2 x 10GbE Ethernet ports

LAN Port

4 x RJ45 MGMT port for dedicated IPMI access only, LAN1 port for 1GbE shared with IPMI access, LAN2 and 3 ports for 10GbE

Operating Temp.

0 ~ 55°C (32 ~ 131°F) to support up to 350W TDP CPU

0 ~ 55°C (32 ~ 131°F) to support up to 270W TDP CPU

Storage Temp.

-40 ~ 85°C

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Power Connector

1 x Std. 24 Pin ATX connector

3 x 8 Pin SSI 12V connectors

Dimension (L x W)

12" x 9.6" (304.8mm x 243.84mm), PCB thickness is 2.59mm

OS

Windows 11 SAC and LTSC

Windows Server 2025

Ubuntu 24.04

Red Hat Enterprise Linux (RHEL) 8.0 or above

Ordering Information

HPM-GNRUAA-A1R: ATX 1xLGA4710 Intel Xeon 65/67P/E610 8xDDR5/4xPCIex16/2x10GbE/1x1GbE/6xUSB3/5xSATA3

HPM-GNRUAL-A1R: ATX 1xLGA4710 Intel Xeon 65/67P 8xDDR5/4xPCIex16/1x1GbE/6xUSB3/5xSATA3

What is HPM-GNRUA?

The HPM-GNRUA is a high performance computing manufactured by Avalue, designed specifically for server-board applications. The Avalue HPM-GNRUA is a single-socket ATX server board built on the Intel LGA4710 socket for Intel® Xeon® 6 6500P & 6700P series processors (max. TDP up to 350W), designed as a high-density, manageable compute platform for edge servers and HPC nodes. With 8 x DDR5 6400MHz RDIMM / 8000MHz MRDIMM up to 2TB, onboard TPM 2.0 and IPMI 2.0 via an ASPEED AST2600 BMC, it delivers data-center-class x86 performance in a 12" x 9.6" board. It provides 4 x PCIe Gen5 x16 slots, 2 x M.2 M-Key PCIe 5.0 x4 NVMe, 5 x SATA III, dual Intel Ethernet (I210AT 1GbE + E610-XAT2 dual 10GbE), USB 3.2 Gen1, and a Slim SAS 4i connector, running Windows 11 / Windows Server 2025, Ubuntu 24.04 or RHEL 8.0+.

Key Features & Benefits

  • Single Intel® Xeon® 6 ATX server board with IPMI 2.0
  • Intel LGA4710 socket, Xeon® 6 6500P & 6700P series (max. TDP 350W)
  • 8 x DDR5 6400MHz RDIMM & 8000MHz MRDIMM up to 2TB
  • TPM 2.0 onboard; IPMI 2.0 with AST2600 BMC controller
  • 1 x Intel I210AT 1GbE + 1 x Intel E610-XAT2 (2 x 10GbE)
  • 4 x PCIe Gen5 x16 slots
  • 2 x M.2 M-Key PCIe 5.0 x4 NVMe (2260/2280/22110)
  • 5 x SATA III (MiniSAS HD 4i + 7-pin SATA), 1 x Slim SAS 4i
  • 12" x 9.6" (304.8 x 243.84 mm); Windows 11 / Server 2025 / Ubuntu / RHEL

Applications & Use Cases

The HPM-GNRUA is ideal for various industrial automation applications:

  • High-performance computing and data processing tasks
  • Memory-intensive applications and multitasking
  • Industrial computing and data processing
  • Edge computing and IoT applications
  • Real-time monitoring and control
  • Industrial automation systems
