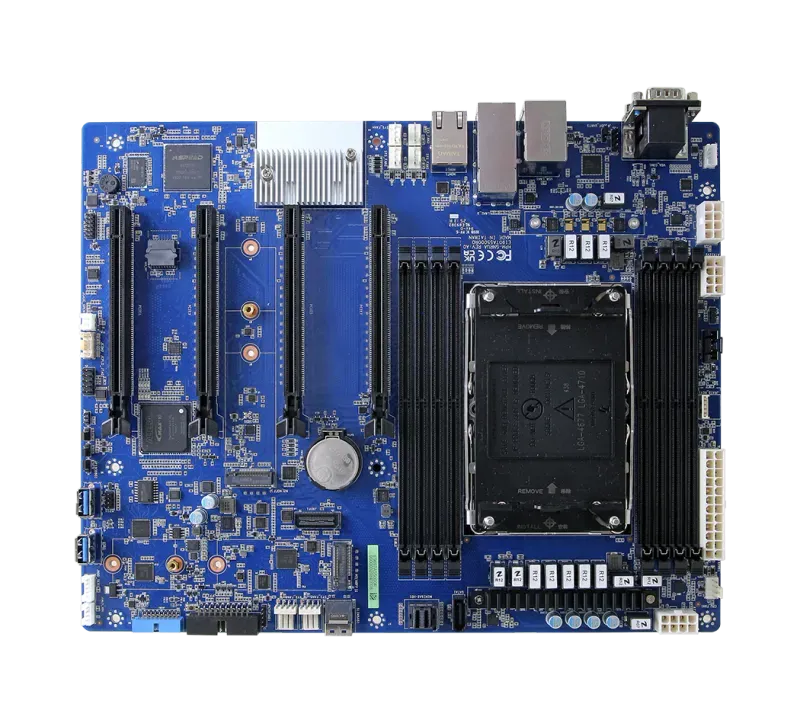

HPM-GNRUA

Series: HPM

Manufactured byAvalue

The Avalue HPM-GNRUA is a single-socket ATX server board built on the Intel LGA4710 socket for Intel® Xeon® 6 6500P & 6700P series processors (max. TDP up to 350W), designed as a high-density, manageable compute platform for edge servers and HPC nodes. With 8 x DDR5 6400MHz RDIMM / 8000MHz MRDIMM up to 2TB, onboard TPM 2.0 and IPMI 2.0 via an ASPEED AST2600 BMC, it delivers data-center-class x86 performance in a 12" x 9.6" board. It provides 4 x PCIe Gen5 x16 slots, 2 x M.2 M-Key PCIe 5.0 x4 NVMe, 5 x SATA III, dual Intel Ethernet (I210AT 1GbE + E610-XAT2 dual 10GbE), USB 3.2 Gen1, and a Slim SAS 4i connector, running Windows 11 / Windows Server 2025, Ubuntu 24.04 or RHEL 8.0+.

Key Features

Single Intel® Xeon® 6 ATX server board with IPMI 2.0
Intel LGA4710 socket, Xeon® 6 6500P & 6700P series (max. TDP 350W)
8 x DDR5 6400MHz RDIMM & 8000MHz MRDIMM up to 2TB
TPM 2.0 onboard; IPMI 2.0 with AST2600 BMC controller
1 x Intel I210AT 1GbE + 1 x Intel E610-XAT2 (2 x 10GbE)
4 x PCIe Gen5 x16 slots
2 x M.2 M-Key PCIe 5.0 x4 NVMe (2260/2280/22110)
5 x SATA III (MiniSAS HD 4i + 7-pin SATA), 1 x Slim SAS 4i
12" x 9.6" (304.8 x 243.84 mm); Windows 11 / Server 2025 / Ubuntu / RHEL

Technical Specifications

System Information

Processor	Intel LGA4710 Socket supports Intel® Xeon® 6 6500P & 6700P series Processor (Max. TDP at 350W)
System Memory	8 x DDR5 6400 MHz RDIMM & 8000 MHz MRDIMM Up to 2TB
Watchdog Timer	System reset event 0 ~ 6553 seconds
BIOS	AMI UEFI BIOS
H/W Status Monitor	CPU temperature, fan speed and voltage monitoring, fan speed control, case open detection
TPM	TPM 2.0 onboard
IPMI	IPMI 2.0 with AST 2600 BMC controller onboard

Rear I/O

USB	2 x USB 3.2 Gen1 ports
COM Port	1 x RS232 port
RJ-45	4 x RJ45 MGMT port for dedicated IPMI access only, LAN1 port for 1GbE shared with IPMI access, LAN2 and 3 ports for 10GbE
VGA	1 x VGA port

Display

Graphic Chipset	AST2600 BMC controller
Resolution	1 x VGA port, VGA: 1920 x 1200 @ 60Hz 32bpp

Expansion

Expansion	4 x PCIe Gen5 x16 slots, Slot 1, PCIe Gen5 x16, Slot 3, PCIe Gen5 x16, Slot 5, PCIe Gen5 x16, Slot 7, PCIe Gen5 x16 (closest to the CPU)

Storage

M.2	2 x M.2 M-Key slots to support 1 x PCIe 5.0 x4 NVMe SSD from 1st CPU, 2260/2280/22110 form factor

I/O

USB	4 x Internal USB 3.2 Gen1 ports
SATA	5 x SATA III (1 x Mini-SAS HD 4i for 4 x SATA only & 1 x 7pin SATA connector)
Serial	1 x Internal RS232 port
Other	1 x Slim SAS 4i (SFF-8654) connector
CMOS Battery	1 x Horizontal Socket Type CMOS Battery Holder with CR2450

Ethernet

LAN Chipset	1 x Intel I210AT 1GbE controller, 1 x Intel E610-XAT2 10GbE controller supports 2 x 10GbE Ethernet ports
LAN Port	4 x RJ45 MGMT port for dedicated IPMI access only, LAN1 port for 1GbE shared with IPMI access, LAN2 and 3 ports for 10GbE

Mechanical & Environmental

Operating Temp.	0 ~ 55°C (32 ~ 131°F) to support up to 350W TDP CPU, 0 ~ 55°C (32 ~ 131°F) to support up to 270W TDP CPU
Storage Temp.	-40 ~ 85°C
Operating Humidity	40°C @ 95% Relative Humidity, Non-condensing
Power Connector	1 x Std. 24 Pin ATX connector, 3 x 8 Pin SSI 12V connectors
Dimension (L x W)	12" x 9.6" (304.8mm x 243.84mm), PCB thickness is 2.59mm

Software Support

OS	Windows 11 SAC and LTSC, Windows Server 2025, Ubuntu 24.04, Red Hat Enterprise Linux (RHEL) 8.0 or above

Ordering Information

Ordering Information	HPM-GNRUAA-A1R: ATX 1xLGA4710 Intel Xeon 65/67P/E610 8xDDR5/4xPCIex16/2x10GbE/1x1GbE/6xUSB3/5xSATA3, HPM-GNRUAL-A1R: ATX 1xLGA4710 Intel Xeon 65/67P 8xDDR5/4xPCIex16/1x1GbE/6xUSB3/5xSATA3
