Avalue · High Performance Computing

HPM-GNRUP

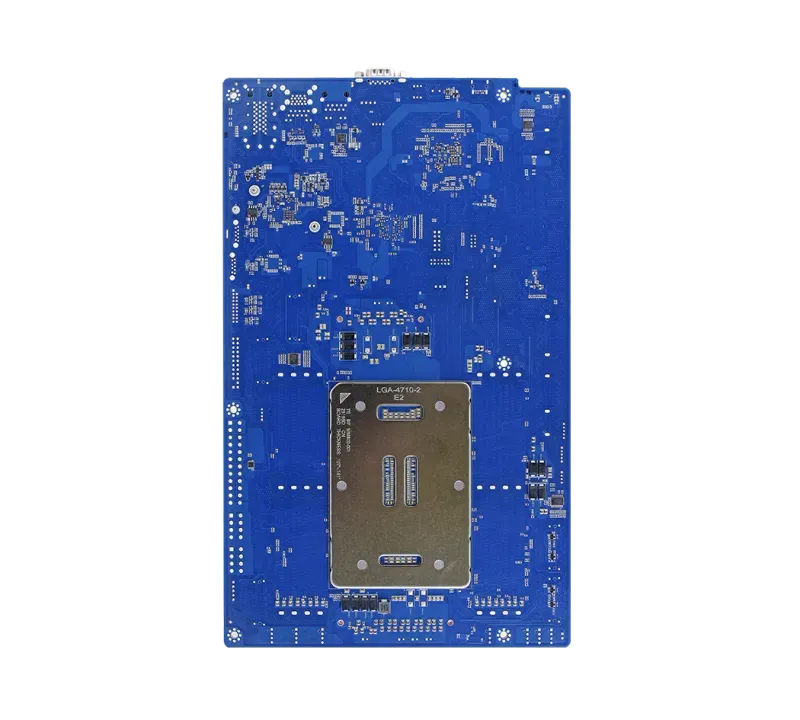

HPM-GNRUP FrontHPM-GNRUP Front

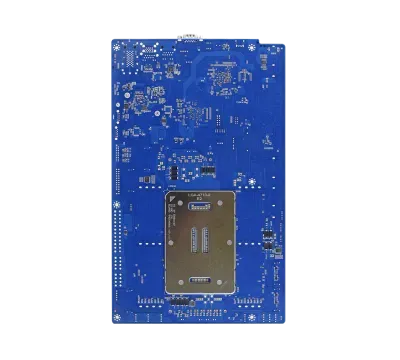

HPM-GNRUP, Image 1HPM-GNRUP, Image 2
Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

  • Single Intel® Xeon® 6 proprietary server board with IPMI 2.0
  • Intel LGA4710 socket, Xeon® 6 6500P & 6700P series (max. TDP 350W)
  • 8 x DDR5 6400MHz RDIMM & 8000MHz MRDIMM up to 2TB
  • TPM 2.0 onboard; IPMI 2.0 with AST2600 BMC controller
  • 1 x Intel I210AT 1GbE + 1 x Intel E610-XAT2 (2 x 10GbE)
  • 1 x PCIe Gen5 x32 + 1 x PCIe Gen5 x8 slot
  • 5 x MCIO x8 connectors (SFF-TA-1016)
  • 1 x Mini DP, USB 3.2 Gen1, 1 x RS232
  • 13" x 8" (330.2 x 203.2 mm); Windows 11 / Server 2025 / Ubuntu / RHEL

Product Description

The Avalue HPM-GNRUP is a single-socket proprietary-form-factor server board built on the Intel LGA4710 socket for Intel® Xeon® 6 6500P & 6700P series processors (max. TDP up to 350W), designed as a high-density, MCIO-rich compute core for storage and accelerator-dense edge servers.

With 8 x DDR5 6400MHz RDIMM / 8000MHz MRDIMM up to 2TB, onboard TPM 2.0 and IPMI 2.0 via an ASPEED AST2600 BMC, it concentrates Xeon 6 performance and high-speed fabric on a 13" x 8" board.

It provides 1 x PCIe Gen5 x32 and 1 x PCIe Gen5 x8 slot, 5 x MCIO x8 (SFF-TA-1016) connectors, dual Intel Ethernet (I210AT 1GbE + E610-XAT2 dual 10GbE), USB 3.2 Gen1, and a Mini DP, running Windows 11 / Windows Server 2025, Ubuntu 24.04 or RHEL 8.0+.

Technical Specifications

Processor

Intel LGA4710 Socket supports Intel® Xeon® 6 6500P & 6700P series Processor (Max. TDP at 350W)

System Memory

8 x DDR5 6400 MHz RDIMM & 8000 MHz MRDIMM Up to 2TB

Watchdog Timer

System reset event 0 ~ 6553 seconds

BIOS

AMI UEFI BIOS

H/W Status Monitor

CPU temperature, fan speed and voltage monitoring, fan speed control, case open detection

TPM

TPM 2.0 onboard

IPMI

IPMI 2.0 with AST 2600 BMC controller onboard

USB

2 x USB 3.2 Gen1 ports

COM Port

1 x RS232 port

DP

1 x Mini DP port

RJ-45

4 x RJ45 MGMT port for dedicated IPMI access only, LAN1 port for 1GbE shared with IPMI access, LAN2 and 3 ports for 10GbE

Graphic Chipset

AST2600 BMC controller

Resolution

1 x Mini DP port, 1920 x 1200 @ 60Hz 32bpp

Expansion

1 x PCIe Gen5 x32 slot, 1 x PCIe Gen5 x8 slot

Slot 1, PCIe Gen5 x32

Slot 2, PCIe Gen5 x8 (closest to the CPU)

USB

2 x Internal USB 3.2 Gen1 ports

1 x Internal USB 3.2 Gen1 type A receptacle

1 x Internal USB 2.0 port

Other

5 x MCIO x8 connectors (SFF-TA-1016)

CMOS Battery

1 x Horizontal Socket Type CMOS Battery Holder with CR2450

LAN Chipset

1 x Intel I210AT 1GbE controller

1 x Intel E610-XAT2 10GbE controller supports 2 x 10GbE Ethernet ports

LAN Port

4 x RJ45 MGMT port for dedicated IPMI access only, LAN1 port for 1GbE shared with IPMI access, LAN2 and 3 ports for 10GbE

Operating Temp.

0 ~ 55°C (32 ~ 131°F) to support up to 350W TDP CPU

0 ~ 55°C (32 ~ 131°F) to support up to 270W TDP CPU

Storage Temp.

-40 ~ 85°C

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Power Connector

1 x Std. 24 Pin ATX connector

2 x 8 Pin SSI 12V connectors

Dimension (L x W)

13" x 8" (330.2mm x 203.2mm), PCB thickness is 2.79mm

OS

Windows 11 SAC and LTSC

Windows Server 2025

Ubuntu 24.04

Red Hat Enterprise Linux (RHEL) 8.0 or above

Ordering Information

HPM-GNRUPA-A1R: Proprietary 1xLGA4710 Intel Xeon 65/67P/E610 8xD5/1xP32/1x1G/6xU3/5xMCIO

What is HPM-GNRUP?

The HPM-GNRUP is a high performance computing manufactured by Avalue, designed specifically for server-board applications. The Avalue HPM-GNRUP is a single-socket proprietary-form-factor server board built on the Intel LGA4710 socket for Intel® Xeon® 6 6500P & 6700P series processors (max. TDP up to 350W), designed as a high-density, MCIO-rich compute core for storage and accelerator-dense edge servers. With 8 x DDR5 6400MHz RDIMM / 8000MHz MRDIMM up to 2TB, onboard TPM 2.0 and IPMI 2.0 via an ASPEED AST2600 BMC, it concentrates Xeon 6 performance and high-speed fabric on a 13" x 8" board. It provides 1 x PCIe Gen5 x32 and 1 x PCIe Gen5 x8 slot, 5 x MCIO x8 (SFF-TA-1016) connectors, dual Intel Ethernet (I210AT 1GbE + E610-XAT2 dual 10GbE), USB 3.2 Gen1, and a Mini DP, running Windows 11 / Windows Server 2025, Ubuntu 24.04 or RHEL 8.0+.

Key Features & Benefits

  • Single Intel® Xeon® 6 proprietary server board with IPMI 2.0
  • Intel LGA4710 socket, Xeon® 6 6500P & 6700P series (max. TDP 350W)
  • 8 x DDR5 6400MHz RDIMM & 8000MHz MRDIMM up to 2TB
  • TPM 2.0 onboard; IPMI 2.0 with AST2600 BMC controller
  • 1 x Intel I210AT 1GbE + 1 x Intel E610-XAT2 (2 x 10GbE)
  • 1 x PCIe Gen5 x32 + 1 x PCIe Gen5 x8 slot
  • 5 x MCIO x8 connectors (SFF-TA-1016)
  • 1 x Mini DP, USB 3.2 Gen1, 1 x RS232
  • 13" x 8" (330.2 x 203.2 mm); Windows 11 / Server 2025 / Ubuntu / RHEL

Applications & Use Cases

The HPM-GNRUP is ideal for various industrial automation applications:

  • High-performance computing and data processing tasks
  • Peripheral device connectivity and data transfer
  • Memory-intensive applications and multitasking
  • Industrial computing and data processing
  • Edge computing and IoT applications
  • Real-time monitoring and control
  • Industrial automation systems
