Avalue · High Performance Computing

HPM-SIEUA

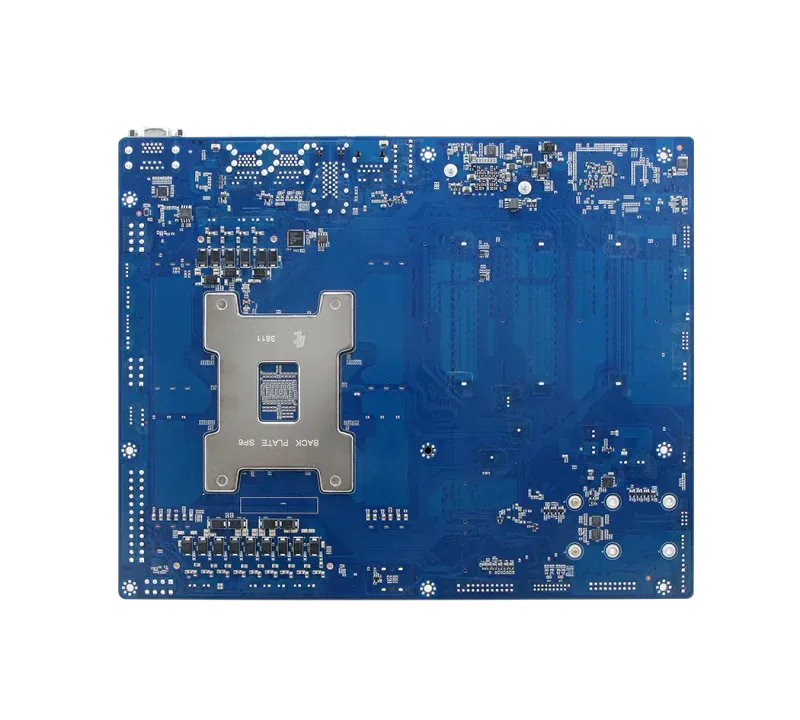

HPM-SIEUA FrontHPM-SIEUA Front

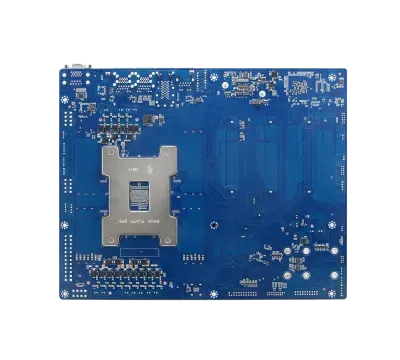

HPM-SIEUA, Image 1HPM-SIEUA, Image 2
Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

  • Single 4th Gen AMD EPYC ATX server board with IPMI 2.0
  • AMD SP6 socket, 4th Gen AMD EPYC (max. TDP 225W)
  • 6 x DDR5 4800/4400MHz RDIMM up to 1.5TB
  • TPM 2.0 onboard; IPMI 2.0 with AST2600 BMC controller
  • Intel I210AT 1GbE + I226-LM 2.5GbE + X550AT2 (2 x 10GbE)
  • 3 x PCIe Gen5 x16 + 4 x PCIe Gen5 x8 slots
  • 2 x M.2 M-Key PCIe 5.0 x4 NVMe/SATA (2260/2280/22110)
  • 4 x SATA III (Mini-SAS HD 4i)
  • 12" x 9.6" (304.8 x 243.84 mm); Windows Server / Ubuntu / RHEL

Product Description

The Avalue HPM-SIEUA is a single-socket ATX server board built on the AMD SP6 socket for 4th Generation AMD EPYC processors (max. TDP up to 225W), designed as a manageable, expansion-rich x86 compute platform for edge servers and HPC nodes.

With 6 x DDR5 4800/4400MHz RDIMM up to 1.5TB, onboard TPM 2.0 and IPMI 2.0 via an ASPEED AST2600 BMC, it delivers data-center-class AMD EPYC performance in a 12" x 9.6" board.

It provides 3 x PCIe Gen5 x16 and 4 x PCIe Gen5 x8 slots, 2 x M.2 M-Key PCIe 5.0 x4 NVMe/SATA, 4 x SATA III via MiniSAS HD 4i, triple Intel Ethernet (I210AT 1GbE, I226-LM 2.5GbE, X550AT2 dual 10GbE), and USB 3.2 Gen1, running Windows Server 2019/2022, Ubuntu 20.04/22.04 LTS or RHEL 9.0+.

Technical Specifications

Processor

AMD SP6 Socket supports 4th Generation AMD EPYC Processor (Max. TDP at 225W)

System Memory

6 x DDR5 4800/ 4400 MHz RDIMM up to 1.5TB

Watchdog Timer

System reset event 0 ~ 6553 seconds

BIOS

AMI UEFI BIOS

H/W Status Monitor

CPU temperature, fan speed and voltage monitoring, fan speed control, case open detection

TPM

TPM 2.0 onboard

IPMI

IPMI 2.0 with AST 2600 BMC controller onboard

USB

4 x USB 3.2 Gen1 ports

COM Port

1 x RS232 port

RJ-45

5 x RJ45 MGMT port for dedicated IPMI access only, LAN1 port for 1GbE shared with IPMI access, LAN2 port for 2.5GbE, LAN3 and 4 ports for 10GbE

VGA

1 x VGA port

Graphic Chipset

AST2600 BMC controller

Resolution

1 x VGA port, VGA: 1920 x 1200 @ 60Hz 32bpp

Expansion

3 x PCIe Gen5 x16 slots and 4 x PCIe Gen5 x8 slots

Slot 1, PCIe 5.0 x8

Slot 2, PCIe 5.0 x16

Slot 3, PCIe 5.0 x8

Slot 4, PCIe 5.0 x16

Slot 5, PCIe 5.0 x8

Slot 6, PCIe 5.0 x16

Slot 7, PCIe 5.0 x8 (closest to CPU)

M.2

2 x M.2 M-Key PCIe 5.0 x4 NVMe SSD/SATA, 2260/2280/22110 form factor

USB

2 x Internal USB 3.2 Gen1 ports

SATA

4 x SATA III (1 x Mini-SAS HD 4i for 4 x SATA or 1 x4 NVMe interface)

Serial

1 x Internal RS232 port

CMOS Battery

1 x Horizontal Socket Type CMOS Battery Holder with CR2450

LAN Chipset

1 x Intel I210AT 1GbE controller

1 x Intel I226-LM 2.5GbE controller

1 x Intel X550AT2 10GbE controller supports 2 x 10GbE Ethernet ports

LAN Port

5 x RJ45 MGMT port for dedicated IPMI access only, LAN1 port for 1GbE shared with IPMI access, LAN2 port for 2.5GbE, LAN3 and 4 ports for 10GbE

Operating Temp.

0 ~ 45°C (32 ~ 113°F) to support up to 225W TDP CPU

Storage Temp.

-40 ~ 85°C

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Weight

0.97KG

Power Connector

1 x Std. 24 Pin ATX connector

3 x 8 Pin SSI 12V connectors

Dimension (L x W)

12" x 9.6" (304.8mm x 243.84mm), PCB thickness is 2.0mm

OS

Windows Server 2019 bare-metal support (KB5017379) & Hyper-V support (KB5018419)

Windows Server 2022

Ubuntu 20.04 LTS & 22.04 LTS or later

Red Hat Enterprise Linux (RHEL) 9.0 or later

Ordering Information

HPM-SIEUAA-A1R: ATX AMD SP6 Socket 4th Gen./X550 6xDDR5/3xPCIex16/2x10GbE/1x1GbE/1x2.5GbE/6xUSB3/4xSATA3

HPM-SIEUAL-A1R: ATX AMD SP6 Socket 4th Gen. 6xDDR5/3xPCIex16/1x1GbE/1x2.5GbE/6xUSB3/4xSATA3

What is HPM-SIEUA?

The HPM-SIEUA is a high performance computing manufactured by Avalue, designed specifically for server-board applications. The Avalue HPM-SIEUA is a single-socket ATX server board built on the AMD SP6 socket for 4th Generation AMD EPYC processors (max. TDP up to 225W), designed as a manageable, expansion-rich x86 compute platform for edge servers and HPC nodes. With 6 x DDR5 4800/4400MHz RDIMM up to 1.5TB, onboard TPM 2.0 and IPMI 2.0 via an ASPEED AST2600 BMC, it delivers data-center-class AMD EPYC performance in a 12" x 9.6" board. It provides 3 x PCIe Gen5 x16 and 4 x PCIe Gen5 x8 slots, 2 x M.2 M-Key PCIe 5.0 x4 NVMe/SATA, 4 x SATA III via MiniSAS HD 4i, triple Intel Ethernet (I210AT 1GbE, I226-LM 2.5GbE, X550AT2 dual 10GbE), and USB 3.2 Gen1, running Windows Server 2019/2022, Ubuntu 20.04/22.04 LTS or RHEL 9.0+.

Key Features & Benefits

  • Single 4th Gen AMD EPYC ATX server board with IPMI 2.0
  • AMD SP6 socket, 4th Gen AMD EPYC (max. TDP 225W)
  • 6 x DDR5 4800/4400MHz RDIMM up to 1.5TB
  • TPM 2.0 onboard; IPMI 2.0 with AST2600 BMC controller
  • Intel I210AT 1GbE + I226-LM 2.5GbE + X550AT2 (2 x 10GbE)
  • 3 x PCIe Gen5 x16 + 4 x PCIe Gen5 x8 slots
  • 2 x M.2 M-Key PCIe 5.0 x4 NVMe/SATA (2260/2280/22110)
  • 4 x SATA III (Mini-SAS HD 4i)
  • 12" x 9.6" (304.8 x 243.84 mm); Windows Server / Ubuntu / RHEL

Applications & Use Cases

The HPM-SIEUA is ideal for various industrial automation applications:

  • High-performance computing and data processing tasks
  • Memory-intensive applications and multitasking
  • Industrial computing and data processing
  • Edge computing and IoT applications
  • Real-time monitoring and control
  • Industrial automation systems
