What is the HPM-SRSDE?

It is a dual-socket proprietary-form-factor server board on twin Intel LGA4677 sockets for 4th Gen Intel® Xeon® Scalable processors (up to 270W TDP each) with the Intel® C741 chipset and IPMI 2.0.

Which processors does the HPM-SRSDE support?

4th Generation Intel® Xeon® Scalable processors in two LGA4677 sockets, max. TDP 270W each.

How much memory does the HPM-SRSDE support?

12 x DDR5 4800/4400MHz RDIMM, up to 3TB total.

What expansion does the HPM-SRSDE offer?

7 x PCIe Gen5 x16 slots, with lanes split across both CPUs.

What storage does the HPM-SRSDE provide?

1 x M.2 M-Key PCIe 5.0 x4 NVMe, 5 x SATA III (SATA 1~4 RAID 0/1/5/10) via Mini-SAS HD 4i + a 7-pin connector, plus 3 x Slim SAS 8i connectors.

What networking does the HPM-SRSDE have?

Intel I210AT 1GbE, Intel I226-LM 2.5GbE, and Intel X550AT2 with 2 x 10GbE, plus dedicated IPMI RJ45 ports.

Does the HPM-SRSDE support remote management?

Yes, IPMI 2.0 via an ASPEED AST2600 BMC with dedicated RJ45 management ports.

What is the board form factor and size?

A proprietary form factor, 12" x 16.452" (304.8 x 417.88 mm), 2.86 mm PCB thickness, ~2.2 kg.

What operating systems does the HPM-SRSDE support?

Windows 10 IoT Enterprise LTSC 2021, Windows Server IoT 2019/2022, Ubuntu 21.10/22.04 LTS or later, and RHEL 8.2 and later.

What is the operating temperature range of the HPM-SRSDE?

0 ~ 50°C for up to 250W TDP CPUs, or 0 ~ 40°C for up to 270W TDP CPUs.

How is the HPM-SRSDE powered?

Via a standard 24-pin ATX connector plus three 8-pin SSI 12V connectors.

How does the HPM-SRSDE differ from the HPM-ERSDE?

Both are dual-socket LGA4677 C741 proprietary boards with 7 x PCIe Gen5 x16; the HPM-SRSDE supports 4th Gen Xeon with DDR5-4800/4400, while the HPM-ERSDE adds 5th Gen Xeon and DDR5-5600.

What applications is the HPM-SRSDE best suited for?

Two-socket HPC and edge data-center nodes needing maximum PCIe Gen5 expansion, high core counts, large DDR5 capacity and out-of-band IPMI management.

Avalue · High Performance Computing

HPM-SRSDE

Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

Dual 4th Gen Intel® Xeon® Scalable proprietary server board with IPMI 2.0
2 x Intel LGA4677 sockets (max. TDP 270W each), Intel® C741 chipset
12 x DDR5 4800/4400MHz RDIMM up to 3TB
TPM 2.0 onboard; IPMI 2.0 with AST2600 BMC controller
Intel I210AT 1GbE + I226-LM 2.5GbE + X550AT2 (2 x 10GbE)
7 x PCIe Gen5 x16 slots
1 x M.2 M-Key PCIe 5.0 x4 NVMe (2242/2260/2280/22110)
5 x SATA III (RAID 0/1/5/10) + 3 x Slim SAS 8i
12" x 16.452" (304.8 x 417.88 mm); Windows 10 IoT / Server IoT / Ubuntu / RHEL

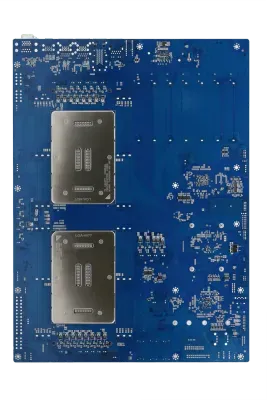

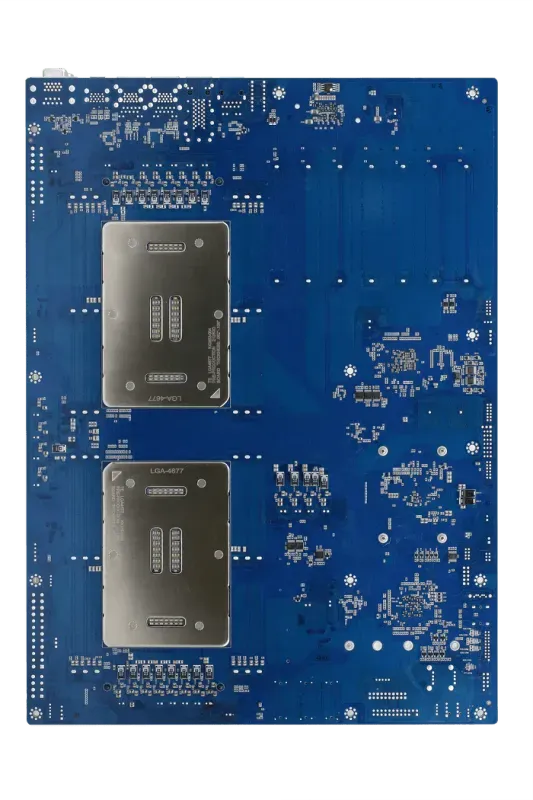

Product Description

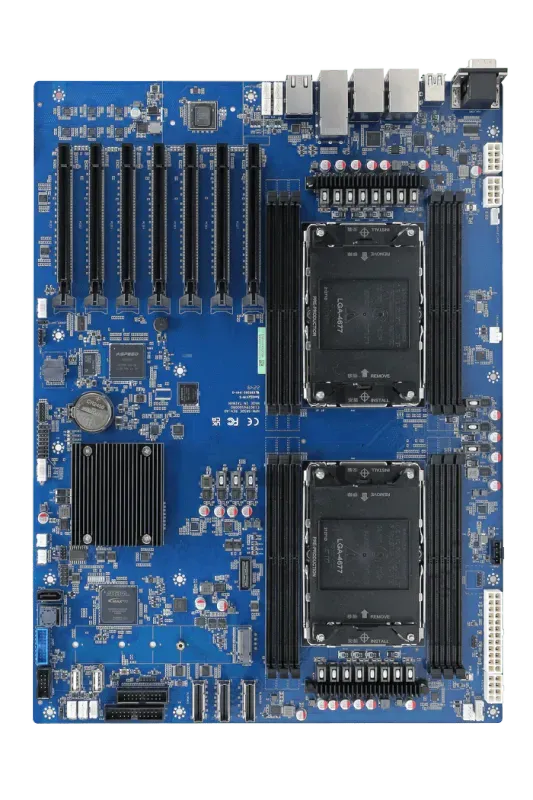

The Avalue HPM-SRSDE is a dual-socket proprietary-form-factor server board built on twin Intel LGA4677 sockets for 4th Generation Intel® Xeon® Scalable processors (max.

TDP up to 270W each) with the Intel® C741 chipset, designed as a high-core-count, expansion-rich x86 platform for HPC and edge data-center nodes.

With 12 x DDR5 4800/4400MHz RDIMM up to 3TB, onboard TPM 2.0 and IPMI 2.0 via an ASPEED AST2600 BMC, it delivers two-socket Xeon Scalable performance on a 12" x 16.452" board.

It provides 7 x PCIe Gen5 x16 slots, an M.2 M-Key PCIe 5.0 x4 NVMe, 5 x SATA III (RAID 0/1/5/10), 3 x Slim SAS 8i, triple Intel Ethernet (I210AT 1GbE, I226-LM 2.5GbE, X550AT2 dual 10GbE), and USB 3.2 Gen1/USB 2.0, running Windows 10 IoT / Windows Server IoT 2019/2022, Ubuntu or RHEL.

Technical Specifications

Processor

Dual Intel LGA4677 Sockets support 4th Generation Intel® Xeon® Scalable Processor (Max. TDP at 270W each)

Platform Controller Hub

Intel® C741 Chipset

System Memory

12 x DDR5 4800/ 4400 MHz RDIMM up to 3TB

Watchdog Timer

System reset event 0 ~ 6553 seconds

BIOS

AMI UEFI BIOS

H/W Status Monitor

CPU temperature, fan speed and voltage monitoring, fan speed control, case open detection

TPM

TPM 2.0 onboard

IPMI

IPMI 2.0 with AST 2600 BMC controller onboard

USB

6 x USB 3.2 Gen1 ports

COM Port

1 x RS232 port

RJ-45

5 x RJ45 MGMT port for dedicated IPMI access only, LAN1 port for 1GbE shared with IPMI access, LAN2 port for 2.5GbE, LAN3 and 4 ports for 10GbE

VGA

1 x VGA port

Graphic Chipset

AST2600 BMC controller

Resolution

1 x VGA port, VGA: 1920 x 1200 @ 60Hz 32bpp

Expansion

7 x PCIe Gen5 x16 slots

Slot 1, PCIe 5.0 x16 from 2nd CPU

Slot 2, PCIe 5.0 x16 from 1st CPU

Slot 3, PCIe 5.0 x16 from 2nd CPU

Slot 4, PCIe 5.0 x16 from 1st CPU

Slot 5, PCIe 5.0 x16 from 2nd CPU

Slot 6, PCIe 5.0 x16 from 1st CPU

Slot 7, PCIe 5.0 x16 from 2nd CPU (closest to CPU)

M.2

1 x M.2 M-Key PCIe 5.0 x4 NVMe SSD, 2242/2260/2280/22110 form factor

USB

2 x Internal USB 3.2 Gen1 ports

2 x Internal USB 2.0 type A receptacle

2 x Internal USB 2.0 ports

SATA

5 x SATA III (SATA 1~4 support RAID 0,1,5,10) (1 x Mini-SAS HD 4i from PCH for 4 x SATA or 1 x4 NVMe interface & 1 x 7pin SATA connector)

Serial

1 x Internal RS232 port

Other

3 x Slim SAS 8i (SFF-8654) connectors (from 1st CPU)

CMOS Battery

1 x Horizontal Socket Type CMOS Battery Holder with CR2450

LAN Chipset

1 x Intel I210AT 1GbE controller

1 x Intel I226-LM 2.5GbE controller

1 x Intel X550AT2 10GbE controller supports 2 x 10GbE Ethernet ports

LAN Port

5 x RJ45 MGMT port for dedicated IPMI access only, LAN1 port for 1GbE shared with IPMI access, LAN2 port for 2.5GbE, LAN3 and 4 ports for 10GbE

Operating Temp.

0 ~ 50°C (32 ~ 122°F) to support up to 250W TDP CPU

0 ~ 40°C (32 ~ 104°F) to support up to 270W TDP CPU

Storage Temp.

-40 ~ 85°C

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Weight

2.2KG

Power Connector

1 x Std. 24 Pin ATX connector

3 x 8 Pin SSI 12V connectors

Dimension (L x W)

12" x 16.452" (304.8mm x 417.88mm), PCB thickness is 2.86mm

OS

Windows 10 IoT Enterprise LTSC 2021

Windows Server IoT 2019 with VT-d disabled

Windows Server IoT 2022

Ubuntu 21.10, 22.04 LTS or later

Red Hat Enterprise Linux (RHEL) 8.2 and later

Ordering Information

HPM-SRSDEA-A1R: EATX 2xLGA4677 Intel 4th Gen.C741/X550 12xDDR5/4xPCIex16/2x10GbE/1x1GbE/1x2.5GbE/8xUSB3/5xSATA3

HPM-SRSDEL-A1R: EATX 2xLGA4677 Intel 4th Gen.C741 12xDDR5/4xPCIex16/1x1GbE/1x2.5GbE/8xUSB3/5xSATA3

What is HPM-SRSDE?

The HPM-SRSDE is a high performance computing manufactured by Avalue, designed specifically for server-board applications. The Avalue HPM-SRSDE is a dual-socket proprietary-form-factor server board built on twin Intel LGA4677 sockets for 4th Generation Intel® Xeon® Scalable processors (max. TDP up to 270W each) with the Intel® C741 chipset, designed as a high-core-count, expansion-rich x86 platform for HPC and edge data-center nodes. With 12 x DDR5 4800/4400MHz RDIMM up to 3TB, onboard TPM 2.0 and IPMI 2.0 via an ASPEED AST2600 BMC, it delivers two-socket Xeon Scalable performance on a 12" x 16.452" board. It provides 7 x PCIe Gen5 x16 slots, an M.2 M-Key PCIe 5.0 x4 NVMe, 5 x SATA III (RAID 0/1/5/10), 3 x Slim SAS 8i, triple Intel Ethernet (I210AT 1GbE, I226-LM 2.5GbE, X550AT2 dual 10GbE), and USB 3.2 Gen1/USB 2.0, running Windows 10 IoT / Windows Server IoT 2019/2022, Ubuntu or RHEL.

Key Features & Benefits

Dual 4th Gen Intel® Xeon® Scalable proprietary server board with IPMI 2.0
2 x Intel LGA4677 sockets (max. TDP 270W each), Intel® C741 chipset
12 x DDR5 4800/4400MHz RDIMM up to 3TB
TPM 2.0 onboard; IPMI 2.0 with AST2600 BMC controller
Intel I210AT 1GbE + I226-LM 2.5GbE + X550AT2 (2 x 10GbE)
7 x PCIe Gen5 x16 slots
1 x M.2 M-Key PCIe 5.0 x4 NVMe (2242/2260/2280/22110)
5 x SATA III (RAID 0/1/5/10) + 3 x Slim SAS 8i
12" x 16.452" (304.8 x 417.88 mm); Windows 10 IoT / Server IoT / Ubuntu / RHEL

Applications & Use Cases

The HPM-SRSDE is ideal for various industrial automation applications:

High-performance computing and data processing tasks
Memory-intensive applications and multitasking
Internet of Things (IoT) and edge computing
Industrial computing and data processing
Edge computing and IoT applications
Real-time monitoring and control
Industrial automation systems
