EMX-PTLP

Series: EMX

Manufactured byAvalue

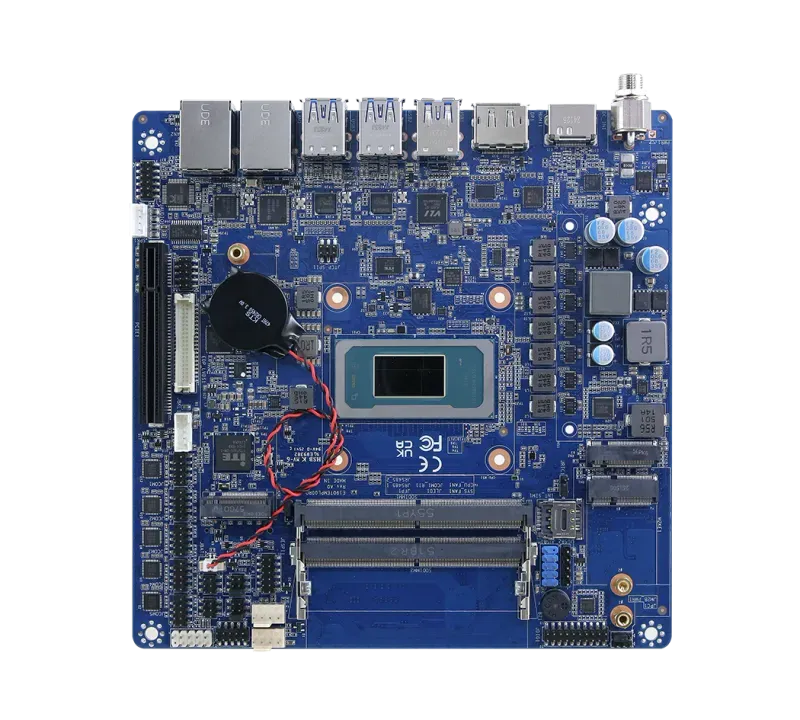

The Avalue EMX-PTLP is a Thin Mini-ITX industrial motherboard for Intel Core Ultra processors (Series 3), pairing high-performance AI-capable compute with dual DDR5 SO-DIMM/CSoDIMM sockets (6400/7200MHz, up to 64GB) and onboard TPM 2.0. A uBMC controller provides remote out-of-band management with IPMI support, making the EMX-PTLP a serviceable, secure platform for edge servers, AI inference nodes, and high-end industrial systems. Graphics scale to quadruple independent display via HDMI 2.1, DisplayPort 1.4a (each up to 7680x4320 @ 30Hz), dual USB Type-C (3840x2160 @ 60Hz) and LVDS/eDP. Expansion is generous for the form factor: a PCIe x8 Gen5 slot (H484), dual M.2 Key-M NVMe (PCIe Gen5 and Gen4), an M.2 Key-B slot with 5G/WWAN+GNSS, and an M.2 Key-E for Wi-Fi/CNVi, with a 2 x 6W audio amplifier onboard.

Key Features

Intel Core Ultra processor (Series 3), AI-capable
2 x DDR5 SO-DIMM/CSoDIMM 6400/7200MHz, up to 64GB
uBMC (IT5792) remote out-of-band management with IPMI
Quadruple Independent Display: HDMI 2.1 + DP 1.4a + 2x USB-C + LVDS/eDP
1 x PCIe x8 Gen5 (H484) + dual M.2 Key-M NVMe (Gen5 & Gen4)
M.2 Key-B (5G/WWAN+GNSS) + M.2 Key-E (Wi-Fi/CNVi)
Onboard TPM 2.0 (NuvoTon NPCT760)
2 x 6W 8Ω onboard audio amplifier
Thin Mini-ITX form factor

Technical Specifications

System Information

Processor	Intel® Core™ Ultra processor (Series 3) Series
System Memory	2 x 262-Pin DDR5 (H404)6400MHz, (H484)7200MHz SoDIMM/CSoDIMM Socket Supports Up to 64GB
I/O Chipset	uBMC IT5792 or equivalent for remote out-of-band management and IPMI support.
Watchdog Timer	H/W Reset: 1Sec. ~ 65535Sec./Min. and1 Sec. or 1Min./Step
BIOS	AMI uEFI BIOS, 256Mbit SPI Flash ROM
H/W Status Monitor	CPU Temperature Monitoring, Voltage Monitoring, CPU Fan Speed Control
TPM	Onboard nuvoTon NPCT760AABYX (7.2.3.1) support TPM 2.0
Board	Thin Mini ITX

Expansion

Expansion	1 x PCIe x8 Gen5 (H484 only), 1 x M.2 Type B 2242/3042/3052 (with 1 x PCIe x1 (Default), USB2.0, USB 3.2 Gen2 with 1 x SIM Card Slot Support WWAN+GNSS, 1 x M.2 Key E 2230 Support Wi-Fi Module and CNVi (1 x PCIe x1 & USB 2.0 Signal), 1 x M.2 Key M 2280 (PCIe x4 Gen5) Slot for Storage NVMe SSD, 1 x M.2 Key M 2280 (PCIe x4 Gen4) Slot for Storage NVMe SSD

Display

Graphic Chipset	Intel® Xe LPG Graphics
Spec. & Resolution	1 x HDMI 2.1: 7680 x 4320 @30Hz, 1 x DP1.4a: Max: 7680 x 4320@30Hz, 2 x USB Type C supports 3840 x 2160@60Hz, LVDS: 1920 x 1080 Dual channel 18/24-bits LVDS (Chrontel CH7511B eDP to LVDS) or eDP1.2: Max 4096 x 2304@60 Hz
Multiple Display	2 x DP, 2 x HDMI, 1 x LVDS, 1 x eDP, (Maximum: 6 for Quadruple Independent Displays)
LVDS	1 x Dual Channel 18/24-bits LVDS (Chrontel CH7511B eDP to LVDS)

Audio

Audio Codec	Realtek ALC888S HD Audio Decoding Controller
Audio Interface	Support MIC-in, Line-out, Line-in via internal connector
Audio Amplifier	2 x 6W 8Ω Amplifier

Ethernet

LAN Chipset	1 x Intel® i210AT Gigabit Ethernet Controller, 1 x Intel® i226LM 2.5 Gigabit Ethernet Controller
Ethernet Interface	10/100/1000 Base-Tx GbE compatible & 2.5 Gigabit Ethernet
LAN Port	2 x RJ-45

Power Requirement

DC Input	12~24V

Software Support

OS	Windows 11 LTSC, Linux

Certification

Certification Information	CE, FCC, RoHS Compliant

I/O

USB	2 x USB Type C, 5V@3A, 4 x USB 3.2 Gen2 x1, 3 x USB 2.0
COM Port	3 x RS232 (JCOM1 ~ JCOM3), 2 x RS422/485 (JCOM1 and JCOM2, need to modify BIOS Setup settings and change pin header & cable)
DIO	1 x 16-bit GPIO

Mechanical & Environmental

Operating Temp.	Intel@ Commercial Temperature CPU SKU support: 0~60°C, **w/HDD/SSD, ambient with 0.5 m/s Air flow
Storage Temp.	-40 ~ 75°C (-40 ~ 167°F)
Operating Humidity	40°C @ 95% Relative Humidity, Non-condensing
Weight	Shipping w/o cooler: 0.603lbs (0.27kgs)
Power Requirement	DC in +12V~24V
Power Mode	AT/ATX (Default Setting: ATX)
Dimension (L x W)	6.7" x 6.7" (170mm x 170mm)

Ordering Information

Ordering Information	EMX-PTLP-H404-A1R, EMX-PTLP-H484-A1R
