Avalue · Industrial & Embedded Motherboard

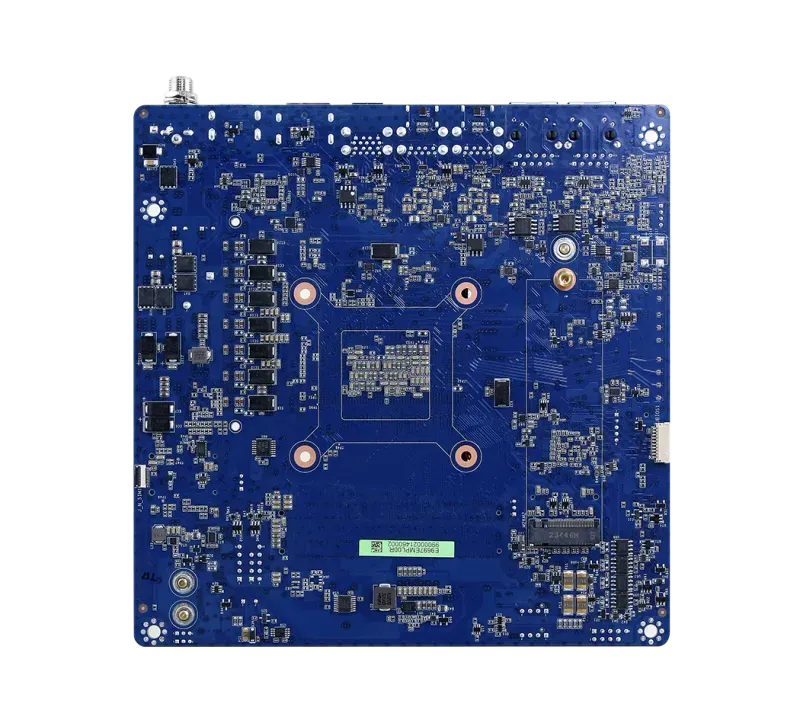

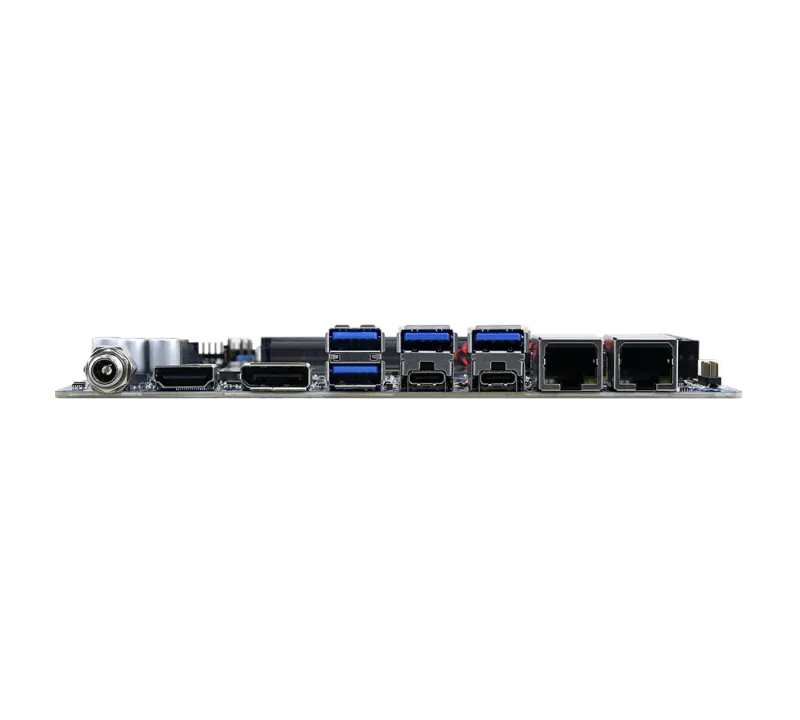

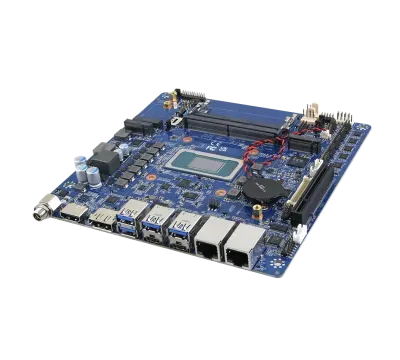

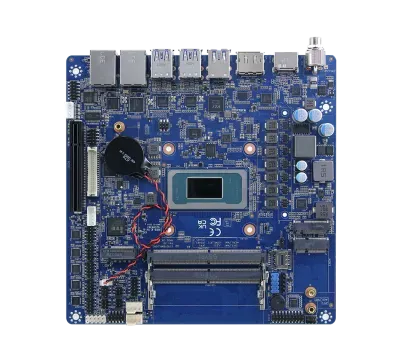

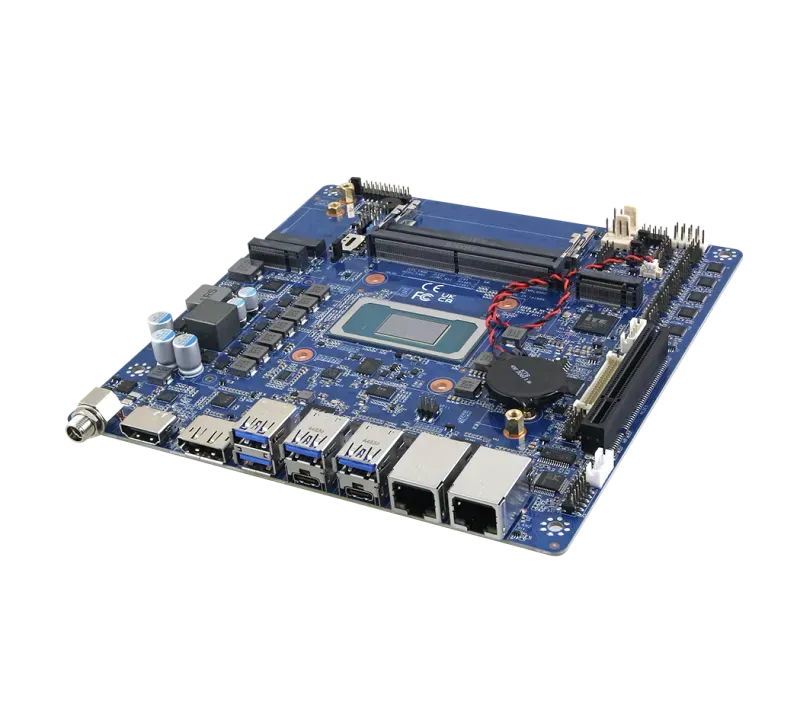

EMX-PTLP

Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

Intel Core Ultra processor (Series 3), AI-capable
2 x DDR5 SO-DIMM/CSoDIMM 6400/7200MHz, up to 64GB
uBMC (IT5792) remote out-of-band management with IPMI
Quadruple Independent Display: HDMI 2.1 + DP 1.4a + 2x USB-C + LVDS/eDP
1 x PCIe x8 Gen5 (H484) + dual M.2 Key-M NVMe (Gen5 & Gen4)
M.2 Key-B (5G/WWAN+GNSS) + M.2 Key-E (Wi-Fi/CNVi)
Onboard TPM 2.0 (NuvoTon NPCT760)
2 x 6W 8Ω onboard audio amplifier
Thin Mini-ITX form factor

Product Description

The Avalue EMX-PTLP is a Thin Mini-ITX industrial motherboard for Intel Core Ultra processors (Series 3), pairing high-performance AI-capable compute with dual DDR5 SO-DIMM/CSoDIMM sockets (6400/7200MHz, up to 64GB) and onboard TPM 2.0.

A uBMC controller provides remote out-of-band management with IPMI support, making the EMX-PTLP a serviceable, secure platform for edge servers, AI inference nodes, and high-end industrial systems.

Graphics scale to quadruple independent display via HDMI 2.1, DisplayPort 1.4a (each up to 7680x4320 @ 30Hz), dual USB Type-C (3840x2160 @ 60Hz) and LVDS/eDP.

Expansion is generous for the form factor: a PCIe x8 Gen5 slot (H484), dual M.2 Key-M NVMe (PCIe Gen5 and Gen4), an M.2 Key-B slot with 5G/WWAN+GNSS, and an M.2 Key-E for Wi-Fi/CNVi, with a 2 x 6W audio amplifier onboard.

Technical Specifications

Processor

Intel® Core™ Ultra processor (Series 3) Series

System Memory

2 x 262-Pin DDR5 (H404)6400MHz, (H484)7200MHz SoDIMM/CSoDIMM Socket Supports Up to 64GB

I/O Chipset

uBMC IT5792 or equivalent for remote out-of-band management and IPMI support.

Watchdog Timer

H/W Reset: 1Sec. ~ 65535Sec./Min. and1 Sec. or 1Min./Step

BIOS

AMI uEFI BIOS, 256Mbit SPI Flash ROM

H/W Status Monitor

CPU Temperature Monitoring

Voltage Monitoring

CPU Fan Speed Control

TPM

Onboard nuvoTon NPCT760AABYX (7.2.3.1) support TPM 2.0

Board

Thin Mini ITX

Expansion

1 x PCIe x8 Gen5 (H484 only)

1 x M.2 Type B 2242/3042/3052 (with 1 x PCIe x1 (Default), USB2.0, USB 3.2 Gen2 with 1 x SIM Card Slot Support WWAN+GNSS

1 x M.2 Key E 2230 Support Wi-Fi Module and CNVi (1 x PCIe x1 & USB 2.0 Signal)

1 x M.2 Key M 2280 (PCIe x4 Gen5) Slot for Storage NVMe SSD

1 x M.2 Key M 2280 (PCIe x4 Gen4) Slot for Storage NVMe SSD

Graphic Chipset

Intel® Xe LPG Graphics

Spec. & Resolution

1 x HDMI 2.1: 7680 x 4320 @30Hz

1 x DP1.4a: Max: 7680 x 4320@30Hz

2 x USB Type C supports 3840 x 2160@60Hz

LVDS: 1920 x 1080 Dual channel 18/24-bits LVDS (Chrontel CH7511B eDP to LVDS) or eDP1.2: Max 4096 x 2304@60 Hz

Multiple Display

2 x DP, 2 x HDMI, 1 x LVDS, 1 x eDP

(Maximum: 6 for Quadruple Independent Displays)

LVDS

1 x Dual Channel 18/24-bits LVDS (Chrontel CH7511B eDP to LVDS)

Audio Codec

Realtek ALC888S HD Audio Decoding Controller

Audio Interface

Support MIC-in, Line-out, Line-in via internal connector

Audio Amplifier

2 x 6W 8Ω Amplifier

LAN Chipset

1 x Intel® i210AT Gigabit Ethernet Controller

1 x Intel® i226LM 2.5 Gigabit Ethernet Controller

Ethernet Interface

10/100/1000 Base-Tx GbE compatible & 2.5 Gigabit Ethernet

LAN Port

2 x RJ-45

DC Input

12~24V

OS

Windows 11 LTSC

Linux

Certification Information

CE, FCC, RoHS Compliant

USB

2 x USB Type C, 5V@3A

4 x USB 3.2 Gen2 x1

3 x USB 2.0

COM Port

3 x RS232 (JCOM1 ~ JCOM3)

2 x RS422/485 (JCOM1 and JCOM2, need to modify BIOS Setup settings and change pin header & cable)

DIO

1 x 16-bit GPIO

Operating Temp.

Intel@ Commercial Temperature CPU SKU support: 0~60°C

**w/HDD/SSD, ambient with 0.5 m/s Air flow

Storage Temp.

-40 ~ 75°C (-40 ~ 167°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Weight

Shipping w/o cooler: 0.603lbs (0.27kgs)

Power Requirement

DC in +12V~24V

Power Mode

AT/ATX (Default Setting: ATX)

Dimension (L x W)

6.7" x 6.7" (170mm x 170mm)

Ordering Information

EMX-PTLP-H404-A1R

EMX-PTLP-H484-A1R
