What are the key features of the EMX-W880P Mini-ITX motherboard?

The EMX-W880P features support for Intel® Core™ Ultra processors, up to 96GB DDR5 memory, quad display outputs, quad Intel® Ethernet, multiple USB and COM ports, PCIe Gen5, M.2 expansion, and a compact 170mm x 170mm form factor.

What display options does the EMX-W880P support?

It supports up to four independent displays via HDMI 2.1b, DP++, and either LVDS or eDP, with high resolutions including 8K@60Hz.

What expansion capabilities are available on the EMX-W880P?

The board offers PCIe x16 Gen5, M.2 E-Key, and dual M.2 M-Key slots for Wi-Fi and SSD expansion.

What are Mini-ITX2 motherboards and what are their typical applications?

Mini-ITX2 motherboards are compact embedded boards (170mm x 170mm) designed for industrial, automation, medical, retail, and edge computing applications, offering high performance, rich I/O, and industrial reliability.

What are the advantages of using Mini-ITX2 over other form factors?

Mini-ITX2 boards provide a balance of compact size and expandability, supporting full-size memory, multiple display outputs, and rich I/O, making them ideal for space-constrained yet demanding environments.

What is the typical power input for Mini-ITX2 boards?

Most Mini-ITX2 boards support wide voltage DC input (typically +12V~24V) or ATX power, suitable for industrial deployments.

What memory types and capacities are supported?

Mini-ITX2 boards support DDR4 or DDR5 SO-DIMM memory, with capacities up to 64GB or 96GB depending on the model.

What display resolutions and outputs are available?

Depending on the model, Mini-ITX2 boards support HDMI, DP++, LVDS, eDP, and VGA, with resolutions up to 8K@60Hz and support for multiple independent displays.

What expansion options are available?

Expansion options include PCIe Gen4/Gen5, M.2 (E-Key, M-Key, B-Key), Mini PCIe, and SATA for storage, wireless, and I/O modules.

How do I install memory modules on a Mini-ITX2 board?

Insert SO-DIMM memory modules into the designated slots at a 45-degree angle and press down until they click into place. Refer to the board manual for supported capacities and configurations.

What precautions should I take during installation?

Always power off and unplug the system before installation. Use ESD protection and handle the board by its edges to avoid static damage.

How do I mount a Mini-ITX2 board in a chassis?

Align the board with the mounting holes in the chassis and secure it using the appropriate screws. Ensure all connectors are accessible and unobstructed.

The board does not power on. What should I check?

Verify the power supply connection, ensure the correct voltage is supplied, and check for any visible damage or loose components. Refer to the board's LED indicators for diagnostic codes.

No display output is detected. What should I do?

Check that the display cables are securely connected, the correct input source is selected, and the memory and CPU are properly installed. Try a different display port if available.

How can I reset the BIOS/UEFI settings?

Locate the CMOS battery or reset jumper on the board. Remove the battery or use the jumper as per the manual to reset BIOS/UEFI to default settings.

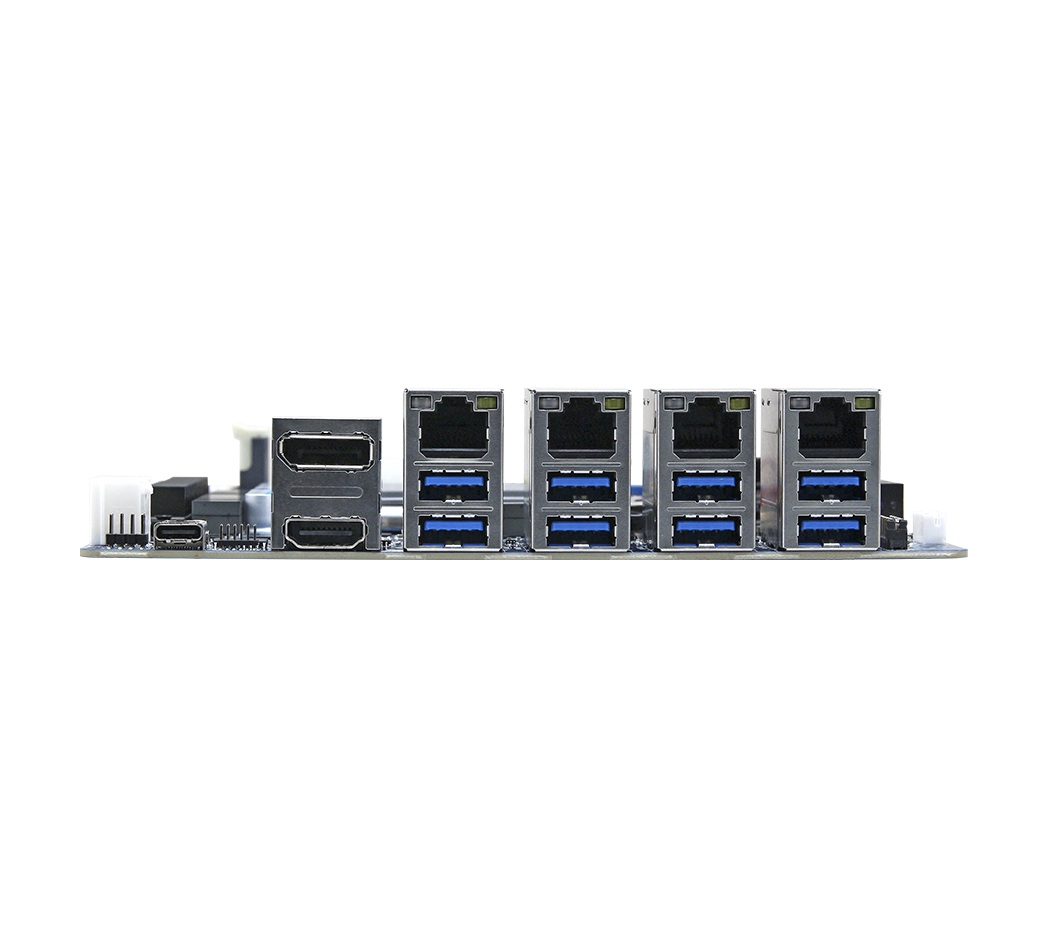

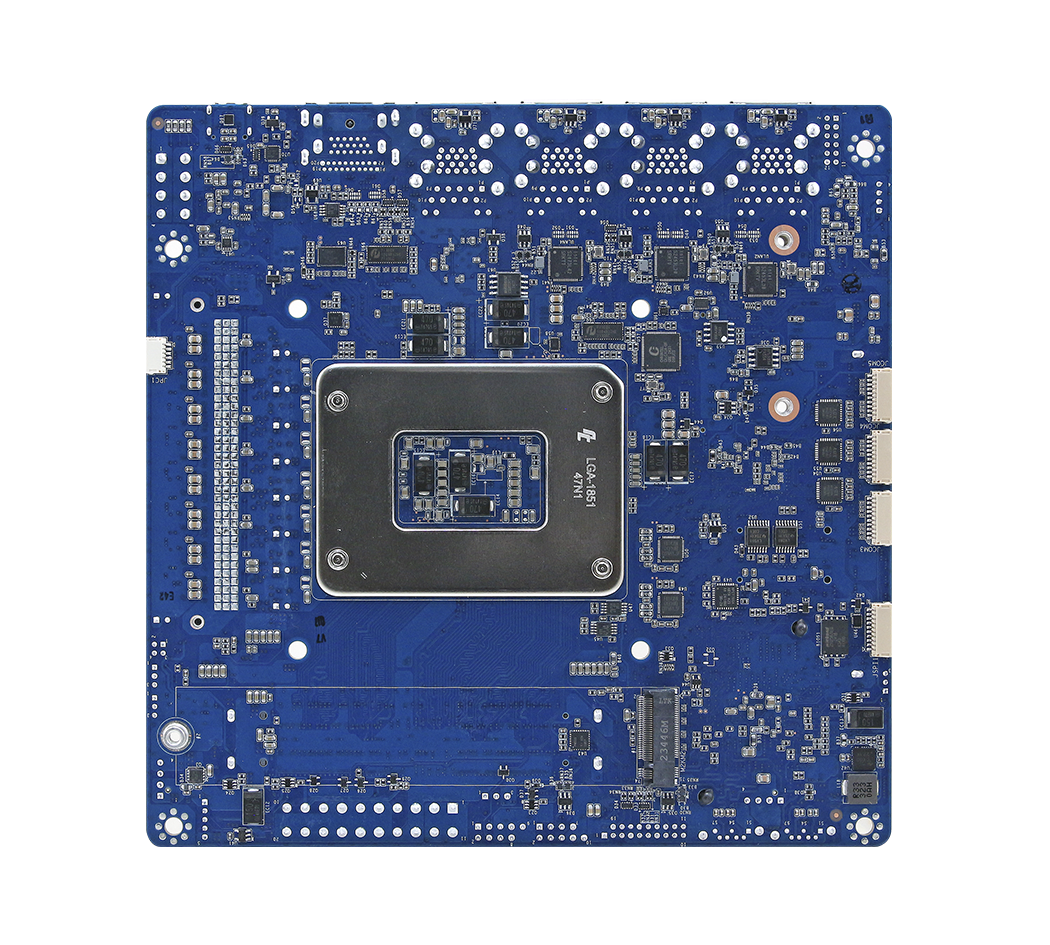

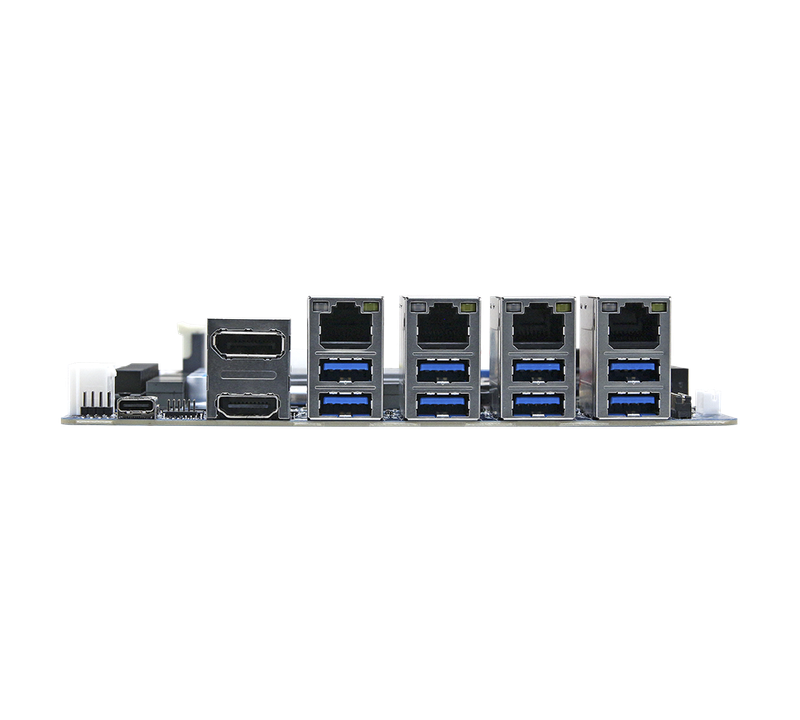

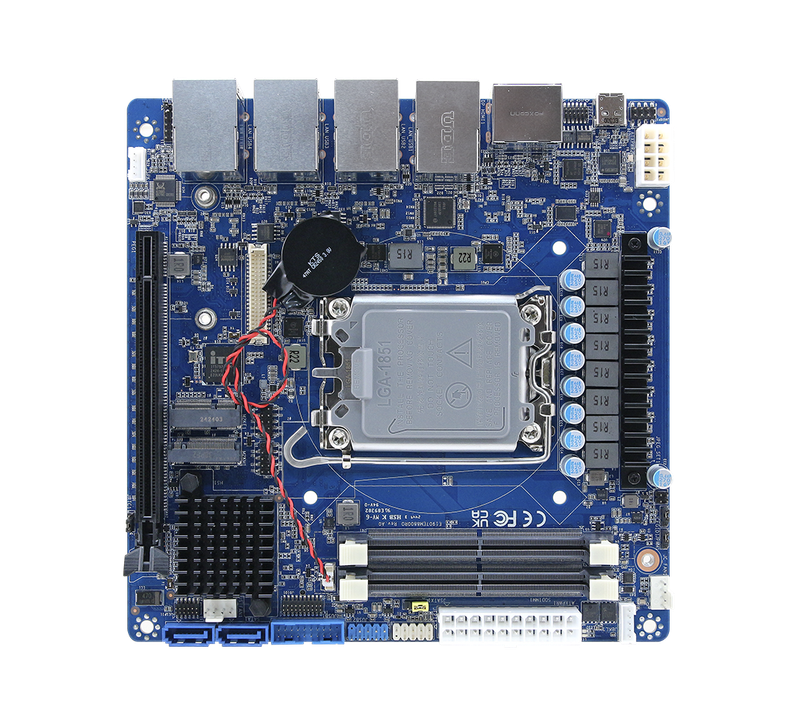

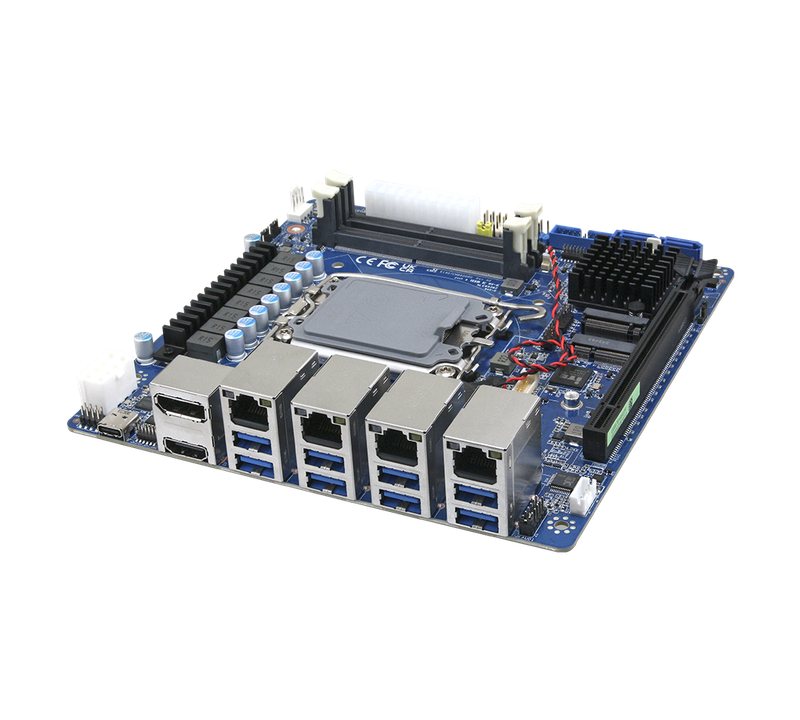

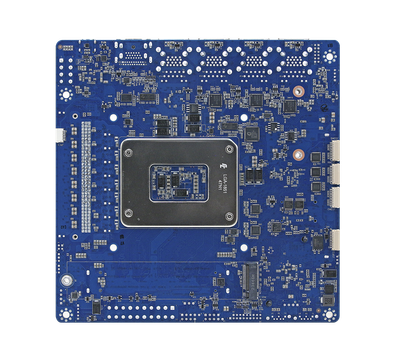

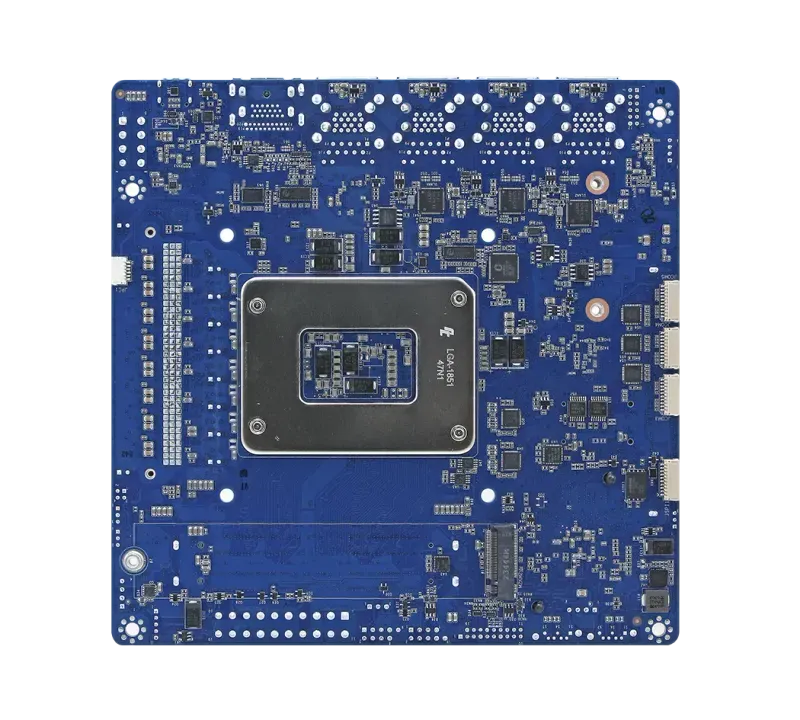

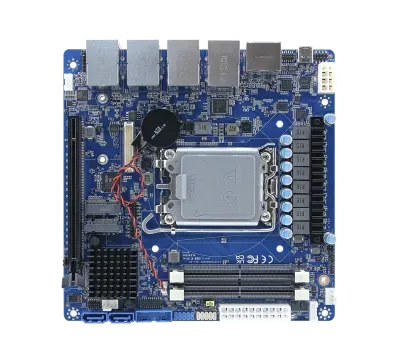

EMX-W880P

*Price on request. Contact us for a quote.

Manufacturer: Avalue

LGA 1851 Socket Supports Intel® Core™ Ultra Processors with Intel® W880 Chipset (Max. TDP at 125W)
2 x 262-Pin DDR5 6400MHz Dual Channel CSO-DIMM Socket Supports Up to 96GB
2 x DP++(one from Type C), 1 x HDMI 2.1b, 1 x eDP or LVDS
1 x PCIe x16 (Gen5)
1 x Intel® i226LM, 2 x Intel® i226V 2.5 Gigabit, 1 x Intel® i210AT controller
4 x USB 3.2 Gen2, 4 x USB 3.2 Gen1, 2 x USB 3.2 Gen2, 2 x USB 2.0
1 x M.2 (2230) E-Key, 2 x M.2 (2242/2280) M-Key
5 x COM
ATX Power

Product Description

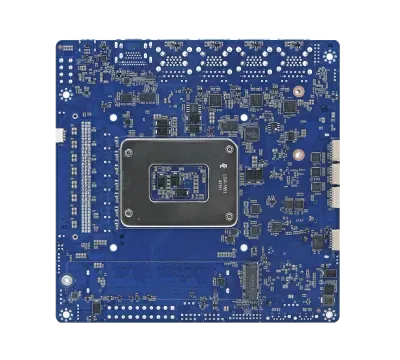

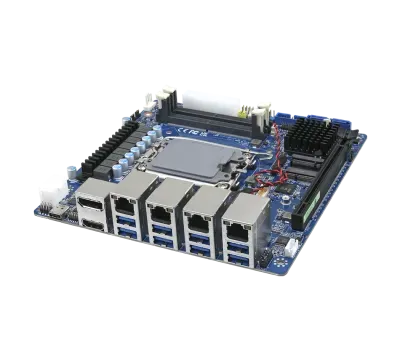

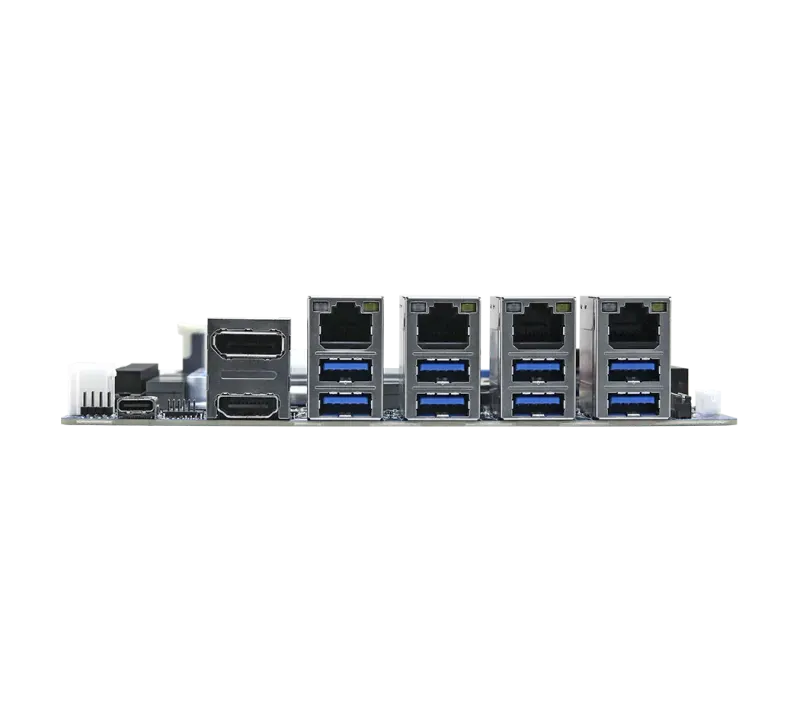

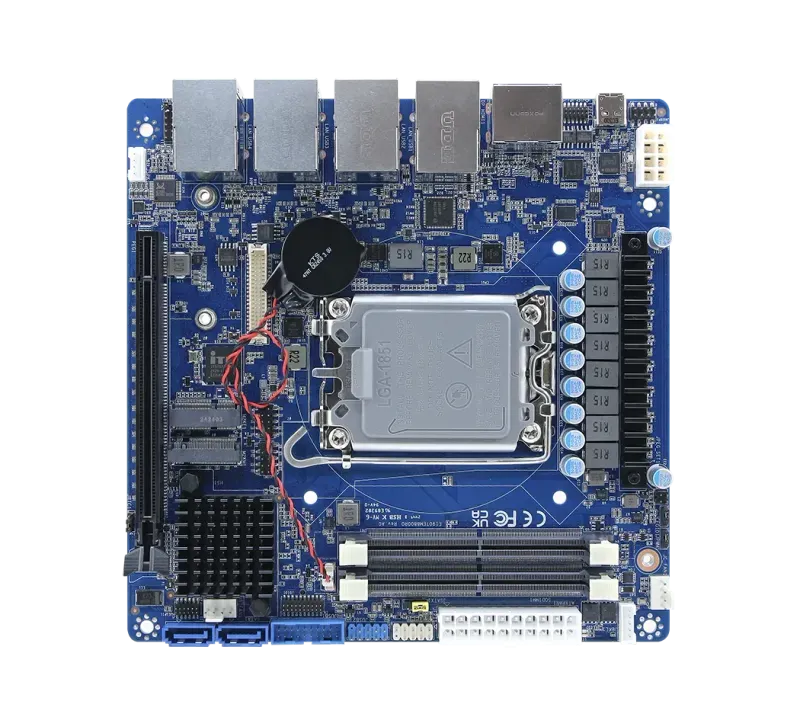

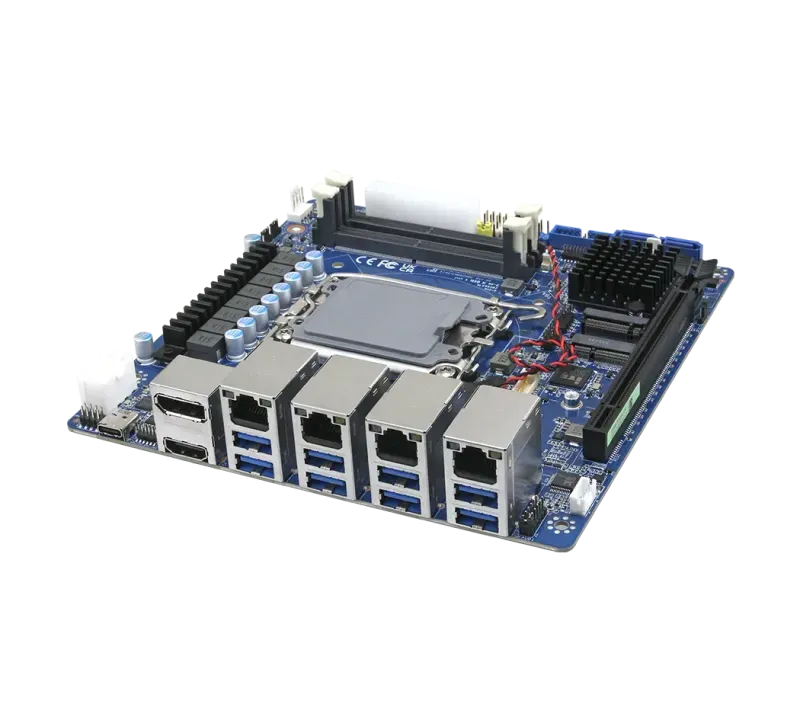

The Avalue EMX-W880P is a Mini-ITX motherboard designed for industrial and embedded applications. It supports Intel® Core™ Ultra processors (LGA 1851 socket, up to 125W TDP) and utilizes the Intel® W880 chipset. The board accommodates up to 64GB DDR5 5600MHz SO-DIMM memory.

Key features include quad display outputs (1 x HDMI 2.1b, 2 x DP++, 1 x LVDS or eDP), four Intel® Ethernet ports (1 x i226LM, 2 x i226V 2.5GbE, 1 x i210AT), multiple USB ports (4 x USB 3.2 Gen2, 4 x USB 3.2 Gen1, 2 x USB 2.0), serial interfaces (3 x RS-232, 2 x RS-232/422/485), GPIOs, and expansion options through 1 x PCIe x16 (Gen5), 1 x M.2 E-Key (2230), and 2 x M.2 M-Key (2242/2280).

With a compact form factor of 170mm x 170mm, wide voltage input range of 12V to 24V DC, and support for Windows 11 and Linux operating systems, the EMX-W880P offers a robust solution for space-constrained environments.

Technical Specifications

System Information

Processor

LGA 1851 Socket Supports Intel® Core™ Ultra Processors (Max. TDP at 125W)

Platform Controller Hub

Intel® W880 Chipset

System Memory

2 x 262-Pin DDR5 4800MHz Dual Channel SO-DIMM Socket Supports Up to 64GB

I/O Chipset

nuvoTon NCT6126D

Watchdog Timer

H/W Reset, 5~255 Seconds/5~255 Minutes

BIOS

AMI uEFI BIOS, 256Mbit SPI Flash ROM

H/W Status Monitor

CPU Temperature Monitoring

Voltage Monitoring

CPU Fan Speed Control

TPM

Onboard NuvoTon NPCT760AABYX support TPM2.0

Board

Mini ITX

Display

Multiple Display

4 Independent Displays

Graphic Chipset

Intel® Xe LPG graphics architecture CPU integrated

Spec. & Resolution

1 x DP 2.1: 7680 x 4320@60Hz

1 x USB4 Type C at I/O with DP-alt mode

1 x HDMI 2.1: 8K@60Hz

1 x LVDS: 1920 x 1080@60Hz Dual channel 18/24-bits LVDS (Chrontel CH7513A-BF eDP to LVDS) Or 1 x eDP 1.4b 1920 x 1080@60Hz (2 Lanes)

LVDS

Dual Channel 18/24-bits LVDS (Chrontel CH7513A-BF eDP to LVDS) or 1 x eDP 1920 x 1080@60Hz (2 Lanes)

Expansion

1 x PCIe x16 (Gen5)

1 x M.2 (2230) E-Key, Support WiFi Module with PCIe x2 Gen4 & USB 2.0

1 x M.2 (2242/2280) M-Key, Support PCIe x4 Gen4 & SATA signal SSD

1 x M.2 (2280) M-Key, Support PCIe x4 Gen4 SSD

Audio

Audio Codec

Realtek ALC888S HD Audio Decoding Controller

Audio Interface

Support Line-out & Mic-in & Front Audio Pin-header

Audio Amplifier

2 x 3W 4Ω Amplifier

Ethernet

LAN Chipset

1 x Intel® i226LM, 2 x Intel® i226V 2.5 Gigabit, 1 x Intel® i210AT Controller

Ethernet Interface

100/1000/2500 Base-Tx GbE compatible Gigabit Ethernet

LAN Port

4 x RJ-45

Software Support

OS

Windows 11, Linux

Certification

Certification Information

CE, FCC, RoHS Compliant

I/O

USB

4 x USB 3.2 Gen2 at I/O

4 x USB 3.2 Gen1 at I/O

2 x USB 3.2 Gen2 by pin header

2 x USB 2.0 by pin header

COM Port

3 x RS232

2 x RS232/422/485

SATA

2 x SATA III

RAID

Support RAID 0, 1

DIO

1 x 16-bit GPIO

Mechanical & Environmental

Operating Temp.

0~60°C (32~140°F) w/HDD/SSD, ambient 0.5m/s air flow

Storage Temp.

-40 ~ 75°C (-40 ~ 167°F)

Dimension (L x W)

6.7" x 6.7" (170mm x 170mm)

Weight

0.88lbs (0.4Kgs)

Operating Humidity

40°C at 95% relative humidity, non-condensing

Power Mode

AT/ATX (Default Setting: ATX)

Power Requirement

+12V / +5V / 5VSB /+3.3V /-12V

Ordering Information

EMX-W880P-A1R

Intel® Core™ Ultra Processors Mini ITX motherboard

What is EMX-W880P?

The EMX-W880P is a industrial & embedded motherboard manufactured by Avalue, designed specifically for mini-itx applications. The Avalue EMX-W880P is a Mini-ITX motherboard designed for industrial and embedded applications. It supports Intel® Core™ Ultra processors (LGA 1851 socket, up to 125W TDP) and utilizes the Intel® W880 chipset. The board accommodates up to 64GB DDR5 5600MHz SO-DIMM memory. Key features include quad display outputs (1 x HDMI 2.1b, 2 x DP++, 1 x LVDS or eDP), four Intel® Ethernet ports (1 x i226LM, 2 x i226V 2.5GbE, 1 x i210AT), multiple USB ports (4 x USB 3.2 Gen2, 4 x USB 3.2 Gen1, 2 x USB 2.0), serial interfaces (3 x RS-232, 2 x RS-232/422/485), GPIOs, and expansion options through 1 x PCIe x16 (Gen5), 1 x M.2 E-Key (2230), and 2 x M.2 M-Key (2242/2280). With a compact form factor of 170mm x 170mm, wide voltage input range of 12V to 24V DC, and support for Windows 11 and Linux operating systems, the EMX-W880P offers a robust solution for space-constrained environments.

Key Features & Benefits

LGA 1851 Socket Supports Intel® Core™ Ultra Processors with Intel® W880 Chipset (Max. TDP at 125W)
2 x 262-Pin DDR5 6400MHz Dual Channel CSO-DIMM Socket Supports Up to 96GB
2 x DP++(one from Type C), 1 x HDMI 2.1b, 1 x eDP or LVDS
1 x PCIe x16 (Gen5)
1 x Intel® i226LM, 2 x Intel® i226V 2.5 Gigabit, 1 x Intel® i210AT controller
4 x USB 3.2 Gen2, 4 x USB 3.2 Gen1, 2 x USB 3.2 Gen2, 2 x USB 2.0
1 x M.2 (2230) E-Key, 2 x M.2 (2242/2280) M-Key
5 x COM
ATX Power

Applications & Use Cases

The EMX-W880P is ideal for various industrial automation applications:

DC-powered industrial installations and mobile applications
High-performance computing and data processing tasks
Networked industrial systems and data communication
Peripheral device connectivity and data transfer
Memory-intensive applications and multitasking
Custom industrial computing solutions
Industrial and embedded applications
Industrial automation platforms
