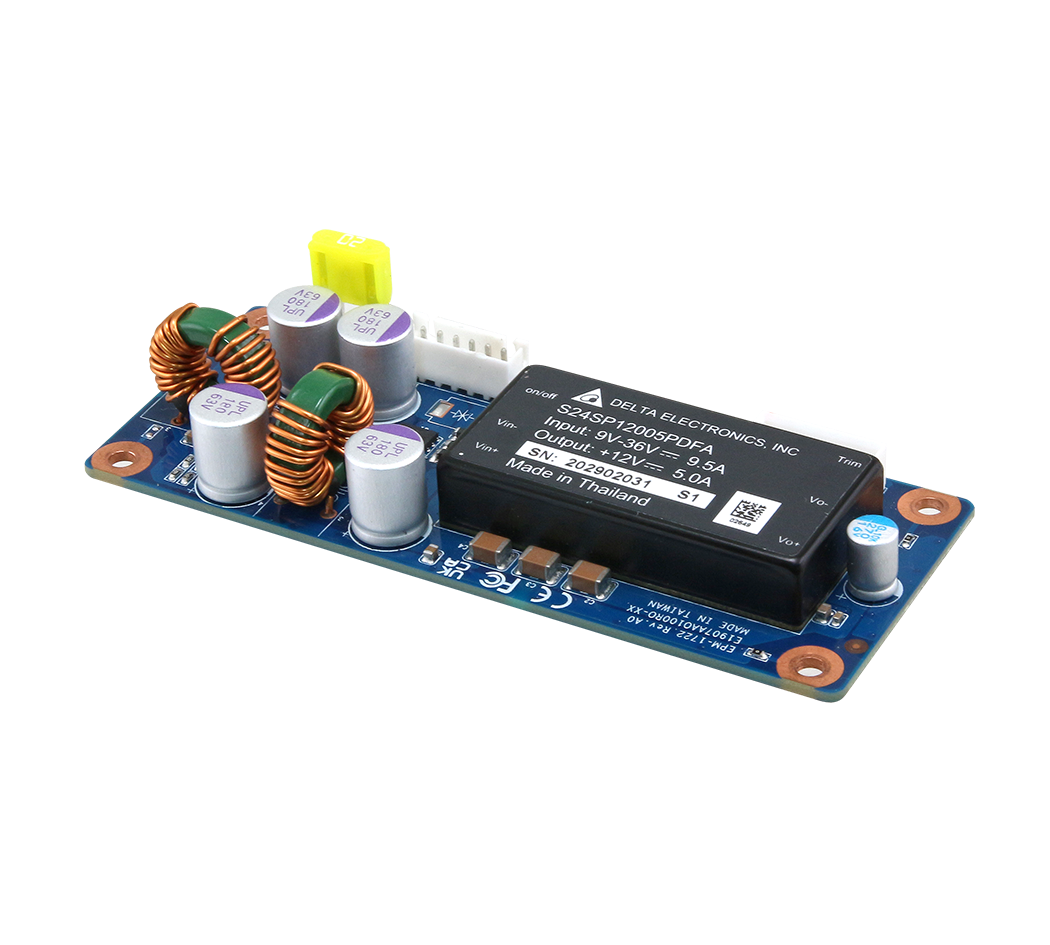

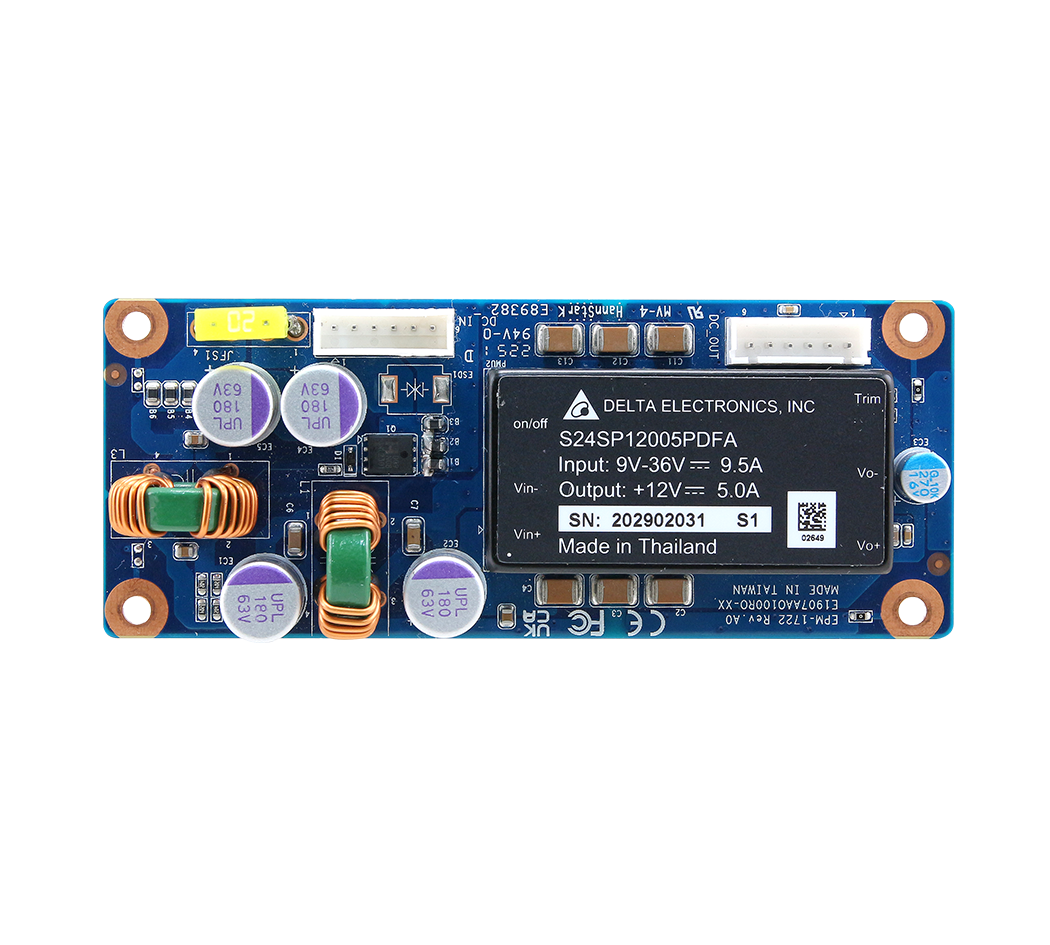

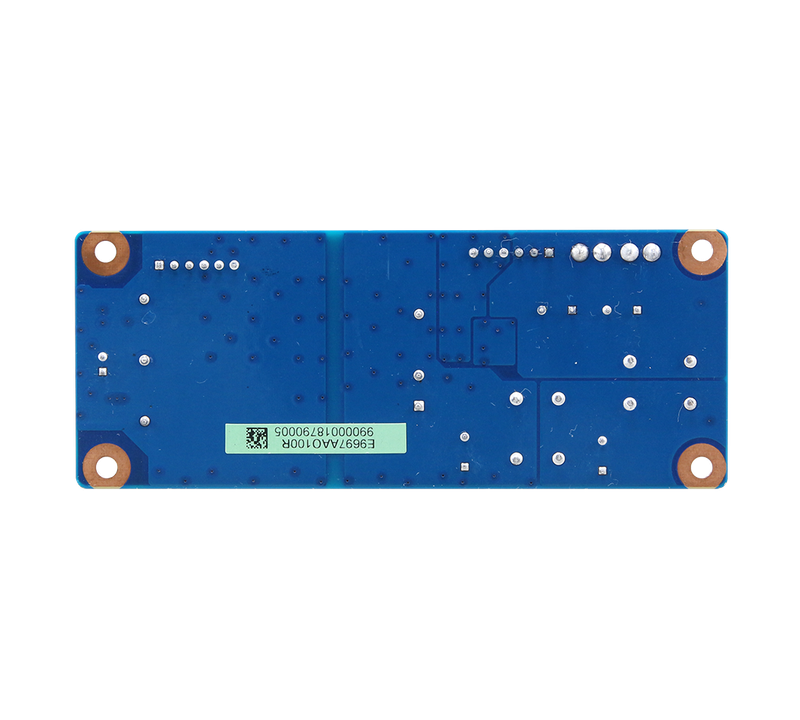

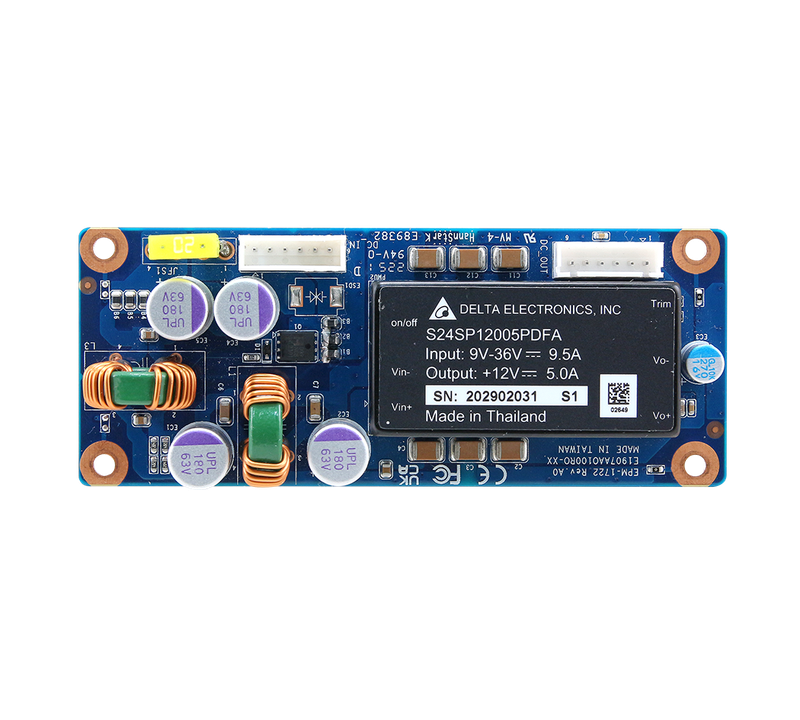

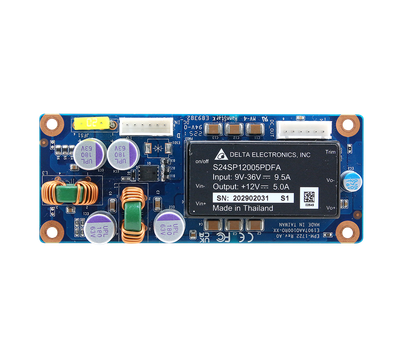

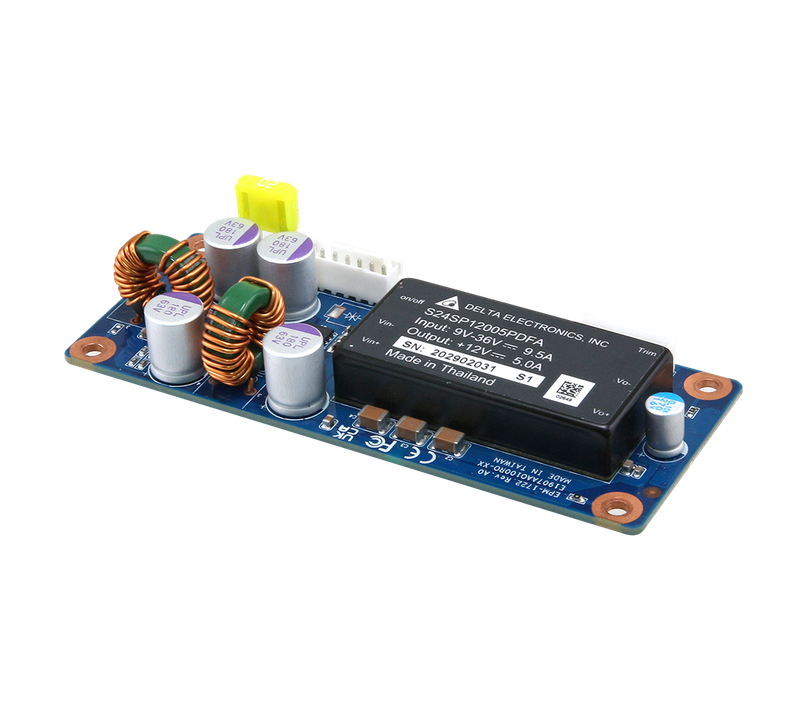

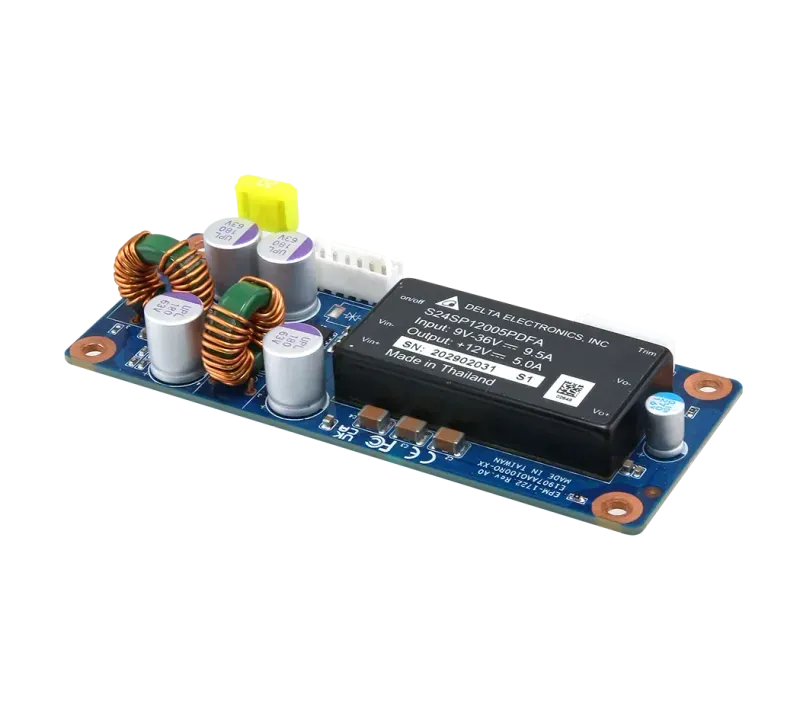

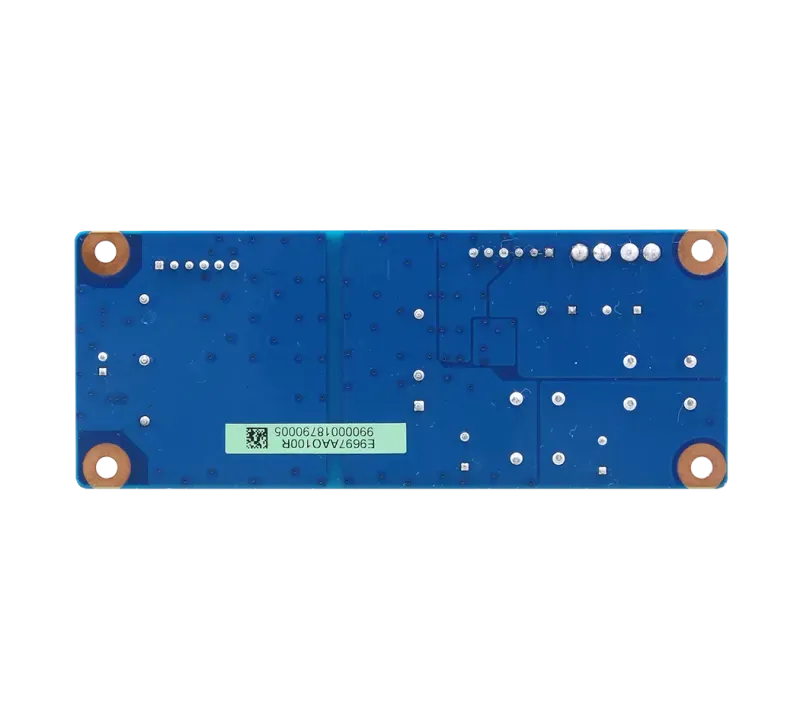

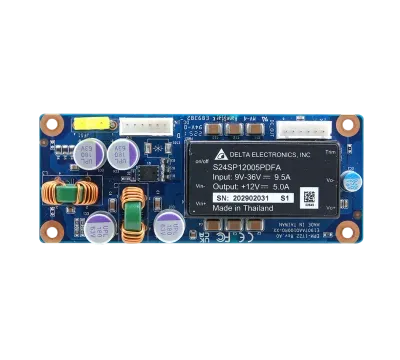

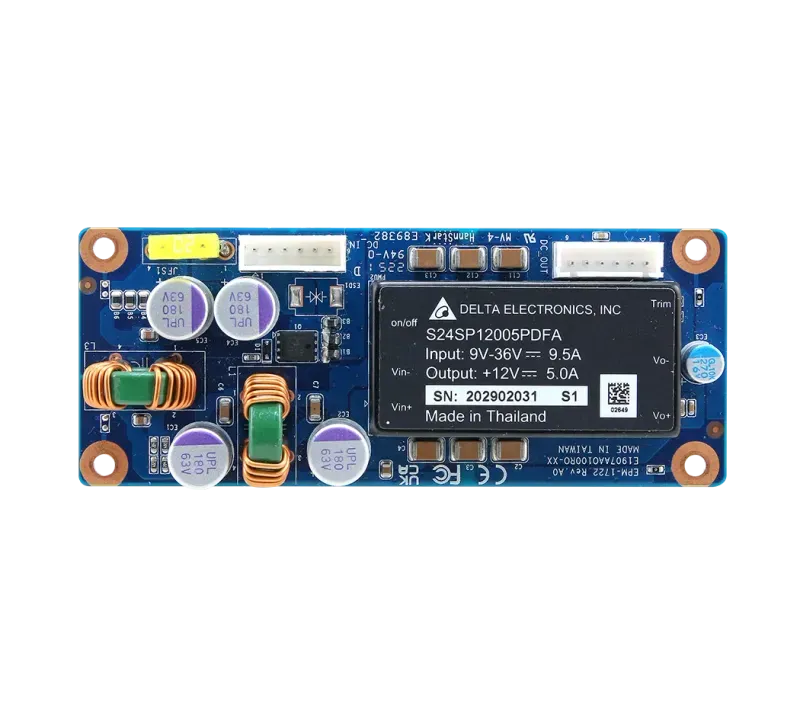

Avalue EPM-1722 DC to DC 60W Marine Power Module

Product Description

The Avalue EPM-1722 is a DC to DC 60W marine power module engineered for demanding maritime environments. It offers a wide input voltage range of +9 to 36VDC and provides a stable 12VDC output with a maximum current of 5A.

Designed with isolation and protection features, the EPM-1722 ensures reliable power conversion, safeguarding sensitive equipment against voltage fluctuations. Certified with IEC 60945, it meets stringent marine standards for safety and performance.

This module is an excellent choice for marine embedded systems requiring dependable power solutions.

Technical Specifications

DC In/Out Connector

Input Power Connector

M12 connector

Output Power Connector (DC-12V)

AT 2Px2 connector

DC In/Out Characteristics

Maximum Output Power

60W

Input Voltage Range

+9~ 36Vdc

Output Voltage Range

12Vdc

Maximum Output Current (DC-12V)

5000mA

Working Voltage

24Vdc w/1.5V Isolation

Certification

IEC Protection

IEC 60945

Mechanical & Environmental

Dimension

148*43mm

Form-Factor

Customized

Vibration Test

5G @5~500Hz

Operating Temp.

Wide temperature -40°C ~ 85°C.

Storage Temp.

-40°C ~ +85°C

Shock Test

10G @ 11ms

What is EPM-1722?

The EPM-1722 is a industrial & embedded motherboard manufactured by Avalue, designed specifically for motherboard-embedded-peripheral applications. The Avalue EPM-1722 is a DC to DC 60W marine power module engineered for demanding maritime environments. It offers a wide input voltage range of +9 to 36VDC and provides a stable 12VDC output with a maximum current of 5A. Designed with isolation and protection features, the EPM-1722 ensures reliable power conversion, safeguarding sensitive equipment against voltage fluctuations. Certified with IEC 60945, it meets stringent marine standards for safety and performance. This module is an excellent choice for marine embedded systems requiring dependable power solutions.

Key Features & Benefits

Features information coming soon.

Applications & Use Cases

The EPM-1722 is ideal for various industrial automation applications:

Custom industrial computing solutions
Industrial automation platforms
Embedded system development
Control system integration
