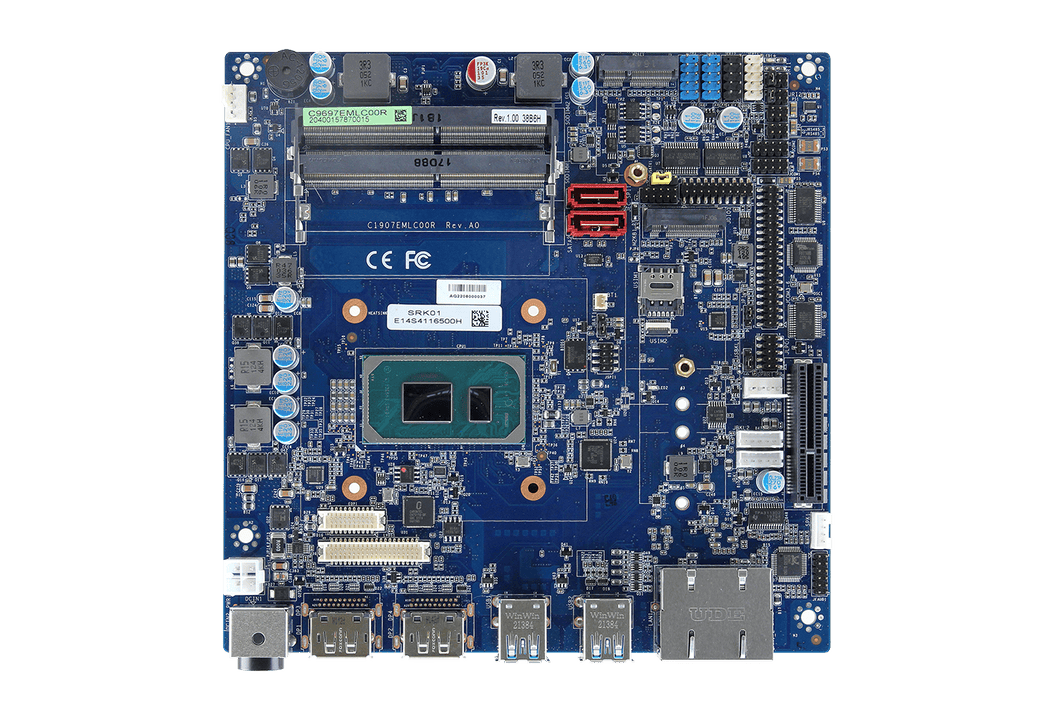

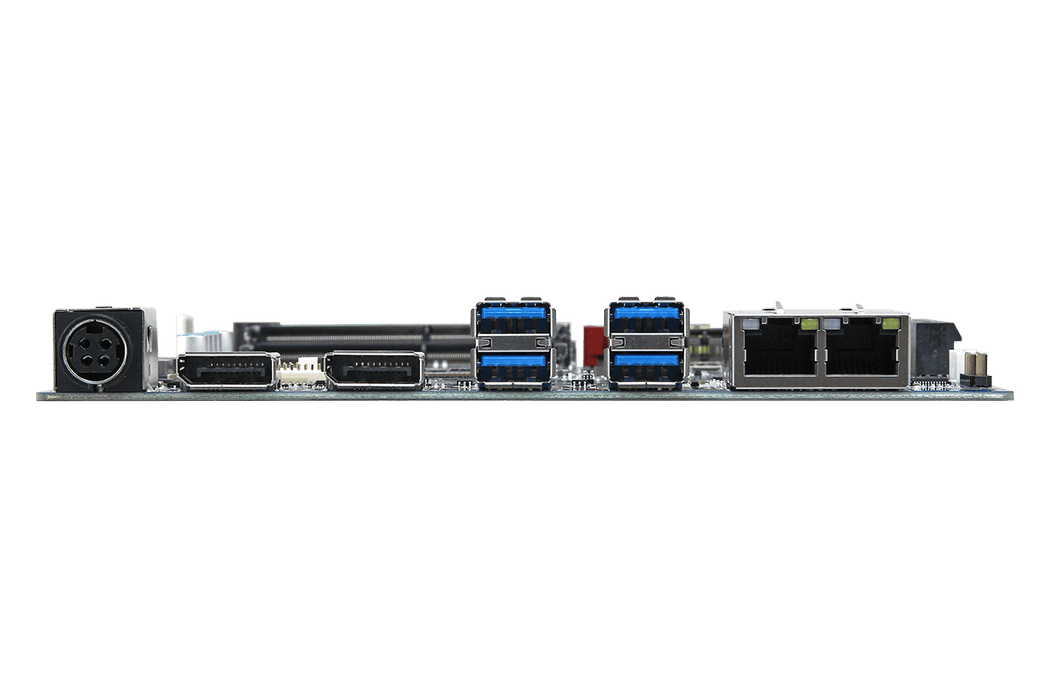

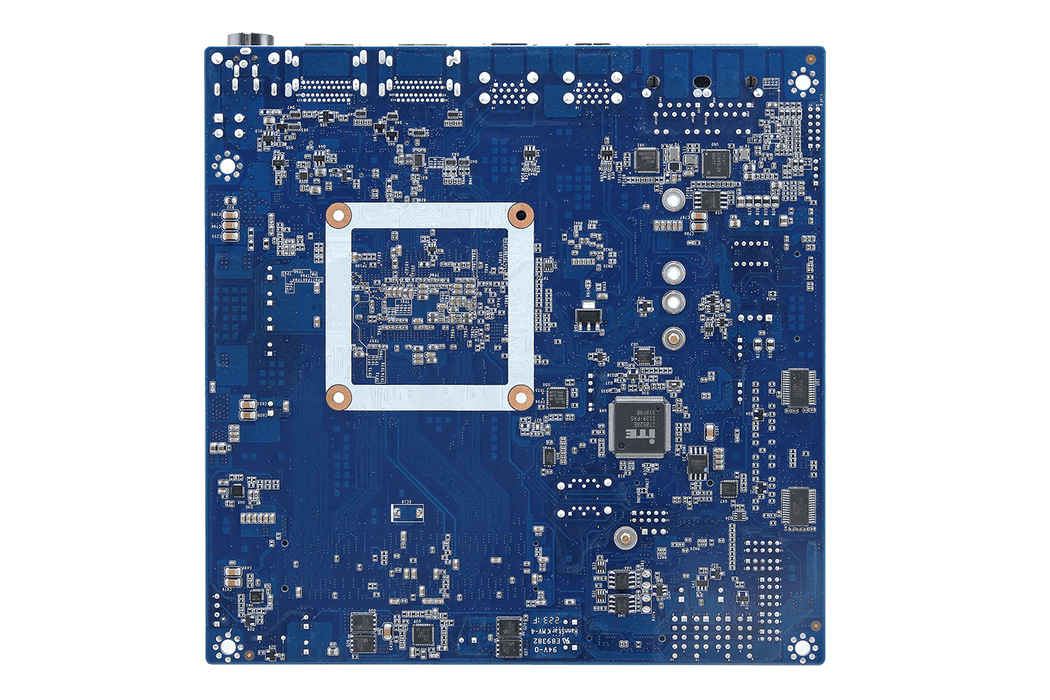

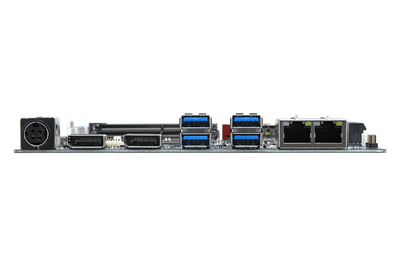

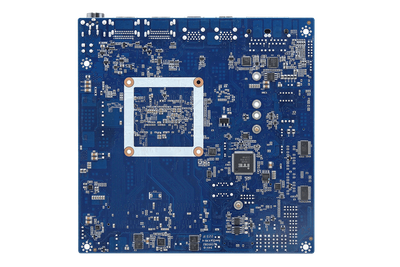

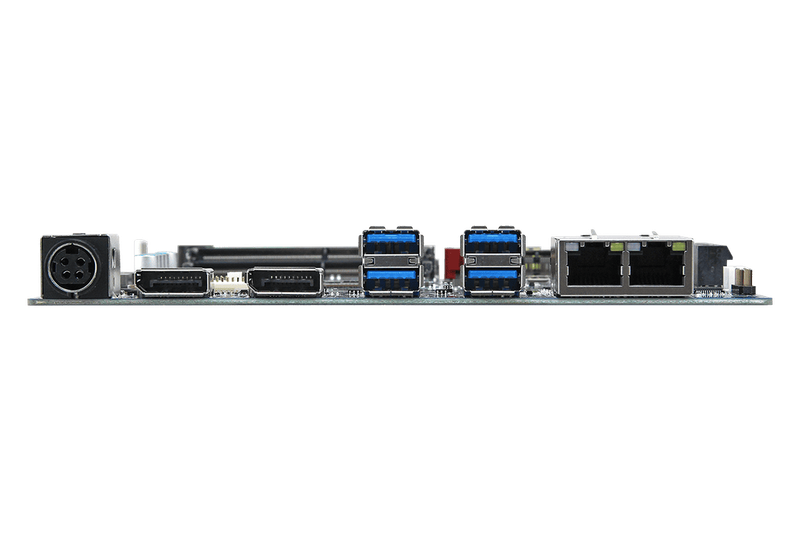

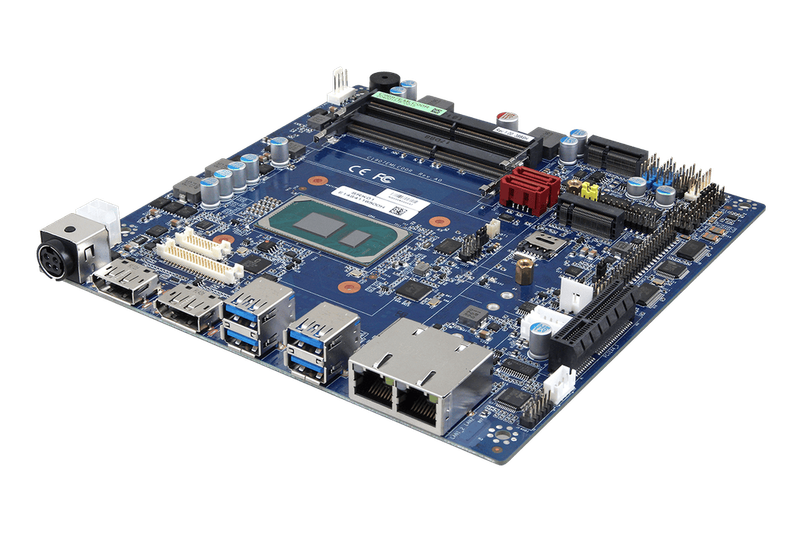

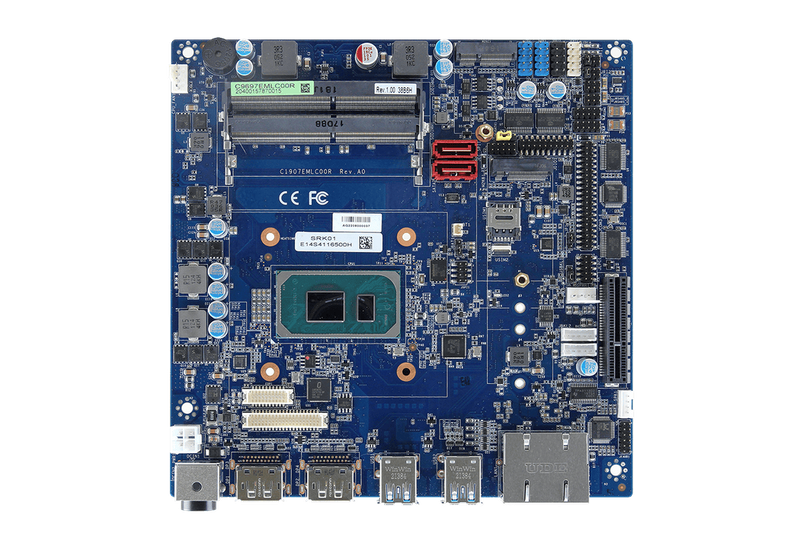

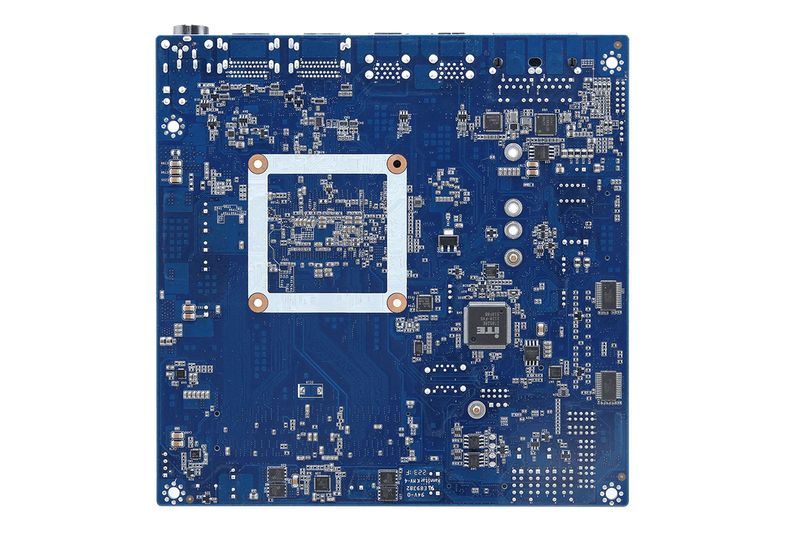

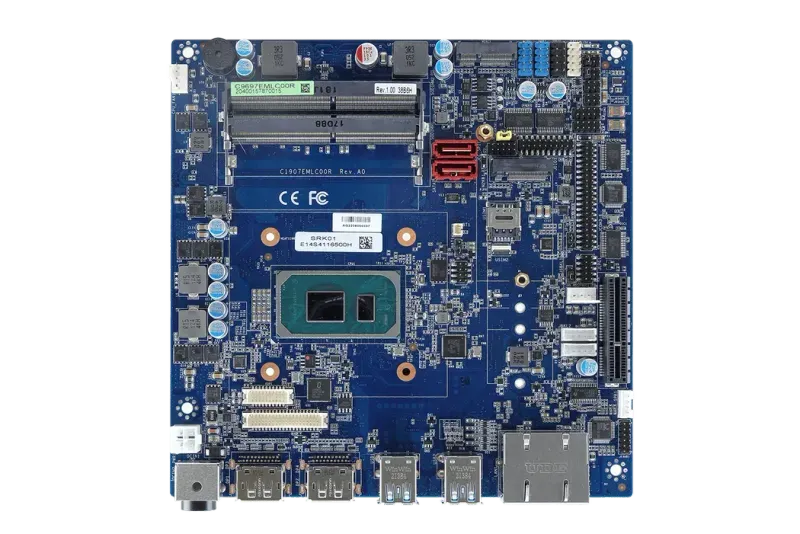

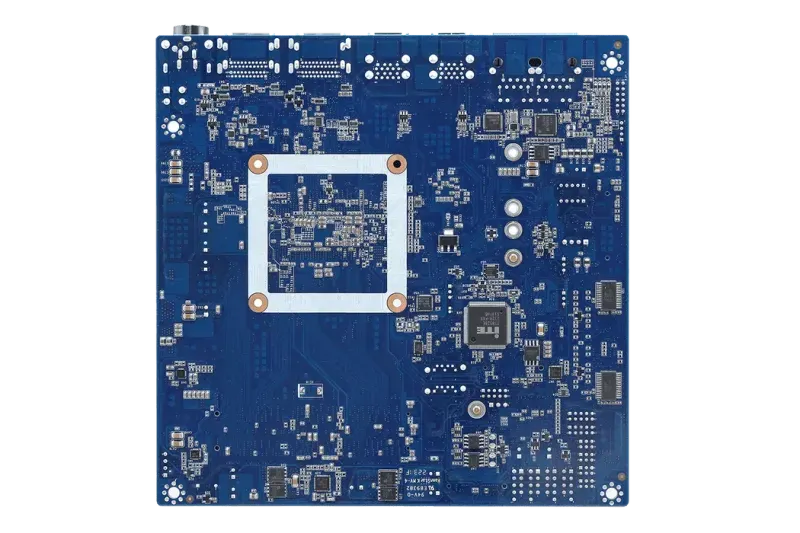

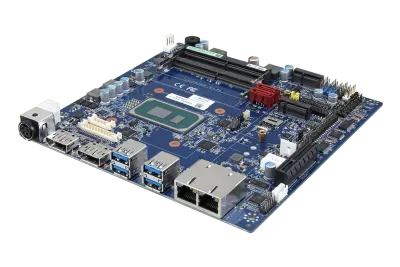

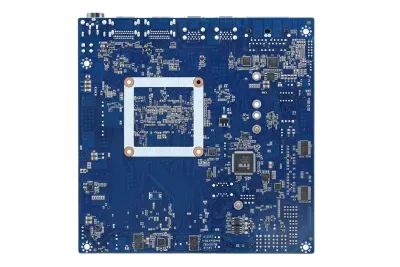

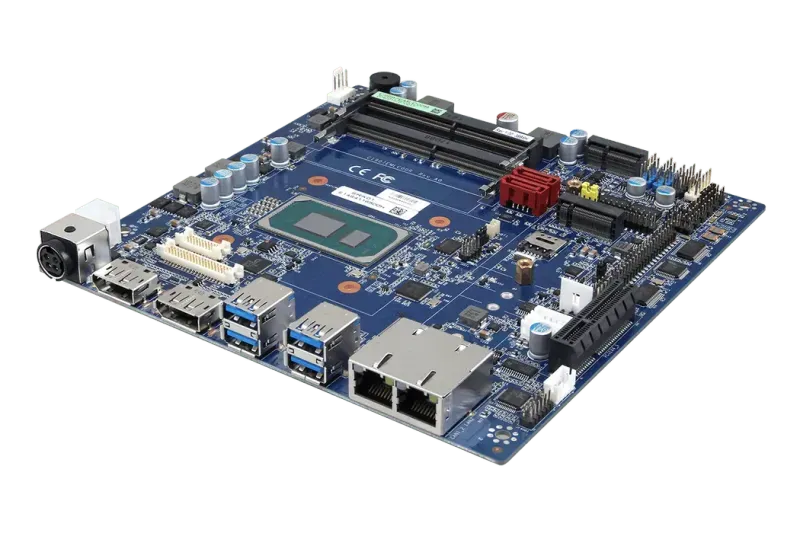

Question 1

What processors does the EMX-TGLC support?

Accepted Answer

The EMX-TGLC supports 11th Gen Intel® Core™ i5/i3 and Celeron® BGA processors.

Question 2

How much memory can the EMX-TGLC handle?

Accepted Answer

It supports up to 64GB DDR4 3200MHz SO-DIMM memory.

Question 3

What are the display capabilities?

Accepted Answer

It supports quadruple independent displays via 2 x DP++, LVDS, and eDP.

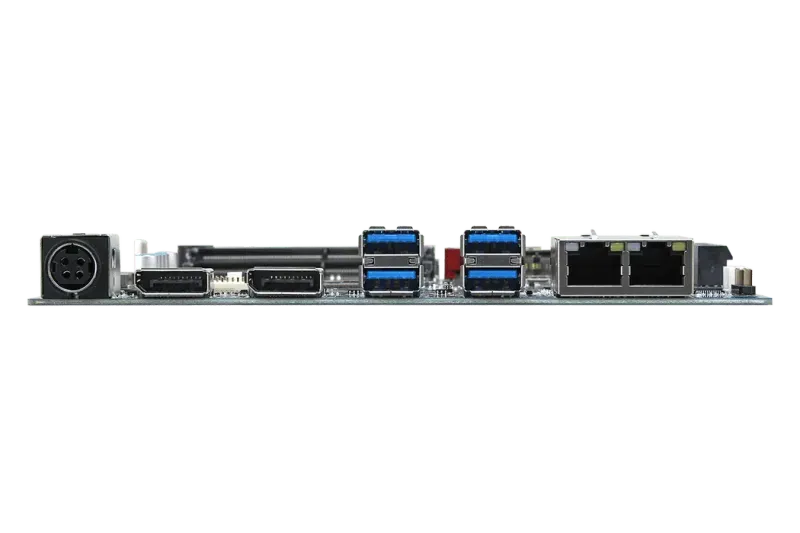

Question 4

What expansion options are available?

Accepted Answer

The board offers PCIe x4 slot, M.2 Type B, and M.2 Key E slots.

Question 5

What is the power input for the EMX-TGLC?

Accepted Answer

It supports DC input of +12V.

Question 6

What are Mini-ITX motherboards and what are their typical applications?

Accepted Answer

Mini-ITX motherboards are compact embedded boards measuring 170mm x 170mm. They are widely used in industrial automation, digital signage, kiosks, medical devices, edge computing, and embedded control systems due to their small size, rich I/O, and industrial-grade reliability.

Question 7

What are the advantages of using Mini-ITX over other form factors?

Accepted Answer

Mini-ITX offers a balance of compact size and expandability, with support for full-size memory, multiple display outputs, and rich I/O. Compared to smaller boards, they provide better thermal management and more expansion options, while being smaller than ATX or microATX boards.

Question 8

How do processor generations affect Mini-ITX board capabilities?

Accepted Answer

Newer processor generations bring improved performance, power efficiency, and support for advanced features like DDR5 memory, PCIe Gen4, and AI acceleration. The choice of processor impacts computing power, graphics, and connectivity options for Mini-ITX boards.

Question 9

What factors should be considered when selecting a Mini-ITX board for industrial use?

Accepted Answer

Consider CPU performance, memory and storage support, I/O requirements (USB, COM, LAN, display), expansion slots (M.2, PCIe), power input range, operating temperature, certifications, and long-term availability for your application.

Question 10

How can I effectively cool a Mini-ITX motherboard in an enclosed system?

Accepted Answer

Ensure adequate airflow (at least 0.5 m/s), use heatsinks or thermal pads, and consider fanless enclosures with external fins. Arrange components for natural convection and monitor system temperatures using onboard sensors.

Question 11

What are the power considerations for Mini-ITX boards?

Accepted Answer

Provide stable DC input within the specified range (often +12V~24V), use quality power supplies, and understand AT/ATX power modes. Implement surge protection and proper power sequencing for industrial reliability.

Question 12

How can I expand the functionality of a Mini-ITX board?

Accepted Answer

Use M.2 slots for Wi-Fi, LTE, or SSDs; PCIe slots for add-on cards; and USB or GPIO for peripherals. Many boards support multiple displays, additional storage, and network expansion through these interfaces.

Question 13

What are common performance bottlenecks in Mini-ITX systems?

Accepted Answer

Thermal limits, memory bandwidth, storage I/O, and network congestion are typical bottlenecks. Use fast memory, NVMe SSDs, and ensure proper cooling and network design to maximize performance.

Question 14

What is the recommended mounting procedure for Mini-ITX boards?

Accepted Answer

Use all four mounting holes with standoffs, maintain clearance above heat-generating components, and ensure proper thermal contact if using conduction cooling. Secure cables and avoid sources of EMI.

Question 15

How should I handle and install Mini-ITX boards to prevent damage?

Accepted Answer

Use ESD protection, handle by the edges, avoid flexing the PCB, and ensure power is off when connecting components. Use correct torque for screws and avoid moisture or contaminants.

Question 16

What are best practices for connecting peripherals to Mini-ITX boards?

Accepted Answer

Use shielded cables, implement strain relief, connect power before signal cables, and avoid exceeding cable length limits. Configure serial ports and test peripherals individually before full deployment.

Question 17

How can I set up operating systems on Mini-ITX boards?

Accepted Answer

Use manufacturer-recommended OS images, configure BIOS/UEFI settings, install all drivers, and optimize system services for your application. Document the setup for future maintenance.

Question 18

What should I do if a Mini-ITX board fails to power on?

Accepted Answer

Check power supply voltage and polarity, inspect cables and connectors, verify power mode (AT/ATX), and look for physical damage. Test with a known-good supply and check for status LEDs or error codes.

Question 19

How can I resolve display output problems on Mini-ITX boards?

Accepted Answer

Check cable connections, monitor input selection, and supported resolutions. Try different display interfaces, update drivers, reset BIOS display settings, and test with another monitor.

Question 20

What are common causes of network issues and how can they be resolved?

Accepted Answer

Check physical connections, update network drivers, verify IP configuration, and check for firewall or switch issues. Test with alternate cables and equipment if needed.

Question 21

How can I troubleshoot M.2 or storage device issues?

Accepted Answer

Ensure the device is properly inserted, matches the slot type, and is recognized in BIOS. Update BIOS and drivers, check for thermal issues, and test the device in another system if possible.
