What is the maximum memory supported by the MX610HD?

It supports up to 64GB DDR5 4800MHz SO-DIMM memory.

What display outputs are available on the MX610HD?

The board offers HDMI 1.4b, DP++ 1.2a, and LVDS/eDP for triple display support.

What expansion slots are available?

The MX610HD provides PCIe x16 (Gen4), M.2 M-Key 2242/2280, and M.2 E-Key 2230 slots.

What are Mini-ITX motherboards and what are their typical applications?

Mini-ITX motherboards are compact embedded boards measuring 170mm x 170mm. They are widely used in industrial automation, digital signage, kiosks, medical devices, edge computing, and embedded control systems due to their small size, rich I/O, and industrial-grade reliability.

What are the advantages of using Mini-ITX over other form factors?

Mini-ITX offers a balance of compact size and expandability, with support for full-size memory, multiple display outputs, and rich I/O. Compared to smaller boards, they provide better thermal management and more expansion options, while being smaller than ATX or microATX boards.

How do processor generations affect Mini-ITX board capabilities?

Newer processor generations bring improved performance, power efficiency, and support for advanced features like DDR5 memory, PCIe Gen4, and AI acceleration. The choice of processor impacts computing power, graphics, and connectivity options for Mini-ITX boards.

What factors should be considered when selecting a Mini-ITX board for industrial use?

Consider CPU performance, memory and storage support, I/O requirements (USB, COM, LAN, display), expansion slots (M.2, PCIe), power input range, operating temperature, certifications, and long-term availability for your application.

How can I effectively cool a Mini-ITX motherboard in an enclosed system?

Ensure adequate airflow (at least 0.5 m/s), use heatsinks or thermal pads, and consider fanless enclosures with external fins. Arrange components for natural convection and monitor system temperatures using onboard sensors.

What are the power considerations for Mini-ITX boards?

Provide stable DC input within the specified range (often +12V~24V), use quality power supplies, and understand AT/ATX power modes. Implement surge protection and proper power sequencing for industrial reliability.

How can I expand the functionality of a Mini-ITX board?

Use M.2 slots for Wi-Fi, LTE, or SSDs; PCIe slots for add-on cards; and USB or GPIO for peripherals. Many boards support multiple displays, additional storage, and network expansion through these interfaces.

What are common performance bottlenecks in Mini-ITX systems?

Thermal limits, memory bandwidth, storage I/O, and network congestion are typical bottlenecks. Use fast memory, NVMe SSDs, and ensure proper cooling and network design to maximize performance.

What is the recommended mounting procedure for Mini-ITX boards?

Use all four mounting holes with standoffs, maintain clearance above heat-generating components, and ensure proper thermal contact if using conduction cooling. Secure cables and avoid sources of EMI.

How should I handle and install Mini-ITX boards to prevent damage?

Use ESD protection, handle by the edges, avoid flexing the PCB, and ensure power is off when connecting components. Use correct torque for screws and avoid moisture or contaminants.

What are best practices for connecting peripherals to Mini-ITX boards?

Use shielded cables, implement strain relief, connect power before signal cables, and avoid exceeding cable length limits. Configure serial ports and test peripherals individually before full deployment.

How can I set up operating systems on Mini-ITX boards?

Use manufacturer-recommended OS images, configure BIOS/UEFI settings, install all drivers, and optimize system services for your application. Document the setup for future maintenance.

What should I do if a Mini-ITX board fails to power on?

Check power supply voltage and polarity, inspect cables and connectors, verify power mode (AT/ATX), and look for physical damage. Test with a known-good supply and check for status LEDs or error codes.

How can I resolve display output problems on Mini-ITX boards?

Check cable connections, monitor input selection, and supported resolutions. Try different display interfaces, update drivers, reset BIOS display settings, and test with another monitor.

What are common causes of network issues and how can they be resolved?

Check physical connections, update network drivers, verify IP configuration, and check for firewall or switch issues. Test with alternate cables and equipment if needed.

How can I troubleshoot M.2 or storage device issues?

Ensure the device is properly inserted, matches the slot type, and is recognized in BIOS. Update BIOS and drivers, check for thermal issues, and test the device in another system if possible.

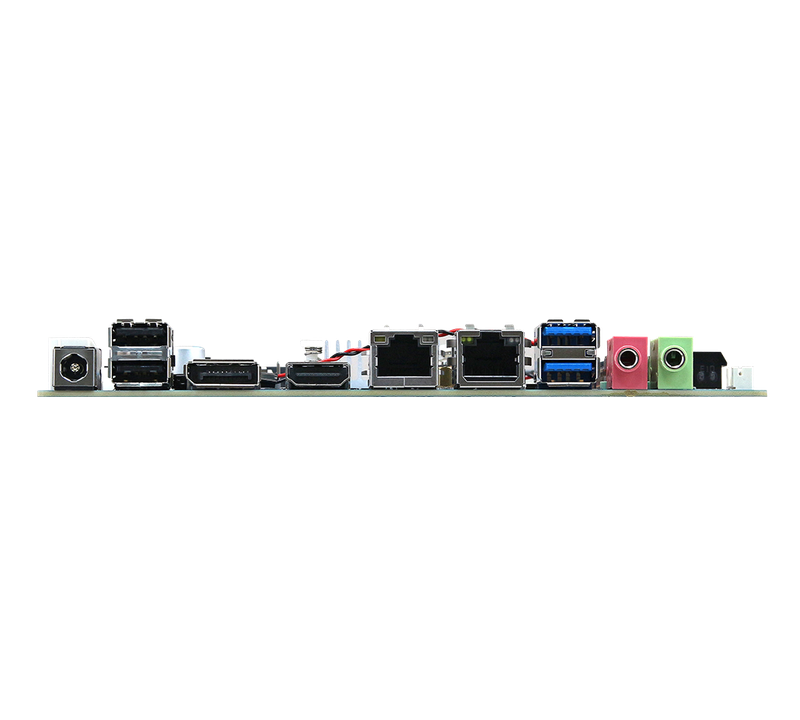

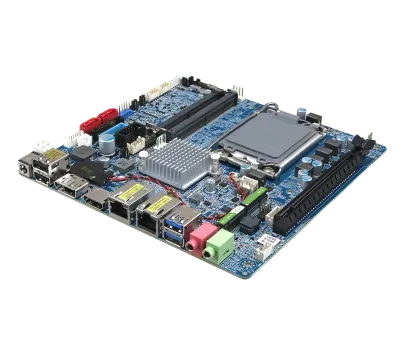

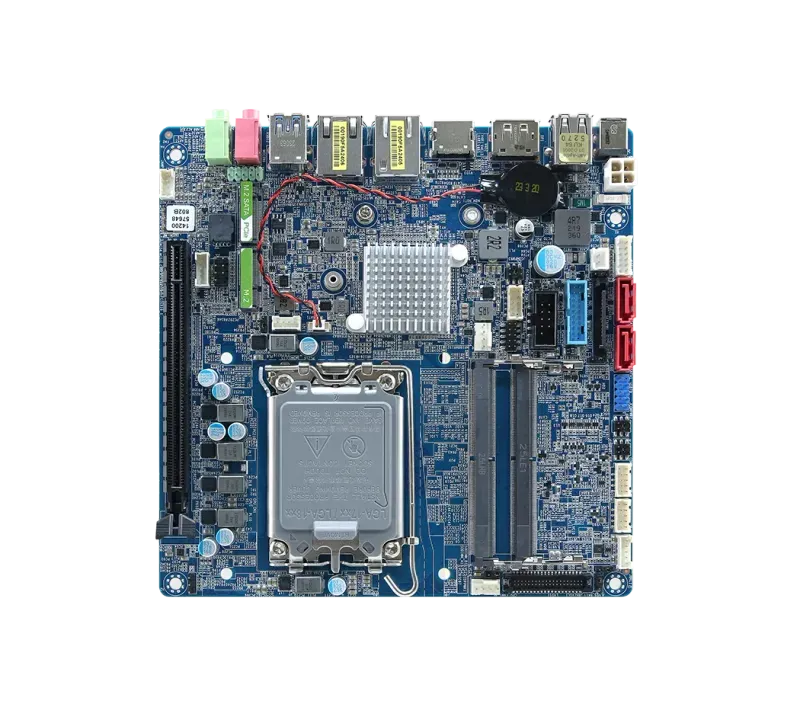

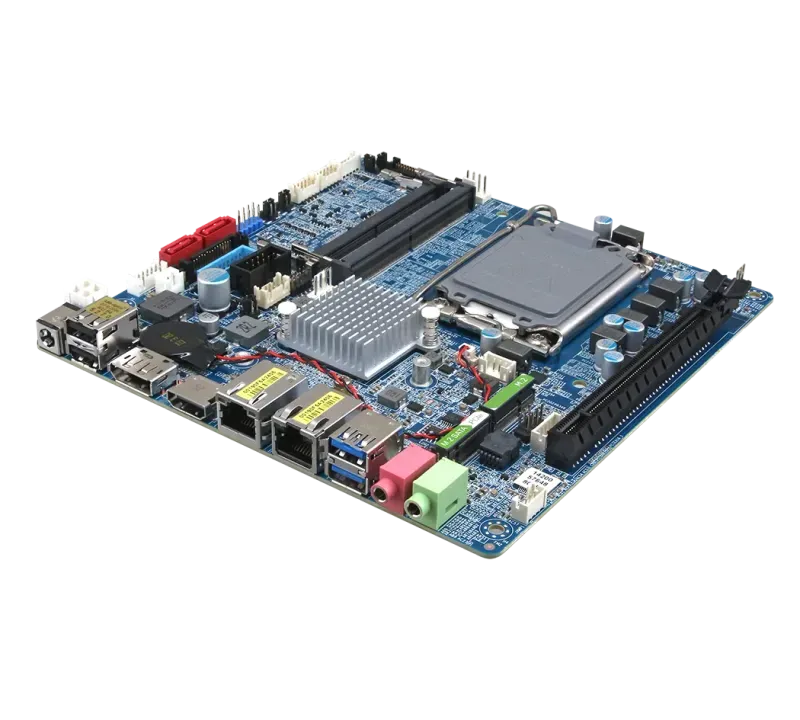

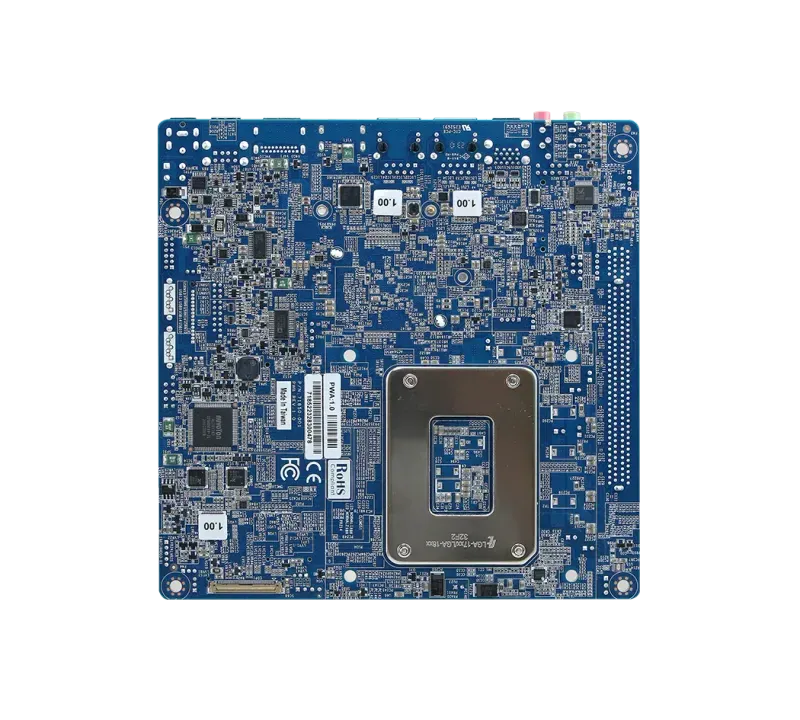

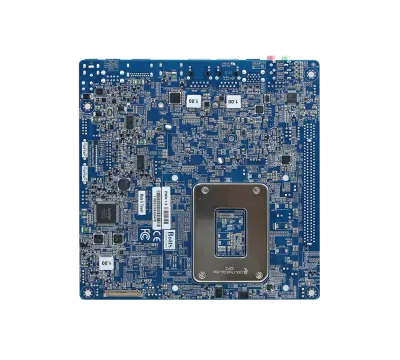

MX610HD

*Price on request. Contact us for a quote.

Manufacturer: Avalue

12/13/14th Gen. Intel® Core™ i9/i7/i5/ i3/Pentium/Celeron Processor with Intel® H610E Chipset
2 x 262-Pin DDR5 4800 MHz SO-DIMM Socket Supports Up to 64GB (Non-ECC)
HDMI, LVDS, Optional eDP
1 x PCIe x16 (Gen4)
1 x Intel® I219V, 1 x Intel® I225LM
4 x USB 3.2, 6 x USB 2.0
1 x M.2 M-Key 2242/2280, 1 x M.2 E-Key 2230
3 x COM
DC in +12V~24V

Product Description

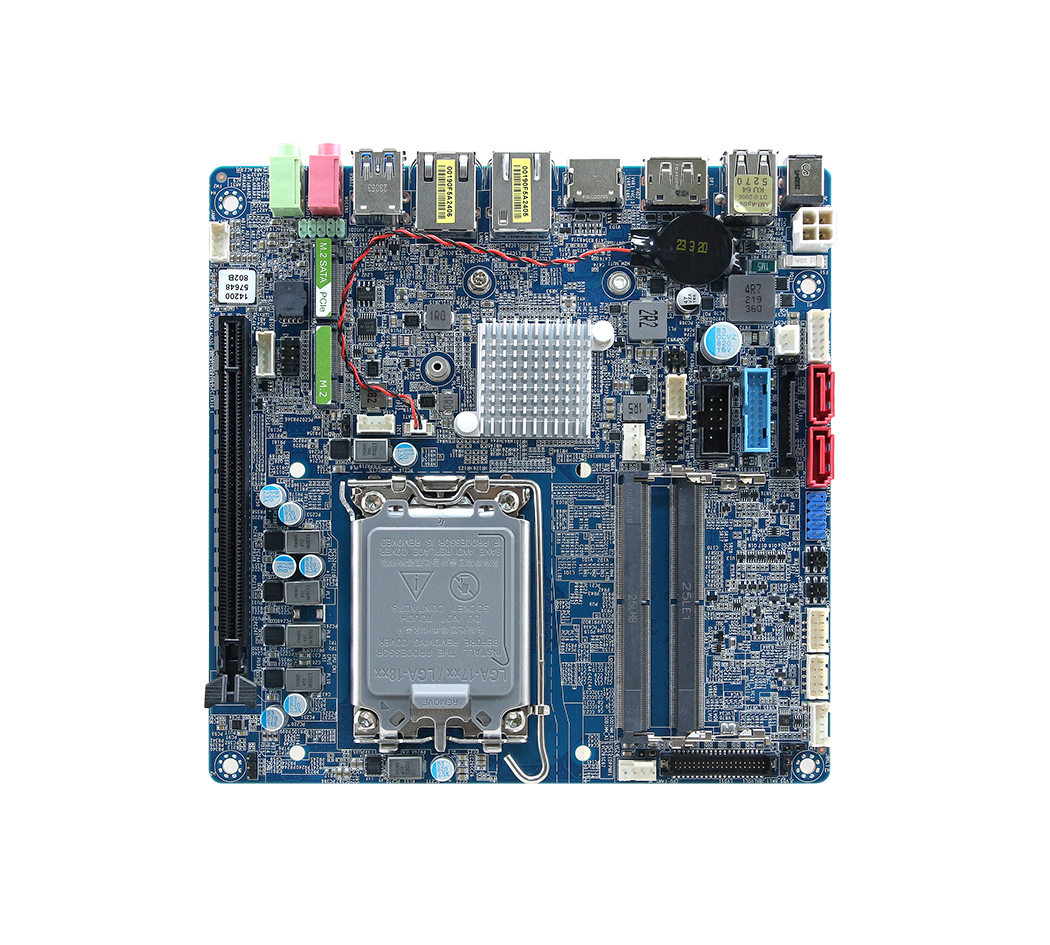

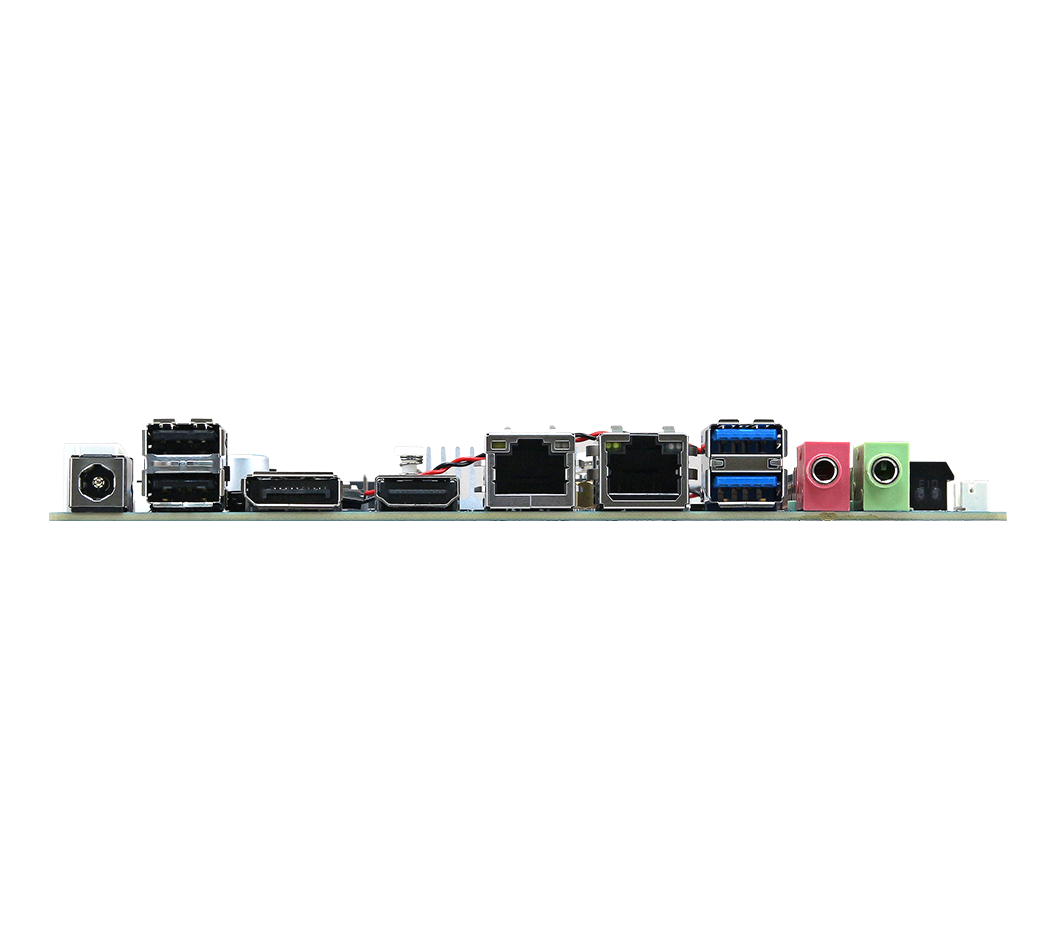

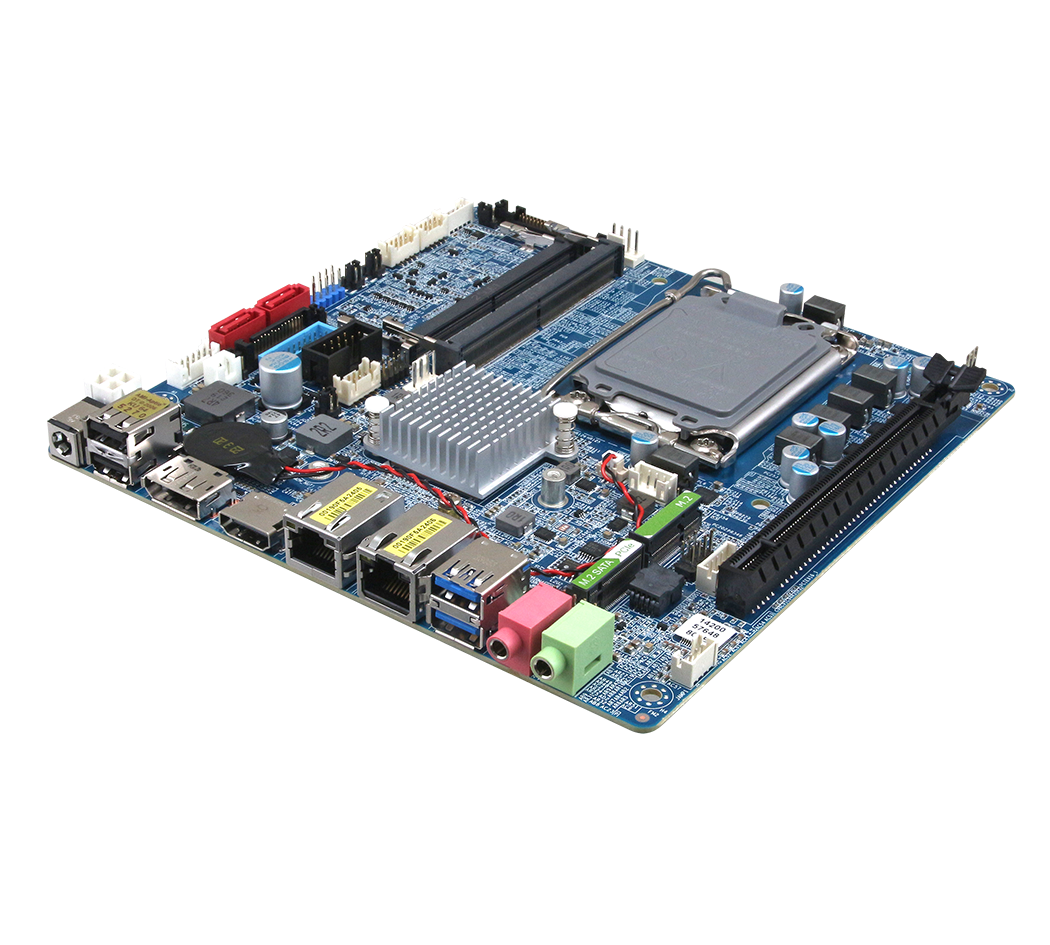

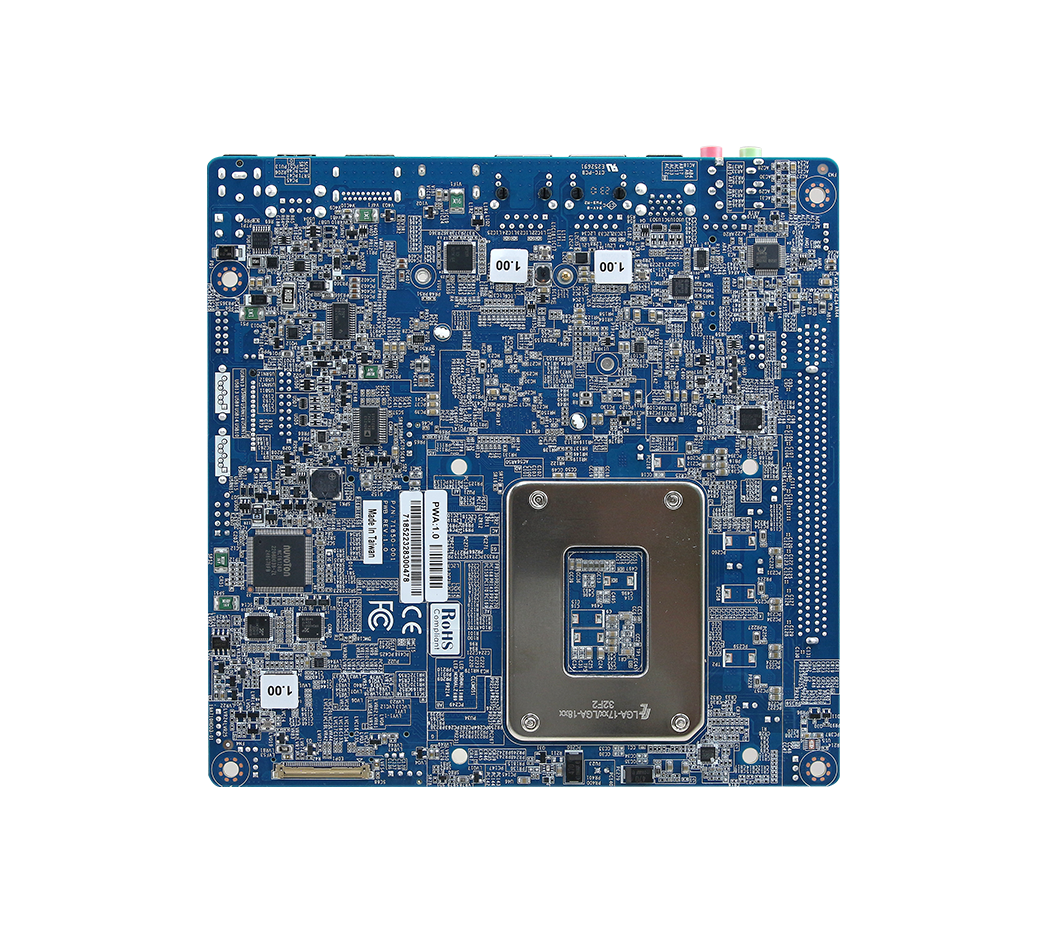

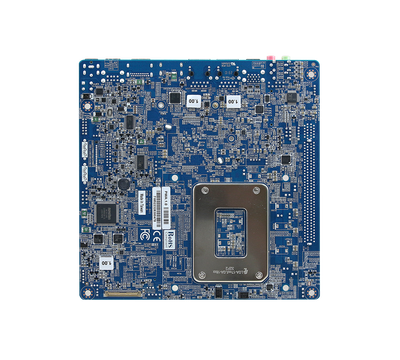

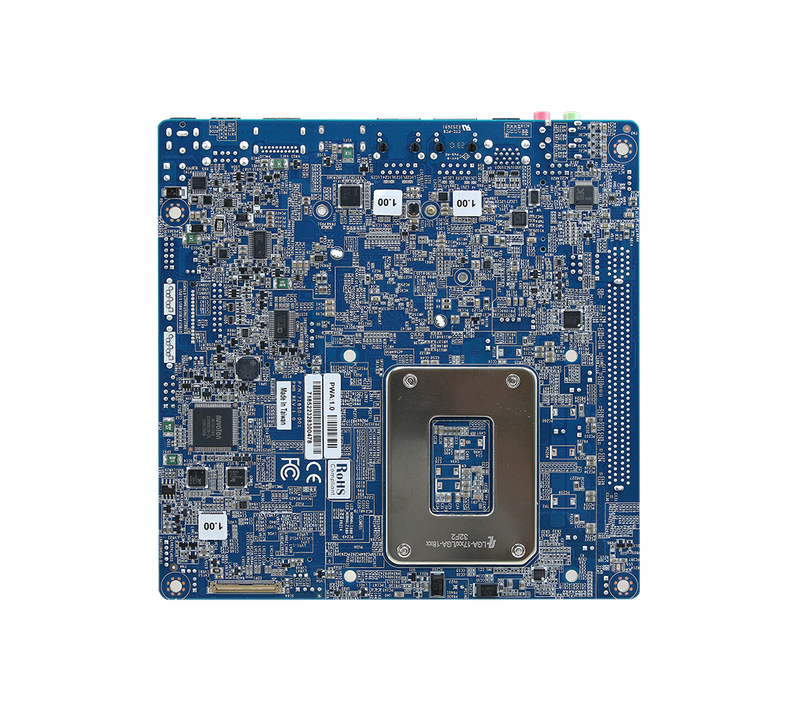

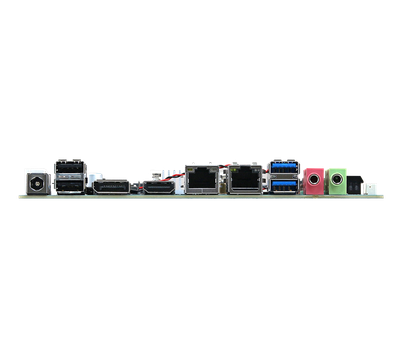

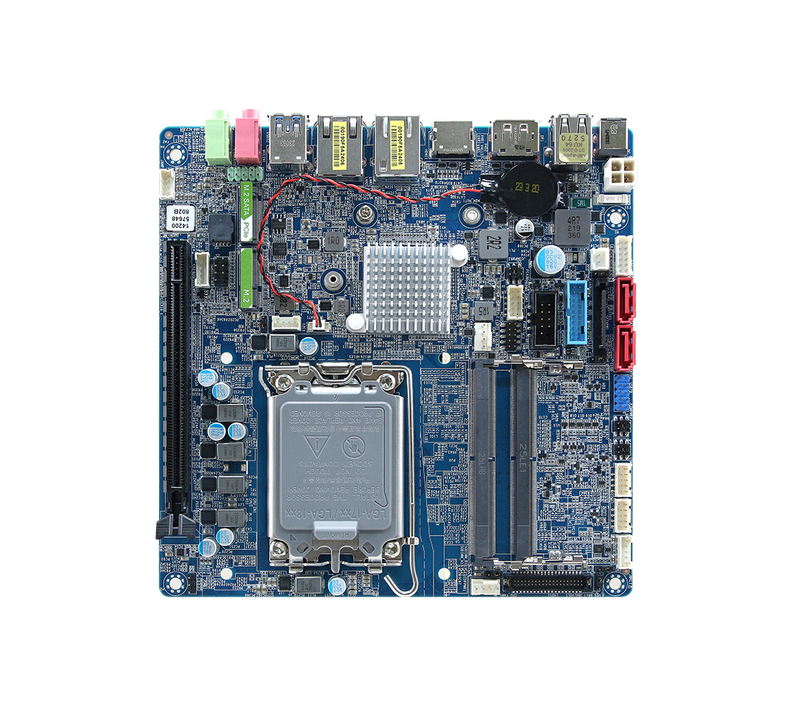

The Avalue MX610HD is a Thin Mini-ITX motherboard designed for industrial and embedded applications. It supports 12th, 13th, and 14th Gen Intel® Core™ i9/i7/i5/i3, Pentium®, and Celeron® processors with up to 65W TDP, utilizing the Intel® H610E chipset.

The board accommodates up to 64GB of DDR5 4800MHz SO-DIMM memory.

Key features include triple display outputs (HDMI 1.4b, DP++ 1.2a, and LVDS/eDP), dual LAN ports (Intel® I219V Gigabit Ethernet and Intel® I225LM 2.5 Gigabit Ethernet), multiple USB ports (4 x USB 3.2, 6 x USB 2.0), serial interfaces (1 x RS-232, 2 x RS-232/422/485), and expansion options through PCIe x16 (Gen4), M.2 M-Key 2242/2280, and M.2 E-Key 2230 slots.

With a compact form factor of 170mm x 170mm, wide voltage input range of 12V to 24V DC, and support for Windows 11 and Linux operating systems, the MX610HD offers a robust solution for space-constrained environments.

Technical Specifications

System Information

Processor

LGA 1700 Socket Supports 12/13/14th Generation Intel® Core™ i9/i7/i5/i3/Pentium/Celeron Processors (Max. TDP at 65W)

Platform Controller Hub

Intel® H610E Chipset

System Memory

2 x 262-Pin DDR5 4800MHz SO-DIMM Socket Supports Up to 64GB (Non-ECC)

I/O Chipset

nuvoton NCT6126D

Watchdog Timer

H/W Reset, 5~255 Seconds/5~255 Minutes

BIOS

AMI uEFI BIOS, 256Mbit SPI Flash ROM

H/W Status Monitor

CPU Temperature Monitoring

Voltage Monitoring

CPU Fan Speed Control

TPM

Onboard infineon SLB 9670VQ2.0 support TPM2.0

Board

Thin Mini ITX

Display

Multiple Display

Triple Display

Graphic Chipset

Intel® Integrated UHD Graphic with Xe Architecture (CPU Dependent)

Spec. & Resolution

1 x HDMI 1.4b 4K@30Hz

1 x Dual Mode DisplayPort (DP++) 1.2a 4K@60Hz

Dual Channel 18/24-bits LVDS

LVDS

Dual Channel 18/24-bits LVDS

Expansion

1 x PCIe x16 (Gen4)

1 x M.2 M-Key 2242/2280 NVMe (PCIe x4 + SATA III)

1 x M.2 E-Key 2230 with CNVi Support (PCIe x1 + USB 2.0)

Audio

Audio Codec

Realtek ALC897 HD Audio Decoding Controller

Audio Interface

Mic-in, Line-out

Audio Amplifier

3W per channel Amplifier

Ethernet

LAN Chipset

1 x Intel® I219V Gigabit Ethernet

1 x Intel® I225LM 2.5 Gigabit Ethernet

Ethernet Interface

10/100/1000 Base-Tx GbE compatible & 2.5 Gigabit Ethernet

LAN Port

2 x RJ-45

Software Support

OS

Windows 11, Linux

Certification

Certification Information

CE, FCC, RoHS Compliant

I/O

USB

2 x USB 3.2

2 x USB 2.0

2 x USB 3.2 Gen1x1 by pin header

2 x USB 2.0 by pin header

COM Port

1 x RS-232

2 x RS-232/422/485

SATA

2 x SATA III

2 x SATA Power

DIO

1 x 8-bit GPIO

Mechanical & Environmental

Operating Temp.

0°C to 60°C (32°F ~ 140°F)

Storage Temp.

-20° C ~ 80° C (-4°F ~ 176°F)

Dimension (L x W)

6.7" x 6.7" (170mm x 170mm)

Weight

0.88lbs (0.4Kgs)

Operating Humidity

5% to 90% Non-condensing

Power Mode

AT/ATX (Default Setting: ATX)

Power Requirement

DC in +12V~24V

Ordering Information

71852-IA

Intel® 12th/13/14th Gen. Core™ i9/i7/i5/i3 Processor Thin Mini ITX Motherboard with Intel® H610E PCH

What is MX610HD?

The MX610HD is a industrial & embedded motherboard manufactured by Avalue, designed specifically for thin-mini-itx applications. The Avalue MX610HD is a Thin Mini-ITX motherboard designed for industrial and embedded applications. It supports 12th, 13th, and 14th Gen Intel® Core™ i9/i7/i5/i3, Pentium®, and Celeron® processors with up to 65W TDP, utilizing the Intel® H610E chipset. The board accommodates up to 64GB of DDR5 4800MHz SO-DIMM memory. Key features include triple display outputs (HDMI 1.4b, DP++ 1.2a, and LVDS/eDP), dual LAN ports (Intel® I219V Gigabit Ethernet and Intel® I225LM 2.5 Gigabit Ethernet), multiple USB ports (4 x USB 3.2, 6 x USB 2.0), serial interfaces (1 x RS-232, 2 x RS-232/422/485), and expansion options through PCIe x16 (Gen4), M.2 M-Key 2242/2280, and M.2 E-Key 2230 slots. With a compact form factor of 170mm x 170mm, wide voltage input range of 12V to 24V DC, and support for Windows 11 and Linux operating systems, the MX610HD offers a robust solution for space-constrained environments.

Key Features & Benefits

12/13/14th Gen. Intel® Core™ i9/i7/i5/ i3/Pentium/Celeron Processor with Intel® H610E Chipset
2 x 262-Pin DDR5 4800 MHz SO-DIMM Socket Supports Up to 64GB (Non-ECC)
HDMI, LVDS, Optional eDP
1 x PCIe x16 (Gen4)
1 x Intel® I219V, 1 x Intel® I225LM
4 x USB 3.2, 6 x USB 2.0
1 x M.2 M-Key 2242/2280, 1 x M.2 E-Key 2230
3 x COM
DC in +12V~24V

Applications & Use Cases

The MX610HD is ideal for various industrial automation applications:

DC-powered industrial installations and mobile applications
High-performance computing and data processing tasks
Peripheral device connectivity and data transfer
Memory-intensive applications and multitasking
Custom industrial computing solutions
Industrial and embedded applications
Industrial automation platforms
Embedded system development
