What are the key features of the MAB-T600-B1 medical box PC?

The MAB-T600-B1 supports 12th/13th/14th Gen Intel® Core™ processors, up to 128GB DDR5 ECC memory, multiple PCIe slots, four 4K display outputs, and a 500W medical-grade PSU with IPX1 protection.

What are the display capabilities of the MAB-T600-B1?

It supports up to four independent 4K displays via DP++ interfaces.

What certifications does the MAB-T600-B1 meet?

It complies with ANSI AAMI ES60601-1, IEC 60601-1, EN 60601-1, and other medical safety standards.

What is the power supply specification?

The MAB-T600-B1 uses a 500W medical 1U ATX power supply.

What are medical box PCs and what are their typical applications?

Medical box PCs are high-performance, compact computers designed for use in healthcare environments. They are used in medical imaging, diagnostics, telemedicine, patient monitoring, and hospital automation.

What are the advantages of using a medical box PC?

Medical box PCs offer robust performance, medical-grade safety certifications, long lifecycle support, and are designed for reliability in demanding healthcare settings.

What certifications should a medical box PC have?

Look for certifications such as ANSI AAMI ES60601-1, IEC 60601-1, EN 60601-1, and ISO 14971 for compliance with medical safety standards.

What processors are supported by medical box PCs?

Medical box PCs typically support the latest Intel® Core™ processors, with options for ECC memory and advanced graphics for medical imaging.

What are the display capabilities of medical box PCs?

They support multiple independent displays, often with 4K or 8K resolution, via HDMI, DP++, and other interfaces.

What networking features are available?

Medical box PCs offer multiple high-speed LAN ports (including 2.5GbE), Wi-Fi, and expansion options for connectivity in hospital networks.

What is the typical power supply for a medical box PC?

They use medical-grade ATX power supplies, typically 400W or 500W, with wide AC input support.

How do I install a medical box PC in a healthcare environment?

Follow manufacturer guidelines for mounting, ensure proper ventilation, and connect to certified power sources. Use ESD protection and avoid exposure to moisture or contaminants.

What operating systems are supported?

Most medical box PCs support Windows 10, Windows 11, and Linux. Check the product datasheet for details.

How do I connect peripherals and expansion cards?

Use the available PCIe, M.2, and USB ports for expansion. Ensure all connections are secure and compatible with medical standards.

What should I do if the medical box PC does not power on?

Check the AC power input, power supply unit, and all cable connections. Ensure the power switch is set correctly and test with a known-good power source.

How can I resolve display issues?

Verify cable connections, monitor input selection, and supported resolutions. Update drivers and check BIOS settings if needed.

What steps should I take if there are network connectivity problems?

Check LAN cable connections, update network drivers, verify IP configuration, and test with alternate cables or ports.

How do I update the BIOS or firmware?

Refer to the product manual for update procedures. Use only manufacturer-approved firmware and follow ESD precautions.

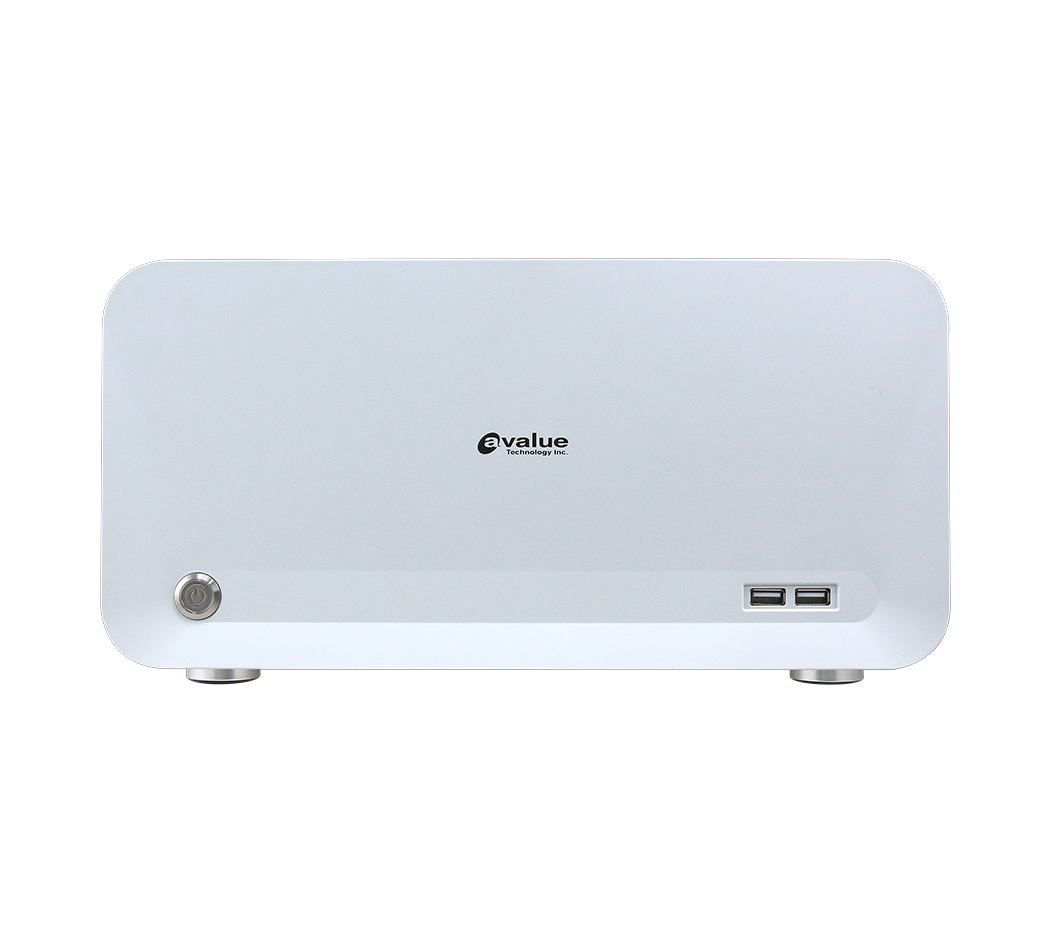

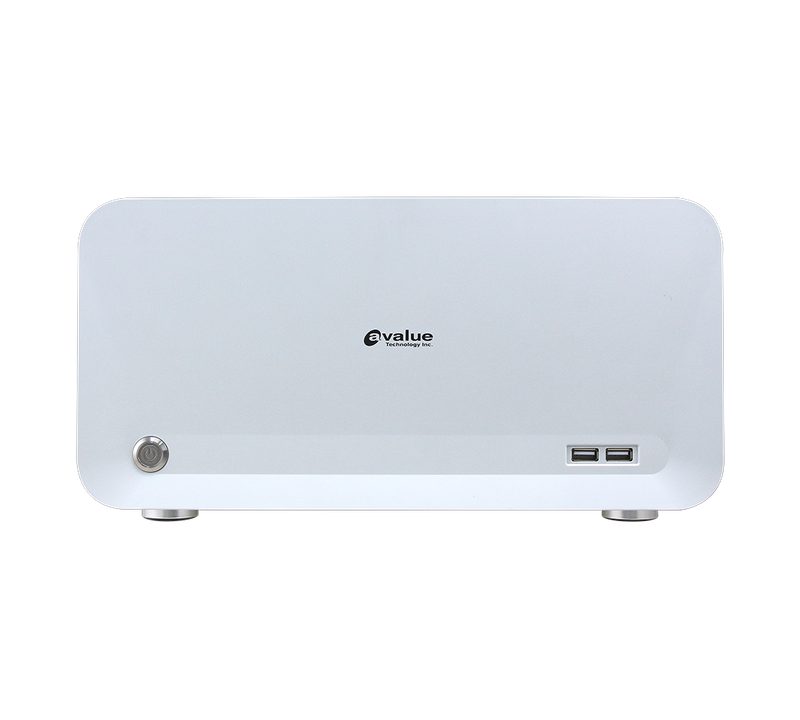

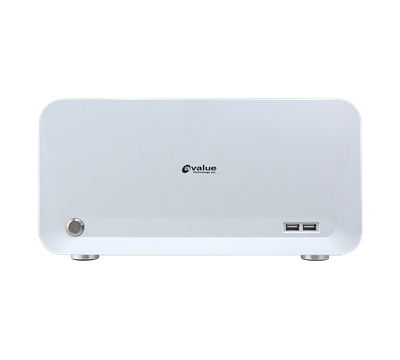

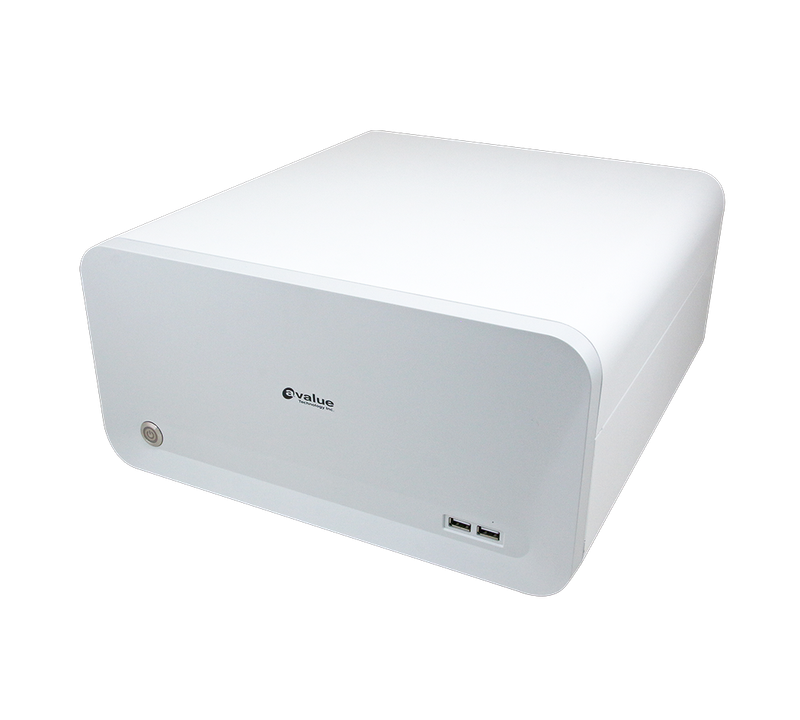

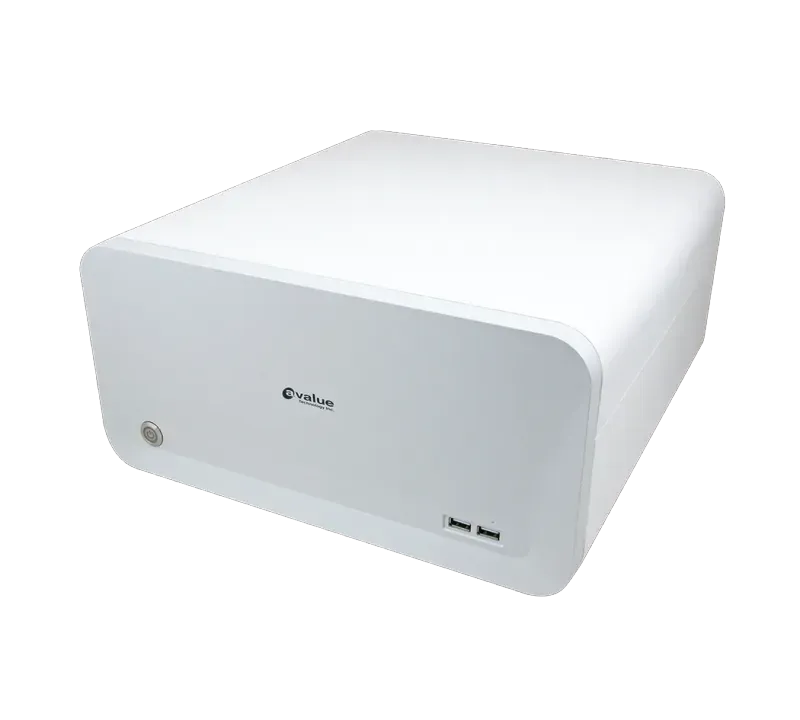

MAB-T600-B1

*Price on request. Contact us for a quote.

Manufacturer: Avalue

12/13th Generation Intel® Core™ i3/i5/i7/i9 Processors
Intel® R680E PCH
4-Memory Socket, Max. Up to 128GB DDR5 4400MHz with ECC Support
4-DP++, 2-2.5 Gigabit Ethernet
6 x USB 3.2 Gen 2, 1 x USB 3.2 Gen 2 Type-C at Rear, 2-USB at Front
2-Storage, 2-2.5” Drive Bay, Optional 2-3.5” Drive Bay
1 x Gen 5 PCIe x16, 2 x Gen 4 PCIe x4, 1 x Gen 3 PCIe x4

Product Description

The Avalue MAB-T600-B1 is a high-performance medical AI box PC designed for healthcare environments. Supporting 12th/13th/14th Gen Intel® Core™ i9/i7/i5/i3 processors, it offers up to 128GB DDR5 ECC memory, multiple PCIe expansion slots, and support for four independent 4K displays.

With a 500W medical-grade PSU, IPX1 protection, and compliance with medical safety standards, it's ideal for AI-driven medical imaging, diagnostics, and telemedicine applications.

Technical Specifications

System Information

Processor

LGA 1700 socket supports 12th Gen Alder Lake/ 13th Gen Raptor Lake Intel® Core™ i 9/7/5/3, Pentium®, Celeron® processors up to 16 Cores 24 Threads Hybrid

Platform Controller Hub

Intel® R680E PCH

System Memory

4 x DIMM slots support Dual Channel DDR5 memory speed up to 4400MHz with UDIMM, up to 128GB, with ECC support

BIOS

Socket type 256Mb SPI BIOS

Watchdog Timer

H/W Reset, 5~255 seconds/5~255 minutes

H/W Status Monitor

CPU temperature monitoring, voltages monitoring, CPU fan speed control

RAID

Support 0, 1, 5, 10

TPM

Support onboard TPM 2.0

iAMT

Intel® Active management technology 16

SBC

RX680R

Expansion

M.2

1 x M.2 M-Key 2242/2280/22110 NVMe (Gen 4 PCIe x4 + SATA III)

1 x M.2 M-Key 2242/2280/22110 NVMe (Gen 3 PCIe x4 + SATA III)

1 x M.2 E-Key 2230 with CNVi support (PCIe x 1 + USB 2.0)

PCIe

1 x PCI-e x 16 Gen 5 or 2 x PCI-e x 8 by switch (from CPU)

2 x Gen 4 PCIe x4 (x16 physical yellow)

1 x Gen 3 PCIe x4 open ended

Compatible GPU

Supports up to NVIDIA RTX 4000Ada(Optional)

Storage

2 x 2.5” SATAIII HDD/SSD drive

(2 x 3.5” SATAIII HDD/SSD drive as option)

Display

Graphic Chipset

Intel® Integrated UHD Graphic with Xe Architecture (CPU dependent)

Spec. & Resolution

4x Dual Mode DP 1.4a (Max. Resolution: 3840X2160@60Hz)

Multiple Display

Supports 4 independent display

Audio

Audio Codec

Realtek HD audio

Power Requirement

Power Supply Unit

500W medical 1U ATX power supply

Power Mode

AT/ATX mode (default: ATX mode)

Ethernet

LAN Chipset

LAN1: Intel® I225-LM/I226-LM 2.5 GbE Controller

LAN2: Intel® I225-LM/I226-LM 2.5 GbE Controller

Software Support

OS

Win 10, Win 11, Linux

Certification

Certification Information

ANSI AAMI ES60601-1:2005/A2: 2021 3.2.

CAN/CSA-C22.2 NO. 6060101 :14/A2:22 3.2.

IEC 60601-1:2005/A1:2012/A2:2020 3.2.

IEC 60601-1-2:2014/A1: 2020 4.1.

IEC 62368-1: 2018 3.0.

IEC 60601-1-6 : 2010/A1: 2013/A2: 2020 3.2.

EN 60601-1:2006+A2:2021.

EN 60601-1-2: 2015+A1:2021.

EN IEC 62368-1: 2020+A11:2020.

BS EN 60601-1: 2006+A2: 2021.

BS EN 60601-1-2: 2015+A1:2021.

BS EN IEC 62368-1 :2020+A11:2020.

47CFR FCC part 15 subpart B.

ICES-003 issue 7 Oct. 2020.

ISO 14971 3rd edition, December 2019.

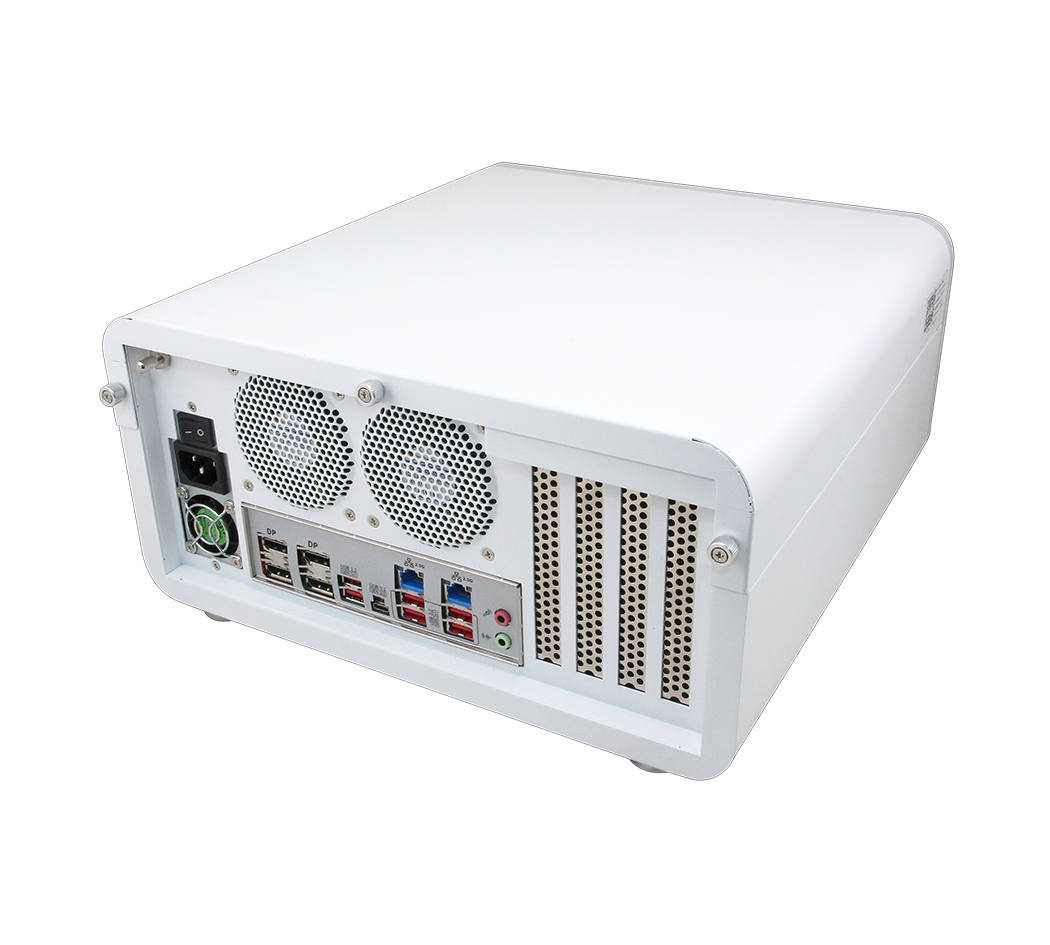

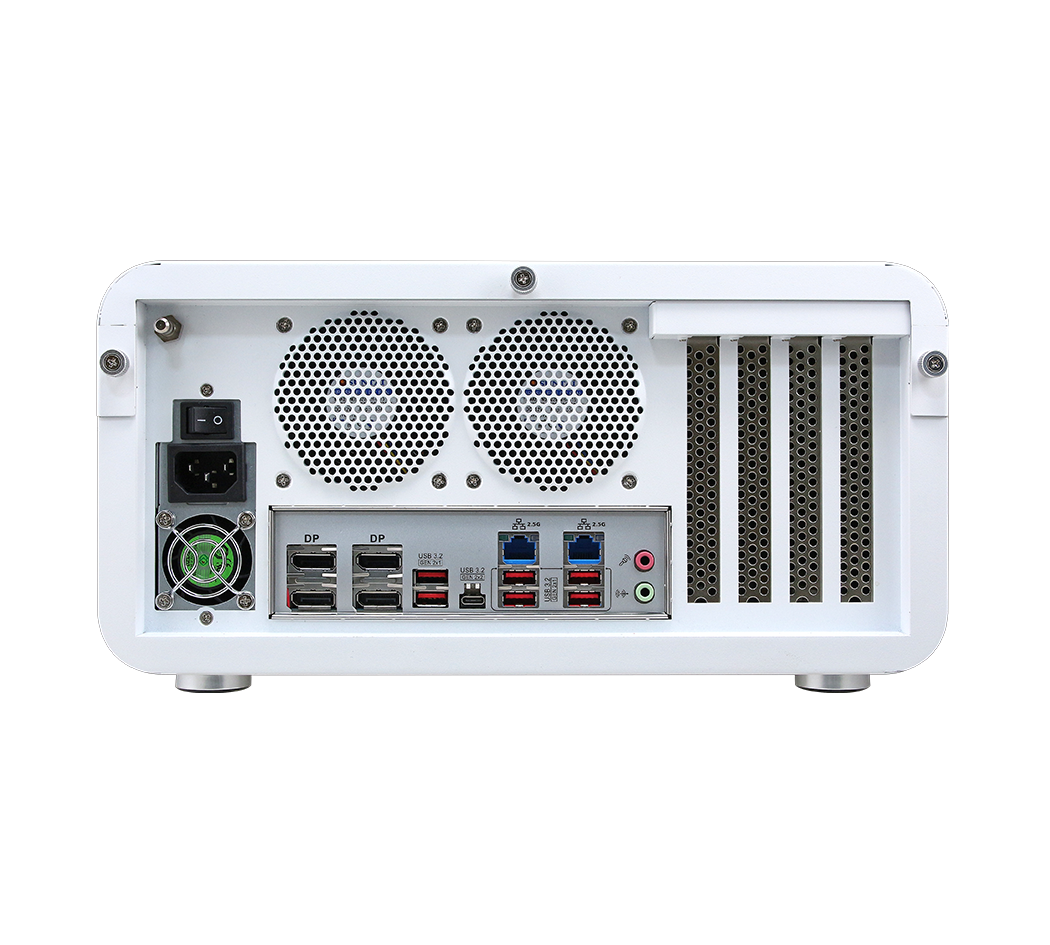

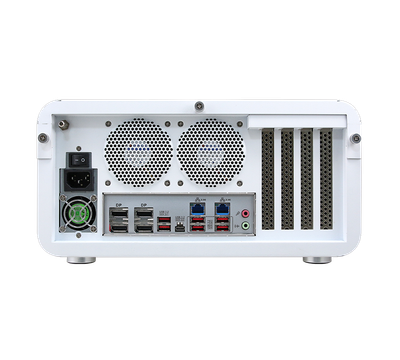

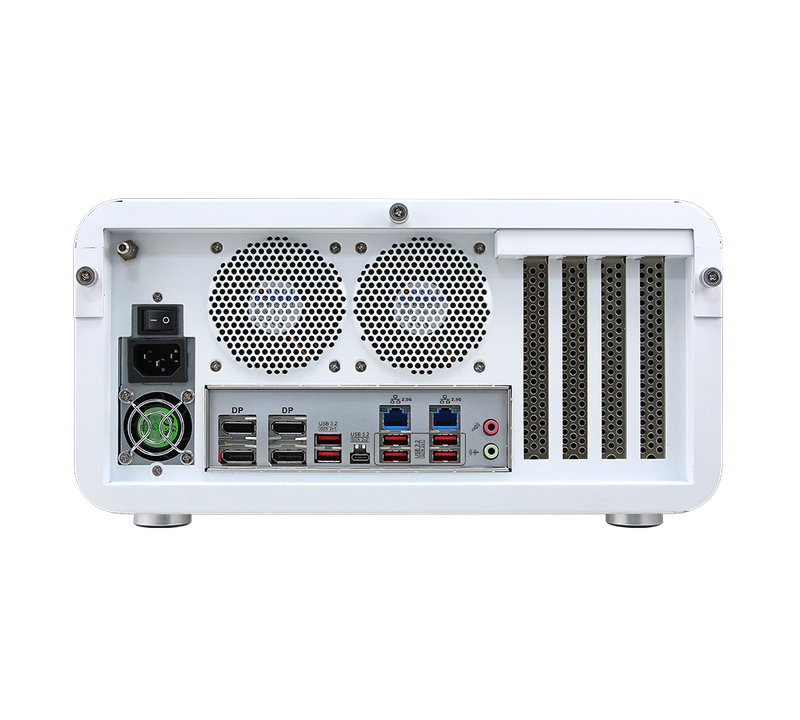

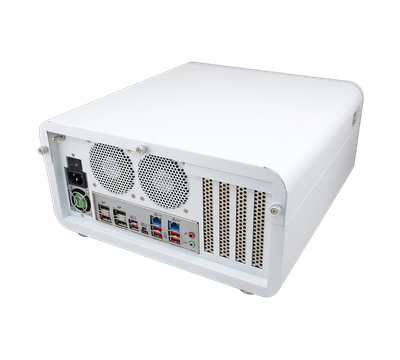

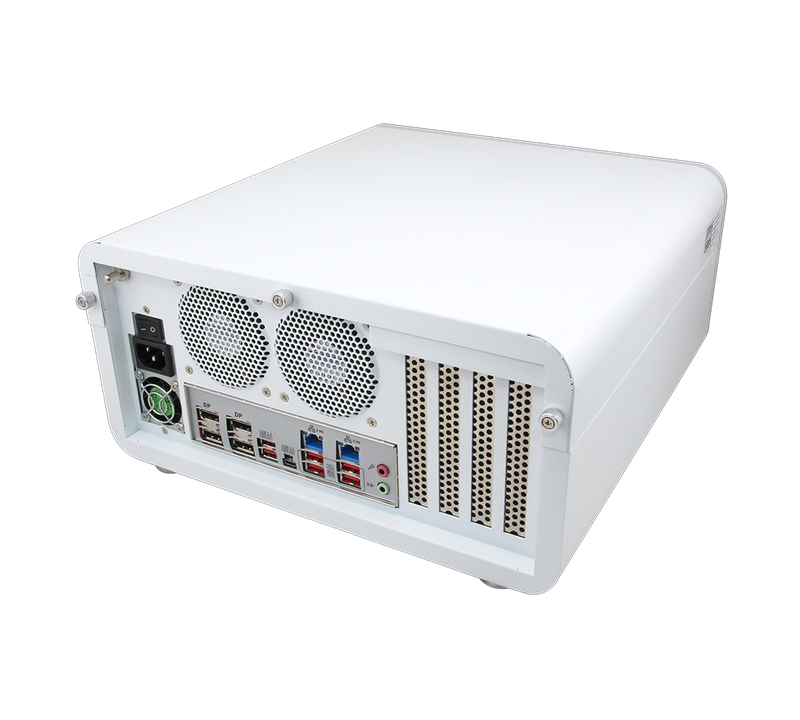

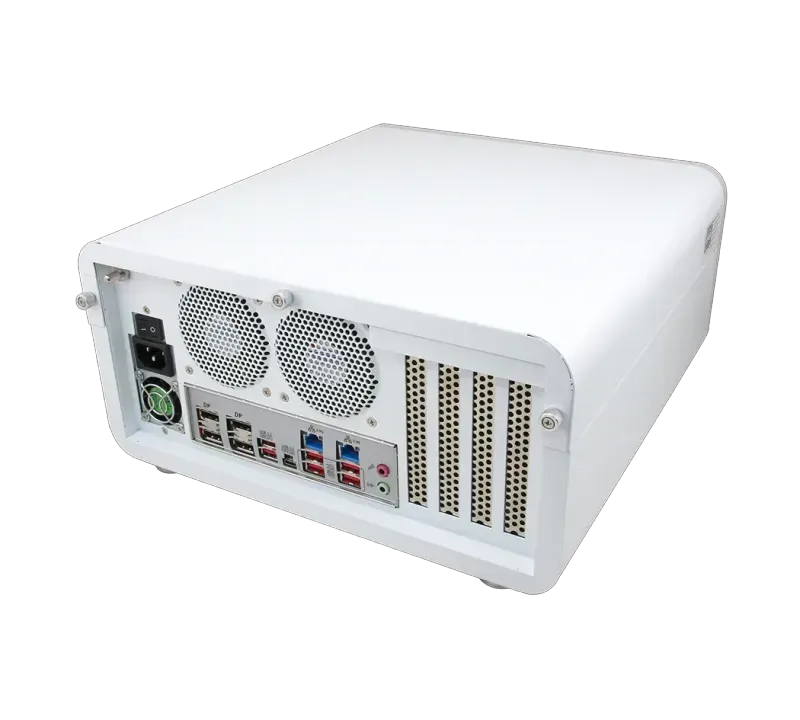

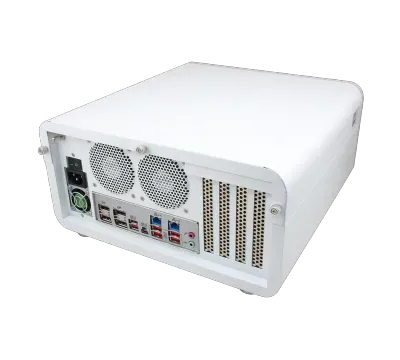

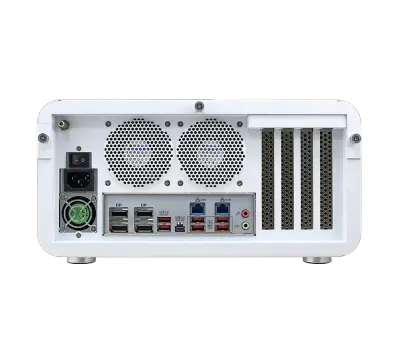

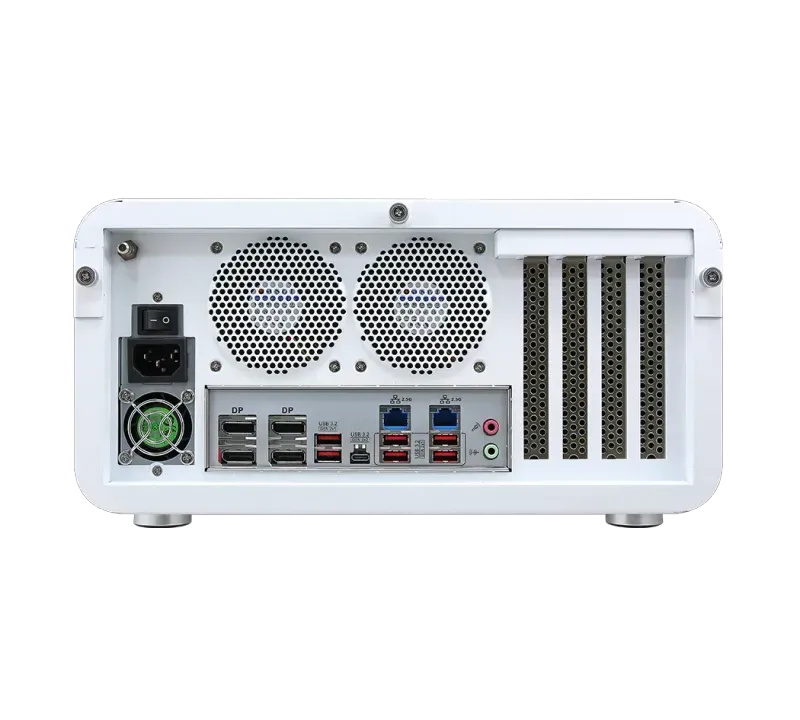

External I/O

USB

2 x USB 2.0 (front I/O)

6 x USB 3.2 Gen 2x1 ports

1 x USB 3.2 Gen 2x2 type-C

LAN

2 x RJ45

Audio

Line-out, Mic-in

Display

4 x DP++

Mechanical & Environmental

Operating Temp.

0°C ~ 40°C (32°F ~ 104°F)

Storage Temp.

-30°C ~ 70°C (-22°F ~ 158°F)

Operating Humidity

40°C @ 95% Relative humidity, non-condensing

Dimension (W x L x H).

330 x 344 x 160 mm

Weight

7 kg

Vibration Test

Operating with SSD : 0.5 Grms, IEC 60068-2-64, 5 ~ 500Hz, 0.5hr/axis

Shock Test

With SSD : 10 Grms, IEC 60068-2-27, half sine, 11ms

Drop Test

One corner, three edges, six faces

ISTA 2A, IEC-60068-2-32

IP Rating

IPX1 grade protection

Color

White

Construction

Metal + plastic

Ordering Information

MAB-T600-B1-1R STD Chassis Kit with RX680R MB & PSU & CPU Fan

RCC-GPU-T1000-01R GPU NVIDIA T1000 8GB graphic card

RCC-GPU-RTXADA-01R NVIDIA RTX2000 ADA

RCC-GPU-RTXADA-02R NVIDIA RTX4000 ADA

RCC-CAP-PCIE-01R SC710N2-L HDMI Capture Card

RCC-CAP-PCIE-02R SC400N4 HDMI Capture Card

RCC-CAP-PCIE-04R SC400N2-L HDMI Capture Card

RCC-CAP-PCIE-05R SC410N4 HDMI Capture Card

RCC-LAN-PCIE-01R Intel 82574 LAN Card

RCC-LAN-PCIE-02R Intel I350AM2 LAN Card

RCC-POE-PCIE-01R Intel I210 PoE Card

RCC-POE-PCIE-02R Intel I350 PoE Card

RCC-WIFI-M2BT-01R Intel WIFI module with kits

RCC-WIFI-PCIE-01R WiFI set ENL-5400PCI

What is MAB-T600-B1?

The MAB-T600-B1 is a intelligent healthcare manufactured by Avalue, designed specifically for ai-pc-and-data-gateway applications. The Avalue MAB-T600-B1 is a high-performance medical AI box PC designed for healthcare environments. Supporting 12th/13th/14th Gen Intel® Core™ i9/i7/i5/i3 processors, it offers up to 128GB DDR5 ECC memory, multiple PCIe expansion slots, and support for four independent 4K displays. With a 500W medical-grade PSU, IPX1 protection, and compliance with medical safety standards, it's ideal for AI-driven medical imaging, diagnostics, and telemedicine applications.

Key Features & Benefits

12/13th Generation Intel® Core™ i3/i5/i7/i9 Processors
Intel® R680E PCH
4-Memory Socket, Max. Up to 128GB DDR5 4400MHz with ECC Support
4-DP++, 2-2.5 Gigabit Ethernet
6 x USB 3.2 Gen 2, 1 x USB 3.2 Gen 2 Type-C at Rear, 2-USB at Front
2-Storage, 2-2.5” Drive Bay, Optional 2-3.5” Drive Bay
1 x Gen 5 PCIe x16, 2 x Gen 4 PCIe x4, 1 x Gen 3 PCIe x4

Applications & Use Cases

The MAB-T600-B1 is ideal for various industrial automation applications:

High-performance computing and data processing tasks
Networked industrial systems and data communication
Peripheral device connectivity and data transfer
Memory-intensive applications and multitasking
Data logging and storage-intensive operations
Healthcare and medical device integration
Industrial automation and control
Manufacturing process monitoring
