What are the key features of the MAB-T660 medical box PC?

The MAB-T660 features 12th/13th Gen Intel® Core™ processors, up to 64GB DDR5 memory, PCIe Gen5 expansion, quad 2.5GbE LAN, multiple display outputs (HDMI 2.1b, DP++), and a 400W medical-grade power supply.

What storage options are available on the MAB-T660?

The system supports 2.5" SATAIII HDD/SSD drives and M.2 SSD expansion.

Which operating systems are supported?

The MAB-T660 supports Windows 10, Windows 11, and Linux.

What is the power input and supply for the MAB-T660?

It uses AC 100-240V input and a 400W medical 1U ATX power supply.

What are medical box PCs and what are their typical applications?

Medical box PCs are high-performance, compact computers designed for use in healthcare environments. They are used in medical imaging, diagnostics, telemedicine, patient monitoring, and hospital automation.

What are the advantages of using a medical box PC?

Medical box PCs offer robust performance, medical-grade safety certifications, long lifecycle support, and are designed for reliability in demanding healthcare settings.

What certifications should a medical box PC have?

Look for certifications such as ANSI AAMI ES60601-1, IEC 60601-1, EN 60601-1, and ISO 14971 for compliance with medical safety standards.

What processors are supported by medical box PCs?

Medical box PCs typically support the latest Intel® Core™ processors, with options for ECC memory and advanced graphics for medical imaging.

What are the display capabilities of medical box PCs?

They support multiple independent displays, often with 4K or 8K resolution, via HDMI, DP++, and other interfaces.

What networking features are available?

Medical box PCs offer multiple high-speed LAN ports (including 2.5GbE), Wi-Fi, and expansion options for connectivity in hospital networks.

What is the typical power supply for a medical box PC?

They use medical-grade ATX power supplies, typically 400W or 500W, with wide AC input support.

How do I install a medical box PC in a healthcare environment?

Follow manufacturer guidelines for mounting, ensure proper ventilation, and connect to certified power sources. Use ESD protection and avoid exposure to moisture or contaminants.

What operating systems are supported?

Most medical box PCs support Windows 10, Windows 11, and Linux. Check the product datasheet for details.

How do I connect peripherals and expansion cards?

Use the available PCIe, M.2, and USB ports for expansion. Ensure all connections are secure and compatible with medical standards.

What should I do if the medical box PC does not power on?

Check the AC power input, power supply unit, and all cable connections. Ensure the power switch is set correctly and test with a known-good power source.

How can I resolve display issues?

Verify cable connections, monitor input selection, and supported resolutions. Update drivers and check BIOS settings if needed.

What steps should I take if there are network connectivity problems?

Check LAN cable connections, update network drivers, verify IP configuration, and test with alternate cables or ports.

How do I update the BIOS or firmware?

Refer to the product manual for update procedures. Use only manufacturer-approved firmware and follow ESD precautions.

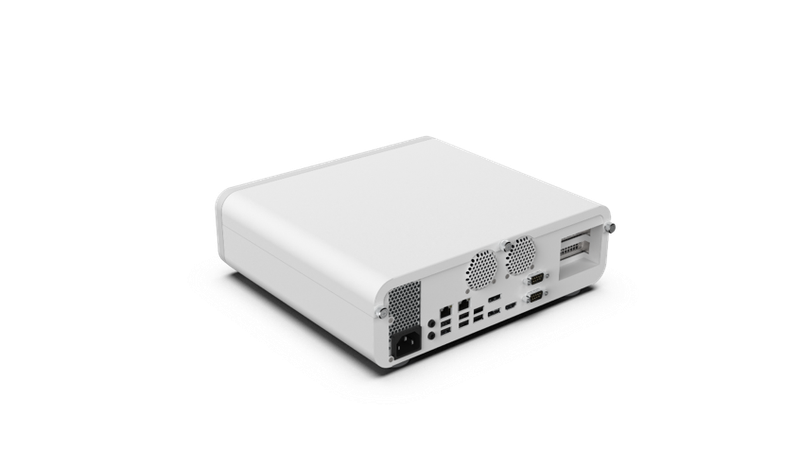

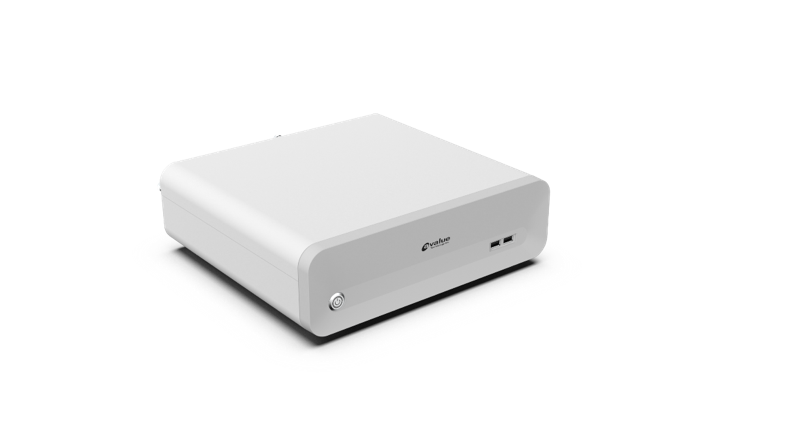

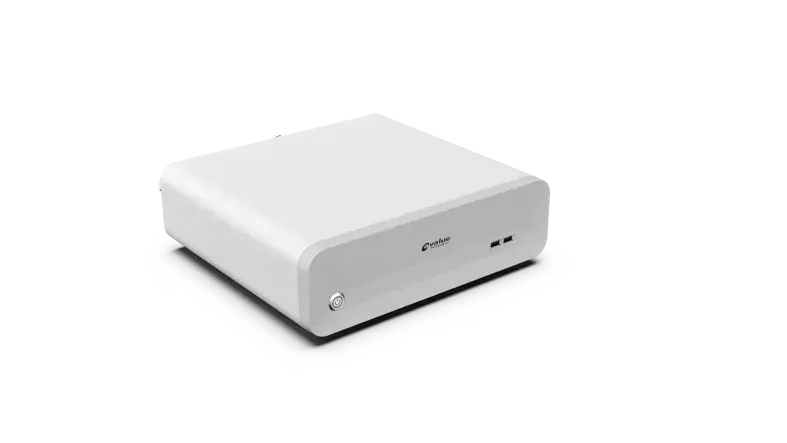

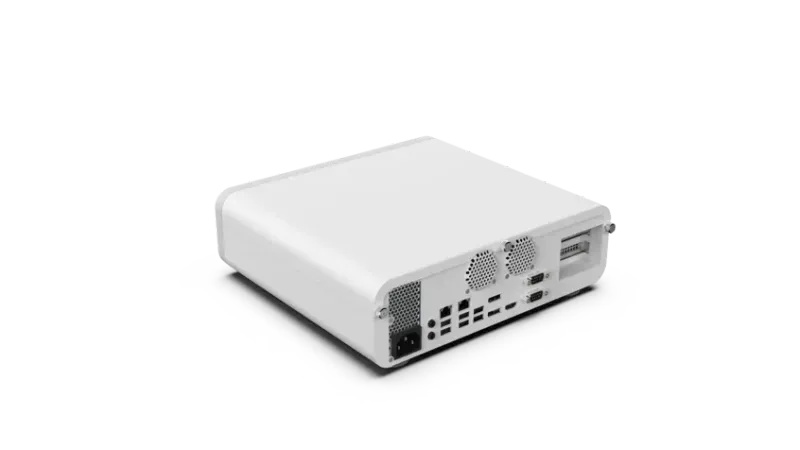

MAB-T660

*Price on request. Contact us for a quote.

Manufacturer: Avalue

12/13th Generation Intel® Core™ i3/i5/i7/i9 Processors
Intel® R680E Chipset
2 x SODIMM Up to 64GB Dual Channel DDR5 4800MHz Non-ECC DRAM support
4 x Intel® i226LM 2.5 Gigabit Controller
2 x DP++, 1 x HDMI 2.1b
1 x PCI-e x 16 Gen 5 or 2 x PCI-e x 8 by switch (from CPU)
1x 2.5” Drive Bay
4 x USB 3.2 Gen 2 & 4 x USB 3.2 Gen 1 at Rear, 2 x USB at Front

Product Description

The Avalue MAB-T660 is a high-performance, AI-enabled medical box PC designed for edge computing in healthcare environments.

Powered by 12th/13th Gen Intel® Core™ i3/i5/i7/i9 processors and the Intel® R680E chipset, it supports up to 64GB DDR5 memory, 2.5" SATA storage with RAID 0/1, and multiple expansion slots including PCIe Gen5 x16 and dual M.2 interfaces.

Integrated graphics with HDMI 2.1b and DP++ support resolutions up to 8K@60Hz. With four Intel® i226LM 2.5GbE LAN ports, rich I/O, and a 400W medical-grade power supply, the MAB-T660 is purpose-built for medical imaging, telemedicine, diagnostics, and healthcare AI applications.

Technical Specifications

System Information

Processor

12/13th Generation Intel® Core™ i3/i5/i7/i9 Processors

Platform Controller Hub

Intel® R680E Chipset

System Memory

2 x SODIMM Up to 64GB Dual Channel DDR5 4800MHz

Non-ECC DRAM support

I/O Chipset

NuvoTon NCT6126D

BIOS

AMI uEFI BIOS, 256Mbit SPI Flash ROM

Watchdog Timer

H/W Reset, 5~255 seconds/5~255 minutes

H/W Status Monitor

CPU temperature monitoring, voltages monitoring, CPU fan speed control

RAID

Support RAID 0, 1

SBC

EMX-R680P

Expansion

M.2

1 x M.2 (2230) E-Key, support Wi-Fi module with PCIe x 2 Gen 3 & USB 2.0

1 x M.2 (2242/2280) M-Key, support PCI-e x 4 Gen 4 SSD (top side)

PCIe

1 x PCI-e x 16 Gen 5 or 2 x PCI-e x 8 by switch (from CPU)

Compatible GPU

Supports up to NVIDIA RTX 4000 SFF Ada(Optional)

Storage

1 x 2.5” SATAIII HDD/SSD drive

Display

Graphic Chipset

Intel® UHD Graphics 770

Spec. & Resolution

2 x DP++: 4096 x 2304@60Hz / 5120 x 3200@60Hz

1 x HDMI 2.1b (supported with LSPCON): 8K@60Hz

Audio

Audio Codec

RealTek ALC888S Audio Codec

Audio Amplifier

RealTek ALC105 Stereo Class-D 2W4Ω

Power Requirement

Voltage Input Spec

AC 100-240 V in

Power Supply Unit

400W medical 1U ATX power supply

Power Mode

ATX

Ethernet

LAN Chipset

4 x Intel® i226LM 2.5 Gigabit Controller

Software Support

OS

Win 10, Win 11, Linux

External I/O

USB

Front: 2xUSB 2.0

Rear: 4 x USB 3.2 Gen 2 & 4 x USB 3.2 Gen 1

LAN

4 x 2.5 Gigabit Ethernet

Display

1 x HDMI 2.1b

2 x DP++

Antenna

2 x Antenna Mounting with Dust Protection Cover

Mechanical & Environmental

Operating Temp.

0°C~35°C (32˚F ~ 95˚F)

Storage Temp.

-30C°~70C° (-22°F ~ 158°F)

Operating Humidity

40°C @ 95% Relative humidity, non-condensing

Dimension (W x L x H).

315 x 272 x 92 mm

Weight

4.8 kg

Vibration Test

Operating with SSD : 0.5 Grms, IEC 60068-2-64, 5 ~ 500Hz, 0.5hr/axis

Shock Test

With SSD : 10 Grms, IEC 60068-2-27, half sine, 11ms

Drop Test

Package drop test:One corner, three edges, six faces

ISTA 2A, IEC-60068-2-32

Color

White

Construction

Metal + plastic

Ordering Information

MAB-T660-A1-1R STD Chassis Kit with EMX-R680P MB & PSU & CPU Fan

Expansion cards under testing:

RCC-GPU-T1000-01R GPU NVIDIA T1000 8GB graphic card

RCC-GPU-RTXADA-01R NVIDIA RTX2000 ADA

RCC-GPU-RTXADA-03R NVIDIA RTX4000 SFF ADA

RCC-CAP-PCIE-01R SC710N2-L HDMI Capture Card

RCC-CAP-PCIE-04R SC400N2-L HDMI Capture Card

RCC-LAN-PCIE-01R Intel 82574 LAN Card

RCC-LAN-PCIE-02R Intel I350AM2 LAN Card

RCC-WIFI-M2BT-01R Intel WIFI module with kits

RCC-WIFI-PCIE-01R WiFI set ENL-5400PCI

What is MAB-T660?

The MAB-T660 is a intelligent healthcare manufactured by Avalue, designed specifically for ai-pc-and-data-gateway applications. The Avalue MAB-T660 is a high-performance, AI-enabled medical box PC designed for edge computing in healthcare environments. Powered by 12th/13th Gen Intel® Core™ i3/i5/i7/i9 processors and the Intel® R680E chipset, it supports up to 64GB DDR5 memory, 2.5" SATA storage with RAID 0/1, and multiple expansion slots including PCIe Gen5 x16 and dual M.2 interfaces. Integrated graphics with HDMI 2.1b and DP++ support resolutions up to 8K@60Hz. With four Intel® i226LM 2.5GbE LAN ports, rich I/O, and a 400W medical-grade power supply, the MAB-T660 is purpose-built for medical imaging, telemedicine, diagnostics, and healthcare AI applications.

Key Features & Benefits

12/13th Generation Intel® Core™ i3/i5/i7/i9 Processors
Intel® R680E Chipset
2 x SODIMM Up to 64GB Dual Channel DDR5 4800MHz Non-ECC DRAM support
4 x Intel® i226LM 2.5 Gigabit Controller
2 x DP++, 1 x HDMI 2.1b
1 x PCI-e x 16 Gen 5 or 2 x PCI-e x 8 by switch (from CPU)
1x 2.5” Drive Bay
4 x USB 3.2 Gen 2 & 4 x USB 3.2 Gen 1 at Rear, 2 x USB at Front

Applications & Use Cases

The MAB-T660 is ideal for various industrial automation applications:

High-performance computing and data processing tasks
Networked industrial systems and data communication
Peripheral device connectivity and data transfer
Memory-intensive applications and multitasking
Edge computing in healthcare environments
Healthcare and medical device integration
Industrial automation and control
Manufacturing process monitoring
