What is the MAB-T690?

The MAB-T690 is a medical-grade AI PC / data gateway built on 12/13/14th Gen Intel Core i3/i5/i7/i9 processors (up to 125W) and the Intel R680E chipset, with four DDR5 UDIMM slots (up to 192GB), PCIe Gen5 expansion, GPU support up to NVIDIA RTX PRO 5000 Blackwell, and IEC/EN 60601-1 compliance.

Is the MAB-T690 medically certified?

It is designed for IEC/EN 60601-1 compliance and offers an optional medical-grade 1000W PSU, suiting clinical and hospital deployment.

Which processors does the MAB-T690 support?

12th/13th/14th Generation (Alder Lake / Raptor Lake / Raptor Lake-Refresh / Bartlett Lake-S) Intel Core i9/i7/i5/i3 on LGA 1700, up to 125W TDP.

How much memory does the MAB-T690 support?

Four 288-pin DDR5 UDIMM sockets up to 192GB, with optional ECC support depending on the selected CPU.

What GPU can the MAB-T690 take?

It supports discrete GPUs up to an NVIDIA RTX PRO 5000 Blackwell (optional), via PCIe Gen5 x16 (or 2x x8).

What storage does the MAB-T690 offer?

Two M.2 M-Key NVMe slots (PCIe Gen4x4) plus four internal 2.5"/3.5" drive bays, with onboard RAID 0/1/5/10.

What networking does the MAB-T690 provide?

Four Intel 2.5GbE LAN ports (2 x i226-LM + 2 x i226V), each 10/100/1000/2500 Base-Tx compatible.

What I/O does the MAB-T690 have?

8x USB 3.2 Gen2 and a DB9 RS-232 at the rear (optionally up to 5 RS-232 via PCIe), 2x USB 2.0 at the front, plus 2x DP 1.4a and 1x HDMI 2.1b.

Does the MAB-T690 include hardware security?

Yes, onboard TPM 2.0 and Intel iAMT (on i9/i7/i5) for hardware key storage and remote manageability.

What display outputs does the MAB-T690 support?

2x DisplayPort 1.4a up to 7680x4320 @ 60Hz and 1x HDMI 2.1b up to 4096x2160 @ 60Hz with HDR.

What power supply does the MAB-T690 use?

A 1000W PSU — IT grade by default, with an optional medical-grade 1000W PSU — in AT/ATX mode (default ATX).

How is the MAB-T690 ordered?

CPU, memory, storage, and OS are bundled on request via the barebone configuration (e.g. MAB-T660-A1-1R) — contact your sales representative; medical certification is granted on the barebone configuration.

What applications is the MAB-T690 best suited for?

Healthcare edge-AI workloads — medical imaging inferencing, data aggregation gateways, and AI-accelerated clinical workstations requiring a 60601-1-compliant chassis.

What are medical box PCs and what are their typical applications?

Medical box PCs are high-performance, compact computers designed for use in healthcare environments. They are used in medical imaging, diagnostics, telemedicine, patient monitoring, and hospital automation.

What are the advantages of using a medical box PC?

Medical box PCs offer robust performance, medical-grade safety certifications, long lifecycle support, and are designed for reliability in demanding healthcare settings.

What certifications should a medical box PC have?

Look for certifications such as ANSI AAMI ES60601-1, IEC 60601-1, EN 60601-1, and ISO 14971 for compliance with medical safety standards.

What processors are supported by medical box PCs?

Medical box PCs typically support the latest Intel® Core™ processors, with options for ECC memory and advanced graphics for medical imaging.

What are the display capabilities of medical box PCs?

They support multiple independent displays, often with 4K or 8K resolution, via HDMI, DP++, and other interfaces.

What networking features are available?

Medical box PCs offer multiple high-speed LAN ports (including 2.5GbE), Wi-Fi, and expansion options for connectivity in hospital networks.

What is the typical power supply for a medical box PC?

They use medical-grade ATX power supplies, typically 400W or 500W, with wide AC input support.

How do I install a medical box PC in a healthcare environment?

Follow manufacturer guidelines for mounting, ensure proper ventilation, and connect to certified power sources. Use ESD protection and avoid exposure to moisture or contaminants.

What operating systems are supported?

Most medical box PCs support Windows 10, Windows 11, and Linux. Check the product datasheet for details.

How do I connect peripherals and expansion cards?

Use the available PCIe, M.2, and USB ports for expansion. Ensure all connections are secure and compatible with medical standards.

What should I do if the medical box PC does not power on?

Check the AC power input, power supply unit, and all cable connections. Ensure the power switch is set correctly and test with a known-good power source.

How can I resolve display issues?

Verify cable connections, monitor input selection, and supported resolutions. Update drivers and check BIOS settings if needed.

What steps should I take if there are network connectivity problems?

Check LAN cable connections, update network drivers, verify IP configuration, and test with alternate cables or ports.

How do I update the BIOS or firmware?

Refer to the product manual for update procedures. Use only manufacturer-approved firmware and follow ESD precautions.

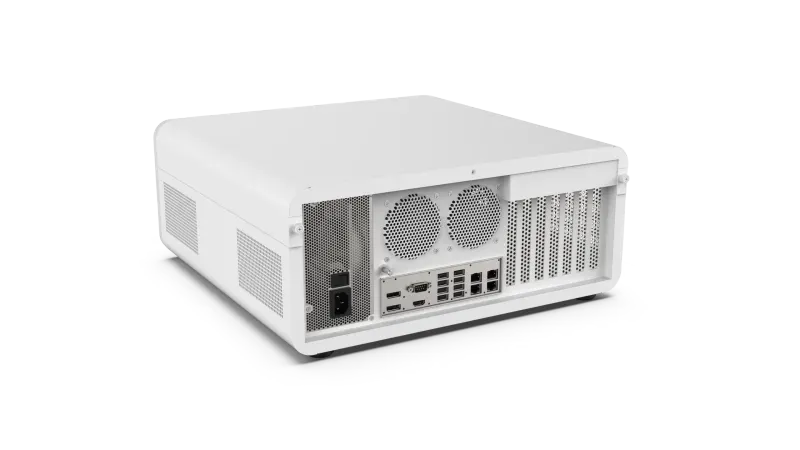

Avalue · Intelligent Healthcare

MAB-T690

Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

12/13/14th Gen Intel Core i9/i7/i5/i3 (LGA 1700, up to 125W TDP), Intel R680E chipset
4 x DDR5 UDIMM up to 192GB (optional ECC, CPU dependent)
GPU support up to NVIDIA RTX PRO 5000 Blackwell (optional)
PCIe Gen5 (x16 or 2x x8) + Gen4/Gen3 lanes, 2 x M.2 M-Key NVMe
4 x Intel 2.5GbE LAN, 4 x internal 2.5"/3.5" drive bays
8 x USB 3.2 Gen2 (rear), 2 x USB 2.0 (front)
2 x DP 1.4a, 1 x HDMI 2.1b, RAID 0/1/5/10, TPM 2.0
IT- or medical-grade 1000W PSU, IEC/EN 60601-1 compliance
Windows 11 / Linux

Product Description

The Avalue MAB-T690 is a medical-grade AI PC / data gateway built on 12/13/14th Generation Intel Core i3/i5/i7/i9 processors (up to 125W TDP) and the Intel R680E chipset, designed as a high-performance edge-AI workstation for healthcare imaging, inferencing, and data aggregation.

With four DDR5 UDIMM sockets (up to 192GB, optional ECC), PCIe Gen5 expansion, and IEC/EN 60601-1 compliance, it pairs powerful GPUs with a clinically certified chassis.

It supports up to an NVIDIA RTX PRO 5000 Blackwell GPU, four 2.5GbE Intel LAN ports, four internal 2.5"/3.5" drive bays, dual M.2 NVMe, 8x USB 3.2 Gen2 (rear) + 2x USB 2.0 (front), dual DP 1.4a and HDMI 2.1b, onboard TPM 2.0 and RAID 0/1/5/10, with an IT- or medical-grade 1000W PSU running Windows 11 or Linux.

Technical Specifications

Processor

Intel® 12/13/14th Gen, Alder Lake/Raptor Lake/Raptor Lake-Refresh/Bartlett Lake-S

Core™ i9/i7/i5/i3 Processors, supports LGA 1700 CPU Up to 125W Max

Platform Controller Hub

Intel® R680E Chipset

System Memory

4 x 288-pin DDR5 UDIMM support up to 192GB, optional ECC support (CPU dependent)

I/O Chipset

Nuvoton NCT6126D (eSPI super IO)

BIOS

AMI uEFI BIOS, 256Mbit SPI Flash ROM

Watchdog Timer

H/W Reset, 5~255 seconds/5~255 minutes

H/W Status Monitor

CPU temperature monitoring, Voltages monitoring, CPU fan speed control

RAID

Support RAID 0, 1, 5, 10

TPM

TPM 2.0

iAMT

By CPU (i9/i7/i5)

SBC

EAX-R680BP

M.2

2 x M.2 M-Key NVMe 2242/2280/22110 (PCIe Gen4x4, no SATA)

PCIe

1x PCIe x16 Gen5 or 2x PCIe x8 Gen5

2x PCIe x4 Gen4

1x PCIe x4 Gen3

1x PCIe x2 Gen3

Expansion

1x DVD ROM (Black, Optional)

Compatible GPU

GPU supports up to

NVIDIA RTX PRO 5000 Blackwell (Optional)

M.2

2 x M.2 NVMe Key M 2242/2280/22110 (PCIe Gen4x4, no SATA)

Storage

4 x Internal 2.5”or 3.5”Drive Bay

Power Button

1 x PWR Button

LED Indicator

1 x Power on/off LED

USB

2 x USB 2.0

USB

8 x USB3.2 Gen 2

COM Port

1 x DB9 Connector at IO support RS-232

Optional up to 5 RS-232 COM port (I/O from PCIe slot)

LAN Port

4 x 2.5GbE RJ45

DP

2 x DP 1.4a

HDMI

1 x HDMI 2.1b

AC/DC Input

AC-In

Graphic Chipset

Intel® Integrated Graphics with up to 32 EU

Spec. & Resolution

2 x DP (DP1.4a): Max: 7680 x 4320@60 Hz

1 x HDMI: HDMI 2.1b, max resolution 4096x2160@60Hz (with HDR)

Audio Codec

Realtek HD Audio Codec

Audio Amplifier

TI TPA3113D2 Class-D 2 x 6W 8Ω Amplifier

Power Supply Unit

IT grade 1000W (Default)

Medical grade 1000W (Optional)

Power Mode

AT/ATX mode (Default ATX)

LAN Chipset

2 x Intel® i226-LM 2.5G Gigabit Controller

2 x Intel® i226V 2.5G Gigabit Controller

Data Rate Per Port

i226-LM: 10/100/1000/2500 Base-Tx GbE compatible

i226V: 10/100/1000/2500 Base-Tx GbE compatible

OS

Win 11, Linux

Certification Information

IT CE/FCC

SATA Signal

4 x SATA III

GPIO

1 x 16-bit GPIO Header

USB Port

2 x 2 x 5 pin, pitch 2.54mm connector for 4 x USB 2.0, +5V, 0.5A (JUSB1/4)

1 x 1 x 5 pin, pitch 2.54mm connector for 1 x USB 2.0, +5V, 0.5A (JUSB2)

COM Port

COM2 : by onboard pin-header support RS232/422/485 selected by BIOS

- 1 x 2 x 5 pin, pitch 2.00mm connector for COM2 to support RS232 (COM2)

- 1 x 2 x 3 pin, pitch 2.00mm connector for COM2 pin9 RI/5V/12V, 0.9A jumper select (JRI2)

- 1 x 2 x 3 pin, pitch 2.00mm connector for COM2 to support RS422/485, Pin 5 with +5V, 0.9A (J1RS2)

COM3: support RS232/422/485 selected by BIOS

COM3~6: support RS232

- 1 x 2 x 20 pin, pitch 2.00mm connector for COM3~6 support RS232 (4COM1)

- 1 x 2 x 3 pin, pitch 2.00mm connector for COM3 pin9 RI/5V/12V, 0.9A jumper select (JRI3)

- 1 x 2 x 3 pin, pitch 2.00mm connector for COM3 to support RS422/485, Pin 5 with +5V, 0.9A (J1RS3)

AT/ATX Selector

1 x 1 x 3 pin pitch 2.00mm connector for AT/ATX jumper (JSATX1)

RTC Battery

1 x Horizontal type battery connector (CR2450 Battery)

Audio

- 1 x 2 x 5 pin, pitch 2.54mm connector for front Audio (Mic-in, Line-out) (FAUD1)

- 1 x 2 x 6 pin, pitch 2.54mm connector for Audio (5.1-CH Audio) (REAR1)

- 1 x 1 x 4 pin, pitch 2.54mm connector for S/PDIF (JSDPIF1)

Buzzer

Onboard

CPU/System FAN

CPU : 65W Cooler FAN (Optional for 125W Cooler FAN)

System : 2 x 5000 RPM 4 pin FAN

AC/DC Input Conn.

1 x 2 x 4 pin ATX 12V power connector

Color

White

Operating Temp.

0°C ~ 40°C (32°F ~ 104°F) with 0.5m/s air flow (turbo mode off)

0°C ~ 35°C (32°F ~ 95°F) with 0.5m/s air flow (turbo mode off) for the configuration with TDP 125W CPU and Nvidia RTX PRO Blackwell 5000 (48GB)

Drop Test

Package drop test : One corner, three edges, six faces

ISTA 2A, IEC-60068-2-32

Shock Test

With SSD : 10 Grms, IEC 60068-2-27, half sine, 11ms

Vibration Test

Operating with SSD : 0.5 Grms, IEC 60068-2-64, 5 ~ 500Hz, 0.5hr/axis

Weight

10 kg

Dimension (W x L x H)

437 * 433 * 189.2 mm

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Storage Temp.

-20°C ~ 60°C(-4°F ~ 140°F)

What is MAB-T690?

The MAB-T690 is a intelligent healthcare manufactured by Avalue, designed specifically for ai-pc-and-data-gateway applications. The Avalue MAB-T690 is a medical-grade AI PC / data gateway built on 12/13/14th Generation Intel Core i3/i5/i7/i9 processors (up to 125W TDP) and the Intel R680E chipset, designed as a high-performance edge-AI workstation for healthcare imaging, inferencing, and data aggregation. With four DDR5 UDIMM sockets (up to 192GB, optional ECC), PCIe Gen5 expansion, and IEC/EN 60601-1 compliance, it pairs powerful GPUs with a clinically certified chassis. It supports up to an NVIDIA RTX PRO 5000 Blackwell GPU, four 2.5GbE Intel LAN ports, four internal 2.5"/3.5" drive bays, dual M.2 NVMe, 8x USB 3.2 Gen2 (rear) + 2x USB 2.0 (front), dual DP 1.4a and HDMI 2.1b, onboard TPM 2.0 and RAID 0/1/5/10, with an IT- or medical-grade 1000W PSU running Windows 11 or Linux.

Key Features & Benefits

12/13/14th Gen Intel Core i9/i7/i5/i3 (LGA 1700, up to 125W TDP), Intel R680E chipset
4 x DDR5 UDIMM up to 192GB (optional ECC, CPU dependent)
GPU support up to NVIDIA RTX PRO 5000 Blackwell (optional)
PCIe Gen5 (x16 or 2x x8) + Gen4/Gen3 lanes, 2 x M.2 M-Key NVMe
4 x Intel 2.5GbE LAN, 4 x internal 2.5"/3.5" drive bays
8 x USB 3.2 Gen2 (rear), 2 x USB 2.0 (front)
2 x DP 1.4a, 1 x HDMI 2.1b, RAID 0/1/5/10, TPM 2.0
IT- or medical-grade 1000W PSU, IEC/EN 60601-1 compliance
Windows 11 / Linux

Applications & Use Cases

The MAB-T690 is ideal for various industrial automation applications:

Medical device integration and healthcare applications
High-performance computing and data processing tasks
Networked industrial systems and data communication
Peripheral device connectivity and data transfer
Memory-intensive applications and multitasking
Healthcare and medical device integration
Industrial automation and control
Manufacturing process monitoring
