What is the RCC-CAR-HGD-02R medical arm cart used for?

The RCC-CAR-HGD-02R is a heavy-duty medical arm cart designed to securely mount medical monitors, medical PCs, and related equipment in hospital and clinical environments.

Is the RCC-CAR-HGD-02R suitable for heavy medical equipment?

Yes, this cart is designed for heavy-duty use, providing strong structural support and stability for medical equipment used in healthcare settings.

What type of devices can be mounted on the RCC-CAR-HGD-02R?

It supports medical monitors, embedded medical computers, diagnostic devices, and other healthcare peripherals commonly used in patient care and clinical workflows.

Does the RCC-CAR-HGD-02R offer adjustable arm positioning?

Yes, the medical arm allows adjustable positioning for height and viewing angle, improving ergonomics and usability for healthcare professionals.

Can this medical cart be used as a mobile workstation?

Yes, the RCC-CAR-HGD-02R is suitable for mobile medical workstations, enabling easy movement across wards, departments, or patient rooms.

Is the RCC-CAR-HGD-02R designed for hospital hygiene standards?

Yes, it is built with materials and surfaces that are easy to clean and maintain, meeting typical hospital hygiene requirements.

What are the benefits of using a heavy-duty medical cart?

Heavy-duty medical carts provide enhanced stability, support larger equipment loads, improve workflow efficiency, and reduce strain on medical staff.

Can the RCC-CAR-HGD-02R integrate with existing hospital IT systems?

Yes, it can integrate seamlessly by mounting compatible medical PCs, displays, and communication devices used in hospital IT infrastructure.

Is this cart suitable for diagnostic and patient monitoring applications?

Yes, it is suitable for diagnostic, patient monitoring, and point-of-care applications that require reliable and mobile equipment support.

Why are medical arm carts important in intelligent healthcare environments?

Medical arm carts like the RCC-CAR-HGD-02R enable flexible deployment of digital medical systems, improving clinical efficiency, ergonomics, and patient care.

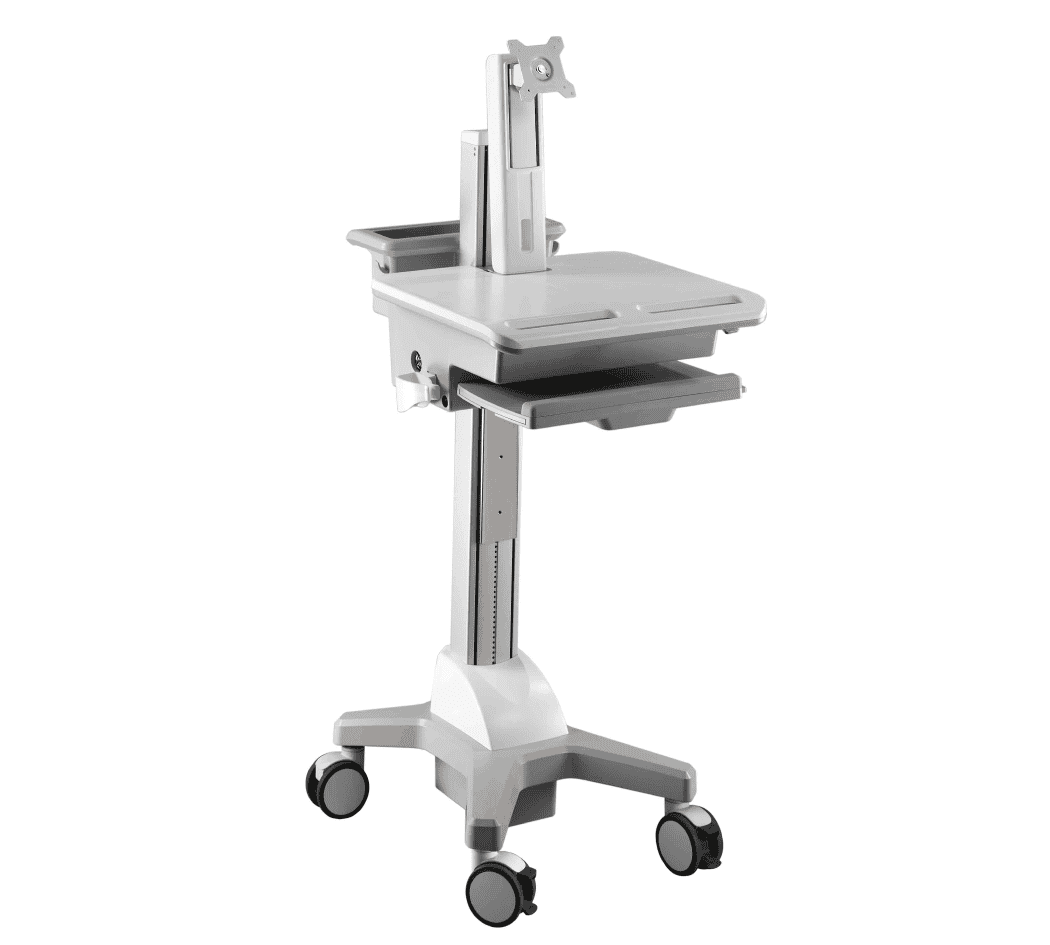

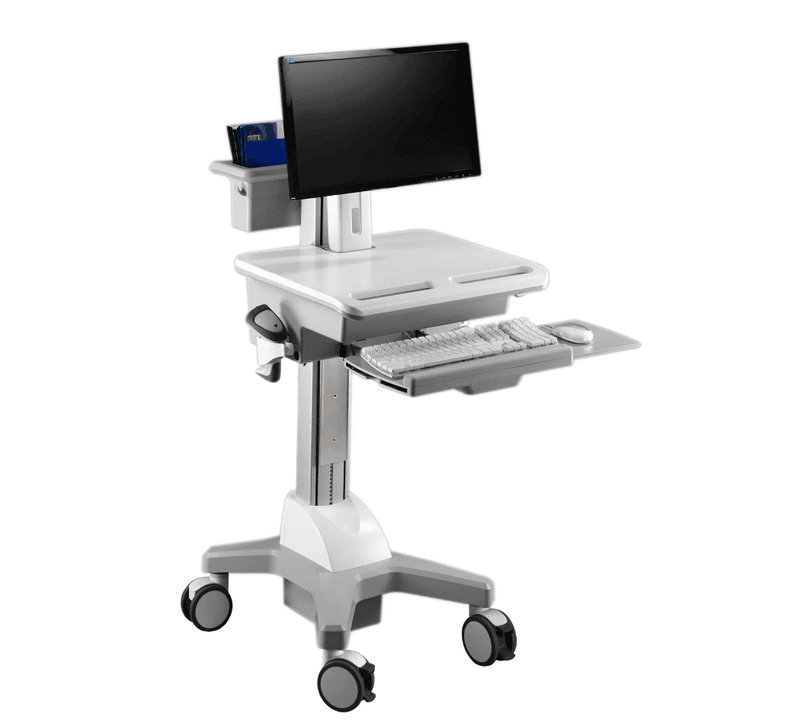

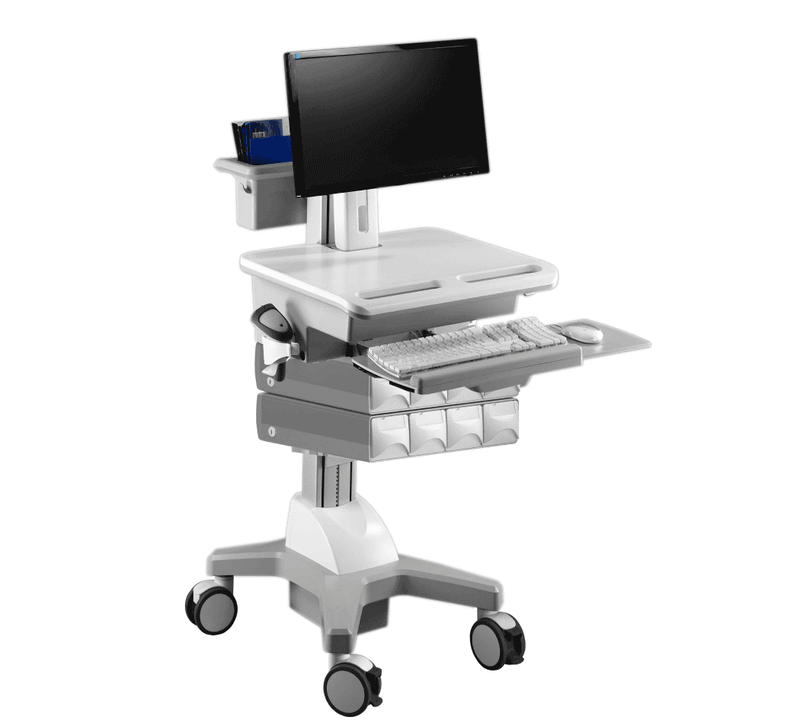

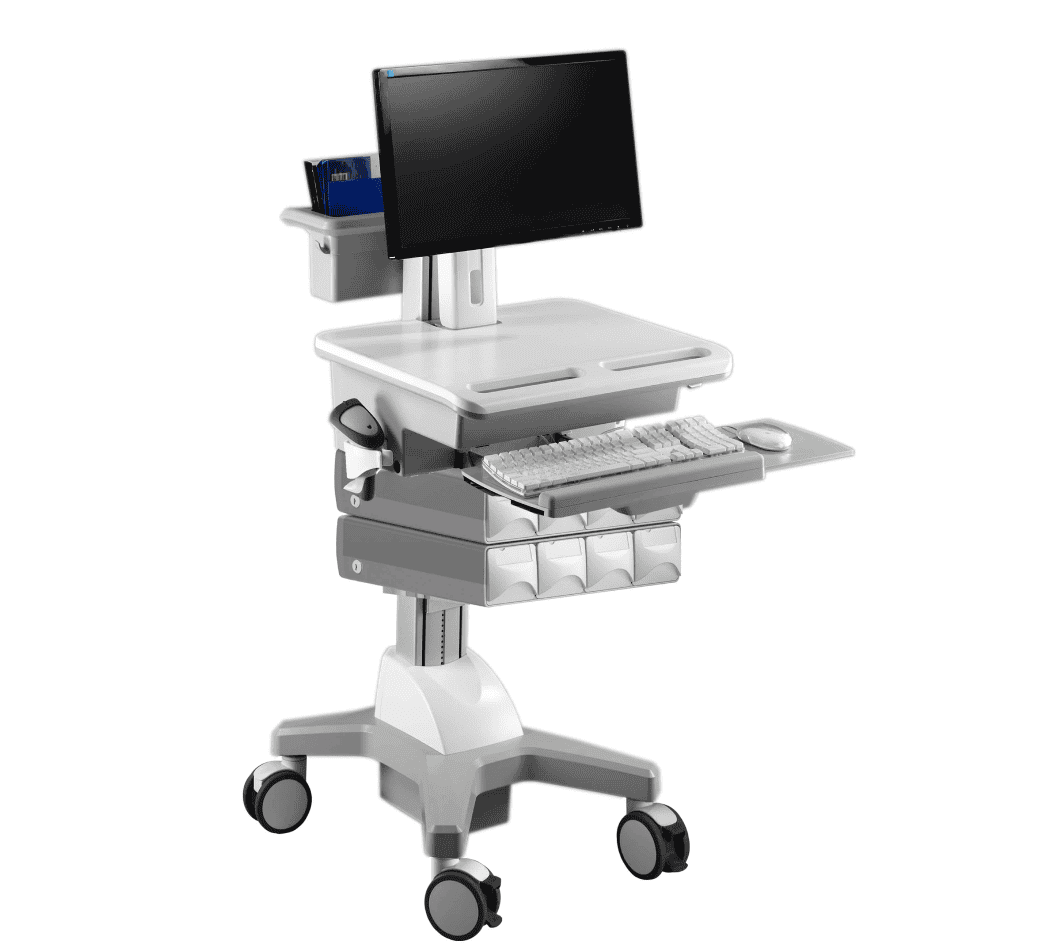

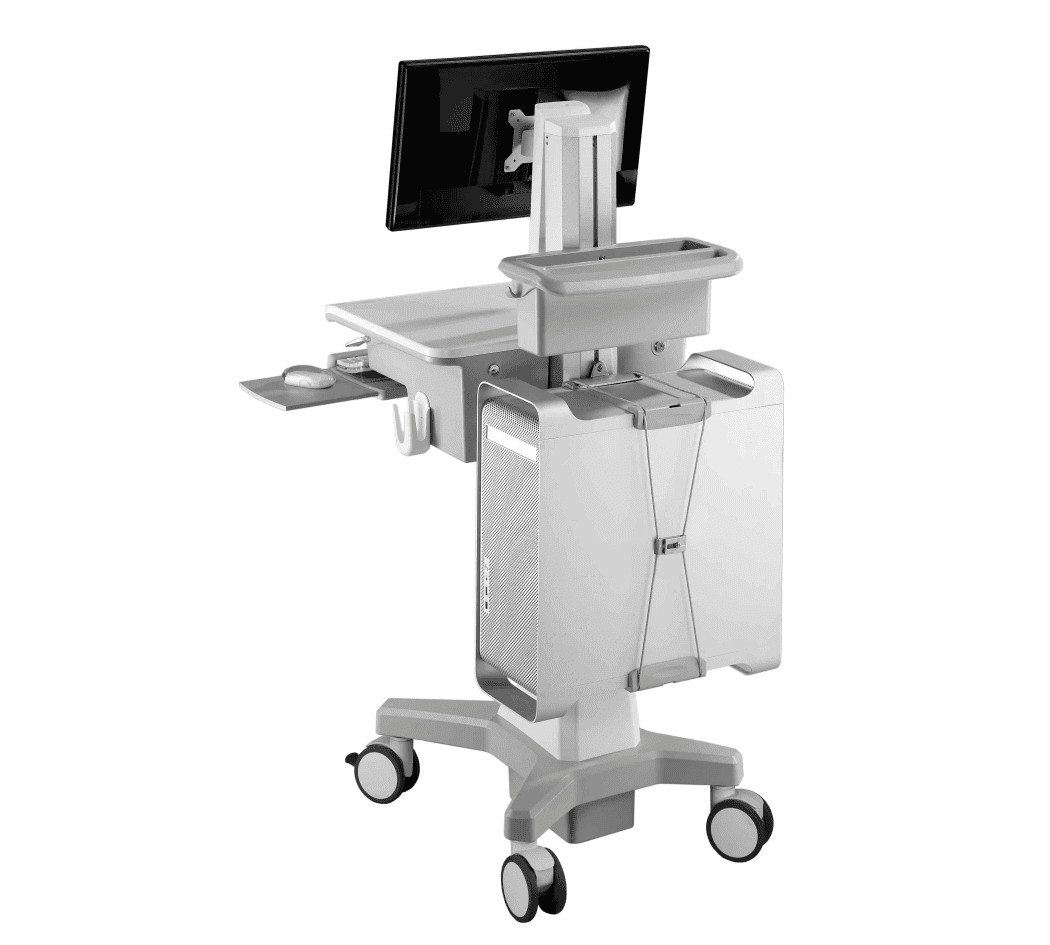

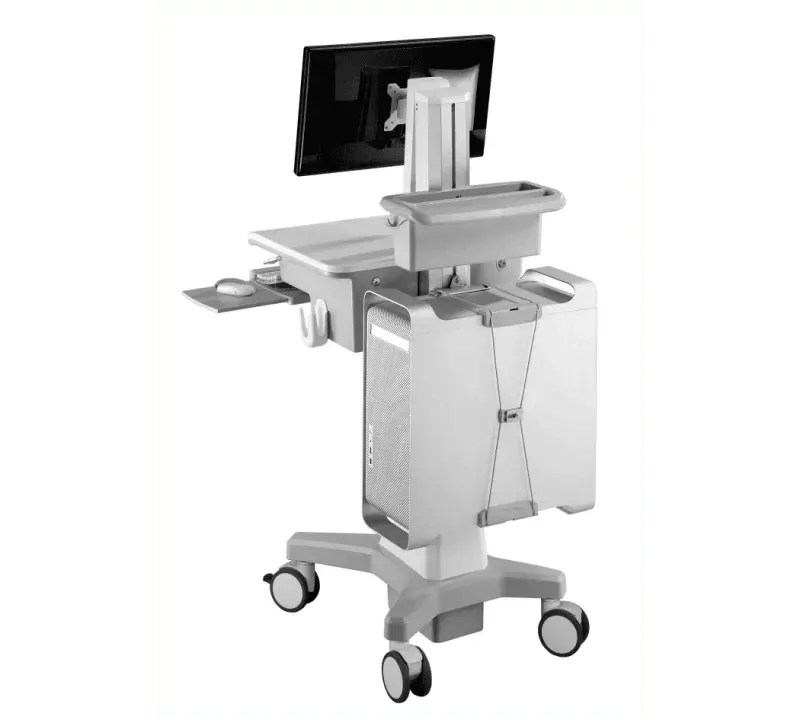

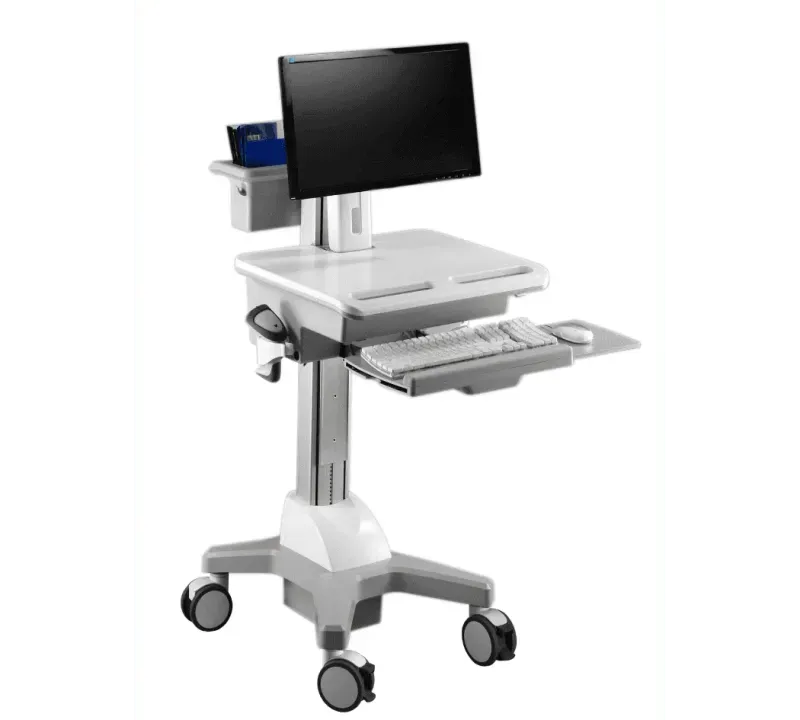

Avalue RCC-CAR-HGD-02R Medical Cart for 21.5\"

Product Description

The Avalue RCC-CAR-HGD-02R is a medical cart engineered to enhance mobility and efficiency in healthcare settings. Designed to support 21.5\" to 24\" displays, it offers a stable and ergonomic platform for various medical applications.

The cart's durable construction ensures longevity, while its smooth-rolling casters provide easy maneuverability across different hospital areas.

With integrated cable management and compatibility with Avalue's medical devices, the RCC-CAR-HGD-02R is a versatile solution for modern healthcare environments.

Technical Specifications

Complete System

Overall Load Capacity

15 kg

Net Weight

31 kg

Packaged Dimension

W1420 x D715 x H260 mm

Display System

Hinge Module Tilt

-5° ~ +25°

Hinge Module Pivot

360°

Hinge Module User Torque Adjust

Available

Display Support Mounting Pattern

100x100mm/75x75mm

Display Type

Single Monitor

Panel Size Support

≦27''

Display Support Weight Load

2 ~ 8 kg

Height Adjust Range

130 mm

Tension Torque Adjust

Yes

Cable Management

Yes

Working Space

Desk

Open Workspace

Dimension

517 x 261 mm ( 20.35\" x10.28\")

Load

7.5 kg

Protection Skidproof at edge

Yes

Protection Rear Handle

Yes

Protection Surface Coating

Yes

Storage & Inputs

Compartment Max. Effective Dimension

W425 x D325 x H90 mm (16.73\" x12.8\" x3.54\")

Compartment Key Lock

Yes

Keyboard Tray Max. Effective Dimension

449 x 207 mm ( 17.68\" X8.15\" )

Keyboard Tray Max. Height from Desk Base

41.5 mm ( 1.63\")

Keyboard Tray Tilt

Max. 12° (backward)

Mouse Pad Max. Working Dimension

217 x 213 mm ( 8.54\" x 8.39\" )

Mouse Pad Right-Left Slide in-&-out

Yes

Mouse Holder

Yes

Scanner Holder

Yes

Storage Bin

Yes

External CPU Holder

Yes

Base System

Caster No.

4

Caster Locking/ Brake

Front 2

Caster Low Noise

Yes

Lift Handle

Yes

Height Adjust Range

500 mm ( 19.7\" )

Tension Torque Adjust

Yes

Environ

RoHS/REACH Compliance

Yes

Ordering Information

RCC-CAR-HGD-DH-01R

Storage Basket with Handle

RCC-CAR-HGD-DR-01R

Standard drawer and metal adapter for Medical Cart

RCC-CAR-HGD-DR-02R

4 bay drawer and metal adapter for Medical Cart

RCC-CAR-HGD-CH-01R

Camera holder

RCC-CAR-HGD-BR-01R

Bracket for Alcohol Hand Dispenser

RCC-ARM-HGD-01R

A-frame bedside arm including wall box for 8 kg AIO default

RCC-ARM-HGD-02R

Bedside arm including wall box support 6~12 kg
