RCC-MM-GMD23G-01R

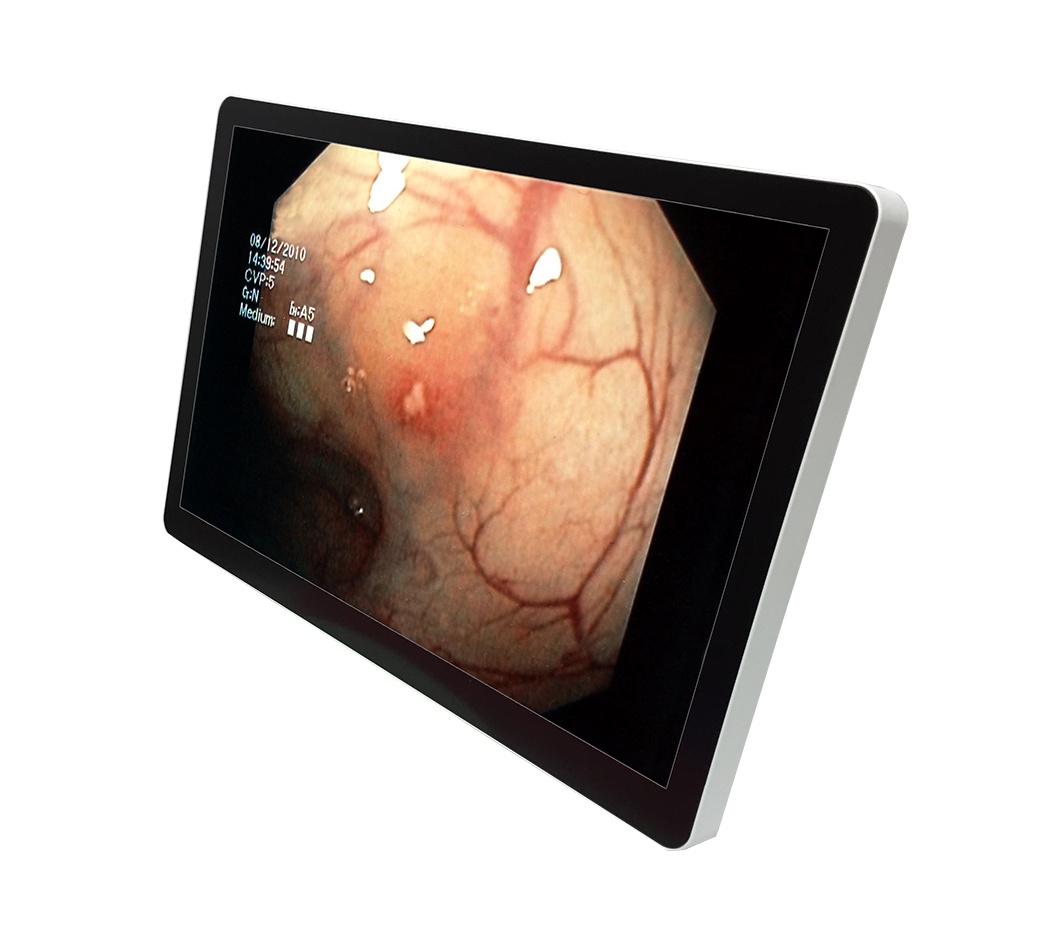

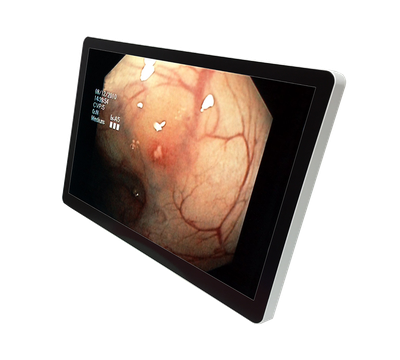

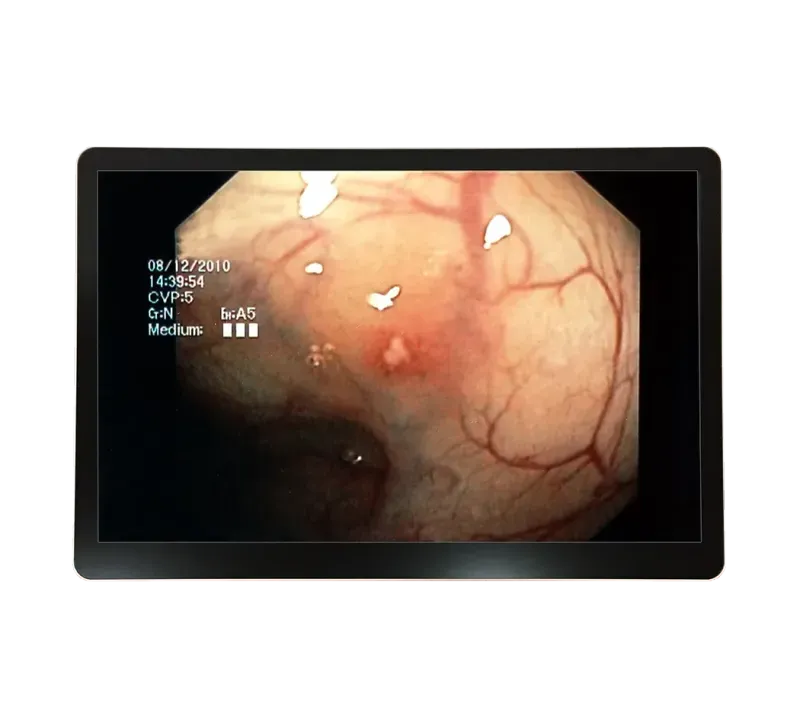

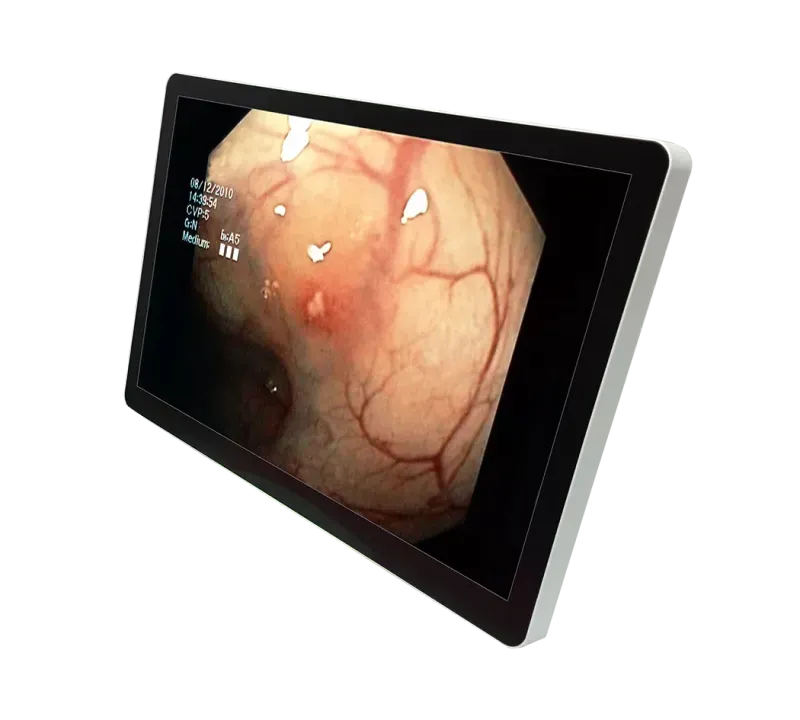

RCC-MM-GMD23G-01R FrontRCC-MM-GMD23G-01R FrontRCC-MM-GMD23G-01R Front
RCC-MM-GMD23G-01R FrontRCC-MM-GMD23G-01R FrontRCC-MM-GMD23G-01R Front

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Product Features

  • IP65 in front & IPx1 whole unit
  • Calibration mode(optional)
  • 20 meter DVI/15 meter HDMI long cable solution

Product Description

The Avalue RCC-MM-GMD23G-01R is a 23.8-inch Full HD (1920 x 1080) medical display designed for precision imaging in healthcare settings. It offers 230 nits brightness and features a full flat IP65-rated front panel for easy disinfection and hygiene maintenance.

With multiple input interfaces including HDMI, DisplayPort, DVI, and VGA, it ensures compatibility with various medical imaging equipment.

Optional features include DICOM calibration for accurate grayscale imaging and ambient light sensor (ALS) for consistent image quality, making it suitable for applications such as surgical suites, endoscopy, and diagnostic imaging.

Technical Specifications

Audio

Speaker Output

0.5W speaker x2 (optional)

Certification

Certification Information

CE(IEC/EN/BS EN60601-1, IEC/EN/BS EN60601-2)

FCC Class B, VCCI

CCC

cTUVus certified(ANSI/AAMI ES60601-1, CSA C22.2 NO.60601-1)

DIN6868-157 compliant

Panel

LCD Size

23.8"

Display Type

Full HD

Resolution

1920 x 1080

Pixel pitch

0.2745 mm x 0.2745mm

Luminance

AR glass 230 nits

AG PCAP 220 nits (optional)

Contrast ratio

3000

Viewing angle

89/89 Deg. Horizontal &Vertical

Response time

16 ms

Backlight

LED

Touch Type

Projective capacitive multi-touch up to 10 points

Display color

16.7 M

AG Protection Glass

Yes

Active display area

527.04 mm x 296.46mm

I/O

RS232

Optional

Input Interface

1 x VGA

1 x DVI

1 x HDMI

1 x Display port

Digital input

Standard DVI connector

Analog input

Video: 0.7Vpp/75 ohm, Sync: Separate TTL level. CompositeSync or sync on green,

Hor: 30~92KHz, Ver: 50~85Hz

Cables

15 pin D-sub cable*1, Optional: DVI cable

Plug & play

VESADDC2B

User control and indicator

Sensor keys multi-language OSD&Power indicator*1 :

contrast, brightness, auto adjust, clock, phase, color

temp, hor position, ver position, input select , key lock

Mechanical & Environmental

Operating Temp.

0°C ~ 40°C (32°F ~ 104°F)

Storage Temp.

-20°C ~ 60°C (-4°F ~ 140°F)

Operating Humidity

10% ~ 90% relative humidity, non-condensing

Weight

6.8 kg

Vibration Test

With SSD/mSATA: 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30min/axis

Shock Test

With SSD/mSATA: 10Grms, IEC 60068-2-27, half sine, 11ms

IP Rating

IP65 front & IP X1 whole unit

VESA

100 x 100

System Fan

Fanless

Construction

Plastic

Power Requirement

AC/DC Adapter Input: 100~250Vac, 0.6A, 60/50Hz universal Output: 24V, 2.71A

Power Mode

24V DC in

Mounting Kit

Stand (optional)

VESA mount kit (optional)

Wall mount kit (optional)

Dimension

587.0mm x 367.5mm x 59.5mm

Base stand

Tilt adjustable (optional)

Power consumption

On:<40W; active off: <5W

Power management

EPA Energy Star compliant

Color Mode

Color temperature

Cool/neutral/warm/user

gamma

1.8/2.0/2.2/2.4/linear

Calibration mode

Communication protocol is ready to calibrate the monitor through USB(optional)

Optional Items

Optional Items

AG PCAP touch

0.5W speaker x2

DICOM

Calibration mode

Ordering Information

Ordering Information

RCC-MM-GMD23G-01R (G2MSBP231AMC2120)

MSBP2311AMC with AG Glass 230nits

23.8" 16:9/AG Glass/Plastic Case/1920x1080/LED/3000contrast/VGA/DVI/HDMI/DP

Adapter ATM065T-P240 class 1 adapter (65W, 24V)

With: Power adapter*1; Without: Power Cord, Cables, 0.5W Speaker*2

RCC-MM-GMD23T-01R (G2MSBP231AMC1120)

MSBP2311AMC with AG PCAP 220nits

23.8" 16:9/AG PCAP/Plastic Case/1920x1080/LED/3000contrast/VGA/DVI/HDMI/DP

Adapter ATM065T-P240 class 1 adapter (65W, 24V)

With: Power adapter*1, Touch cable*1; Without: Power Cord, Cables, 0.5W Speaker*2

What is RCC-MM-GMD23G-01R?

The RCC-MM-GMD23G-01R is a intelligent healthcare manufactured by Avalue, designed specifically for medical-display applications. The Avalue RCC-MM-GMD23G-01R is a 23.8-inch Full HD (1920 x 1080) medical display designed for precision imaging in healthcare settings. It offers 230 nits brightness and features a full flat IP65-rated front panel for easy disinfection and hygiene maintenance. With multiple input interfaces including HDMI, DisplayPort, DVI, and VGA, it ensures compatibility with various medical imaging equipment. Optional features include DICOM calibration for accurate grayscale imaging and ambient light sensor (ALS) for consistent image quality, making it suitable for applications such as surgical suites, endoscopy, and diagnostic imaging.

Key Features & Benefits

  • IP65 in front & IPx1 whole unit
  • Calibration mode(optional)
  • 20 meter DVI/15 meter HDMI long cable solution

Applications & Use Cases

The RCC-MM-GMD23G-01R is ideal for various industrial automation applications:

  • Harsh industrial environments requiring dust and water protection
  • Healthcare and medical device integration
  • Precision imaging in healthcare settings
  • Applications such as surgical suites
  • Industrial automation and control
  • Manufacturing process monitoring
  • Quality assurance and inspection
  • Production line automation
