What are the key features of the RCC-MM-GMD27G-02R?

27-inch 4K UHD, 740 nits, 1000:1 contrast, DICOM compliant, IP65 front, multiple inputs (VGA, DVI, HDMI, DP), optional touch and SDI in/out.

What medical applications is the RCC-MM-GMD27G-02R suitable for?

Surgical suites, endoscopy, diagnostic imaging, and clinical review.

What are the mounting options?

VESA 100x100/200x100, base stand (optional).

What is the power supply and consumption?

AC/DC adapter, 24V 6.25A, <90W operation, <5W standby.

What are medical displays and their typical applications?

Medical displays are high-precision monitors designed for clinical diagnostics, surgical imaging, and patient monitoring, offering DICOM compliance, hygiene, and reliability.

What is DICOM compliance and why is it important?

DICOM compliance ensures accurate grayscale imaging for medical diagnostics, critical for radiology, surgery, and clinical review.

What certifications should a medical display have?

Look for certifications such as ANSI/AAMI ES60601-1, IEC 60601-1, EN 60601-1, and DIN6868-157 for medical safety and imaging standards.

What resolutions and brightness levels are available?

Medical displays offer Full HD to 4K UHD resolutions and brightness from 230 nits to 930 nits, depending on the model and application.

What input interfaces are supported?

Most models support VGA, DVI, HDMI, and DisplayPort, with some offering USB, RS232, and SDI in/out.

What is the typical power supply for a medical display?

Medical displays use internal or external medical-grade power supplies, typically 24V DC or 100~250Vac, with low standby consumption.

How do I install a medical display in a healthcare environment?

Follow manufacturer guidelines for mounting, ensure proper ventilation, and connect to certified power sources. Use ESD protection and avoid exposure to moisture or contaminants.

How do I connect input devices and peripherals?

Use the available input ports (VGA, DVI, HDMI, DP, USB) and ensure all connections are secure and compatible with medical standards.

What should I do if the display does not power on?

Check the power input, adapter, and cable connections. Ensure the power switch is set correctly and test with a known-good power source.

How can I resolve image quality or calibration issues?

Verify input signal, cable quality, and monitor settings. Use calibration tools if available and refer to the product manual.

What steps should I take if there are connectivity problems?

Check cable connections, update drivers, verify input selection, and test with alternate cables or ports.

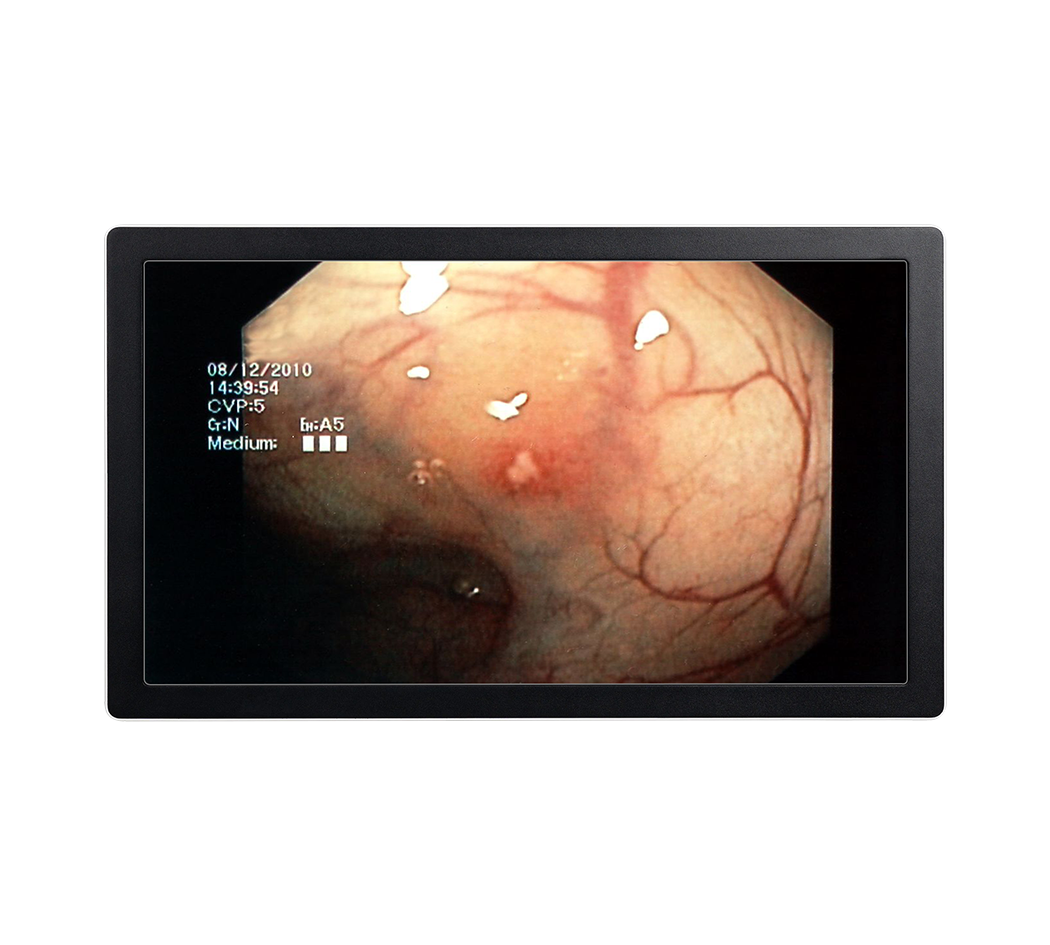

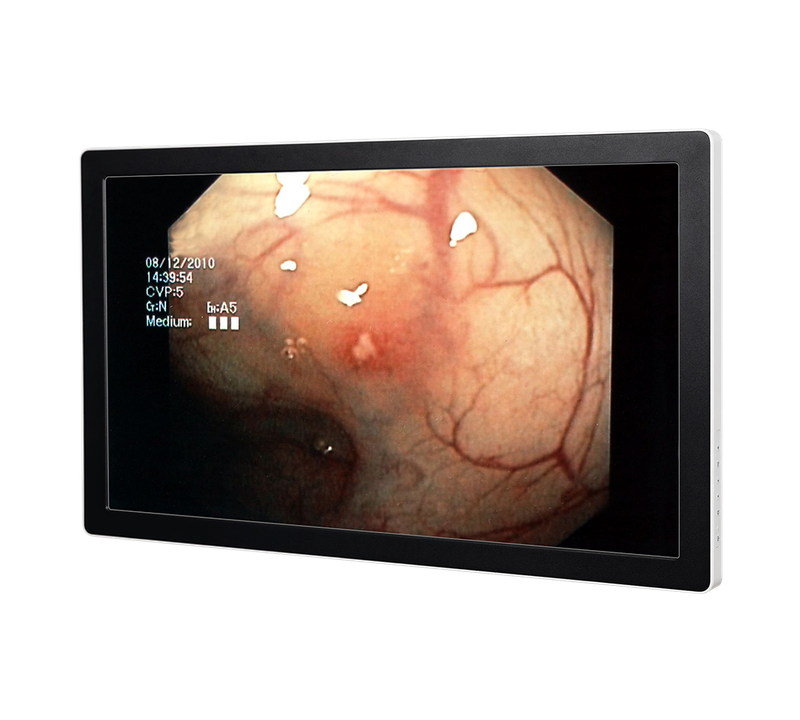

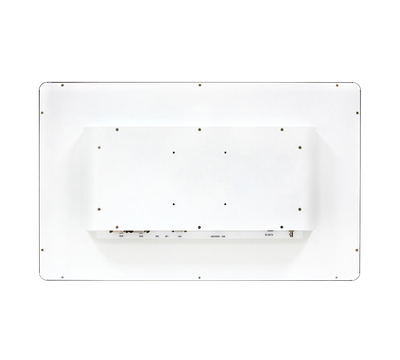

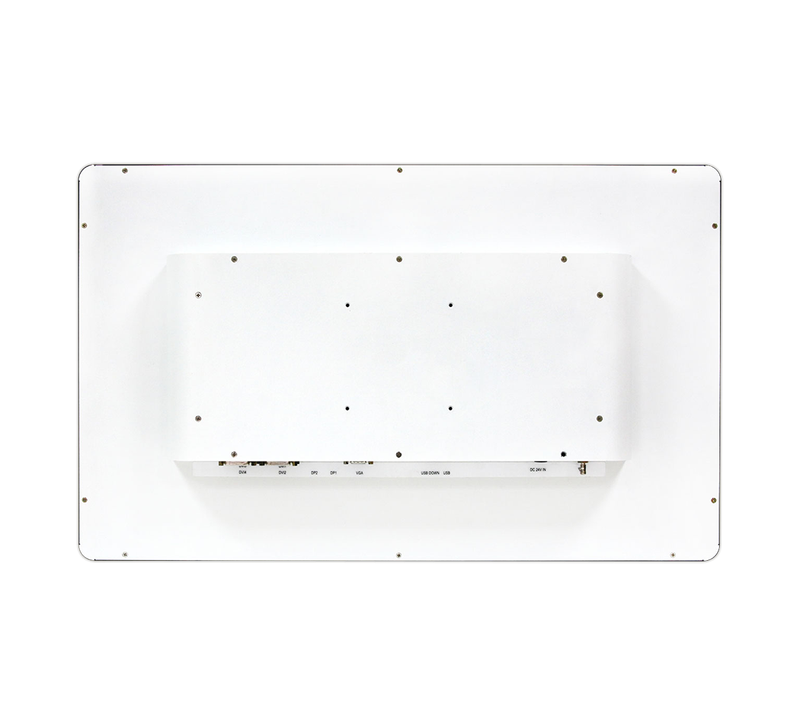

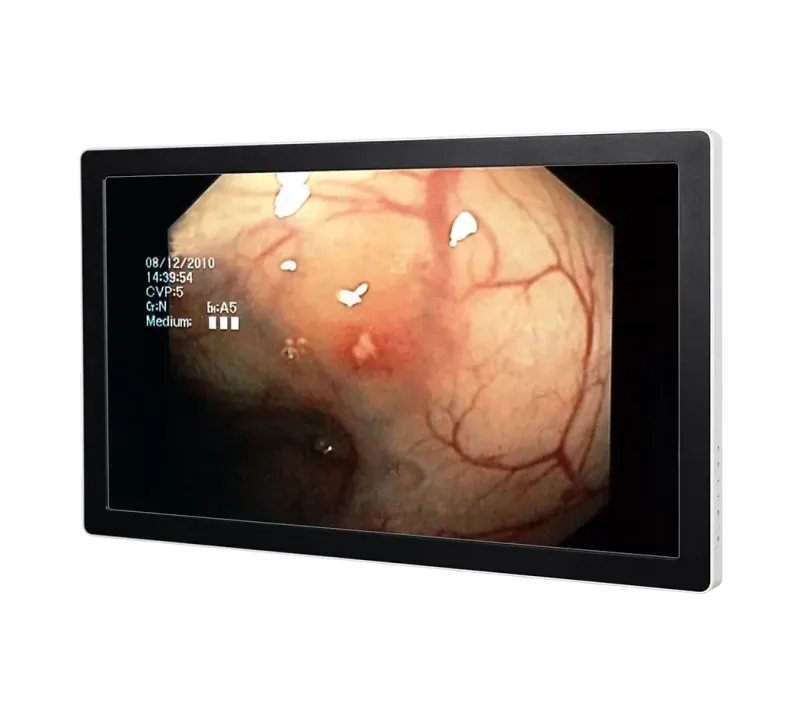

Avalue RCC-MM-GMD27G-02R 27" 4K Medical Display

Product Description

The Avalue RCC-MM-GMD27G-02R is a 27-inch 4K UHD medical display designed for precision imaging in healthcare settings. It offers a resolution of 3840 x 2160, ensuring exceptional image clarity. The display is DICOM compliant and features a full flat IP65-rated front panel for easy disinfection.

With multiple input interfaces including VGA, DVI, HDMI, and DisplayPort, it ensures compatibility with various medical imaging equipment. Optional features include projective capacitive touch, GPIO for remote control, and SDI in/out for enhanced connectivity.

Technical Specifications

Audio

Speaker Output

2W speaker x2 (optional)

Certification

Certification Information

CE, FCC Class B

UL/cUL(ANSI/AAMI ES60601-1, CAN/CSA C22.2 NO.60601-1)

DIN6868-157 compliant

Panel

LCD Size

27"

Display Type

4K

Resolution

3840 x 2160

Luminance

AR glass 740 nits

AG PCAP 710 nits (optional)

Contrast ratio

1000

Viewing angle

89/89 Deg. Horizontal &Vertical

Response time

16 ms

Backlight

LED

Touch Type

Projective capacitive multi-touch up to 10 points

Display color

1.07 G

DICOM compliant

Ambient light 0/0.5/1/1.5/2/2.5/3 cd/m2 (default)

Active display area

596.1 mm x 335.3mm

I/O

Input Interface

1 x VGA

1 x DVI

1 x HDMI

1 x Display port

Digital input

Standard DVI & DisplayPort

Analog input

Video: 0.7Vpp/75 ohm, Sync: Separate TTL level. CompositeSync or sync on green,

Hor: 30~92KHz, Ver: 50~85Hz

Cables

DVI / DisplayPort cables

Plug & play

VESADDC2B

User control and indicator

Power indicator x1, Sensor keys x 8s

TOUCH DISABLED/SOURCE/PIP/SWAP/MENU/-/+/POWER

Mechanical & Environmental

Weight

7.5 kg

IP Rating

IP65 front & IP X1 whole unit

VESA

100 x 100/200 x 100

Construction

GM metal

Power Requirement

AC/DC adapter

Input: 100~250 Vac, 60/50Hz

Output: 24V, 6.25A

Power Mode

24V DC in

Dimension

660.2mmx408.76mmx52.9mm

Base stand

Base stand (optional)

Power consumption

On:<90W; active off: <5W

Power management

EPA Energy Star compliant

Color Mode

Color temperature

Cool/neutral/warm/user

gamma

1.8/2.0/2.2/2.4/linear

Calibration mode

Communication protocol is ready to calibrate the monitor through USB

Optional Items

AG PCAP touch

2W speaker x2

SDI in/out or DVI in

GPIO Remote control

What is RCC-MM-GMD27G-02R?

The RCC-MM-GMD27G-02R is a intelligent healthcare manufactured by Avalue, designed specifically for medical-display applications. The Avalue RCC-MM-GMD27G-02R is a 27-inch 4K UHD medical display designed for precision imaging in healthcare settings. It offers a resolution of 3840 x 2160, ensuring exceptional image clarity. The display is DICOM compliant and features a full flat IP65-rated front panel for easy disinfection. With multiple input interfaces including VGA, DVI, HDMI, and DisplayPort, it ensures compatibility with various medical imaging equipment. Optional features include projective capacitive touch, GPIO for remote control, and SDI in/out for enhanced connectivity.

Key Features & Benefits

IP65 in front & IPx1 whole unit
DIN6868-157 compliant
BT standards
Calibration mode
GPIO Remote control (optional)
PIP & PBP

Applications & Use Cases

The RCC-MM-GMD27G-02R is ideal for various industrial automation applications:

Harsh industrial environments requiring dust and water protection
Healthcare and medical device integration
Precision imaging in healthcare settings
Industrial automation and control
Manufacturing process monitoring
Quality assurance and inspection
Production line automation
