What are the key features of the RCC-MM-GMD55G-01R?

55-inch 4K UHD, DICOM compliant, 460 nits brightness, 4000:1 contrast, multiple inputs (4x DVI, 2x DP, 1x VGA), IP65 front, fanless, optional touch and backlight stabilizer.

What medical applications is the RCC-MM-GMD55G-01R suitable for?

Ideal for surgical suites, endoscopy, hybrid OR, and diagnostic imaging requiring high precision and hygiene.

What are the mounting options?

Supports VESA 400x400, stand, wall, and VESA mount kits (optional).

What certifications does it meet?

CE, FCC Class B, VCCI, cTUVus (ANSI/AAMI ES60601-1, CSA C22.2 NO.60601-1), DIN6868-157 compliant.

What is the power supply and consumption?

Internal 100~250Vac, 60/50Hz, <200W operation, <5W standby.

What are medical displays and their typical applications?

Medical displays are high-precision monitors designed for clinical diagnostics, surgical imaging, and patient monitoring, offering DICOM compliance, hygiene, and reliability.

What is DICOM compliance and why is it important?

DICOM compliance ensures accurate grayscale imaging for medical diagnostics, critical for radiology, surgery, and clinical review.

What certifications should a medical display have?

Look for certifications such as ANSI/AAMI ES60601-1, IEC 60601-1, EN 60601-1, and DIN6868-157 for medical safety and imaging standards.

What resolutions and brightness levels are available?

Medical displays offer Full HD to 4K UHD resolutions and brightness from 230 nits to 930 nits, depending on the model and application.

What input interfaces are supported?

Most models support VGA, DVI, HDMI, and DisplayPort, with some offering USB, RS232, and SDI in/out.

What is the typical power supply for a medical display?

Medical displays use internal or external medical-grade power supplies, typically 24V DC or 100~250Vac, with low standby consumption.

How do I install a medical display in a healthcare environment?

Follow manufacturer guidelines for mounting, ensure proper ventilation, and connect to certified power sources. Use ESD protection and avoid exposure to moisture or contaminants.

How do I connect input devices and peripherals?

Use the available input ports (VGA, DVI, HDMI, DP, USB) and ensure all connections are secure and compatible with medical standards.

What should I do if the display does not power on?

Check the power input, adapter, and cable connections. Ensure the power switch is set correctly and test with a known-good power source.

How can I resolve image quality or calibration issues?

Verify input signal, cable quality, and monitor settings. Use calibration tools if available and refer to the product manual.

What steps should I take if there are connectivity problems?

Check cable connections, update drivers, verify input selection, and test with alternate cables or ports.

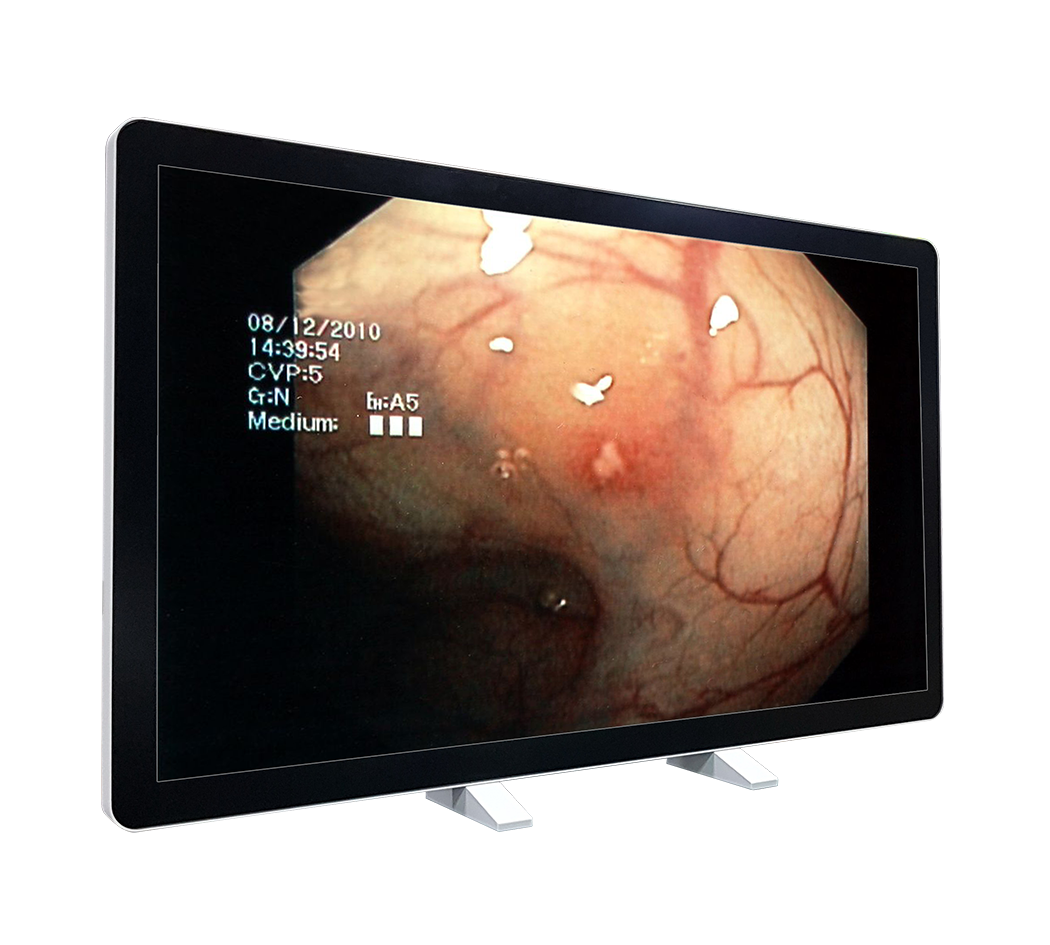

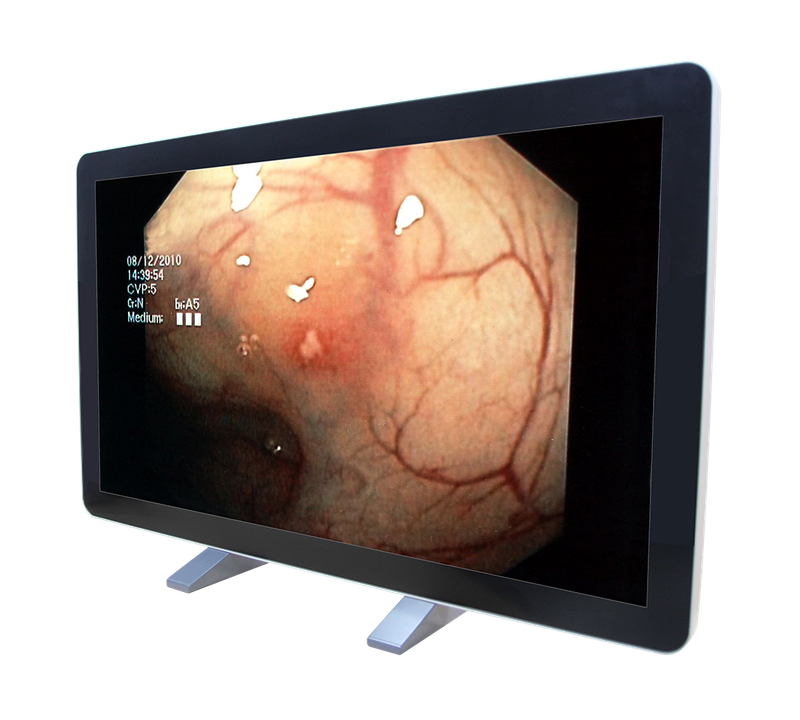

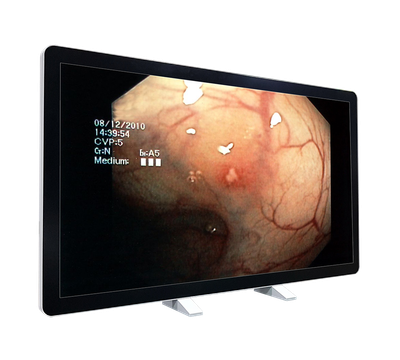

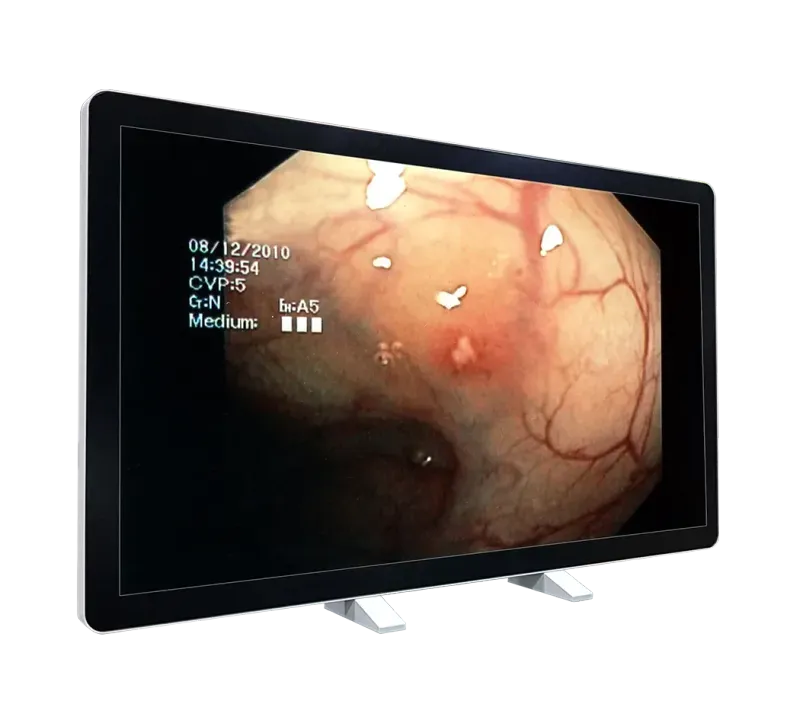

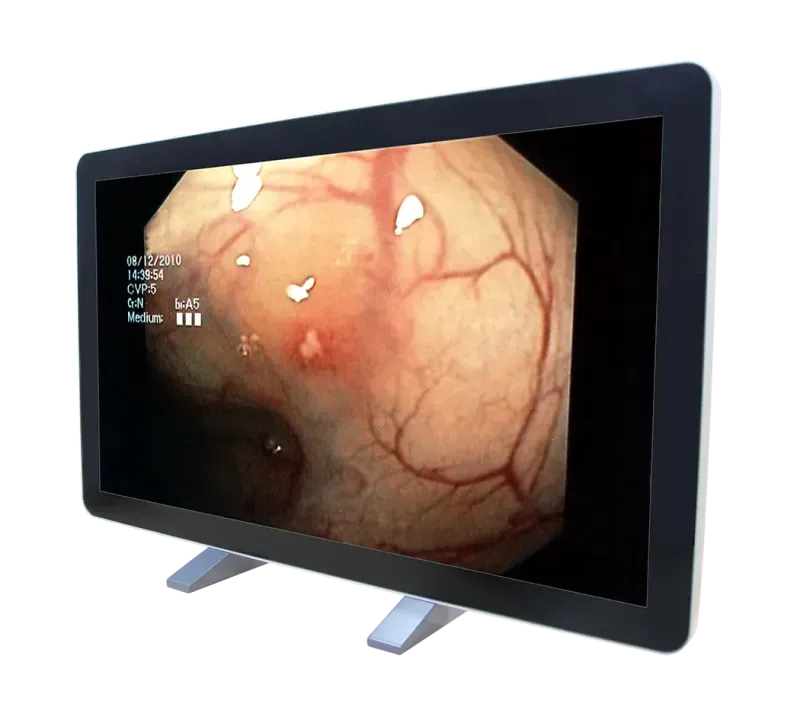

Avalue RCC-MM-GMD55G-01R 55" 4K Medical Display

Product Description

The Avalue RCC-MM-GMD55G-01R is a 55-inch 4K UHD medical display designed for precision imaging in healthcare settings. Compliant with DICOM standards, it offers a 3840 x 2160 resolution, 460 nits brightness, and a 4000:1 contrast ratio.

The display supports multiple input interfaces including 4 x DVI, 2 x DisplayPort, and 1 x VGA, ensuring compatibility with various medical imaging equipment. Its front panel is IP65-rated for easy disinfection, and the fanless design ensures silent operation.

Optional features include projective capacitive touch, GPIO for remote control, and a backlight stabilizer for consistent image quality.

Technical Specifications

Audio

Speaker Output

ODM Evaluation

Certification

Certification Information

CE, FCC Class B, VCCI

cTUVus certified(ANSI/AAMI ES60601-1, CSA C22.2 NO.60601-1)

DIN6868-157 compliant

External I/O

USB Port

1 x USB HUB

Panel

LCD Size

55"

Display Type

4K

Resolution

3840 x 2160

Luminance

AG glass 460 nits

AG PCAP 440 nits (optional)

Contrast ratio

4000

Viewing angle

89/89 Deg. Horizontal &Vertical

Response time

8.5 ms

Backlight

LED

Touch Type

Projective capacitive multi-touch up to 10 points

Display color

1.07 G

DICOM compliant

Barten curve (default)

AG Protection Glass

Yes

Active display area

1209.6 mm x 680.4mm

I/O

Display Port

2 x Display port

VGA

1 x VGA

RS232

Yes

Input Interface

1 x VGA

4 x DVI

2 x Display port

Digital input

Standard DVI & DisplayPort

Analog input

Video: 0.7Vpp/75 ohm, Sync: Separate TTL level. CompositeSync or sync on green,

Hor: 30~92KHz, Ver: 50~85Hz

Cables

DVI / DisplayPort cables

Plug & play

VESADDC2B

User control and indicator

Power indicator x1, Sensor keys x 8s

TOUCH DISABLED/SOURCE/PIP/SWAP/MENU/-/+/POWER

Mechanical & Environmental

Operating Temp.

0°C ~ 40°C (32°F ~ 104°F)

Storage Temp.

-20°C ~ 60°C (-4°F ~ 140°F)

Operating Humidity

10% ~ 90% relative humidity, non-condensing

Weight

39 kg

Vibration Test

With SSD/mSATA: 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30min/axis

Shock Test

With SSD/mSATA: 10Grms, IEC 60068-2-27, half sine, 11ms

IP Rating

IP65 front & IP X1 whole unit

VESA

400 x 400

System Fan

Fanless

Construction

GM metal

Power Requirement

Internal power supply:100~250Vac, 60/50Hz

Power Mode

AC In

Mounting Kit

Stand (optional)

VESA mount kit (optional)

Wall mount kit (optional)

Dimension

1314mmx785mmx85mm

Base stand

Base stand & Wall mount

Power consumption

On:<200W; active off: <5W

Power management

EPA Energy Star compliant

Color Mode

Color temperature

Cool/neutral/warm/user

gamma

1.8/2.0/2.2/2.4/linear

Calibration mode

Communication protocol is ready to calibrate the monitor through

USB (optional)

Optional Items

AG PCAP touch

speaker ODM Evaluation

Calibration mode

GPIO Remote control

Backlight Stabilizer (ALS)

Ordering Information

RCC-MM-GMD55G-01R (MSAP5521AMA01)

MSAP5521AMA with AG Glass

55"/LED/AG Glass/Metal Case/3840x2160/460nits/4000: 1

DVIx4/DPx2/VGA/USB HUB

Delta 400W PSU

Without: Power cord, DVI cablex2/DP cablex2/USB cablex1/VGA cablex1

RCC-MM-GMD55T-01R (MSAP5521AMA02)

MSAP5521AMA with AG PCAP

55"/LED/AG PCAP/Metal Case/3840x2160/440nits/4000: 1

DVIx4/DPx2/VGA/USB HUB

Delta 400W PSU

Without: Power cord, DVI cablex2/DP cablex2/USB cablex1/VGA cablex1

What is RCC-MM-GMD55G-01R?

The RCC-MM-GMD55G-01R is a intelligent healthcare manufactured by Avalue, designed specifically for medical-display applications. The Avalue RCC-MM-GMD55G-01R is a 55-inch 4K UHD medical display designed for precision imaging in healthcare settings. Compliant with DICOM standards, it offers a 3840 x 2160 resolution, 460 nits brightness, and a 4000:1 contrast ratio. The display supports multiple input interfaces including 4 x DVI, 2 x DisplayPort, and 1 x VGA, ensuring compatibility with various medical imaging equipment. Its front panel is IP65-rated for easy disinfection, and the fanless design ensures silent operation. Optional features include projective capacitive touch, GPIO for remote control, and a backlight stabilizer for consistent image quality.

Key Features & Benefits

IP65 in front & IPx1 whole unit
ALS (optional)
GPIO Remote control (optional)
UHD signals configuration
Full mode: one UHD signal input (DVI or DP)
Dual mode: 2 signal inputs PBP or PIP
Quad mode: 4 FHD signal inputs

Applications & Use Cases

The RCC-MM-GMD55G-01R is ideal for various industrial automation applications:

Harsh industrial environments requiring dust and water protection
Healthcare and medical device integration
Precision imaging in healthcare settings
Industrial automation and control
Manufacturing process monitoring
Quality assurance and inspection
Production line automation
