Is the RCC-MS-GMD23GT medically certified?

Yes — CE (IEC/EN/BS EN60601-1, EN60601-2), FCC Class B, VCCI, cTUVus (ANSI/AAMI ES60601-1, CSA C22.2 NO.60601-1), and DIN6868-157 compliant.

What resolution and contrast does the RCC-MS-GMD23GT have?

Full-HD 1920x1080 at 230 nits (AG glass) or 220 nits (optional AG PCAP), with a high 3000:1 contrast ratio and 16.7M colours.

Does the RCC-MS-GMD23GT support DICOM?

Optional DICOM Barten-curve compliance is available for clinical greyscale conformance.

What is the long-cable solution on the RCC-MS-GMD23GT?

It supports a 20-meter DVI / 15-meter HDMI long-cable run, useful for OR and remote-source installations.

What inputs does the RCC-MS-GMD23GT have?

1x VGA, 1x DVI, 1x HDMI, and 1x DisplayPort, with optional RS232 for control.

Is the RCC-MS-GMD23GT a touch display?

It is available as a non-touch (G) or AG-PCAP 10-point multi-touch (T) version.

How is the RCC-MS-GMD23GT sealed?

IP65 on the front and IPx1 for the whole unit, in a fanless plastic chassis suitable for clinical hygiene.

How is the RCC-MS-GMD23GT powered?

Via a 24V DC medical AC/DC adapter (100~250Vac in, 24V/2.71A out).

Can the RCC-MS-GMD23GT be wall or arm mounted?

Yes, it has a VESA 100x100 mount with an optional tilt-adjustable stand, VESA, and wall-mount kits.

What are the RCC-MS-GMD23GT's dimensions and weight?

587.0 x 367.5 x 59.5 mm and approximately 7 kg, with a 527.04 x 296.46 mm active area.

What options are available for the RCC-MS-GMD23GT?

AG-PCAP touch, dual 0.5W speakers, DICOM, and calibration mode.

Is the RCC-MS-GMD23GT fanless?

Yes, a fanless design, important for noise- and contamination-sensitive clinical environments.

What applications is the RCC-MS-GMD23GT best suited for?

Clinical review, bedside, and point-of-care where a compact, sealed, DICOM-capable Full-HD display with a long-cable option is required.

What are the mounting options?

Supports VESA 400x400, stand, wall, and VESA mount kits (optional).

What certifications does it meet?

CE, FCC Class B, VCCI, cTUVus (ANSI/AAMI ES60601-1, CSA C22.2 NO.60601-1), DIN6868-157 compliant.

What is the power supply and consumption?

Internal 100~250Vac, 60/50Hz, <200W operation, <5W standby.

What are medical displays and their typical applications?

Medical displays are high-precision monitors designed for clinical diagnostics, surgical imaging, and patient monitoring, offering DICOM compliance, hygiene, and reliability.

What is DICOM compliance and why is it important?

DICOM compliance ensures accurate grayscale imaging for medical diagnostics, critical for radiology, surgery, and clinical review.

What certifications should a medical display have?

Look for certifications such as ANSI/AAMI ES60601-1, IEC 60601-1, EN 60601-1, and DIN6868-157 for medical safety and imaging standards.

What resolutions and brightness levels are available?

Medical displays offer Full HD to 4K UHD resolutions and brightness from 230 nits to 930 nits, depending on the model and application.

What input interfaces are supported?

Most models support VGA, DVI, HDMI, and DisplayPort, with some offering USB, RS232, and SDI in/out.

What is the typical power supply for a medical display?

Medical displays use internal or external medical-grade power supplies, typically 24V DC or 100~250Vac, with low standby consumption.

How do I install a medical display in a healthcare environment?

Follow manufacturer guidelines for mounting, ensure proper ventilation, and connect to certified power sources. Use ESD protection and avoid exposure to moisture or contaminants.

How do I connect input devices and peripherals?

Use the available input ports (VGA, DVI, HDMI, DP, USB) and ensure all connections are secure and compatible with medical standards.

What should I do if the display does not power on?

Check the power input, adapter, and cable connections. Ensure the power switch is set correctly and test with a known-good power source.

How can I resolve image quality or calibration issues?

Verify input signal, cable quality, and monitor settings. Use calibration tools if available and refer to the product manual.

What steps should I take if there are connectivity problems?

Check cable connections, update drivers, verify input selection, and test with alternate cables or ports.

Avalue · Intelligent Healthcare

RCC-MS-GMD23GT

Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

23.8" Full-HD (1920x1080) medical display, plastic chassis
AG glass 230 nits / optional AG PCAP 220 nits, 3000:1 contrast
16.7M colours, optional DICOM Barten-curve compliance
20m DVI / 15m HDMI long-cable solution
VGA, DVI, HDMI, DisplayPort inputs
Optional AG-PCAP 10-point multi-touch, dual 0.5W speakers
IP65 front, IPx1 whole unit, fanless build
cTUVus (ANSI/AAMI ES60601-1), DIN6868-157 compliant
24V DC medical adapter, VESA 100x100

Product Description

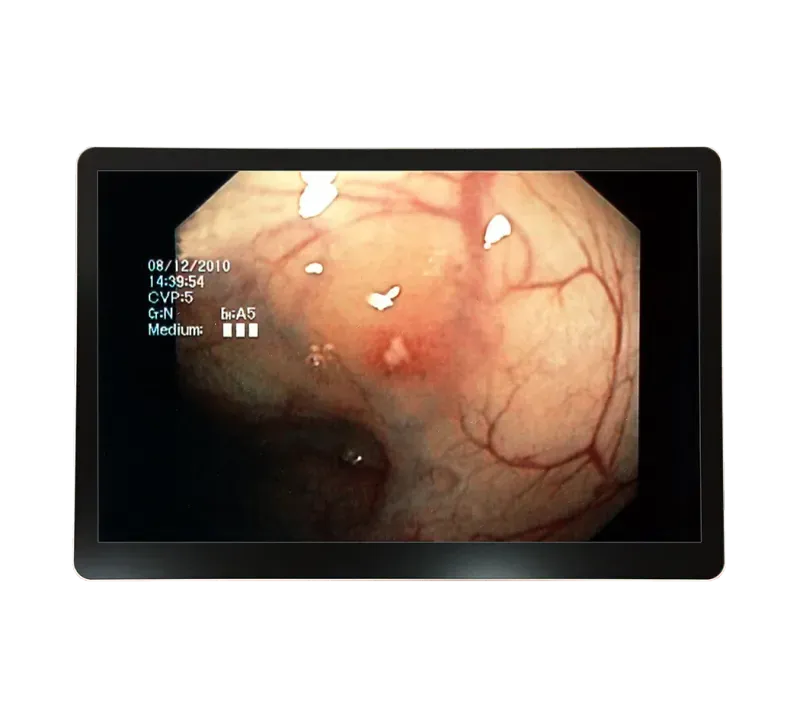

The Avalue RCC-MS-GMD23GT is a 23.8" Full-HD (1920x1080) medical display (RTAP2311AMC/T), designed for clinical review, bedside, and point-of-care.

With a high 3000:1 contrast, IP65 front / IPx1 whole-unit sealing, optional DICOM Barten-curve compliance, and cTUVus / DIN6868-157 / EN60601-1 certification, it delivers a clean 16.7M-colour image with a long-cable solution (20m DVI / 15m HDMI).

It offers VGA, DVI, HDMI and DisplayPort inputs, a 24V DC medical adapter, optional AG-PCAP 10-point touch, dual 0.5W speakers, DICOM and calibration.

VESA 100x100 mounting and EN/IEC 60601-1 medical certification make it a compliant clinical monitor.

Technical Specifications

Speaker Output

0.5W speaker x2 (optional)

Certification Information

CE(IEC/EN/BS EN60601-1, IEC/EN/BS EN60601-2)

FCC Class B, VCCI

cTUVus certified(ANSI/AAMI ES60601-1, CSA C22.2 NO.60601-1)

DIN6868-157 compliant

LCD Size

23.8"

Display Type

Full HD

Resolution

1920 x 1080

Pixel pitch

0.2745 mm x 0.2745mm

Luminance

AG glass 230 nits

AG PCAP 220 nits (optional)

Contrast ratio

3000

Viewing angle

89/89 Deg. Horizontal & Vertical

Response time

16 ms

Backlight

LED

Touch Type

Projective capacitive multi-touch up to 10 points

Display color

16.7 M

DICOM compliant

Barten curve (optional)

AG Protection Glass

Yes

Active display area

527.04 mm x 296.46mm

RS232

Optional

Input Interface

1 x VGA

1 x DVI

1 x HDMI

1 x Display port

Digital input

Standard DVI connector

Analog input

Video: 0.7Vpp/75 ohm, Sync: Separate TTL level. Composite

Sync or sync on green,

Hor: 30~92KHz, Ver: 50~85Hz

Cables

15 pin D-sub cable*1, Optional: DVI cable

Plug & play

VESADDC2B

User control and indicator

Sensor keys multi-language OSD&Power indicator*1 :

contrast, brightness, auto adjust, clock, phase, color

temp, hor position, ver position, input select , key lock

Operating Temp.

0°C ~ 40°C (32°F ~ 104°F)

Storage Temp.

-20°C ~ 60°C (-4°F ~ 140°F)

Operating Humidity

10% ~ 90% relative humidity, non-condensing

Weight

7 kg

Vibration Test

With SSD/mSATA: 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30min/axis

Shock Test

With SSD/mSATA: 10Grms, IEC 60068-2-27, half sine, 11ms

IP Rating

IP65 in front & IPx1 whole unit

VESA

100 x 100

System Fan

Fanless

Construction

Plastic

Power Requirement

AC/DC Adapter Input: 100~250Vac, 0.6A, 60/50Hz universal Output: 24V, 2.71A

Power Mode

24V DC in

Mounting Kit

Stand (optional)

VESA mount kit (optional)

Wall mount kit (optional)

Dimension

587.0mm x 367.5mm x 59.5mm

Base stand

Tilt adjustable (optional)

Power consumption

On:<40W; active off: <5W

Power management

EPA Energy Star compliant

Color temperature

Cool/neutral/warm/user

gamma

1.8/2.0/2.2/2.4/linear

Calibration mode

Communication protocol is ready to calibrate the monitor through

DDC CI (optional)

Optional Items

AG PCAP touch

0.5W speaker x2

DICOM

Calibration mode

Ordering Information

RCC-MS-GMD23G-01R:, RTAP2311AMC with AG Glass, With: Power adapter*1, HDMI 1.8M cable*1, 0.5W Speaker*2 ; Without: Power Cord, RCC-MS-GMD23T-01R:, RTAP2311AMCT with AG PCAP, With: Power adapter*1, USB touch cable*1, HDMI 1.8M cable*1,0.5W Speaker*2 ; Without: Power Cord

What is RCC-MS-GMD23GT?

The RCC-MS-GMD23GT is a intelligent healthcare manufactured by Avalue, designed specifically for medical-display applications. The Avalue RCC-MS-GMD23GT is a 23.8" Full-HD (1920x1080) medical display (RTAP2311AMC/T), designed for clinical review, bedside, and point-of-care. With a high 3000:1 contrast, IP65 front / IPx1 whole-unit sealing, optional DICOM Barten-curve compliance, and cTUVus / DIN6868-157 / EN60601-1 certification, it delivers a clean 16.7M-colour image with a long-cable solution (20m DVI / 15m HDMI). It offers VGA, DVI, HDMI and DisplayPort inputs, a 24V DC medical adapter, optional AG-PCAP 10-point touch, dual 0.5W speakers, DICOM and calibration. VESA 100x100 mounting and EN/IEC 60601-1 medical certification make it a compliant clinical monitor.

Key Features & Benefits

23.8" Full-HD (1920x1080) medical display, plastic chassis
AG glass 230 nits / optional AG PCAP 220 nits, 3000:1 contrast
16.7M colours, optional DICOM Barten-curve compliance
20m DVI / 15m HDMI long-cable solution
VGA, DVI, HDMI, DisplayPort inputs
Optional AG-PCAP 10-point multi-touch, dual 0.5W speakers
IP65 front, IPx1 whole unit, fanless build
cTUVus (ANSI/AAMI ES60601-1), DIN6868-157 compliant
24V DC medical adapter, VESA 100x100

Applications & Use Cases

The RCC-MS-GMD23GT is ideal for various industrial automation applications:

Harsh industrial environments requiring dust and water protection
Dust-sensitive environments and silent operation requirements
DC-powered industrial installations and mobile applications
Medical device integration and healthcare applications
Interactive control interfaces and operator panels
Panel-mounted installations and control cabinets
Outdoor and high-ambient-light environments
Visual monitoring and data display systems
