RCC-MS-GMD23GT

Series: RCC

Manufactured byAvalue

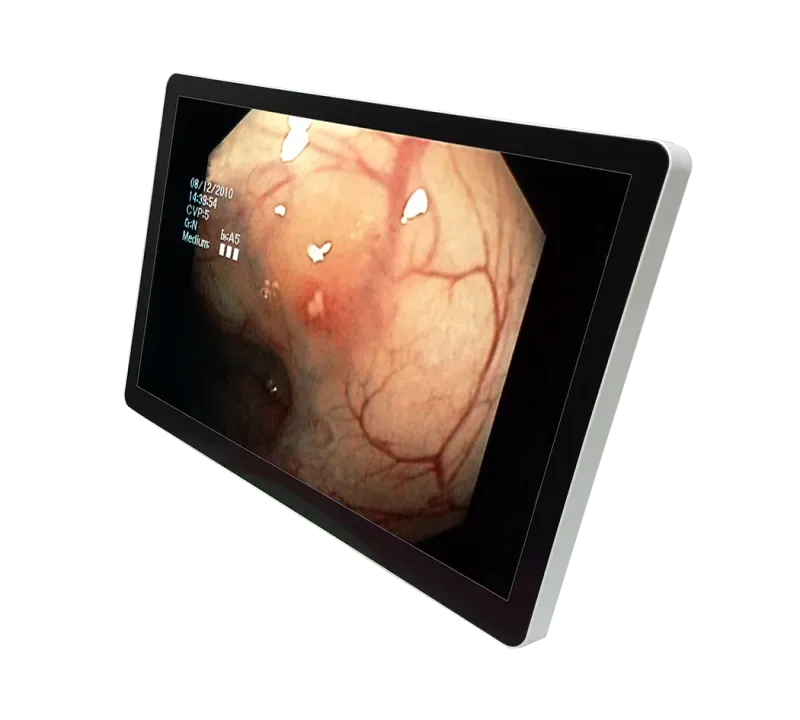

The Avalue RCC-MS-GMD23GT is a 23.8" Full-HD (1920x1080) medical display (RTAP2311AMC/T), designed for clinical review, bedside, and point-of-care. With a high 3000:1 contrast, IP65 front / IPx1 whole-unit sealing, optional DICOM Barten-curve compliance, and cTUVus / DIN6868-157 / EN60601-1 certification, it delivers a clean 16.7M-colour image with a long-cable solution (20m DVI / 15m HDMI). It offers VGA, DVI, HDMI and DisplayPort inputs, a 24V DC medical adapter, optional AG-PCAP 10-point touch, dual 0.5W speakers, DICOM and calibration. VESA 100x100 mounting and EN/IEC 60601-1 medical certification make it a compliant clinical monitor.

Key Features

23.8" Full-HD (1920x1080) medical display, plastic chassis
AG glass 230 nits / optional AG PCAP 220 nits, 3000:1 contrast
16.7M colours, optional DICOM Barten-curve compliance
20m DVI / 15m HDMI long-cable solution
VGA, DVI, HDMI, DisplayPort inputs
Optional AG-PCAP 10-point multi-touch, dual 0.5W speakers
IP65 front, IPx1 whole unit, fanless build
cTUVus (ANSI/AAMI ES60601-1), DIN6868-157 compliant
24V DC medical adapter, VESA 100x100

Technical Specifications

Audio

Speaker Output	0.5W speaker x2 (optional)

Certification

Certification Information	CE(IEC/EN/BS EN60601-1, IEC/EN/BS EN60601-2), FCC Class B, VCCI, cTUVus certified(ANSI/AAMI ES60601-1, CSA C22.2 NO.60601-1), DIN6868-157 compliant

Panel

LCD Size	23.8"
Display Type	Full HD
Resolution	1920 x 1080
Pixel pitch	0.2745 mm x 0.2745mm
Luminance	AG glass 230 nits, AG PCAP 220 nits (optional)
Contrast ratio	3000
Viewing angle	89/89 Deg. Horizontal & Vertical
Response time	16 ms
Backlight	LED
Touch Type	Projective capacitive multi-touch up to 10 points
Display color	16.7 M
DICOM compliant	Barten curve (optional)
AG Protection Glass	Yes
Active display area	527.04 mm x 296.46mm

I/O

RS232	Optional
Input Interface	1 x VGA, 1 x DVI, 1 x HDMI, 1 x Display port
Digital input	Standard DVI connector
Analog input	Video: 0.7Vpp/75 ohm, Sync: Separate TTL level. Composite, Sync or sync on green,, Hor: 30~92KHz, Ver: 50~85Hz
Cables	15 pin D-sub cable*1, Optional: DVI cable
Plug & play	VESADDC2B
User control and indicator	Sensor keys multi-language OSD&Power indicator*1 :, contrast, brightness, auto adjust, clock, phase, color, temp, hor position, ver position, input select , key lock

Mechanical & Environmental

Operating Temp.	0°C ~ 40°C (32°F ~ 104°F)
Storage Temp.	-20°C ~ 60°C (-4°F ~ 140°F)
Operating Humidity	10% ~ 90% relative humidity, non-condensing
Weight	7 kg
Vibration Test	With SSD/mSATA: 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30min/axis
Shock Test	With SSD/mSATA: 10Grms, IEC 60068-2-27, half sine, 11ms
IP Rating	IP65 in front & IPx1 whole unit
VESA	100 x 100
System Fan	Fanless
Construction	Plastic
Power Requirement	AC/DC Adapter Input: 100~250Vac, 0.6A, 60/50Hz universal Output: 24V, 2.71A
Power Mode	24V DC in
Mounting Kit	Stand (optional), VESA mount kit (optional), Wall mount kit (optional)
Dimension	587.0mm x 367.5mm x 59.5mm
Base stand	Tilt adjustable (optional)
Power consumption	On:<40W; active off: <5W
Power management	EPA Energy Star compliant

Color Mode

Color temperature	Cool/neutral/warm/user
gamma	1.8/2.0/2.2/2.4/linear
Calibration mode	Communication protocol is ready to calibrate the monitor through, DDC CI (optional)

Optional Items

Optional Items	AG PCAP touch, 0.5W speaker x2, DICOM, Calibration mode

Ordering Information

Ordering Information	RCC-MS-GMD23G-01R:, RTAP2311AMC with AG Glass, With: Power adapter1, HDMI 1.8M cable1, 0.5W Speaker2 ; Without: Power Cord, RCC-MS-GMD23T-01R:, RTAP2311AMCT with AG PCAP, With: Power adapter1, USB touch cable1, HDMI 1.8M cable1,0.5W Speaker*2 ; Without: Power Cord
