Is the RCC-MS-GMD27GT medically certified?

Yes — CE, FCC Class B, VCCI, UL/cUL (ANSI/AAMI ES60601-1, CAN/CSA C22.2 NO.60601-1), and DIN6868-157 compliant.

How bright is the RCC-MS-GMD27GT?

740 nits with AR glass (or 710 nits with optional AG PCAP) — high brightness for OR use; contrast is 1000:1 with 1.07-billion colours.

Does the RCC-MS-GMD27GT support DICOM?

Yes, it is DICOM-compliant with default calibration via USB communication protocol.

What is the resolution of the RCC-MS-GMD27GT?

4K UHD 3840x2160 across a 596.1 x 335.3 mm active area.

Does the RCC-MS-GMD27GT support PIP/PBP?

Yes, it supports both Picture-in-Picture and Picture-by-Picture multi-source viewing.

What inputs does the RCC-MS-GMD27GT have?

1x VGA, 1x DVI, 1x HDMI, and 1x DisplayPort; SDI in/out or extra DVI in is optional.

Is the RCC-MS-GMD27GT a touch display?

It is available as a non-touch (G) or AG-PCAP 10-point multi-touch (T) version.

How is the RCC-MS-GMD27GT sealed?

IP65 on the front and IPx1 for the whole unit, in a GM-metal enclosure suitable for clinical hygiene.

How is the RCC-MS-GMD27GT powered?

Via a 24V DC medical AC/DC adapter (100~250Vac in, 24V/6.25A out).

Can the RCC-MS-GMD27GT adapt to ambient light?

Yes, selectable ambient-light luminance from 0 to 3 cd/m² (default) for consistent reading.

What are the RCC-MS-GMD27GT's dimensions and weight?

660.2 x 408.76 x 52.9 mm and approximately 8 kg, with VESA 100x100 / 200x100 mounting.

What options are available for the RCC-MS-GMD27GT?

AG-PCAP touch, dual 2W speakers, SDI in/out or DVI in, GPIO, and remote control.

What applications is the RCC-MS-GMD27GT best suited for?

Bright operating-room imaging, surgical video review, and diagnostic display where high luminance and DICOM conformance are required in a 27" footprint.

What are the mounting options?

Supports VESA 400x400, stand, wall, and VESA mount kits (optional).

What certifications does it meet?

CE, FCC Class B, VCCI, cTUVus (ANSI/AAMI ES60601-1, CSA C22.2 NO.60601-1), DIN6868-157 compliant.

What is the power supply and consumption?

Internal 100~250Vac, 60/50Hz, <200W operation, <5W standby.

What are medical displays and their typical applications?

Medical displays are high-precision monitors designed for clinical diagnostics, surgical imaging, and patient monitoring, offering DICOM compliance, hygiene, and reliability.

What is DICOM compliance and why is it important?

DICOM compliance ensures accurate grayscale imaging for medical diagnostics, critical for radiology, surgery, and clinical review.

What certifications should a medical display have?

Look for certifications such as ANSI/AAMI ES60601-1, IEC 60601-1, EN 60601-1, and DIN6868-157 for medical safety and imaging standards.

What resolutions and brightness levels are available?

Medical displays offer Full HD to 4K UHD resolutions and brightness from 230 nits to 930 nits, depending on the model and application.

What input interfaces are supported?

Most models support VGA, DVI, HDMI, and DisplayPort, with some offering USB, RS232, and SDI in/out.

What is the typical power supply for a medical display?

Medical displays use internal or external medical-grade power supplies, typically 24V DC or 100~250Vac, with low standby consumption.

How do I install a medical display in a healthcare environment?

Follow manufacturer guidelines for mounting, ensure proper ventilation, and connect to certified power sources. Use ESD protection and avoid exposure to moisture or contaminants.

How do I connect input devices and peripherals?

Use the available input ports (VGA, DVI, HDMI, DP, USB) and ensure all connections are secure and compatible with medical standards.

What should I do if the display does not power on?

Check the power input, adapter, and cable connections. Ensure the power switch is set correctly and test with a known-good power source.

How can I resolve image quality or calibration issues?

Verify input signal, cable quality, and monitor settings. Use calibration tools if available and refer to the product manual.

What steps should I take if there are connectivity problems?

Check cable connections, update drivers, verify input selection, and test with alternate cables or ports.

Avalue · Intelligent Healthcare

RCC-MS-GMD27GT

Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

27" high-brightness 4K UHD (3840x2160) medical display, metal enclosure
AR glass 740 nits / optional AG PCAP 710 nits, 1000:1 contrast
1.07 billion colours, DICOM-capable calibration (default)
PIP & PBP, selectable ambient-light brightness
VGA, DVI, HDMI, DisplayPort inputs
Optional AG-PCAP 10-point multi-touch, dual 2W speakers
IP65 front, IPx1 whole unit, GM-metal build
UL/cUL (ANSI/AAMI ES60601-1), DIN6868-157 compliant
24V DC medical adapter, VESA 100x100 / 200x100

Product Description

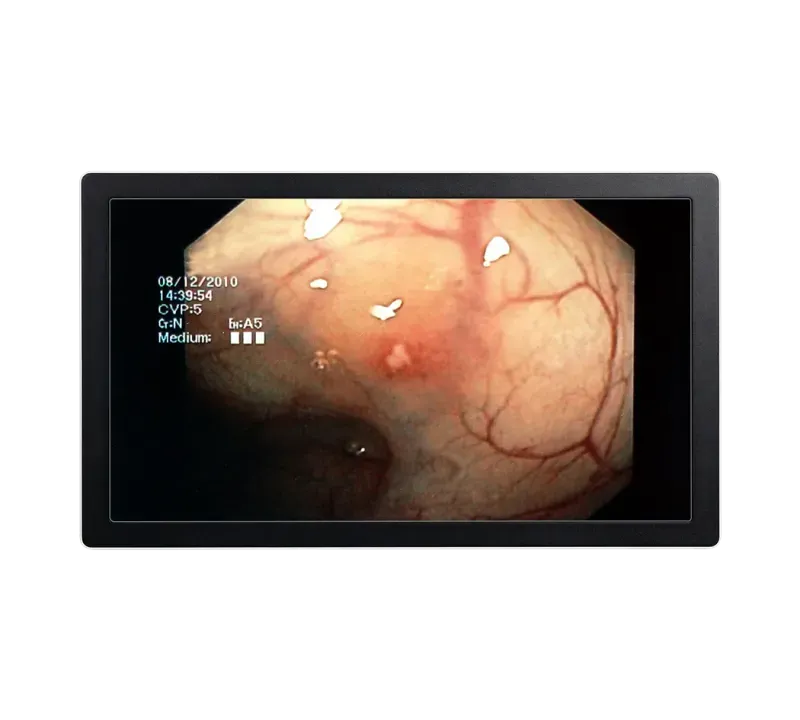

The Avalue RCC-MS-GMD27GT is a 27" high-brightness 4K (3840x2160) medical display (MSBP2722AMC/T), designed for surgical and diagnostic imaging.

With a 740-nit AR-glass panel, IP65 front / IPx1 whole-unit sealing, default DICOM-capable calibration, and DIN6868-157 / UL-cUL 60601-1 certification, it delivers a high-fidelity 1.07-billion-colour image for the operating room.

It supports PIP & PBP, with VGA, DVI, HDMI and DisplayPort inputs, a 24V DC medical adapter, optional AG-PCAP 10-point touch, dual 2W speakers, GPIO and remote control.

VESA 100x100 / 200x100 mounting and EN/IEC 60601-1 medical certification make it a complete OR-grade display.

Technical Specifications

Speaker Output

2W speaker x2 (optional)

Certification Information

CE, FCC Class B, VCCI

UL/cUL(ANSI/AAMI ES60601-1, CAN/CSA C22.2 NO.60601-1)

DIN6868-157 compliant

LCD Size

27"

Display Type

Resolution

3840 x 2160

Luminance

AR glass 740 nits

AG PCAP 710 nits (optional)

Contrast ratio

1000

Viewing angle

89/89 Deg. Horizontal &Vertical

Response time

16 ms

Backlight

LED

Touch Type

Projective capacitive multi-touch up to 10 points

Display color

1.07 G

DICOM compliant

Ambient light 0/0.5/1/1.5/2/2.5/3 cd/m2 (default)

Active display area

596.1 mm x 335.3mm

Input Interface

1 x VGA

1 x DVI

1 x HDMI

1 x Display port

Digital input

Standard DVI & DisplayPort

Analog input

Video: 0.7Vpp/75 ohm, Sync: Separate TTL level. Composite

Sync or sync on green,

Hor: 30~92KHz, Ver: 50~85Hz

Cables

DVI / DisplayPort cables

Plug & play

VESADDC2B

User control and indicator

Power indicator x1, Sensor keys x 8

TOUCH DISABLED/SOURCE/PIP/SWAP/MENU/-/+/POWER

Weight

8 kg

IP Rating

IP65 in front & IPx1 whole unit

VESA

100 x 100/200 x 100

Construction

GM Metal

Power Requirement

AC/DC adapter

Input: 100~250 Vac, 4A 60/50Hz

Output: 24V, 6.25A

Power Mode

24V DC in

Dimension

660.2mmx408.76mmx52.9mm

Base stand

Base stand (optional)

Power consumption

On:<90W; active off: <5W

Power management

EPA Energy Star compliant

Color temperature

Cool/neutral/warm/user

gamma

1.8/2.0/2.2/2.4/linear

Calibration mode

Communication protocol is ready to calibrate the monitor through USB

Optional Items

AG PCAP touch

2W speaker x2

SDI in/out or DVI in

GPIO Remote control

Ordering Information

RCC-MS-GMD27G-03R:, MSCP2722AMC with AR Glass, With: Power adapter*1, HDMI 1.8M 4K cable*1, 2W Speaker*2 ; Without: Power Cord, RCC-MS-GMD27T-03R:, MSCP2722AMCT with AG PCAP touch, With: Power adapter*1, USB touch cable*1, HDMI 1.8M 4K cable*1,2W Speaker*2 ; Without: Power Cord

What is RCC-MS-GMD27GT?

The RCC-MS-GMD27GT is a intelligent healthcare manufactured by Avalue, designed specifically for medical-display applications. The Avalue RCC-MS-GMD27GT is a 27" high-brightness 4K (3840x2160) medical display (MSBP2722AMC/T), designed for surgical and diagnostic imaging. With a 740-nit AR-glass panel, IP65 front / IPx1 whole-unit sealing, default DICOM-capable calibration, and DIN6868-157 / UL-cUL 60601-1 certification, it delivers a high-fidelity 1.07-billion-colour image for the operating room. It supports PIP & PBP, with VGA, DVI, HDMI and DisplayPort inputs, a 24V DC medical adapter, optional AG-PCAP 10-point touch, dual 2W speakers, GPIO and remote control. VESA 100x100 / 200x100 mounting and EN/IEC 60601-1 medical certification make it a complete OR-grade display.

Key Features & Benefits

27" high-brightness 4K UHD (3840x2160) medical display, metal enclosure
AR glass 740 nits / optional AG PCAP 710 nits, 1000:1 contrast
1.07 billion colours, DICOM-capable calibration (default)
PIP & PBP, selectable ambient-light brightness
VGA, DVI, HDMI, DisplayPort inputs
Optional AG-PCAP 10-point multi-touch, dual 2W speakers
IP65 front, IPx1 whole unit, GM-metal build
UL/cUL (ANSI/AAMI ES60601-1), DIN6868-157 compliant
24V DC medical adapter, VESA 100x100 / 200x100

Applications & Use Cases

The RCC-MS-GMD27GT is ideal for various industrial automation applications:

Harsh industrial environments requiring dust and water protection
DC-powered industrial installations and mobile applications
Medical device integration and healthcare applications
Interactive control interfaces and operator panels
Panel-mounted installations and control cabinets
Outdoor and high-ambient-light environments
Visual monitoring and data display systems
Industrial automation and control
