Intelligent Healthcare · Medical-Display
RCC-MS-GMD27GT
Series: RCC
Manufactured byAvalue

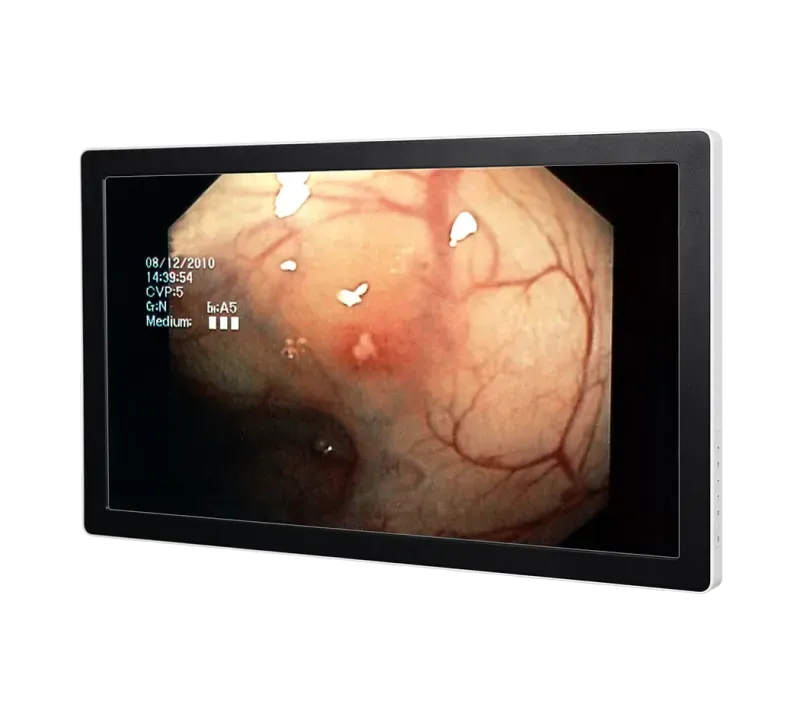

The Avalue RCC-MS-GMD27GT is a 27" high-brightness 4K (3840x2160) medical display (MSBP2722AMC/T), designed for surgical and diagnostic imaging. With a 740-nit AR-glass panel, IP65 front / IPx1 whole-unit sealing, default DICOM-capable calibration, and DIN6868-157 / UL-cUL 60601-1 certification, it delivers a high-fidelity 1.07-billion-colour image for the operating room. It supports PIP & PBP, with VGA, DVI, HDMI and DisplayPort inputs, a 24V DC medical adapter, optional AG-PCAP 10-point touch, dual 2W speakers, GPIO and remote control. VESA 100x100 / 200x100 mounting and EN/IEC 60601-1 medical certification make it a complete OR-grade display.
Key Features
- 27" high-brightness 4K UHD (3840x2160) medical display, metal enclosure
- AR glass 740 nits / optional AG PCAP 710 nits, 1000:1 contrast
- 1.07 billion colours, DICOM-capable calibration (default)
- PIP & PBP, selectable ambient-light brightness
- VGA, DVI, HDMI, DisplayPort inputs
- Optional AG-PCAP 10-point multi-touch, dual 2W speakers
- IP65 front, IPx1 whole unit, GM-metal build
- UL/cUL (ANSI/AAMI ES60601-1), DIN6868-157 compliant
- 24V DC medical adapter, VESA 100x100 / 200x100
Technical Specifications
Audio
| Speaker Output | 2W speaker x2 (optional) |
|---|
Certification
| Certification Information | CE, FCC Class B, VCCI, UL/cUL(ANSI/AAMI ES60601-1, CAN/CSA C22.2 NO.60601-1), DIN6868-157 compliant |
|---|
Panel
| LCD Size | 27" |
|---|---|
| Display Type | 4K |
| Resolution | 3840 x 2160 |
| Luminance | AR glass 740 nits, AG PCAP 710 nits (optional) |
| Contrast ratio | 1000 |
| Viewing angle | 89/89 Deg. Horizontal &Vertical |
| Response time | 16 ms |
| Backlight | LED |
| Touch Type | Projective capacitive multi-touch up to 10 points |
| Display color | 1.07 G |
| DICOM compliant | Ambient light 0/0.5/1/1.5/2/2.5/3 cd/m2 (default) |
| Active display area | 596.1 mm x 335.3mm |
I/O
| Input Interface | 1 x VGA, 1 x DVI, 1 x HDMI, 1 x Display port |
|---|---|
| Digital input | Standard DVI & DisplayPort |
| Analog input | Video: 0.7Vpp/75 ohm, Sync: Separate TTL level. Composite, Sync or sync on green,, Hor: 30~92KHz, Ver: 50~85Hz |
| Cables | DVI / DisplayPort cables |
| Plug & play | VESADDC2B |
| User control and indicator | Power indicator x1, Sensor keys x 8, TOUCH DISABLED/SOURCE/PIP/SWAP/MENU/-/+/POWER |
Mechanical & Environmental
| Weight | 8 kg |
|---|---|
| IP Rating | IP65 in front & IPx1 whole unit |
| VESA | 100 x 100/200 x 100 |
| Construction | GM Metal |
| Power Requirement | AC/DC adapter, Input: 100~250 Vac, 4A 60/50Hz, Output: 24V, 6.25A |
| Power Mode | 24V DC in |
| Dimension | 660.2mmx408.76mmx52.9mm |
| Base stand | Base stand (optional) |
| Power consumption | On:<90W; active off: <5W |
| Power management | EPA Energy Star compliant |
Color Mode
| Color temperature | Cool/neutral/warm/user |
|---|---|
| gamma | 1.8/2.0/2.2/2.4/linear |
| Calibration mode | Communication protocol is ready to calibrate the monitor through USB |
Optional Items
| Optional Items | AG PCAP touch, 2W speaker x2, SDI in/out or DVI in, GPIO Remote control |
|---|
Ordering Information
| Ordering Information | RCC-MS-GMD27G-03R:, MSCP2722AMC with AR Glass, With: Power adapter*1, HDMI 1.8M 4K cable*1, 2W Speaker*2 ; Without: Power Cord, RCC-MS-GMD27T-03R:, MSCP2722AMCT with AG PCAP touch, With: Power adapter*1, USB touch cable*1, HDMI 1.8M 4K cable*1,2W Speaker*2 ; Without: Power Cord |
|---|
