Is the RCC-MS-GMD55GT medically certified?

Yes — CE, FCC Class B, VCCI, cTUVus (ANSI/AAMI ES60601-1, CSA C22.2 NO.60601-1), and DIN6868-157 compliant.

What resolution and brightness does the RCC-MS-GMD55GT have?

4K UHD 3840x2160 at 460 nits (AG glass) or 440 nits (optional AG PCAP), with a 4000:1 contrast ratio and 1.07-billion-colour depth.

Does the RCC-MS-GMD55GT support DICOM?

Yes, DICOM Barten-curve compliance is default for diagnostic-grade greyscale conformance.

What signal modes does the RCC-MS-GMD55GT support?

Full mode (one UHD input via DVI or DP), Dual mode (2 inputs PBP or PIP), and Quad mode (4 FHD inputs).

What inputs does the RCC-MS-GMD55GT have?

1x VGA, 4x DVI, and 2x DisplayPort, plus a USB hub and RS232 for control.

Is the RCC-MS-GMD55GT a touch display?

It is available as a non-touch (G) or AG-PCAP 10-point multi-touch (T) version.

How is the RCC-MS-GMD55GT sealed?

IP65 on the front and IPx1 for the whole unit, in a fanless GM-metal enclosure suitable for clinical hygiene.

How is the RCC-MS-GMD55GT powered?

By an internal medical AC power supply (100~250Vac, 60/50Hz).

Can the RCC-MS-GMD55GT be wall mounted?

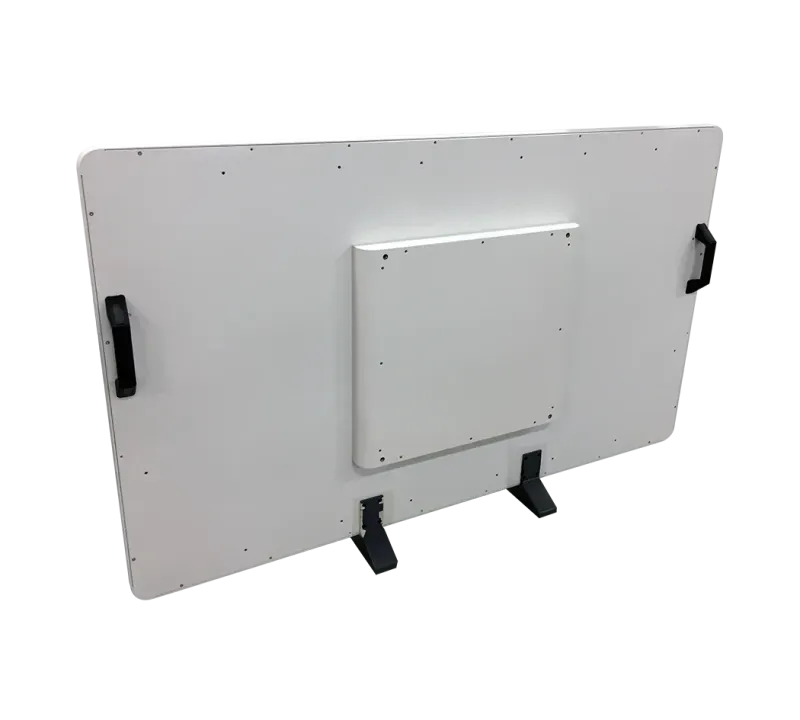

Yes, it has a VESA 400x400 mount with optional stand, VESA, and wall-mount kits.

What are the RCC-MS-GMD55GT's dimensions and weight?

1314 x 785 x 85 mm and approximately 40 kg, with a 1209.6 x 680.4 mm active area.

What options are available for the RCC-MS-GMD55GT?

AG-PCAP touch, speaker, calibration mode, GPIO, remote control, and a backlight stabilizer (ALS).

Is the RCC-MS-GMD55GT fanless?

Yes, a fanless design, important for noise- and contamination-sensitive clinical environments.

What applications is the RCC-MS-GMD55GT best suited for?

Operating-room large-format imaging, surgical video integration, and clinical review needing a certified, sealed, DICOM 55" 4K display.

What are the mounting options?

Supports VESA 400x400, stand, wall, and VESA mount kits (optional).

What certifications does it meet?

CE, FCC Class B, VCCI, cTUVus (ANSI/AAMI ES60601-1, CSA C22.2 NO.60601-1), DIN6868-157 compliant.

What is the power supply and consumption?

Internal 100~250Vac, 60/50Hz, <200W operation, <5W standby.

What are medical displays and their typical applications?

Medical displays are high-precision monitors designed for clinical diagnostics, surgical imaging, and patient monitoring, offering DICOM compliance, hygiene, and reliability.

What is DICOM compliance and why is it important?

DICOM compliance ensures accurate grayscale imaging for medical diagnostics, critical for radiology, surgery, and clinical review.

What certifications should a medical display have?

Look for certifications such as ANSI/AAMI ES60601-1, IEC 60601-1, EN 60601-1, and DIN6868-157 for medical safety and imaging standards.

What resolutions and brightness levels are available?

Medical displays offer Full HD to 4K UHD resolutions and brightness from 230 nits to 930 nits, depending on the model and application.

What input interfaces are supported?

Most models support VGA, DVI, HDMI, and DisplayPort, with some offering USB, RS232, and SDI in/out.

What is the typical power supply for a medical display?

Medical displays use internal or external medical-grade power supplies, typically 24V DC or 100~250Vac, with low standby consumption.

How do I install a medical display in a healthcare environment?

Follow manufacturer guidelines for mounting, ensure proper ventilation, and connect to certified power sources. Use ESD protection and avoid exposure to moisture or contaminants.

How do I connect input devices and peripherals?

Use the available input ports (VGA, DVI, HDMI, DP, USB) and ensure all connections are secure and compatible with medical standards.

What should I do if the display does not power on?

Check the power input, adapter, and cable connections. Ensure the power switch is set correctly and test with a known-good power source.

How can I resolve image quality or calibration issues?

Verify input signal, cable quality, and monitor settings. Use calibration tools if available and refer to the product manual.

What steps should I take if there are connectivity problems?

Check cable connections, update drivers, verify input selection, and test with alternate cables or ports.

Avalue · Intelligent Healthcare

RCC-MS-GMD55GT

Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

55" 4K UHD (3840x2160) high-resolution medical display, metal enclosure
AG glass 460 nits / optional AG PCAP 440 nits, 4000:1 contrast
1.07 billion colours, default DICOM Barten-curve compliance
Full / Dual (PBP/PIP) / Quad signal modes
VGA, 4 x DVI, 2 x DisplayPort inputs, USB hub
Optional AG-PCAP 10-point multi-touch
IP65 front, IPx1 whole unit, fanless GM-metal build
cTUVus (ANSI/AAMI ES60601-1), DIN6868-157 compliant
Internal medical AC power supply, VESA 400x400

Product Description

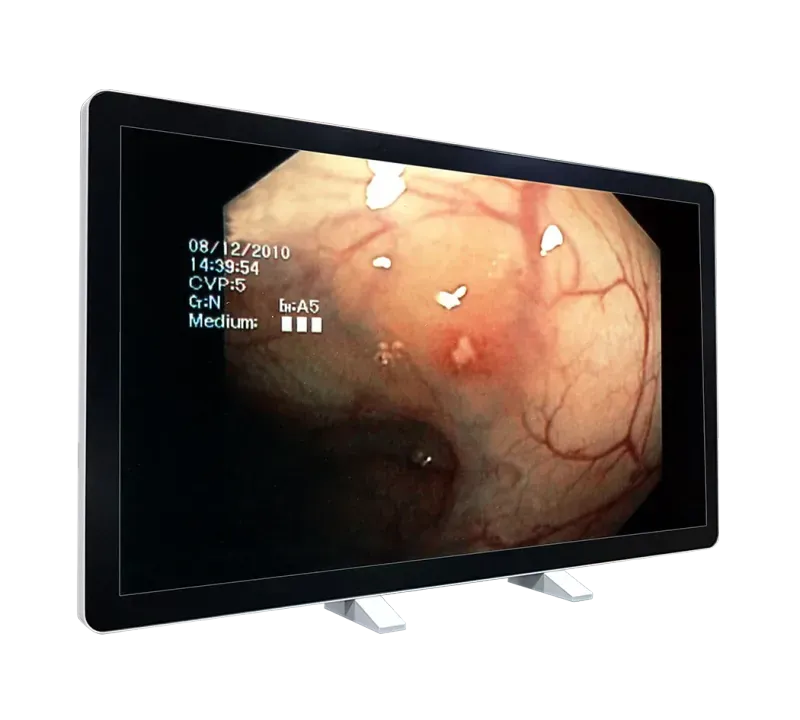

The Avalue RCC-MS-GMD55GT is a 55" 4K (3840x2160) high-resolution medical display (MSAP5521AMA/T), designed for operating-room and clinical large-format imaging.

With IP65 front / IPx1 whole-unit sealing, default DICOM Barten-curve compliance, a fanless GM-metal build, and cTUVus / DIN6868-157 certification, it delivers a high-fidelity 1.07-billion-colour image for surgical and diagnostic review.

It supports Full, Dual (PBP/PIP) and Quad signal modes with VGA, quad DVI and dual DisplayPort inputs, an internal medical-rated AC power supply, optional AG-PCAP 10-point touch, speaker, GPIO and remote control.

VESA 400x400 mounting and EN/IEC 60601-1 medical certification make it a complete OR-grade display.

Technical Specifications

Speaker Output

ODM Evaluation

Certification Information

CE, FCC Class B, VCCI

cTUVus certified(ANSI/AAMI ES60601-1, CSA C22.2 NO.60601-1)

DIN6868-157 compliant

USB Port

1 x USB HUB

LCD Size

55"

Display Type

Resolution

3840 x 2160

Luminance

AG glass 460 nits

AG PCAP 440 nits (optional)

Contrast ratio

4000

Viewing angle

89/89 Deg. Horizontal &Vertical

Response time

8.5 ms

Backlight

LED

Touch Type

Projective capacitive multi-touch up to 10 points

Display color

1.07 G

DICOM compliant

Barten curve (default)

AG Protection Glass

Yes

Active display area

1209.6 mm x 680.4mm

Display Port

2 x Display port

VGA

1 x VGA

RS232

Yes

Input Interface

1 x VGA

4 x DVI

2 x Display port

Digital input

Standard DVI & DisplayPort

Analog input

Video: 0.7Vpp/75 ohm, Sync: Separate TTL level. Composite

Sync or sync on green,

Hor: 30~92KHz, Ver: 50~85Hz

Cables

DVI / DisplayPort cables

Plug & play

VESADDC2B

User control and indicator

Power indicator x1, Sensor keys x 8

TOUCH DISABLED/SOURCE/PIP/SWAP/MENU/-/+/POWER

Operating Temp.

0°C ~ 40°C (32°F ~ 104°F)

Storage Temp.

-20°C ~ 60°C (-4°F ~ 140°F)

Operating Humidity

10% ~ 90% relative humidity, non-condensing

Weight

40 kg

Vibration Test

With SSD/mSATA: 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30min/axis

Shock Test

With SSD/mSATA: 10Grms, IEC 60068-2-27, half sine, 11ms

IP Rating

IP65 front & IP X1 whole unit

VESA

400 x 400

System Fan

Fanless

Construction

GM metal

Power Requirement

Internal power supply:100~250Vac, 60/50Hz

Power Mode

AC In

Mounting Kit

Stand (optional)

VESA mount kit (optional)

Wall mount kit (optional)

Dimension

1314mmx785mmx85mm

Base stand

Base stand & Wall mount

Power consumption

On:<200W; active off: <5W

Power management

EPA Energy Star compliant

Color temperature

Cool/neutral/warm/user

gamma

1.8/2.0/2.2/2.4/linear

Calibration mode

Communication protocol is ready to calibrate the monitor through

USB (optional)

Optional Items

AG PCAP touch

speaker ODM Evaluation

Calibration mode

GPIO Remote control

Backlight Stabilizer (ALS)

Ordering Information

RCC-MS-GMD55G-01R:, MSAP5521AMA with AG Glass, With: Power adapter*1; Without: Power Cord, RCC-MS-GMD55T-01R:, MSAP5521AMAT with AG PCAP, With: Power adapter*1, USB touch cable*1 ; Without: Power Cord

What is RCC-MS-GMD55GT?

The RCC-MS-GMD55GT is a intelligent healthcare manufactured by Avalue, designed specifically for medical-display applications. The Avalue RCC-MS-GMD55GT is a 55" 4K (3840x2160) high-resolution medical display (MSAP5521AMA/T), designed for operating-room and clinical large-format imaging. With IP65 front / IPx1 whole-unit sealing, default DICOM Barten-curve compliance, a fanless GM-metal build, and cTUVus / DIN6868-157 certification, it delivers a high-fidelity 1.07-billion-colour image for surgical and diagnostic review. It supports Full, Dual (PBP/PIP) and Quad signal modes with VGA, quad DVI and dual DisplayPort inputs, an internal medical-rated AC power supply, optional AG-PCAP 10-point touch, speaker, GPIO and remote control. VESA 400x400 mounting and EN/IEC 60601-1 medical certification make it a complete OR-grade display.

Key Features & Benefits

55" 4K UHD (3840x2160) high-resolution medical display, metal enclosure
AG glass 460 nits / optional AG PCAP 440 nits, 4000:1 contrast
1.07 billion colours, default DICOM Barten-curve compliance
Full / Dual (PBP/PIP) / Quad signal modes
VGA, 4 x DVI, 2 x DisplayPort inputs, USB hub
Optional AG-PCAP 10-point multi-touch
IP65 front, IPx1 whole unit, fanless GM-metal build
cTUVus (ANSI/AAMI ES60601-1), DIN6868-157 compliant
Internal medical AC power supply, VESA 400x400

Applications & Use Cases

The RCC-MS-GMD55GT is ideal for various industrial automation applications:

Harsh industrial environments requiring dust and water protection
Dust-sensitive environments and silent operation requirements
DC-powered industrial installations and mobile applications
Medical device integration and healthcare applications
Interactive control interfaces and operator panels
Operating-room and clinical large-format imaging
Panel-mounted installations and control cabinets
Peripheral device connectivity and data transfer
