Product Datasheet
20 May 2026
Intelligent Healthcare · Medical-Display
RCC-MS-GMD55GT
Series: RCC

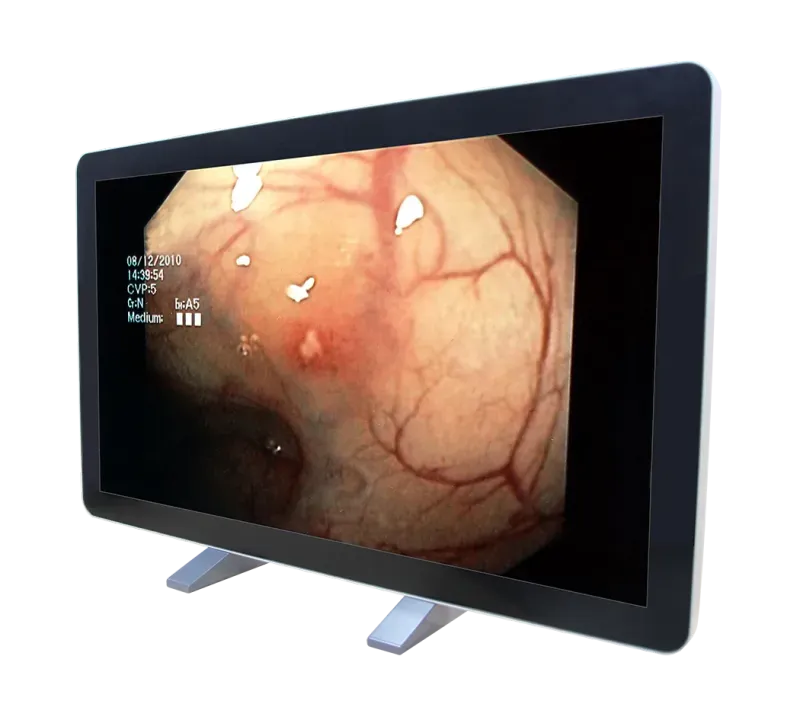

The Avalue RCC-MS-GMD55GT is a 55" 4K (3840x2160) high-resolution medical display (MSAP5521AMA/T), designed for operating-room and clinical large-format imaging. With IP65 front / IPx1 whole-unit sealing, default DICOM Barten-curve compliance, a fanless GM-metal build, and cTUVus / DIN6868-157 certification, it delivers a high-fidelity 1.07-billion-colour image for surgical and diagnostic review. It supports Full, Dual (PBP/PIP) and Quad signal modes with VGA, quad DVI and dual DisplayPort inputs, an internal medical-rated AC power supply, optional AG-PCAP 10-point touch, speaker, GPIO and remote control. VESA 400x400 mounting and EN/IEC 60601-1 medical certification make it a complete OR-grade display.
Key Features
- 55" 4K UHD (3840x2160) high-resolution medical display, metal enclosure
- AG glass 460 nits / optional AG PCAP 440 nits, 4000:1 contrast
- 1.07 billion colours, default DICOM Barten-curve compliance
- Full / Dual (PBP/PIP) / Quad signal modes
- VGA, 4 x DVI, 2 x DisplayPort inputs, USB hub
- Optional AG-PCAP 10-point multi-touch
- IP65 front, IPx1 whole unit, fanless GM-metal build
- cTUVus (ANSI/AAMI ES60601-1), DIN6868-157 compliant
- Internal medical AC power supply, VESA 400x400
Technical Specifications
Audio
| Speaker Output | ODM Evaluation |
|---|
Certification
| Certification Information | CE, FCC Class B, VCCI, cTUVus certified(ANSI/AAMI ES60601-1, CSA C22.2 NO.60601-1), DIN6868-157 compliant |
|---|
External I/O
| USB Port | 1 x USB HUB |
|---|
Panel
| LCD Size | 55" |
|---|---|
| Display Type | 4K |
| Resolution | 3840 x 2160 |
| Luminance | AG glass 460 nits, AG PCAP 440 nits (optional) |
| Contrast ratio | 4000 |
| Viewing angle | 89/89 Deg. Horizontal &Vertical |
| Response time | 8.5 ms |
| Backlight | LED |
| Touch Type | Projective capacitive multi-touch up to 10 points |
| Display color | 1.07 G |
| DICOM compliant | Barten curve (default) |
| AG Protection Glass | Yes |
| Active display area | 1209.6 mm x 680.4mm |
I/O
| Display Port | 2 x Display port |
|---|---|
| VGA | 1 x VGA |
| RS232 | Yes |
| Input Interface | 1 x VGA, 4 x DVI, 2 x Display port |
| Digital input | Standard DVI & DisplayPort |
| Analog input | Video: 0.7Vpp/75 ohm, Sync: Separate TTL level. Composite, Sync or sync on green,, Hor: 30~92KHz, Ver: 50~85Hz |
| Cables | DVI / DisplayPort cables |
| Plug & play | VESADDC2B |
| User control and indicator | Power indicator x1, Sensor keys x 8, TOUCH DISABLED/SOURCE/PIP/SWAP/MENU/-/+/POWER |
Mechanical & Environmental
| Operating Temp. | 0°C ~ 40°C (32°F ~ 104°F) |
|---|---|
| Storage Temp. | -20°C ~ 60°C (-4°F ~ 140°F) |
| Operating Humidity | 10% ~ 90% relative humidity, non-condensing |
| Weight | 40 kg |
| Vibration Test | With SSD/mSATA: 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30min/axis |
| Shock Test | With SSD/mSATA: 10Grms, IEC 60068-2-27, half sine, 11ms |
| IP Rating | IP65 front & IP X1 whole unit |
| VESA | 400 x 400 |
| System Fan | Fanless |
| Construction | GM metal |
| Power Requirement | Internal power supply:100~250Vac, 60/50Hz |
| Power Mode | AC In |
| Mounting Kit | Stand (optional), VESA mount kit (optional), Wall mount kit (optional) |
| Dimension | 1314mmx785mmx85mm |
| Base stand | Base stand & Wall mount |
| Power consumption | On:<200W; active off: <5W |
| Power management | EPA Energy Star compliant |
Color Mode
| Color temperature | Cool/neutral/warm/user |
|---|---|
| gamma | 1.8/2.0/2.2/2.4/linear |
| Calibration mode | Communication protocol is ready to calibrate the monitor through, USB (optional) |
Optional Items
| Optional Items | AG PCAP touch, speaker ODM Evaluation, Calibration mode, GPIO Remote control, Backlight Stabilizer (ALS) |
|---|
Ordering Information
| Ordering Information | RCC-MS-GMD55G-01R:, MSAP5521AMA with AG Glass, With: Power adapter*1; Without: Power Cord, RCC-MS-GMD55T-01R:, MSAP5521AMAT with AG PCAP, With: Power adapter*1, USB touch cable*1 ; Without: Power Cord |
|---|
