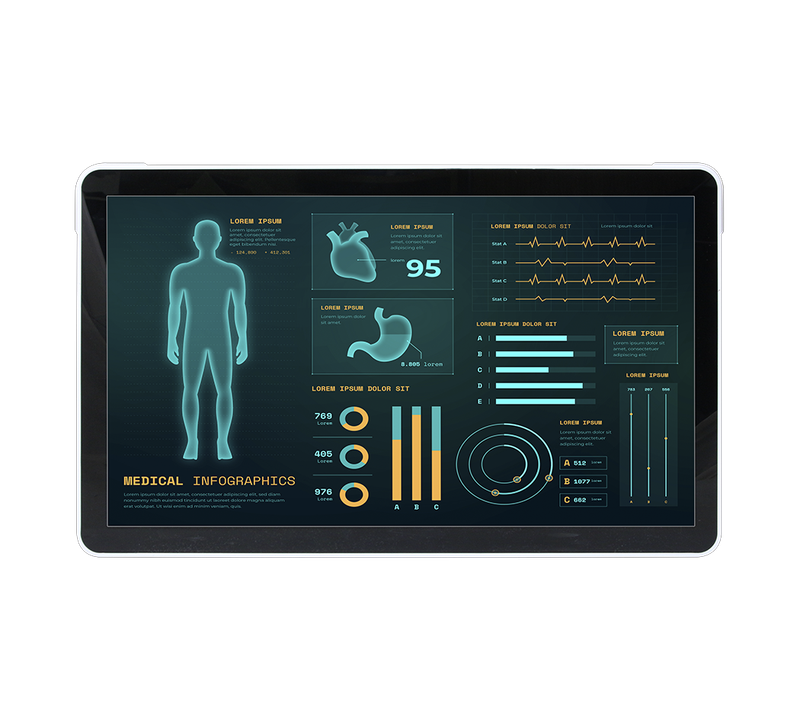

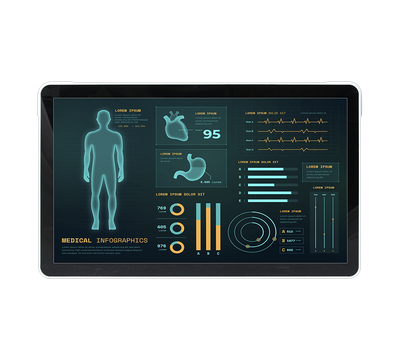

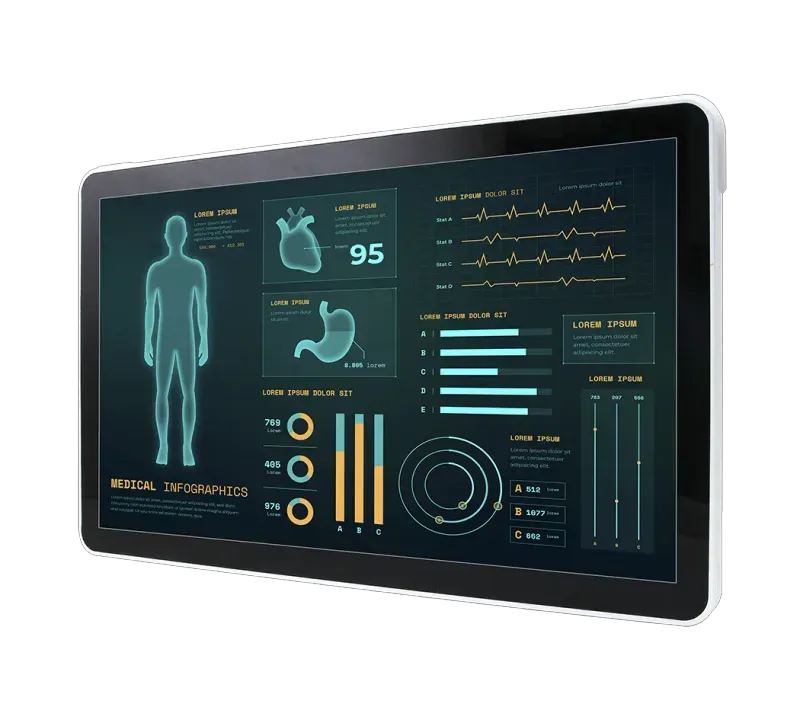

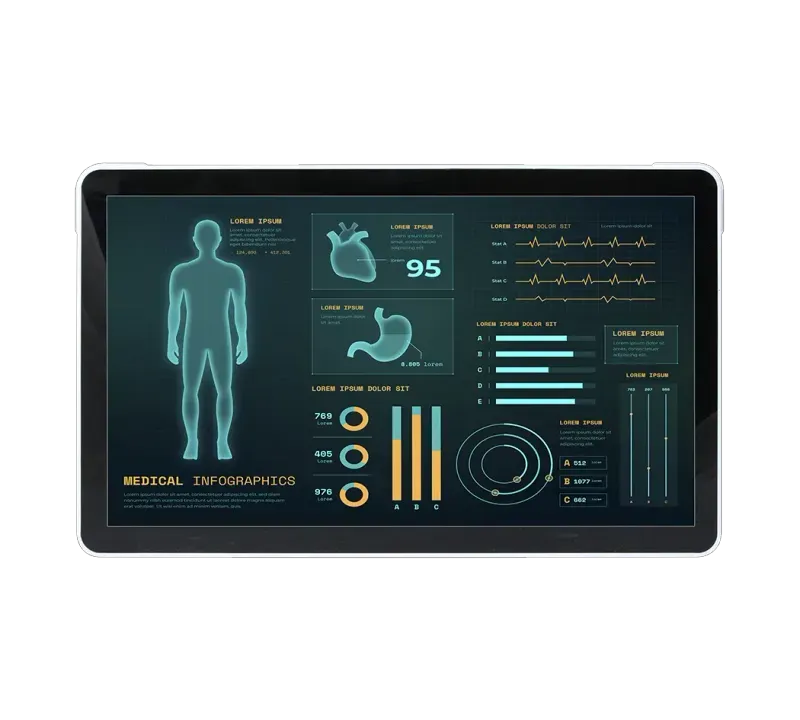

HID-1337

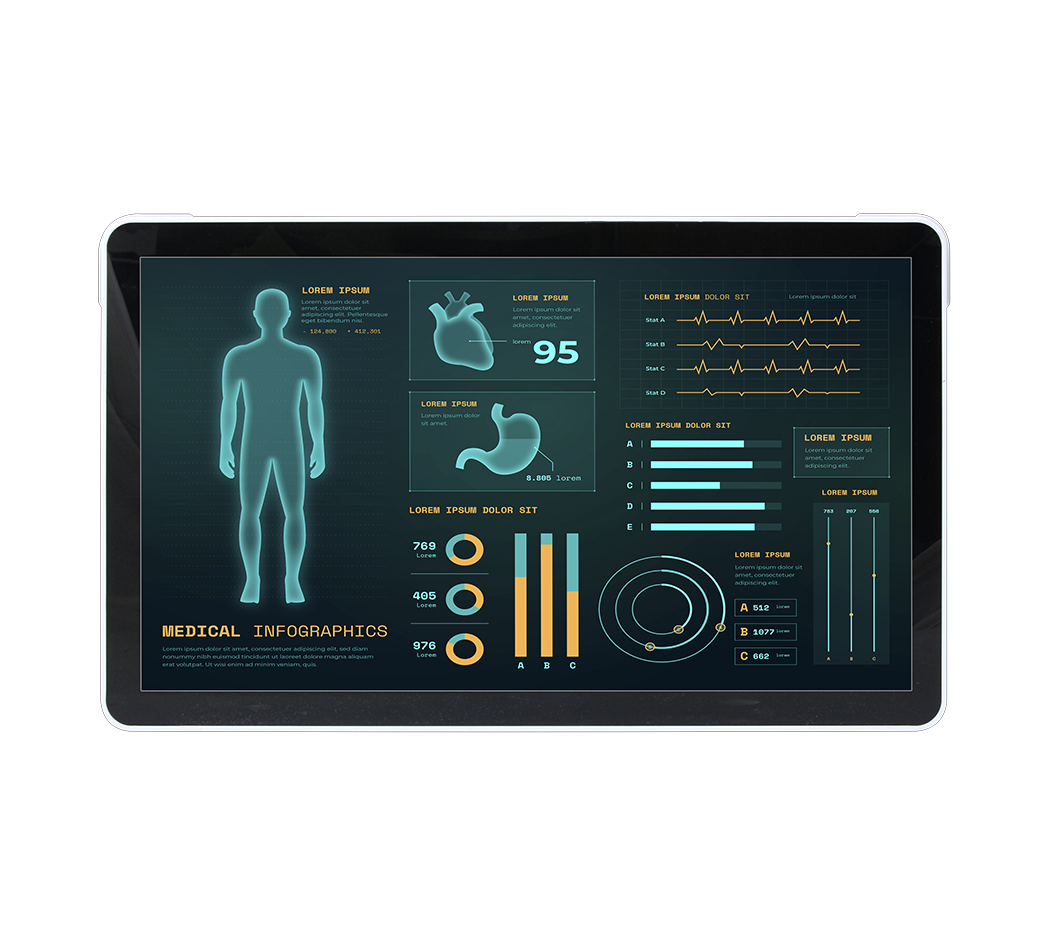

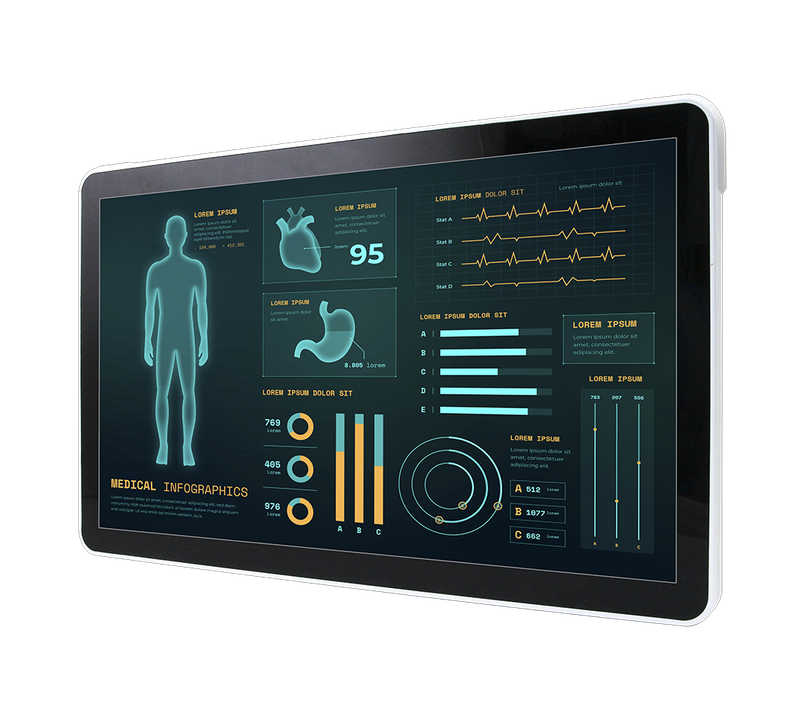

HID-1337 FrontHID-1337 FrontHID-1337 FrontHID-1337 FrontHID-1337 FrontHID-1337 Front
HID-1337 FrontHID-1337 FrontHID-1337 FrontHID-1337 FrontHID-1337 FrontHID-1337 Front

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Product Features

  • 13.3" Full HD PCAP touch
  • Onboard Intel Alder Lake-N Processor
  • 4 Bottom USB, 2 Side USB, 1 USB Type C
  • 1 COM, 2 2.5G LAN
  • 1 x M.2 type E for WiFi, 1 x M.2 type B for storage
  • Optional WiFi/ Bluetooth
  • 5W speaker x 2
  • Tri-color corner LED light indicator
  • IP65 front, IPX1 rear
  • Medical UL

Product Description

The Avalue HID-1337 is a 13.3-inch medical panel PC designed for critical healthcare environments. Powered by Intel® Alder Lake-N processors, it offers robust performance for medical imaging and patient monitoring.

The Full HD PCAP touchscreen supports glove operation, while the antimicrobial, IP65-rated front panel ensures hygiene and durability. Tri-color LED indicators and 5W speakers comply with IEC 60601-1-8 standards for visual and audible alarms.

With multiple I/O ports, including USB Type-C and dual 2.5GbE LAN, and optional features like Wi-Fi 6E and Bluetooth 5.0, the HID-1337 is a versatile solution for modern healthcare settings.

Technical Specifications

System Information

Processor

Intel® Alder Lake-N Processor

Intel® Processor N97, 6M Cache, up to 3.60 GHz (12W)

CPU Cooler (Type)

Passive

System Memory

1 x 262-pin DDR5 4800MHz SO-DIMM socket, supports up to 16GB

I/O Chipset

EC-ITE: IT5782VG

Watchdog Timer

H/W Reset, 1sec. – 65535sec./min.1sec. or 1min. step

H/W Status Monitor

CPU & system temperature monitoring and voltages monitoring

TPM

TPM 2.0

Expansion

Expansion

1 x M.2 (Key-B, 2242/3042/3052, SATA only)

1 x M.2 (Key-E, 2230, PCIex1, USB2.0)

Storage

M.2

1 x M.2 Key-B 2242/3042/3052 for M.2 SATAIII SSD

Audio

Audio Codec

Realtek ALC888S

Speaker Output

2 x 5W

Power Requirement

DC Input

+12V ~ +36V

DC Input Connector

+Lockable DC Jack

Power Mode

AT/ATX (ATX is default setting)

Software Support

OS

Win 10/11 Linux

Certification

Certification Information

CE : IEC/EN60601-1-2

FCC : Part 15 class B

UL60601-1

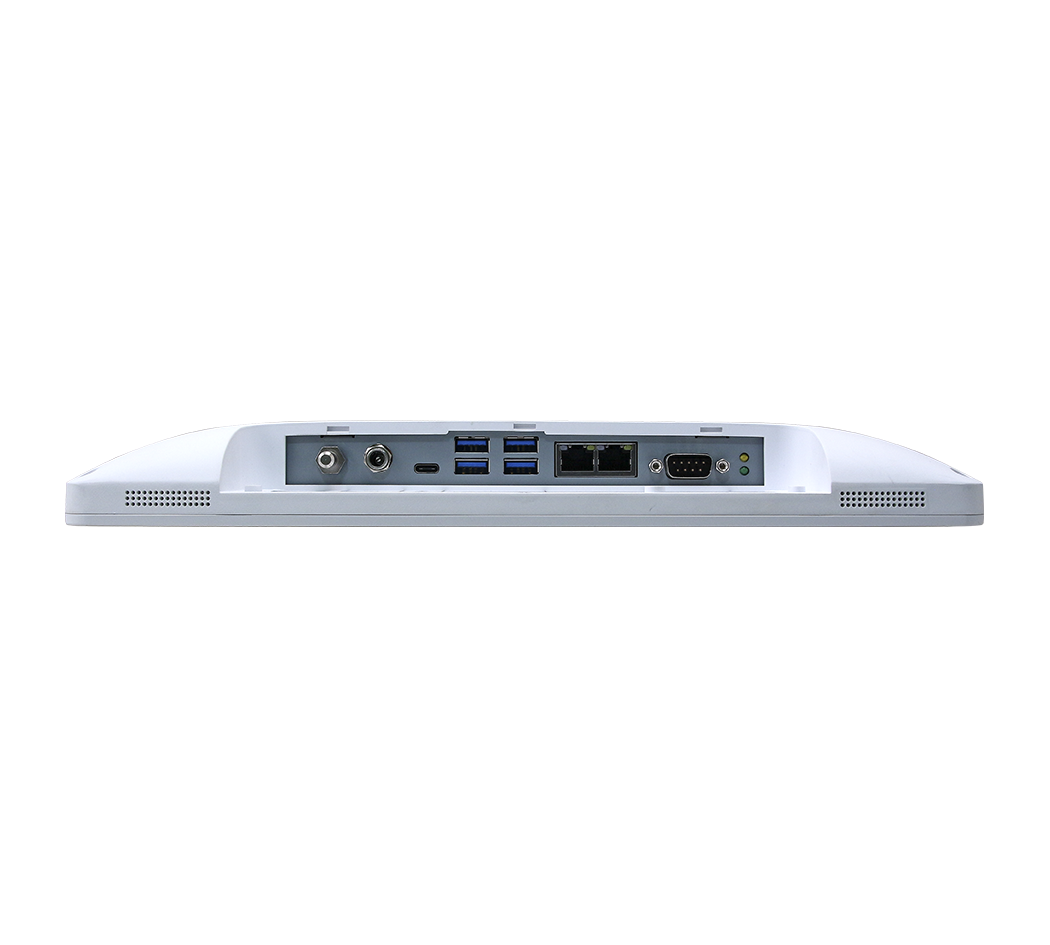

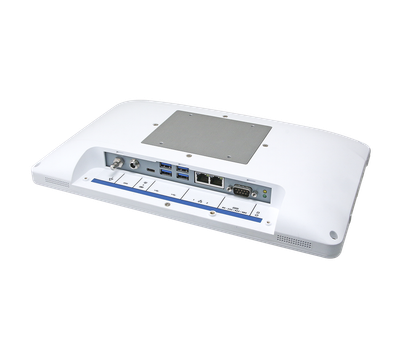

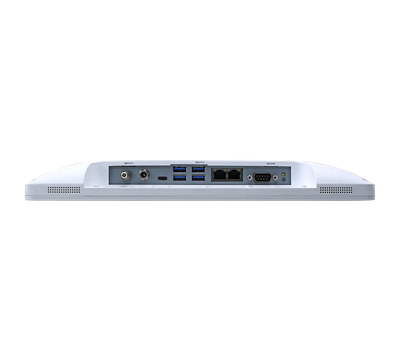

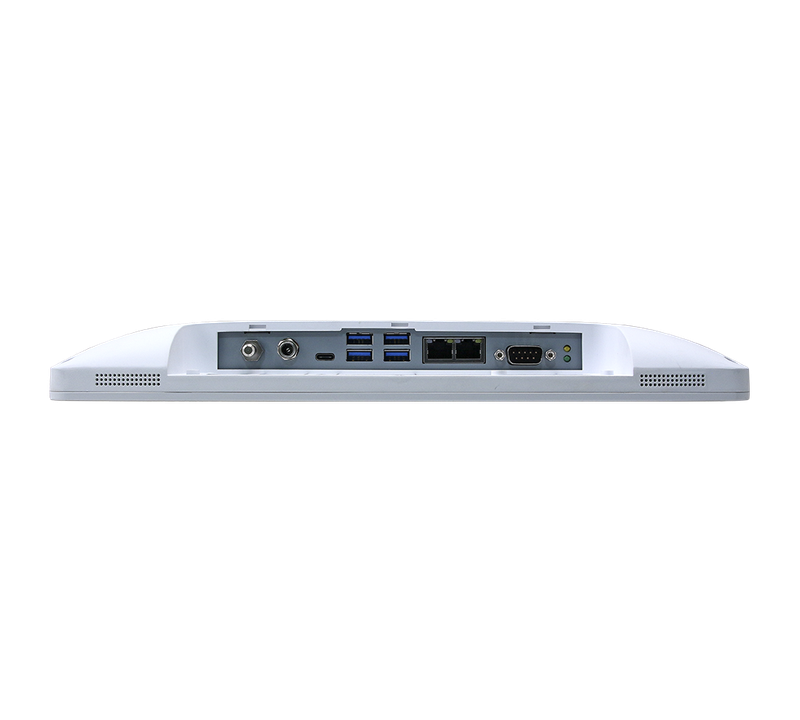

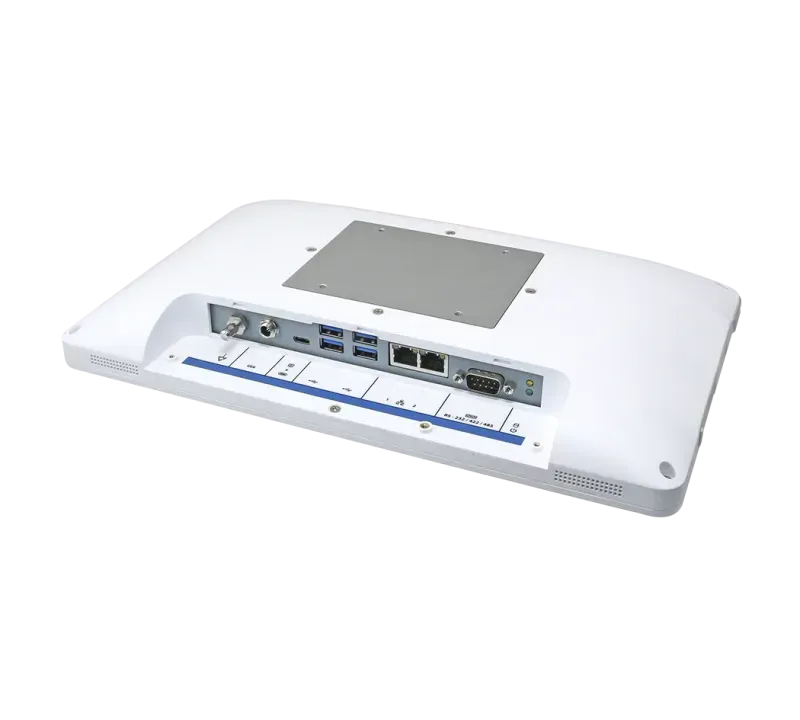

External I/O

USB Port

4 x USB 3.2 at bottom

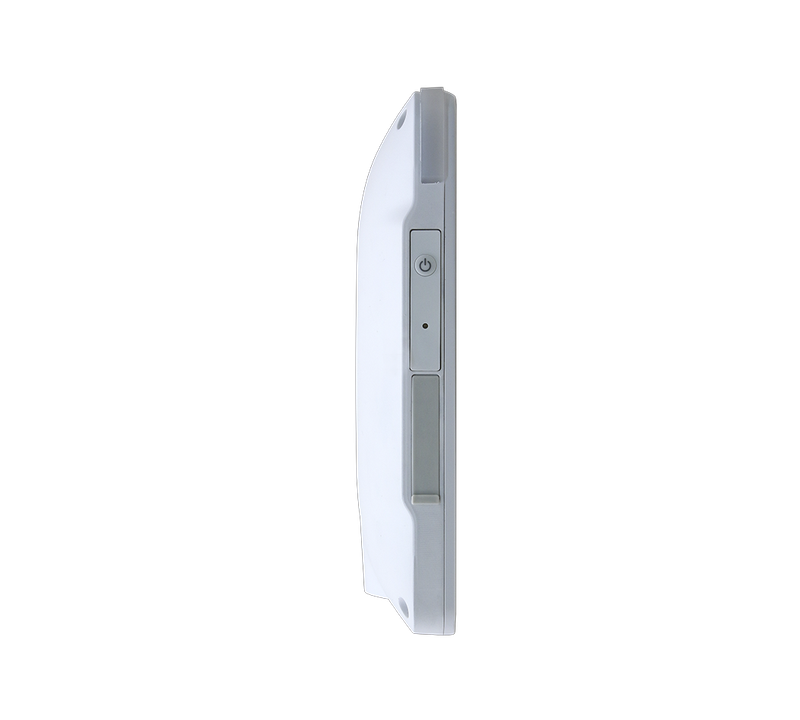

2 x USB 3.0 at side

1 X USB Type C

(PD Output 5V/3A 15W, USB, display function)

COM Port

1 x DB-9 COM1

RS-232(default)/422/485, selectable by BIOS & JUPMER,

RS-485 supports Auto Flow, Pin-9 selected by JUPMER for Ring(default)/+5V/+12V

LAN Port

2 x Intel® I226LM 2.5 Gigabit Ethernet

Indicator light

HDD LED (Yellow), Power LED (Green)

Panel

LCD Size

13.3"

Resolution

1920 x 1080

Pixel pitch

0.153 x 0.153

Luminance

300 cd/m2

Display Type

Full HD

Contrast ratio

600

Viewing angle

89(U), 89(D), 89(L), 89(R)

Response time

27 ms

Backlight

LED

Touch Type

Projective capacitive multi-touch up to 10 points

Touch Light Transmission

85%

Touch Controller

(EETI)

Wireless Communication

Bluetooth

Optional Wi-Fi + bluetooth 5.0 USB module

(Intel Wi-Fi 6E AX210 with PCB Antenna)

Mechanical & Environmental

Operating Temp.

0°C ~ 40°C (32°F ~ 104°F)

Storage Temp.

-10°C ~ 60°C (14°F ~ 140°F)

Operating Humidity

40°C @ 95% relative humidity, non-condensing

Weight

1.8 kg

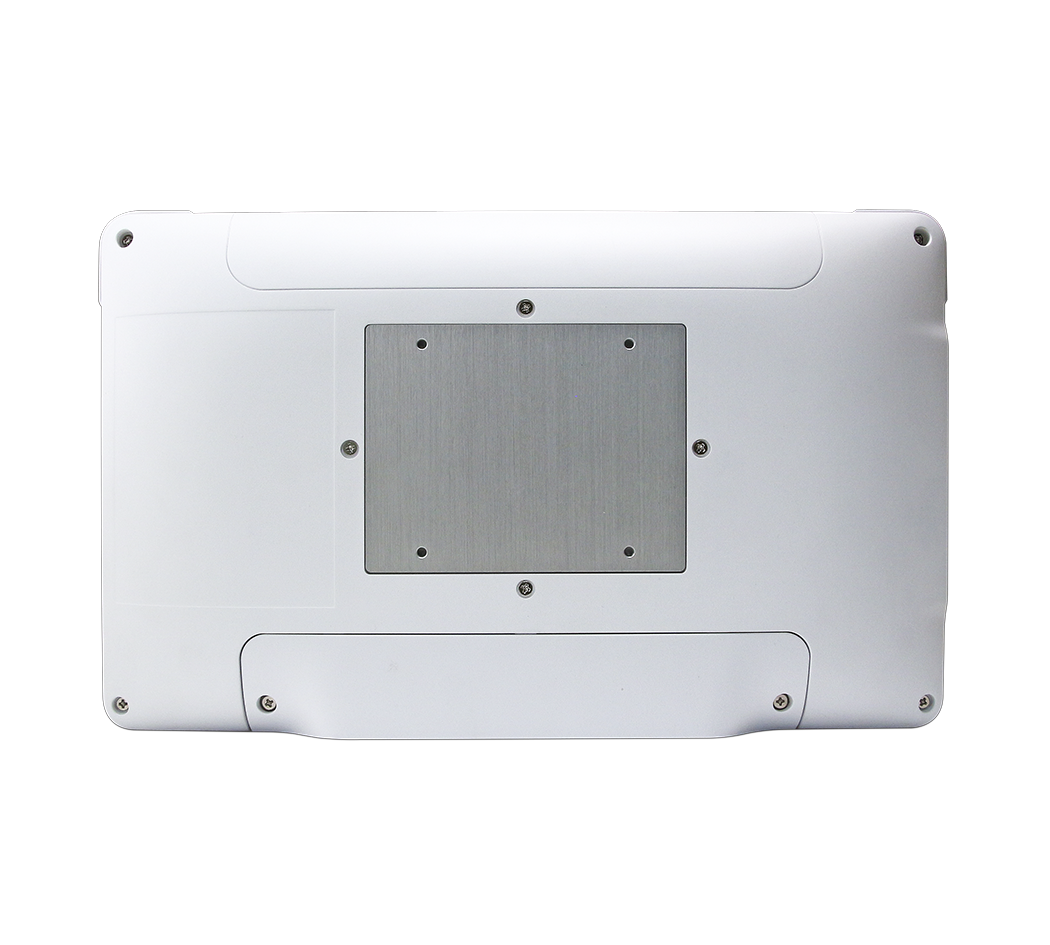

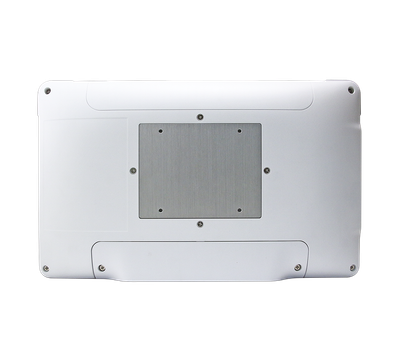

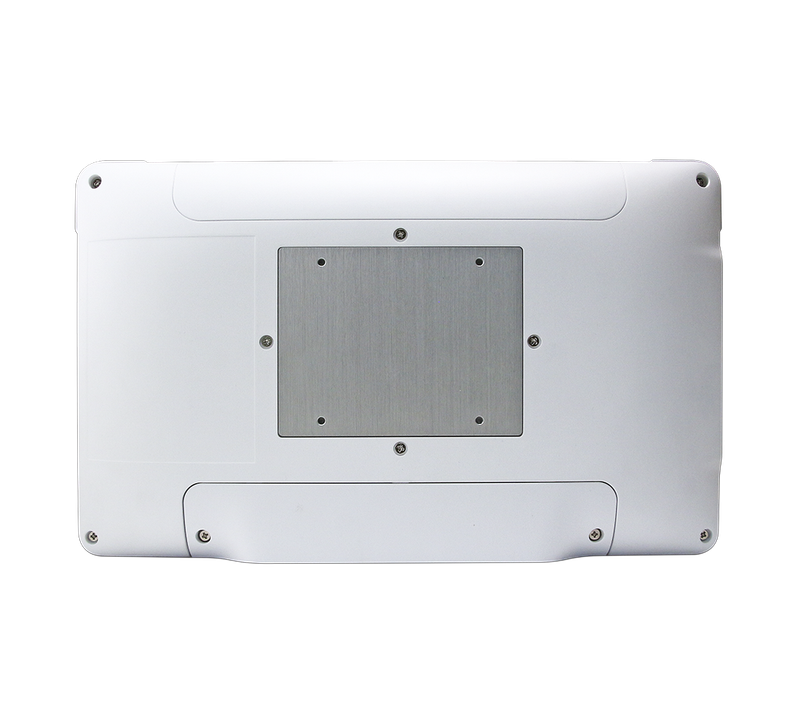

VESA

75x75 mm

Vibration Test

With SSD/mSATA: 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30min/axis

Shock Test

With CF/SSD : 10Grms, IEC 60068-2-27, half sine, 11ms

Drop Test

Package drop test

Reference ISTA 2A, method : IEC-60068-2-32 Test:Ed

Test Ea : drop test

IP Rating

IP65 front, IPX1 rear

Dimension (W x L x H)

198 x 325 x 38 mm

System Fan

Fanless

Construction - Front

White plastic

Construction - Rear

White plastic

Fanless

Yes

Component

Adapter

72W(24V/3A) medical adapter EDAC EM10686V

Packing List

Packing List

1 x HID-1337

1 x Medical adapter

Ordering Information

Ordering Information

HID-1337-N97-A1R

13.3" Alder Lake N Medical Multi-Touch Panel PC,Intel N97/8GB Memory/USBC/6USB/2LAN/COM/SPK/medical 24V adapter


E971XHI1337000R

WIFI Kit for HID-1337


ACC-ARM-D41R

VESA Stand 75/100 CA-MT01-07 White


Power Cord:


E1702031000R EU Power Cord


E1702031833R US Power Cord


E170203183CR JP Power Cord


E170P060380R UK Power Cord


E1702031831R AU Power Cord


E170P060391R CN Power Cord

What is HID-1337?

The HID-1337 is a intelligent healthcare manufactured by Avalue, designed specifically for medical-panel-pc applications. The Avalue HID-1337 is a 13.3-inch medical panel PC designed for critical healthcare environments. Powered by Intel® Alder Lake-N processors, it offers robust performance for medical imaging and patient monitoring. The Full HD PCAP touchscreen supports glove operation, while the antimicrobial, IP65-rated front panel ensures hygiene and durability. Tri-color LED indicators and 5W speakers comply with IEC 60601-1-8 standards for visual and audible alarms. With multiple I/O ports, including USB Type-C and dual 2.5GbE LAN, and optional features like Wi-Fi 6E and Bluetooth 5.0, the HID-1337 is a versatile solution for modern healthcare settings.

Key Features & Benefits

  • 13.3" Full HD PCAP touch
  • Onboard Intel Alder Lake-N Processor
  • 4 Bottom USB, 2 Side USB, 1 USB Type C
  • 1 COM, 2 2.5G LAN
  • 1 x M.2 type E for WiFi, 1 x M.2 type B for storage
  • Optional WiFi/ Bluetooth
  • 5W speaker x 2
  • Tri-color corner LED light indicator
  • IP65 front, IPX1 rear
  • Medical UL

Applications & Use Cases

The HID-1337 is ideal for various industrial automation applications:

  • Harsh industrial environments requiring dust and water protection
  • Wireless connectivity and remote monitoring applications
  • Medical device integration and healthcare applications
  • High-performance computing and data processing tasks
  • Networked industrial systems and data communication
  • Interactive control interfaces and operator panels
  • Peripheral device connectivity and data transfer
  • Data logging and storage-intensive operations
