HID-1540

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Sleek light weight design
15.6” Full HD PCAP touch
Socketed Intel® 12th Gen Alder Lake-PS Core™ i7/i5/i3 Processor

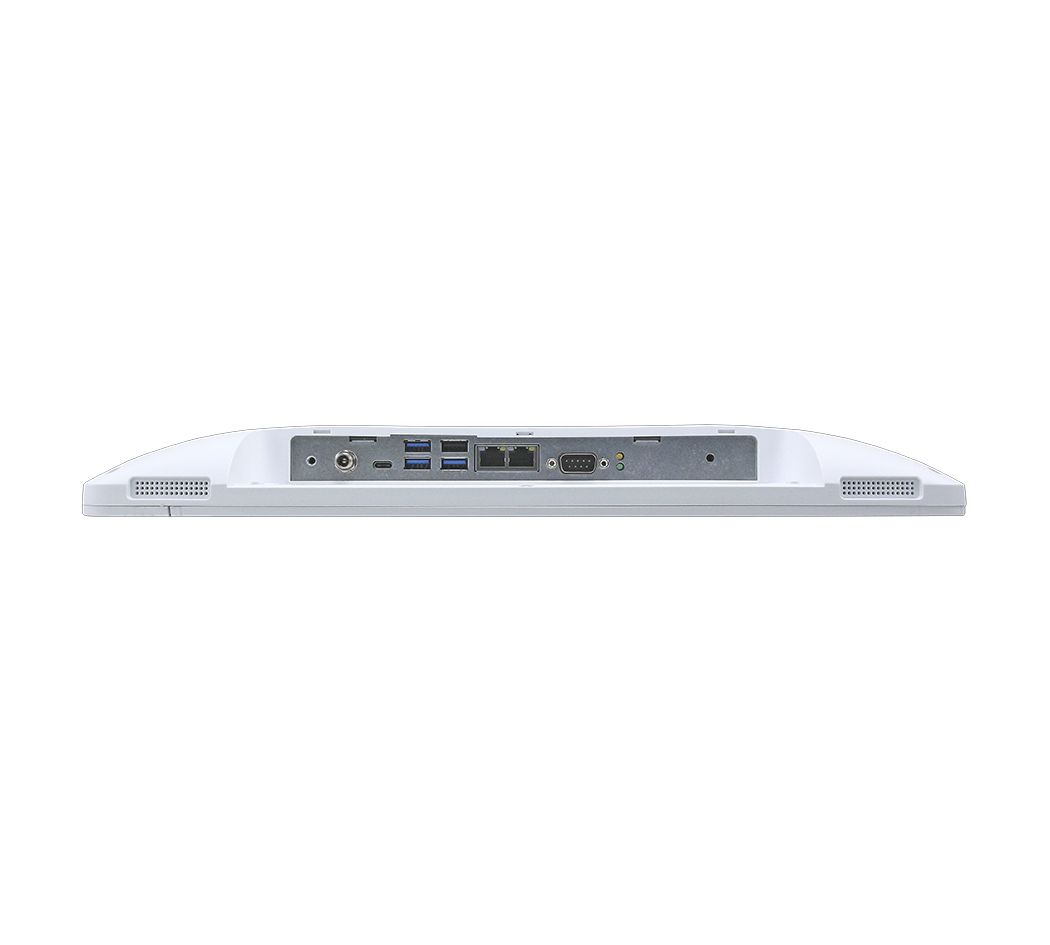

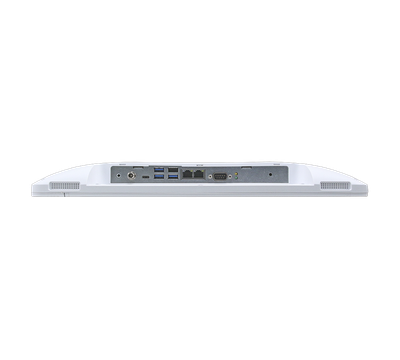

1 x COM, 2 x LAN, 1 x USB 2.0, 3 x USB 3.2, 1 x USB Type C
1 x M.2 Key B 3042/3052/2280, 1 x M.2 Key E for WIFI, 1 x M.2 Key M for storage
Programmable LED light bar on both sides
Optional Webcam/ WIFI/ NFC
CE/FCC/Medical UL

Product Description

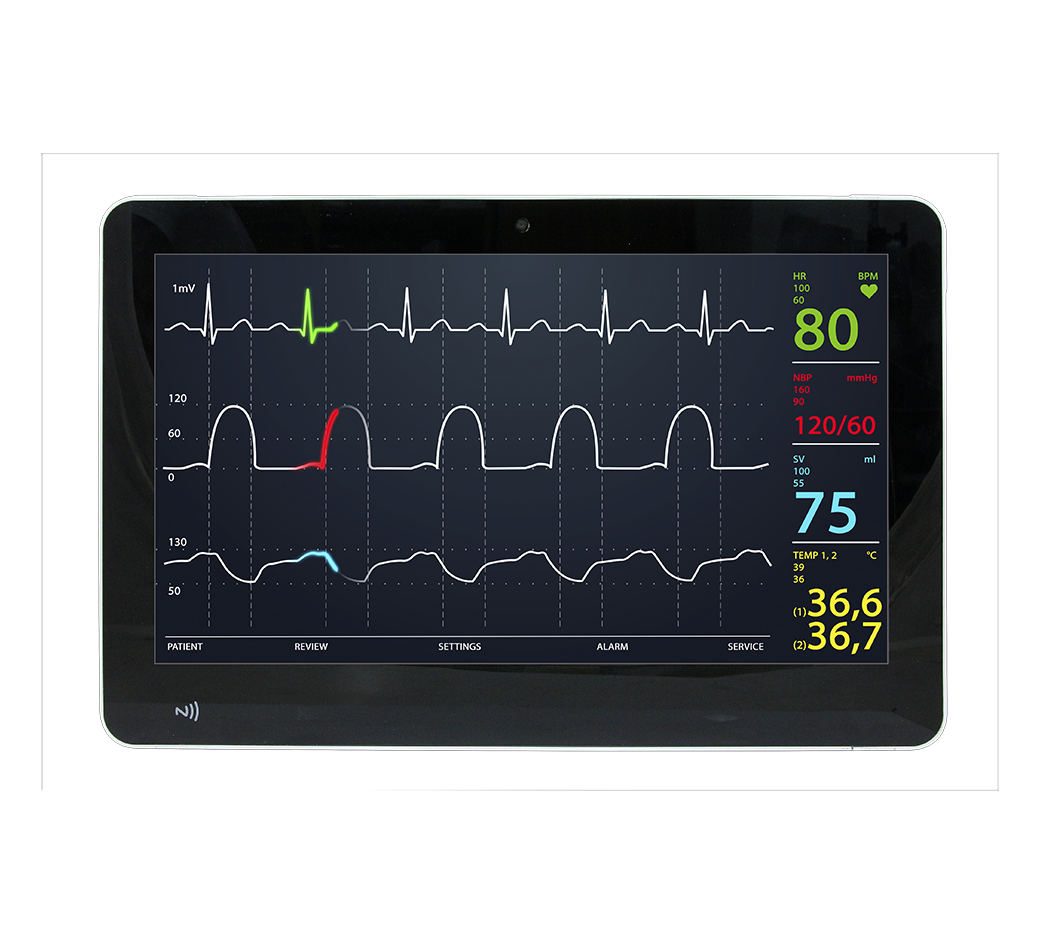

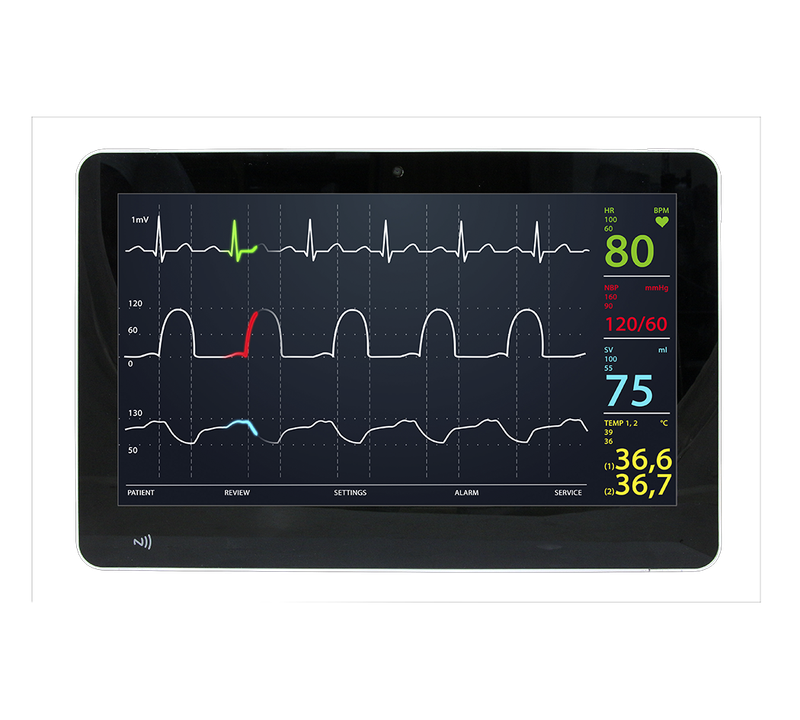

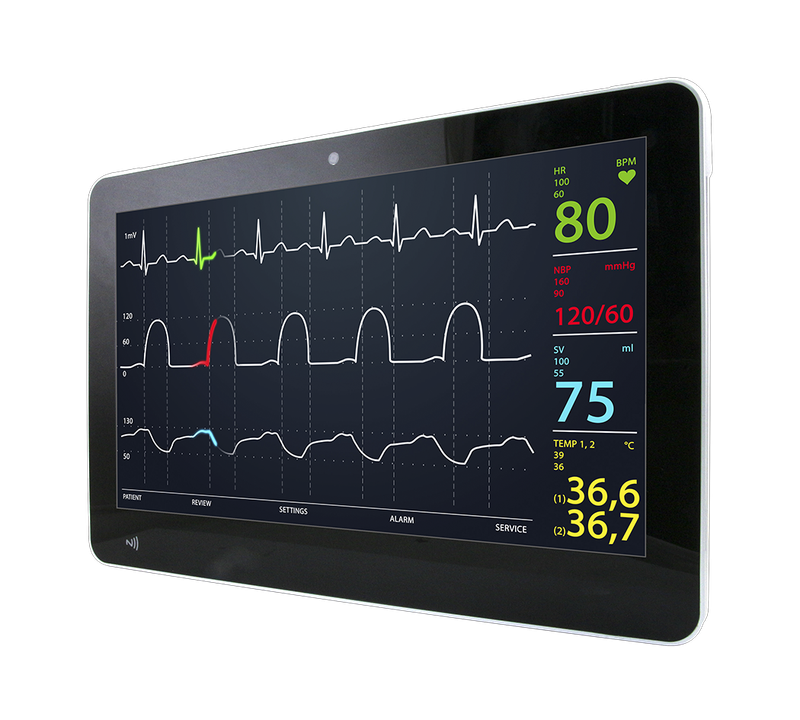

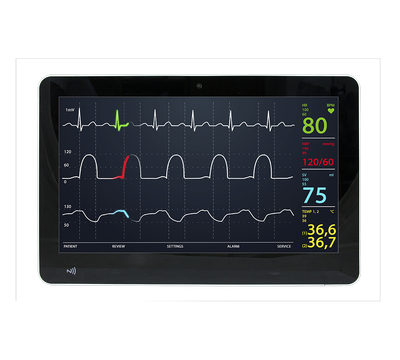

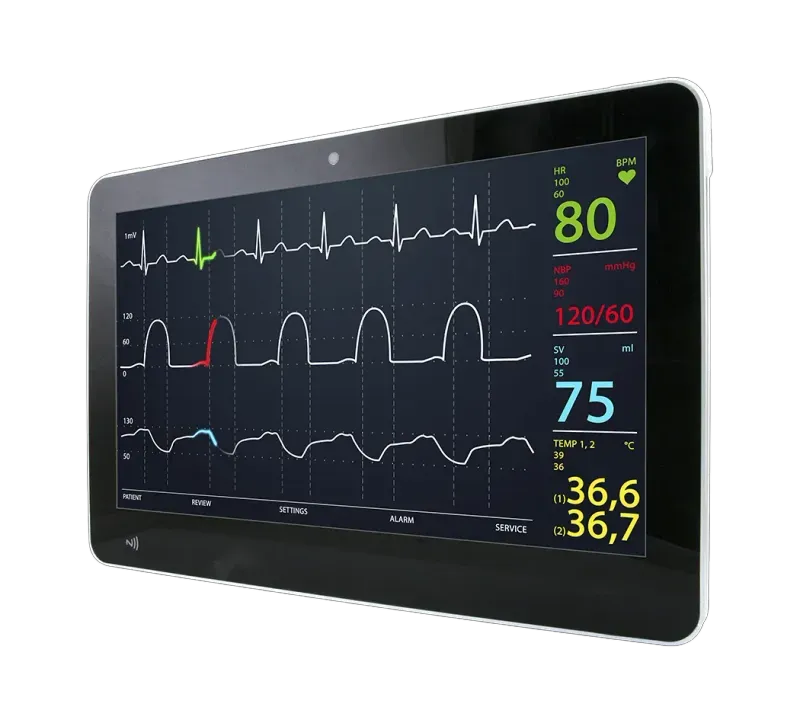

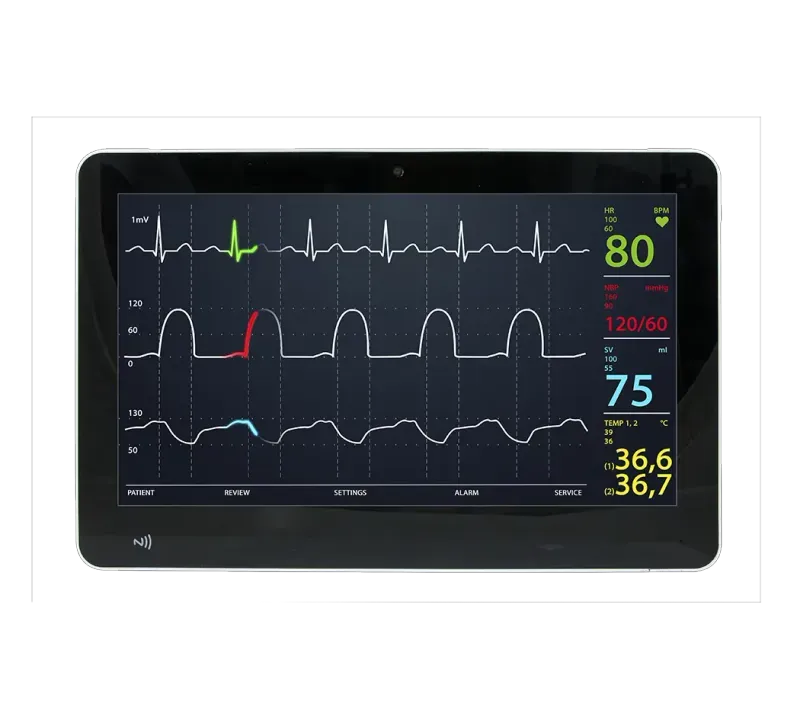

The Avalue HID-1540 is a 15.6-inch medical panel PC designed for critical healthcare environments. Powered by 12th Gen Intel® Core™ i7/i5/i3 processors, it offers robust performance for medical imaging and patient monitoring.

The Full HD PCAP touchscreen supports glove operation, while the antimicrobial, IP65-rated front panel ensures hygiene and durability. Dual tri-color LED light bars and 5W speakers comply with IEC 60601-1-8 standards for visual and audible alarms.

With multiple I/O ports, including USB Type-C and dual LAN, and optional features like Wi-Fi 6E, NFC, and a 5MP camera, the HID-1540 is a versatile solution for modern healthcare settings.

Technical Specifications

System Information

SBC

HID-2340 mother board

Processor

12th Generation Intel® Core™ i7/i5/i3 Processor

System Memory

1 x 262-pin DDR5 4800MHz SO-DIMM socket, supports up to 32GB Max (Min 8GB)

I/O Chipset

IT5782VG

Watchdog Timer

H/W Reset, 1sec. – 65535sec./min.1sec. or 1min. step

H/W Status Monitor

CPU temperature monitoring voltage monitoring

TPM

Onboard NuvoTon NPCT754AADYX support TPM 2.0

Platform Controller Hub

Integrated in Processor (SOC)

Expansion

1 x M.2 Key B 3042/3052/2280

1 x M.2 Key E for WIFI

Storage

1 x M.2 Key M storage

Audio

Audio Interface

Audio combo jack

Audio Codec

Realtek ALC888S

Speaker Output

2 x 5W

Ethernet

LAN Chipset

1 x Intel® I225LM

1 x Intel® I226LM

Ethernet Interface

10/100/1000/2500 Base-Tx GbE compatible

LAN Port

2 x RJ-45

Power Requirement

DC Input

+19V

DC Input Connector

+Lockable DC Jack

Power Mode

AT/ATX (ATX is default setting)

Software Support

OS

Win10 / Win11 / Linux

Certification

Certification Information

CE : IEC/EN60601-1-2 FCC : Part 15 Class B UL60601-1

External I/O

Wireless LAN

Optional 802.11abgn+acR2+axR2 Wi-Fi 6E BT5.2

Panel

LCD Size

15.6"

Resolution

1920 x 1080

Pixel pitch

0.17925 x 0.17925mm

Luminance

300 cd/m2

Display Type

Full HD

Contrast ratio

1000

Viewing angle

89(U), 89(D), 89(L), 89(R)

Response time

25 ms

Backlight

LED

Touch Type

Projective capacitive multi-touch up to 10 points

Touch Light Transmission

85%

Touch Controller

USB touch (EETI)

I/O

USB Port

1 x USB 2.0, 3 x USB 3.2

1 x USB Type C

COM Port

1 x RS-232/422/485

Mechanical & Environmental

Operating Temp.

0°C ~ 40°C (32°F ~ 104°F)

Storage Temp.

-30°C ~ 70°C (-22°F ~ 158°F)

Operating Humidity

0% ~ 90% Relative Humidity, Non-condensing

Weight

2.8 kg

VESA

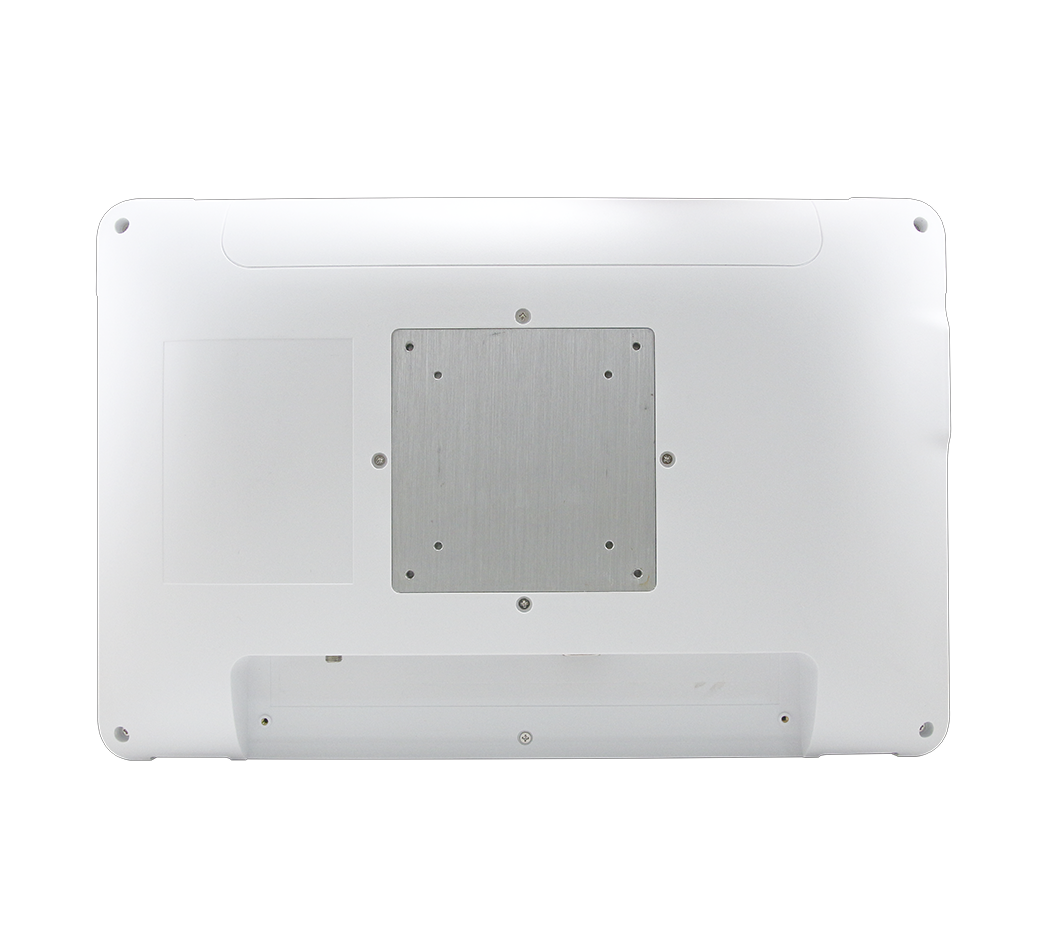

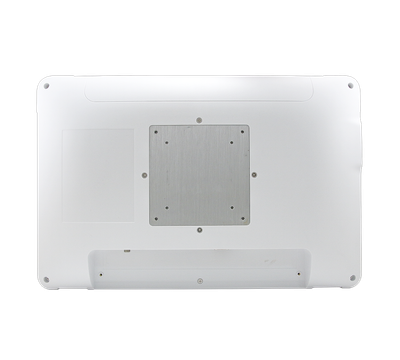

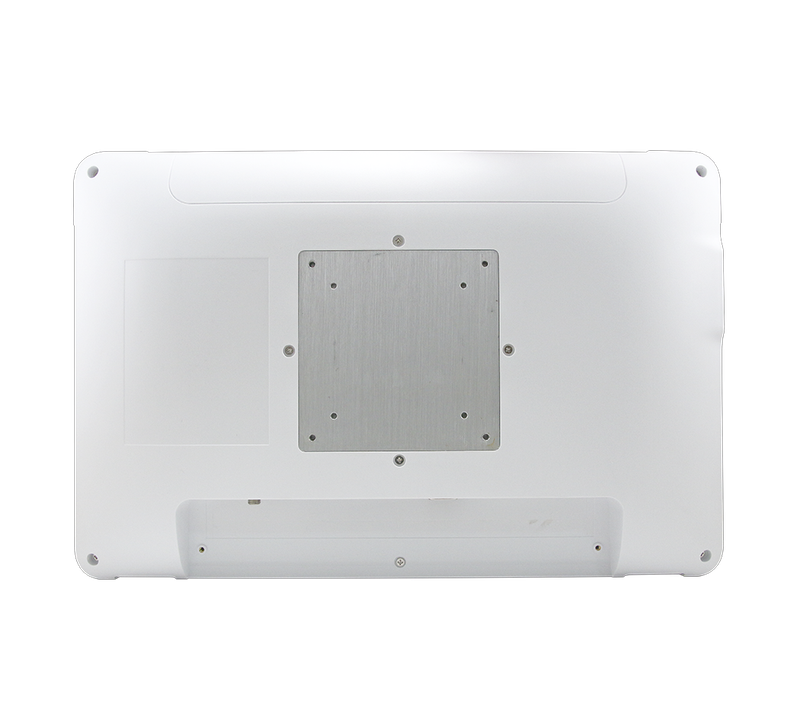

75x75, 100x100

Vibration Test

With SSD/mSATA: 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30min/axis

Shock Test

With CF/SSD : 10Grms, IEC 60068-2-27, half sine, 11ms

IP Rating

Front IP65

Back IPX1

Dimension (W x L x H)

400 x 263 x 42.5mm

System Fan

Fanless

Construction - Front

White plastic

Construction - Rear

White plastic

Finishing

Anti-microbial

Fanless

Yes

Color

White

Component

Adapter

Medical grade

Input: 100-240V~, 2.0-1.0A, 50-60Hz

Output: 19V 4.73A 90W

Ordering Information

HID-1540-123-A1R

HID 15.6/i5-1235UL/8GRAM/4USB/2LAN/COM/TYPEC/CAM/Audio/SPK/LED/adapter

E971XHI1540000R

WiFi module KIT for HID-1540

ACC-ARM-D41R

VESA Stand 75/100 CA-MT01-07 White

Power Cord:

EU E170203183DR

US E1702031835R

JP E170203183BR

UK E170P060370R

AU E170P060392R

What is HID-1540?

The HID-1540 is a intelligent healthcare manufactured by Avalue, designed specifically for medical-panel-pc applications. The Avalue HID-1540 is a 15.6-inch medical panel PC designed for critical healthcare environments. Powered by 12th Gen Intel® Core™ i7/i5/i3 processors, it offers robust performance for medical imaging and patient monitoring. The Full HD PCAP touchscreen supports glove operation, while the antimicrobial, IP65-rated front panel ensures hygiene and durability. Dual tri-color LED light bars and 5W speakers comply with IEC 60601-1-8 standards for visual and audible alarms. With multiple I/O ports, including USB Type-C and dual LAN, and optional features like Wi-Fi 6E, NFC, and a 5MP camera, the HID-1540 is a versatile solution for modern healthcare settings.

Key Features & Benefits

Sleek light weight design
15.6” Full HD PCAP touch
Socketed Intel® 12th Gen Alder Lake-PS Core™ i7/i5/i3 Processor
1 x COM, 2 x LAN, 1 x USB 2.0, 3 x USB 3.2, 1 x USB Type C
1 x M.2 Key B 3042/3052/2280, 1 x M.2 Key E for WIFI, 1 x M.2 Key M for storage
Programmable LED light bar on both sides
Optional Webcam/ WIFI/ NFC
CE/FCC/Medical UL

Applications & Use Cases

The HID-1540 is ideal for various industrial automation applications:

Wireless connectivity and remote monitoring applications
Medical device integration and healthcare applications
High-performance computing and data processing tasks
Networked industrial systems and data communication
Interactive control interfaces and operator panels
Peripheral device connectivity and data transfer
Memory-intensive applications and multitasking
Data logging and storage-intensive operations

Product Features

Product Description

Technical Specifications

System Information

SBC

Processor

System Memory

I/O Chipset

Watchdog Timer

H/W Status Monitor

TPM

Platform Controller Hub

Expansion

Expansion

Storage

Storage

Audio

Audio Interface

Audio Codec

Speaker Output

Ethernet

LAN Chipset

Ethernet Interface

LAN Port

Power Requirement

DC Input

DC Input Connector

Power Mode

Software Support

OS

Certification

Certification Information

External I/O

Wireless LAN

Panel

LCD Size

Resolution

Pixel pitch

Luminance

Display Type

Contrast ratio

Viewing angle

Response time

Backlight

Touch Type

Touch Light Transmission

Touch Controller

I/O

USB Port

COM Port

Mechanical & Environmental

Operating Temp.

Storage Temp.

Operating Humidity

Weight

VESA

Vibration Test

Shock Test

IP Rating

Dimension (W x L x H)

System Fan

Construction - Front

Construction - Rear

Finishing

Fanless

Color

Component

Adapter

Ordering Information
