*Price on request. Contact us for a quote.

Manufacturer: Avalue
  • Intel® Celeron® Processor N3350/N4200
  • MIL-STD-810G & IP65 certified, 4-feet drop resistance
  • 10.1” TFT color LCD 1280 x 800 HD
  • Corning gorilla glass, 10 point projected capacitive multi-touch panel
  • High mobility with multiple connectivity including WLAN, bluetooth, NFC
  • Light design, weight only 1Kg with battery
  • G-sensor, light sensor, 2M/8M camera
  • Option 1D/2D barcode scanner
  • Support Windows 10 and Android 11

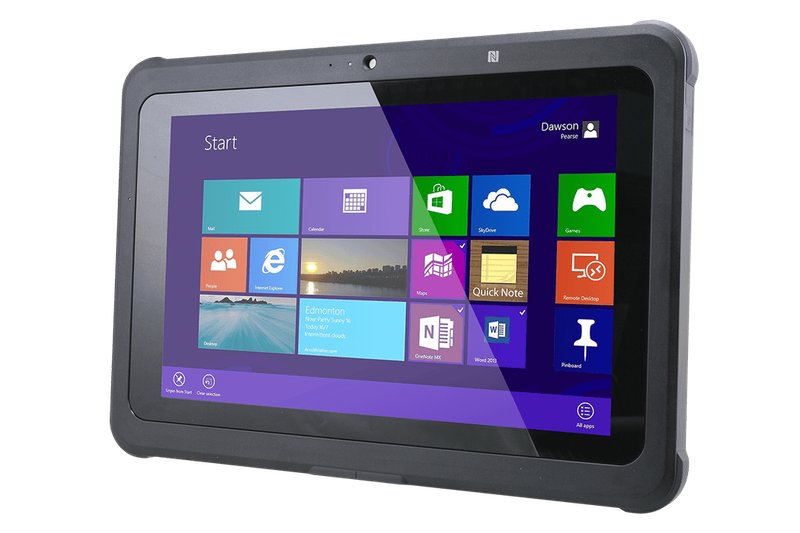

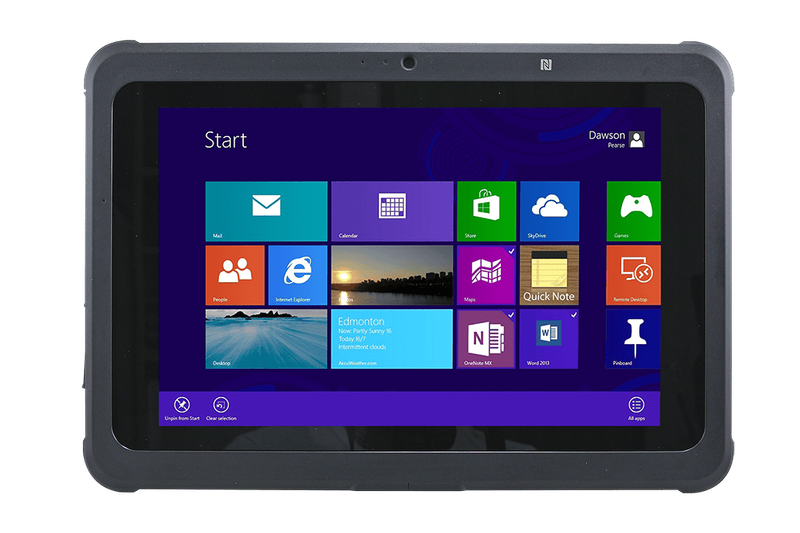

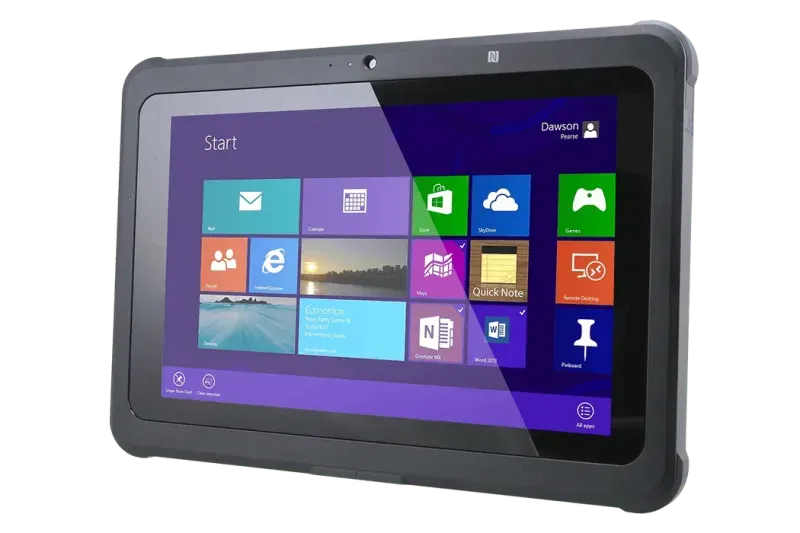

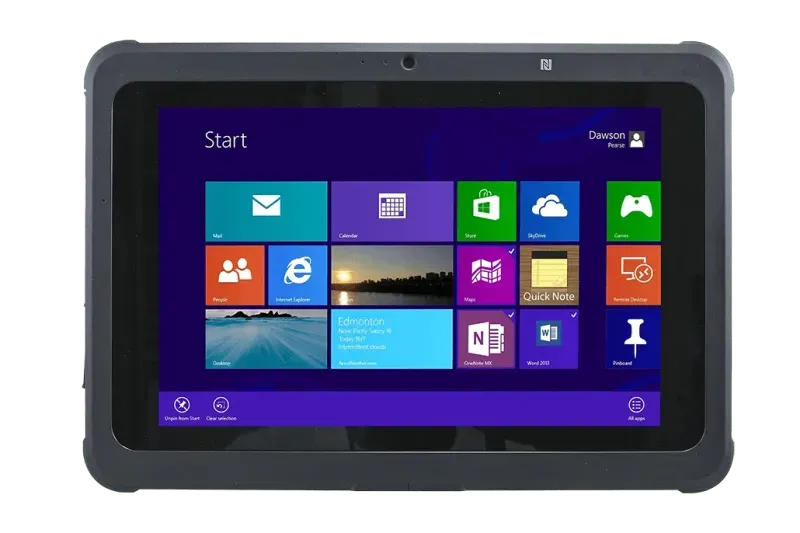

The Avalue CAXA0 is a 10.1-inch semi-rugged medical tablet designed for demanding environments. Powered by Intel® Celeron® N3350 or N4200 processors, it offers reliable performance for healthcare and industrial applications. The tablet features a 1280x800 HD TFT display with Corning Gorilla Glass and 10-point projected capacitive touch. With IP65 rating and MIL-STD-810G compliance, it withstands dust, water, and 4-feet drops. Connectivity options include WLAN, Bluetooth 5.0, NFC, USB 3.0, HDMI, and optional 4G LTE. Additional features encompass 2MP front and 8MP rear cameras, optional 1D/2D barcode scanner, smart card reader, and a 6-hour battery life. The CAXA0 supports Windows 10 IoT and Android 8.1, making it versatile for various professional settings.

System Information
Processor

Intel® Celeron® Processor N3350/N4200

System Memory

Onboard LPDDR4 4GB / 8GB

Storage
Solid State Drive

M.2 128GB solid state drive

Power Requirement
Battery

28.44W Li-ion battery

Battery Operating Time

6 Hours

DC Input Connector

DC Jack

DC Input

+19V

Software Support
OS

Windows 10 IoT 64bit

Android 8.1 without NFC

Android 11 without NFC

Certification
Certification Information

Australia RCM

Canada ICES-003 / IC

China CCC / SRRC

Chile SUBTEL

Japan VCCI / MIC

Taiwan BSMI /NCC

USA FCC

UK UKCA

EU CE / RED / EN60601-1, EN60601-1-2:

Austria、Belgium、Czech Republic、Denmark、Finland、France、Germany、Greece、Hungary、Ireland、Italy、Latvia、Liechtenstein、Luxembourg、Netherlands、Norway、Poland、Portugal、Romania、Slovakia、Slovenia、Spain、Sweden、Switzerland

Compliance : Costa Rica、Egypt、Hongkong、Sri Lanka

In-Box Accessory
Accessory

+19V 65W power adaptor

Panel
LCD Size

10.1"

Display Type

WXGA

Resolution

1280 x 800

Luminance

300 cd/m2

Touch Type

10 points projective capacitive

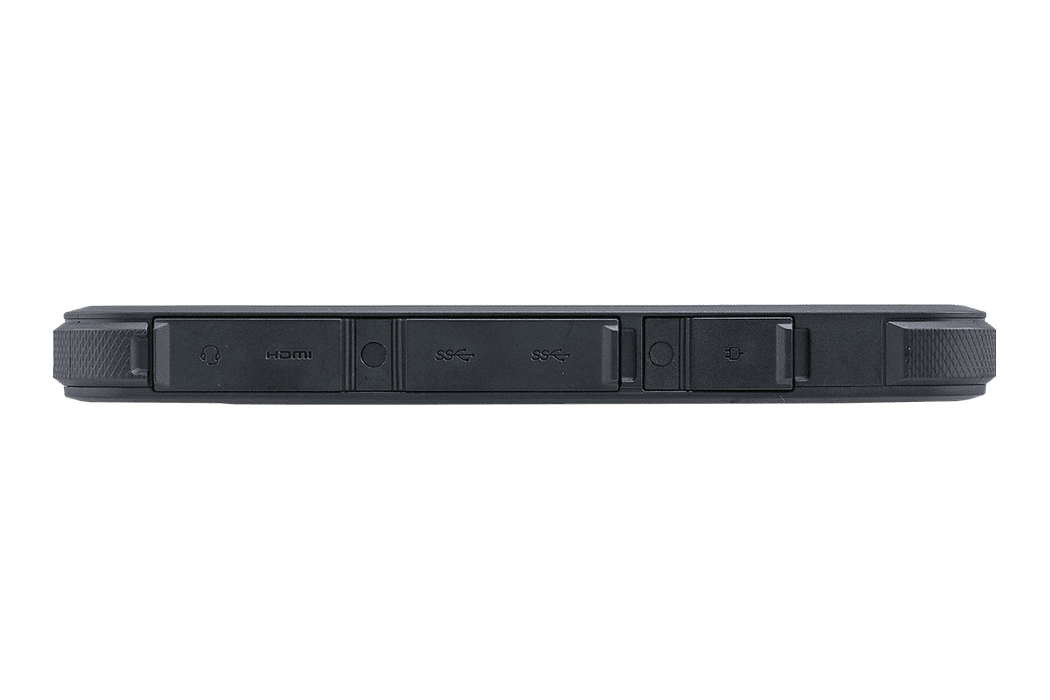

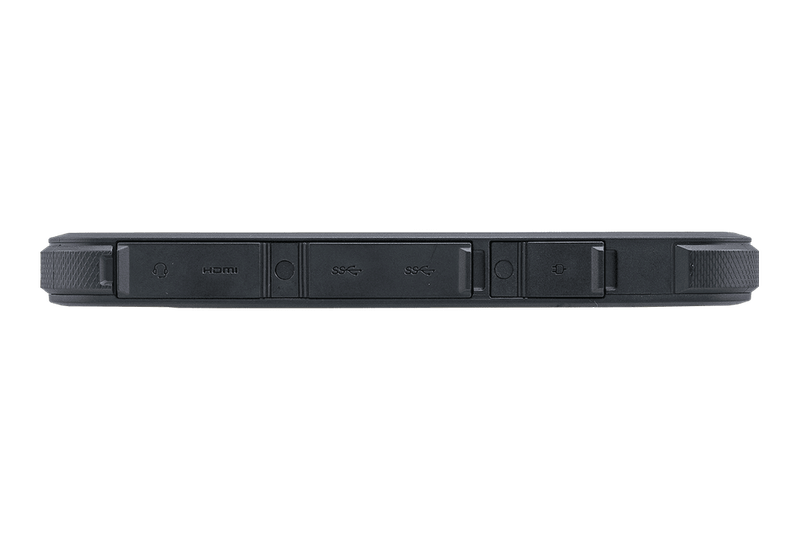

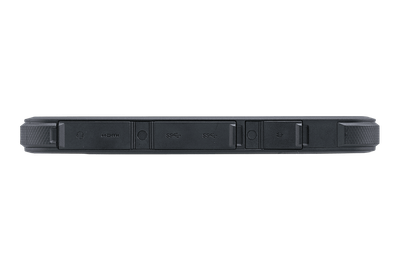

I/O
HDMI

1 x HDMI output

USB Port

2 x USB 3.0 Type A

Other

1 x Audio Jack

1 x Micro SD

1 x DC Jack

System Controller

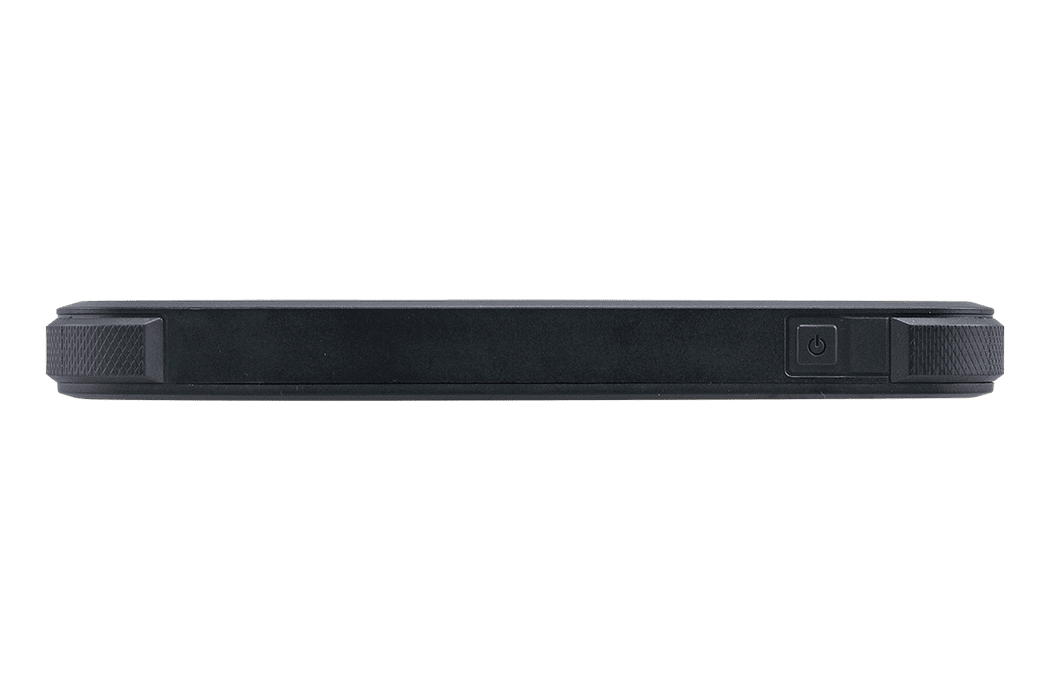

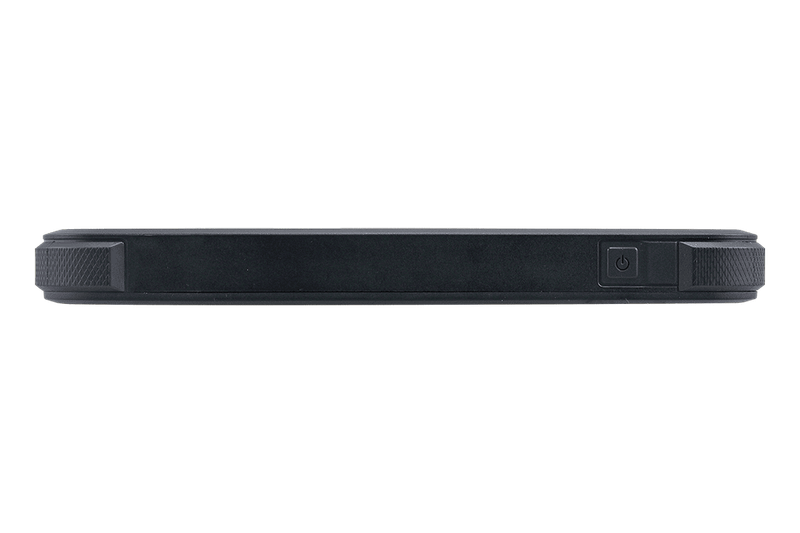

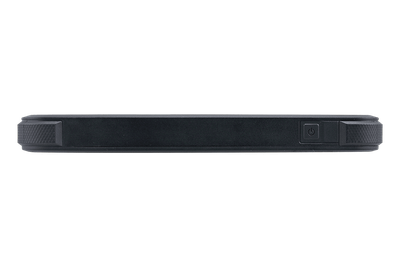

Control Buttons

1 x Power button

1 x Barcode scanner trigger

LED Indicator

1 x Power

Data Collection
Barcode Scanner

1D/2D Barcode scanner (optional)

NFC

ISO/IEC 14443 A/B, 15693/18092, NFCIP-1, NFCIP-2, support MIFARE and Felica

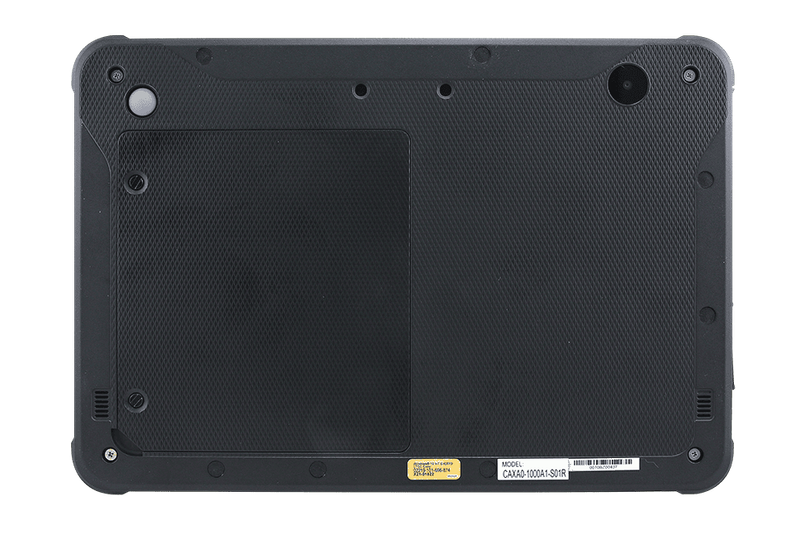

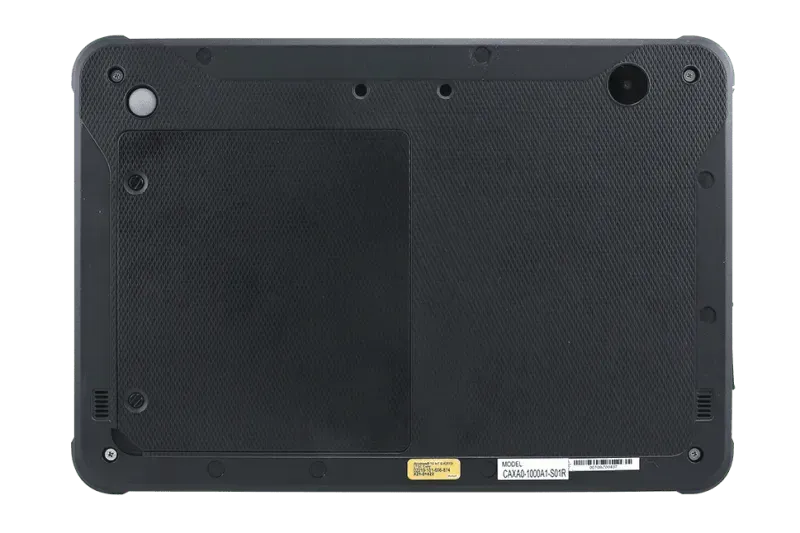

Camera

2MP Front camera

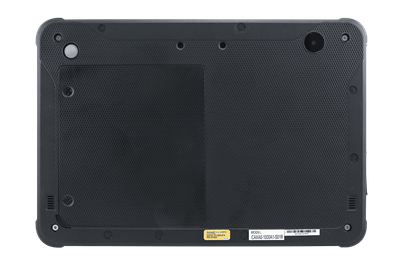

8MP Rear camera with auto focus

Wireless Communication
Bluetooth

Bluetooth 5.0

WLAN

802.11 a/b/g/n/ac

Mechanical & Environmental
Operating Temp.

0°C ~ 40°C (32°F ~104°F)

0°C ~ 30°C (32°F ~ 86°F) without dock or wall mount [EN60601]

0°C ~ 40°C (32°F ~104°F) with dock or wall mount [EN60601]

Storage Temp.

-20°C ~ 60°C (-4°F ~ 140°F)

Operating Humidity

40°C @ 95% relative humidity, non-condensing

Weight

1 kg with Battery

Vibration Test

MIL-STD-810G method 514.6 procedure 1

Shock Test

MIL-STD-810G method 516.6 procedure 1

Drop Test

4-Feet drop on concrete floor, MIL-STD-810G 516.6 procedure IV

IP Rating

IP65

Dimension (W x H x D)

281 x 193.3 x 19.95mm

Fanless

Fanless

Construction

Rubber + plastic

Component
Adapter

Input: 100~240Vac/50~60 Hz

Output: 65W adaptor (19V@3.15A adaptor)

Microphone

Front microphone

Packing List
Packing List

1 x CAXA0

1 x Power adapter

1 x Battery

Ordering Information
Ordering Information

CAXA0-1000A1-S04R

10.1"/1280x800/N3350/4GB/128GB/2USB/+19V/Android 8.1

CAXA0-1000A1-S05R

10.1"/1280x800/N3350/4GB/128GB/2USB/+19V/Windows 10

CAXA0-1000A1-S06R

10.1"/1280x800/N3350/4GB/128GB/2USB/+19V/Windows 10

CAXA0-1000A1-S07R

10.1"/1280x800/N4200/4GB/128GB/2USB/+19V/Windows 10

CAXA0-1000A1-S08R

10.1"/1280x800/N4200/4GB/128GB/2USB/+19V/Android 8.1

CAXA0-1000A1-S10R

10.1"/1280x800/N3350/4GB/128GB/2USB/+19V/Android 11

CAXA0-1000A1-S11R

10.1"/1280x800/N4200/4GB/128GB/2USB/+19V/Android 11

CAXA0-1000A1-S12R

10.1"/1280x800/N4200/8GB/128GB/2USB/+19V/Windows 10

CAXA0-DCA1-S03R

CAXA0 Desktop cradle /USB2.0x3/LAN/DC19V, without Adapter

CAXA0-WMA1-S03R

CAXA0 Wall Mount kit /USB2.0x3/LAN/DC19V, without Adapter

CAXA0-CSA1-S01R

Battery charging station for CAXA0, DC19V/65W Adapter

ACC-CAXA0-HS-01R

Hand Strap for CAXA0

ACC-CAXA0-SS-01R

Shoulder Strap for CAXA0

ACC-ADP-060M-01R

CAXA0 Medical Adapter

ACC-ADP-065N-01R

CAXA0 ITE Adapter

ACC-CAXA0BAT-02R

CAXA0 Battery

CAXA0 1D / 2D Barcode scanner

EU Power Cord for ACC-ADP-060M-01R E1702031000R

US Power Cord for ACC-ADP-060M-01R E1702031833R

JP Power Cord for ACC-ADP-060M-01R E1702031834R

UK Power Cord for ACC-ADP-060M-01R E170P060380R

EU Power Cord for ACC-ADP-065N-01R E170203183DR

US Power Cord for ACC-ADP-065N-01R E1702031835R

JP Power Cord for ACC-ADP-065N-01R E17120318001R

UK Power Cord for ACC-ADP-065N-01R E170P060370R
