*Price on request. Contact us for a quote.

Manufacturer: Avalue
  • The world's thinnest & lightest digital notepad: 4.7mm, 350 grams
  • HannStar Argentum Birefringence Eco-Friendly Paper Display Technology
  • Sunlight Readable, Anti-Glare
  • Eye-Friendly (Eye Care): Zero blue light emission. Ensure you to read under sufficient lighting environment
  • Active Pen: Supports USI 2.0
  • HannStar On-Cell Touch technology: You can use pen & fingers at the same time
  • Colorful Drawing: 16.7M display colors
  • Audiobook Play: Built-In speaker and microphone
  • Educational Animation: high refresh rate without ghost shadow
  • HannsNote APP: Organize & edit your drawings/notes
  • Privacy view protection: viewing angle 120°/ 120°
  • Ecofriendly: Green suppliers, green & healthy design, low-carbon manufacturing

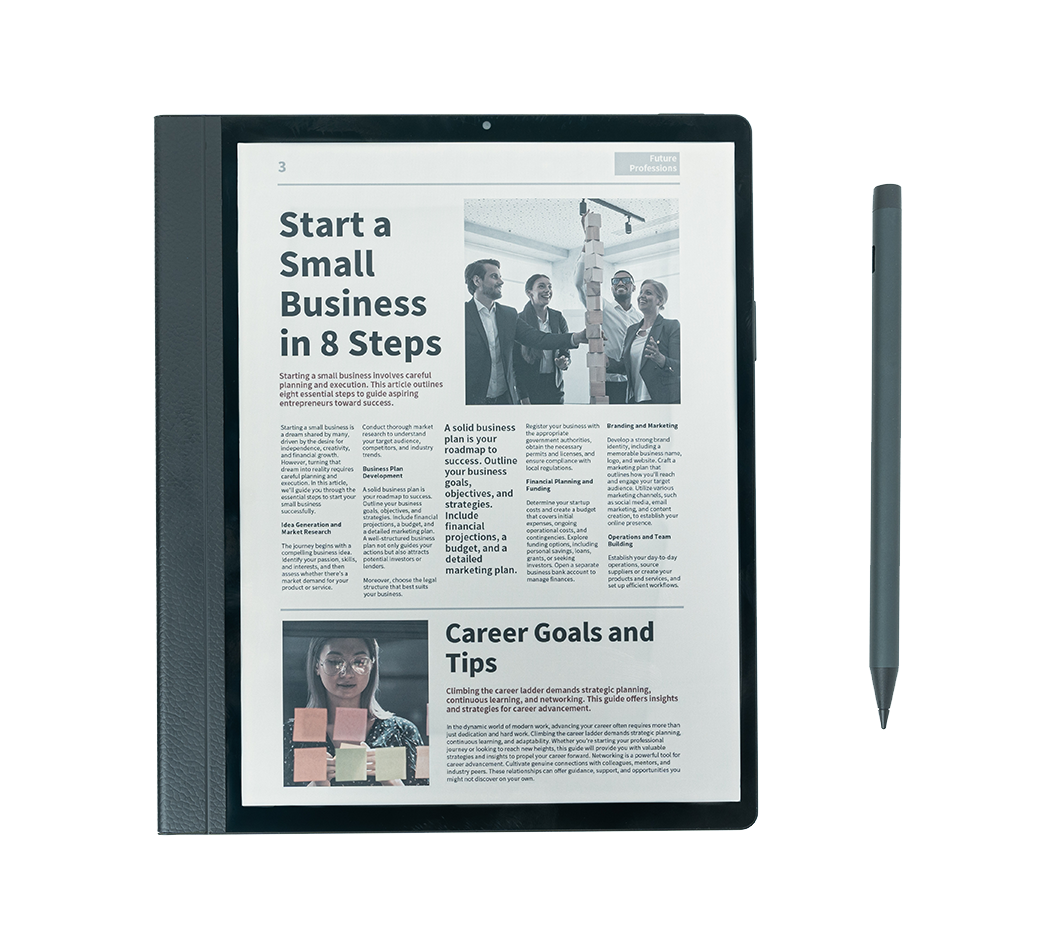

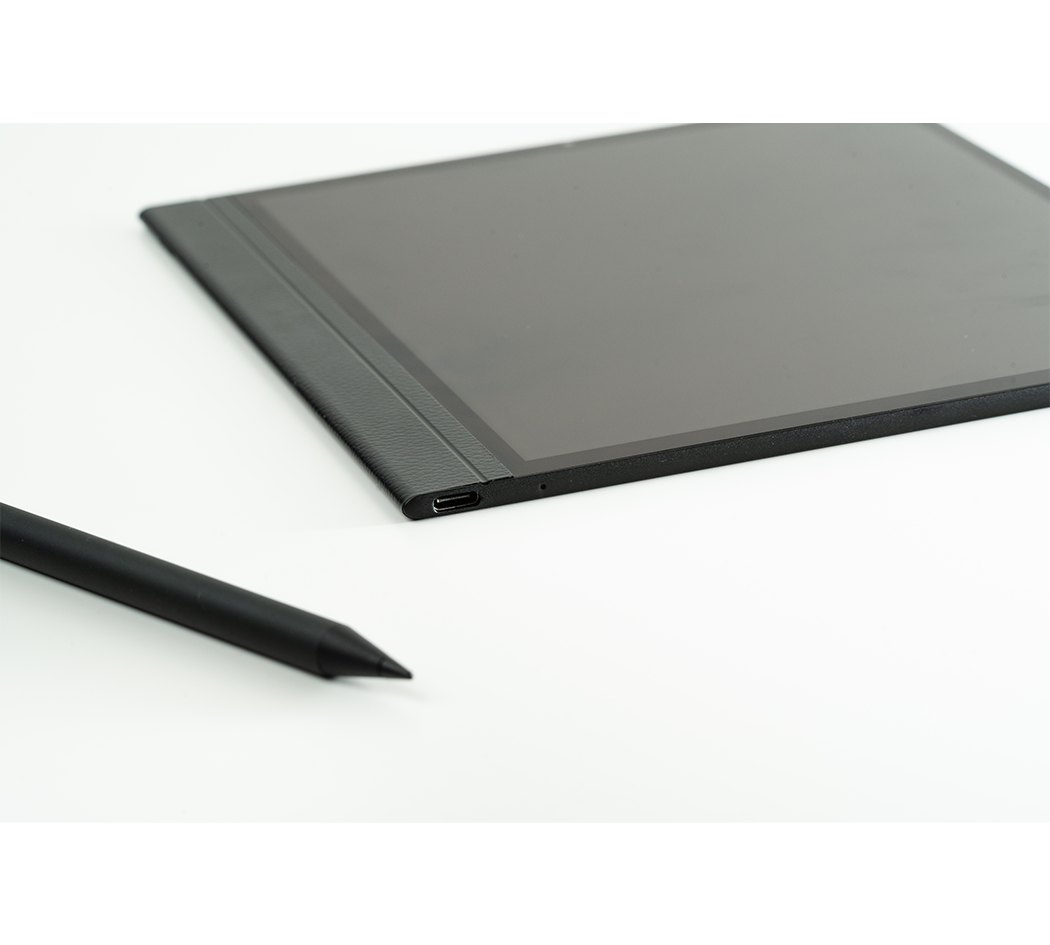

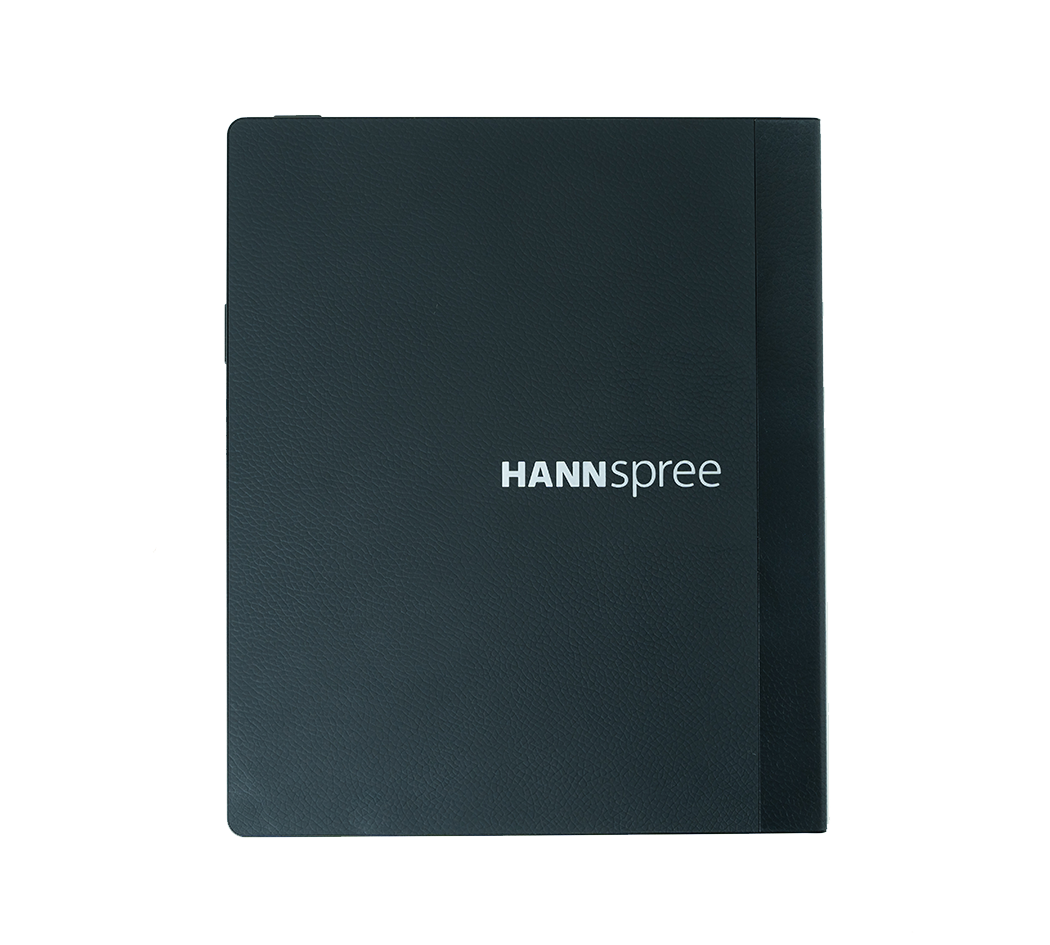

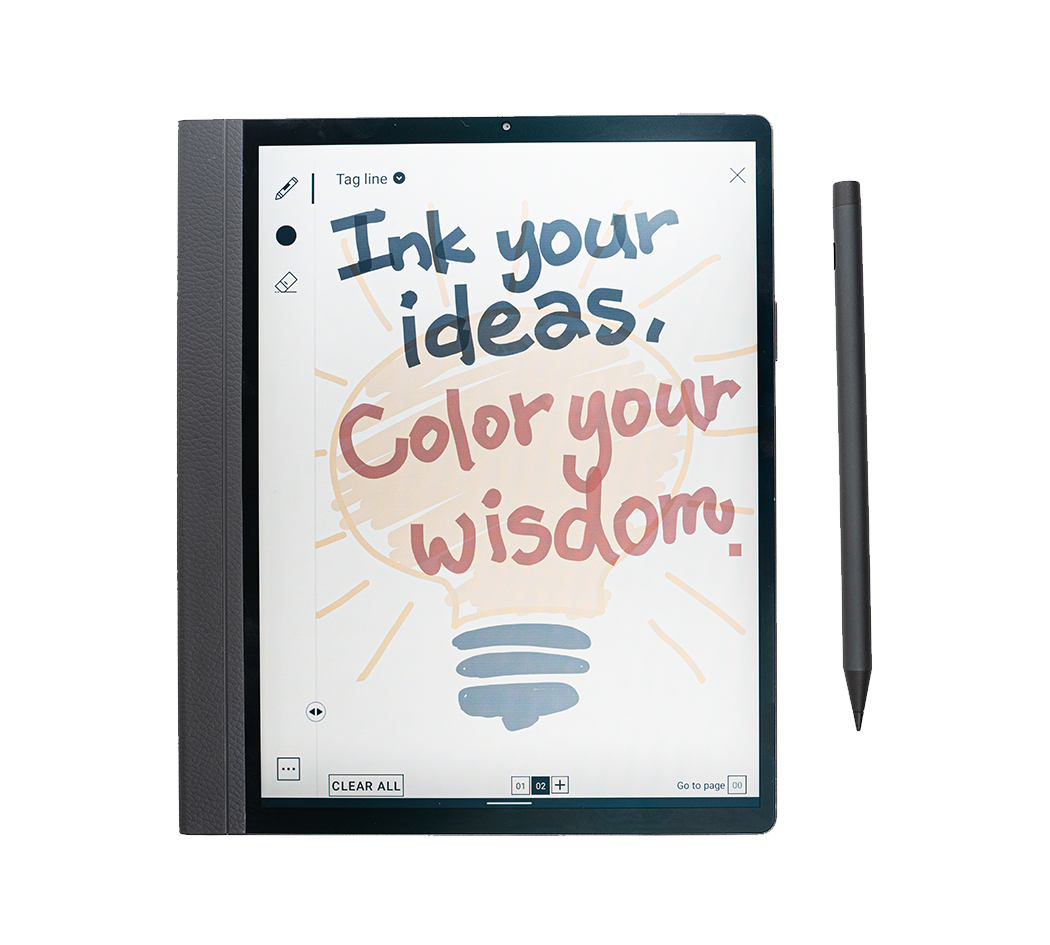

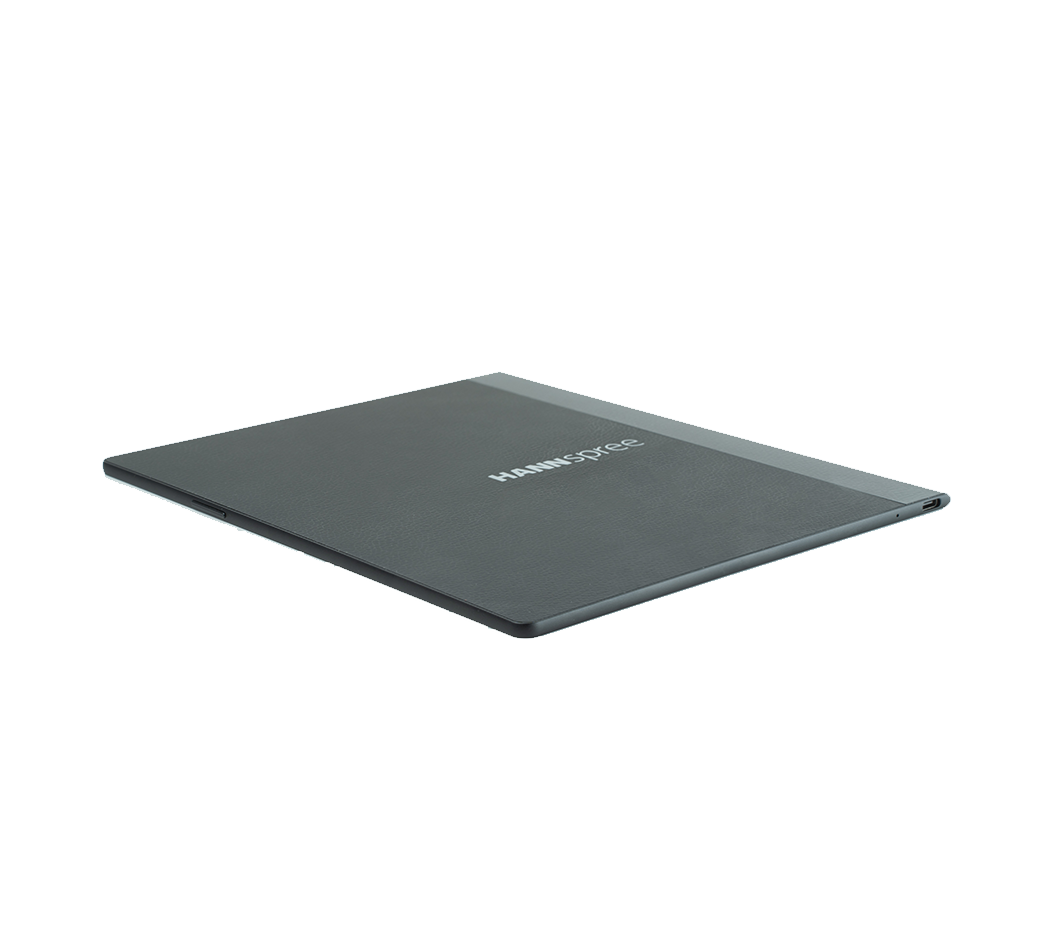

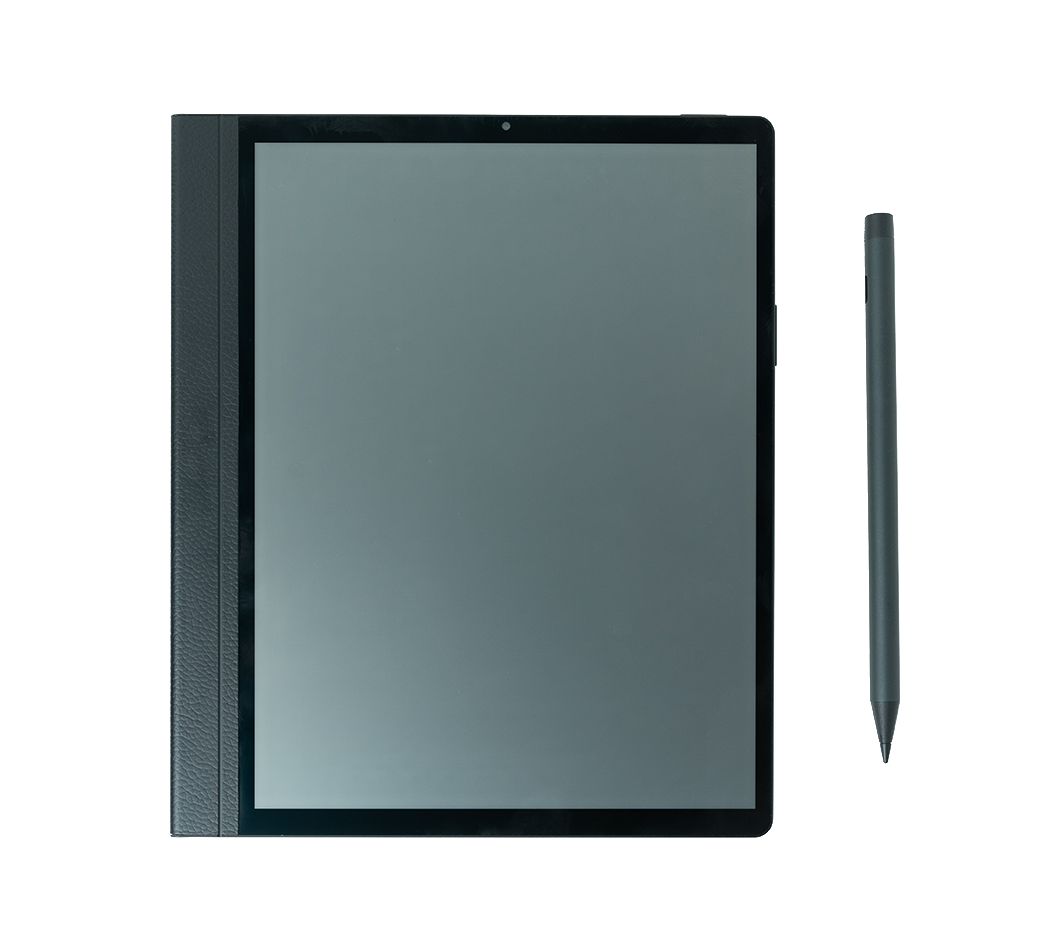

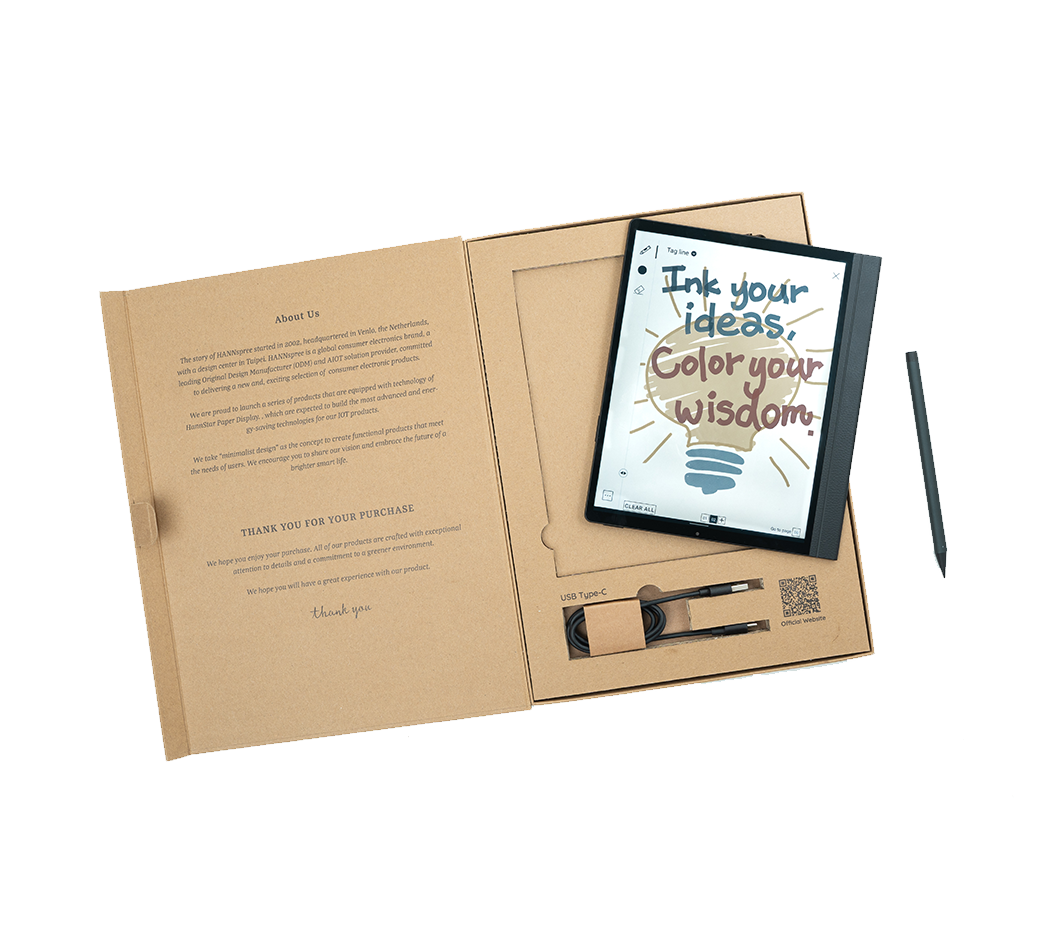

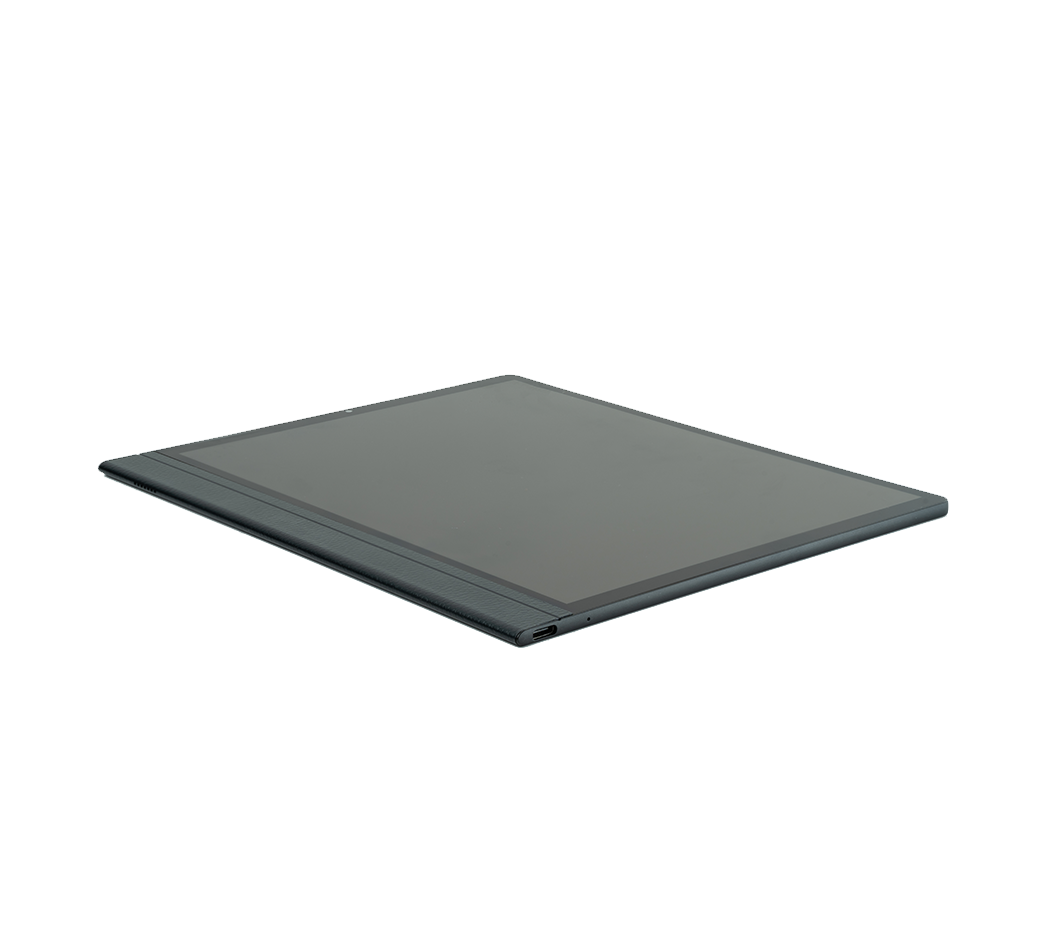

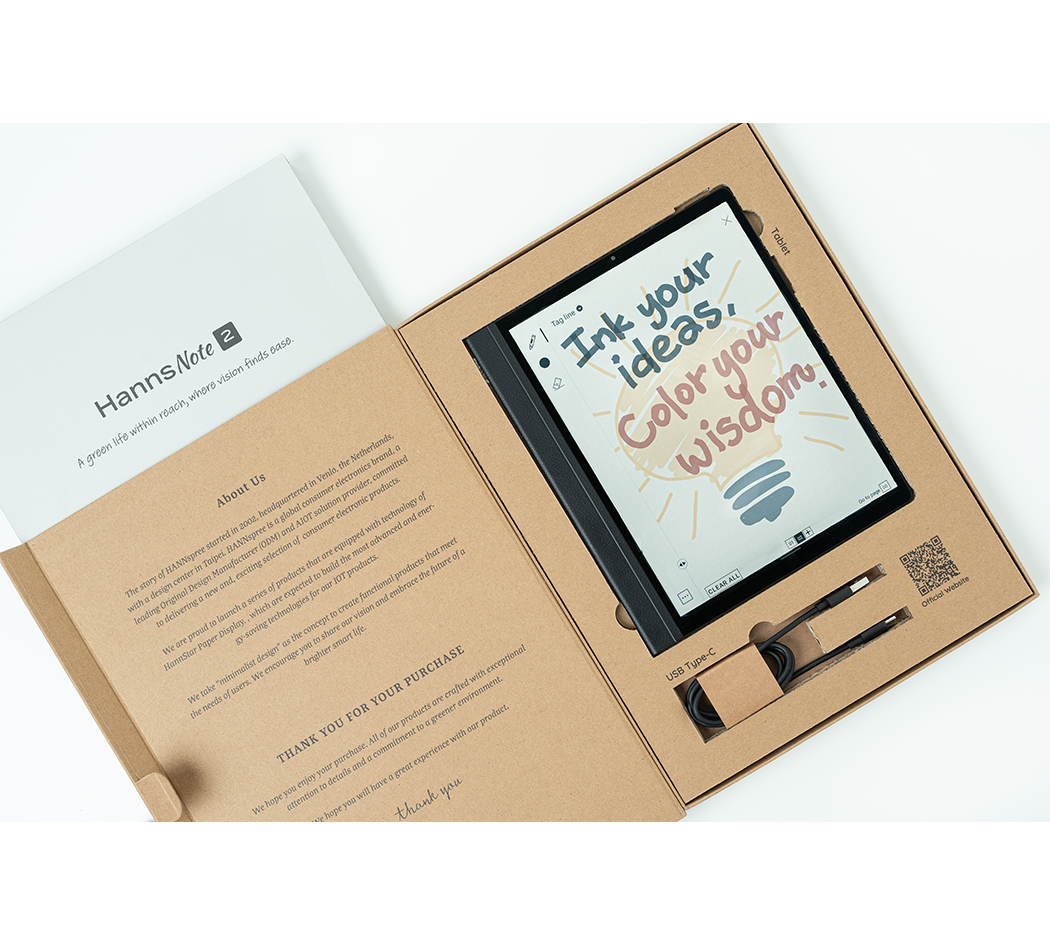

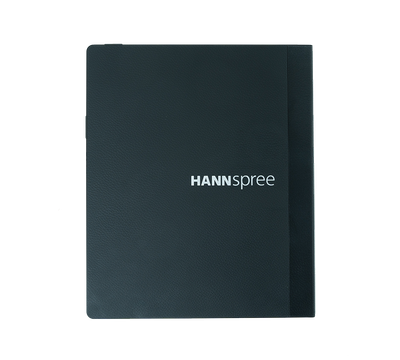

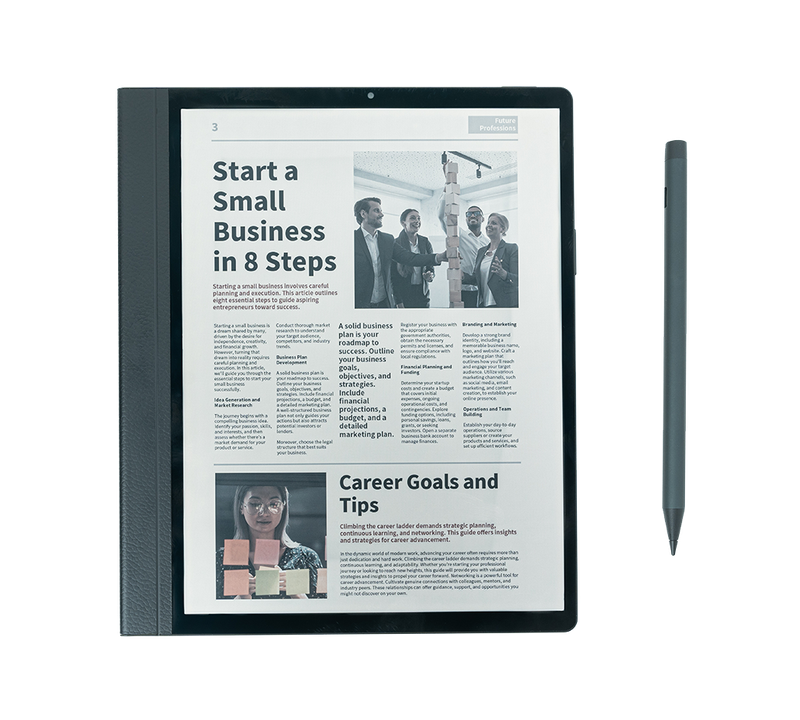

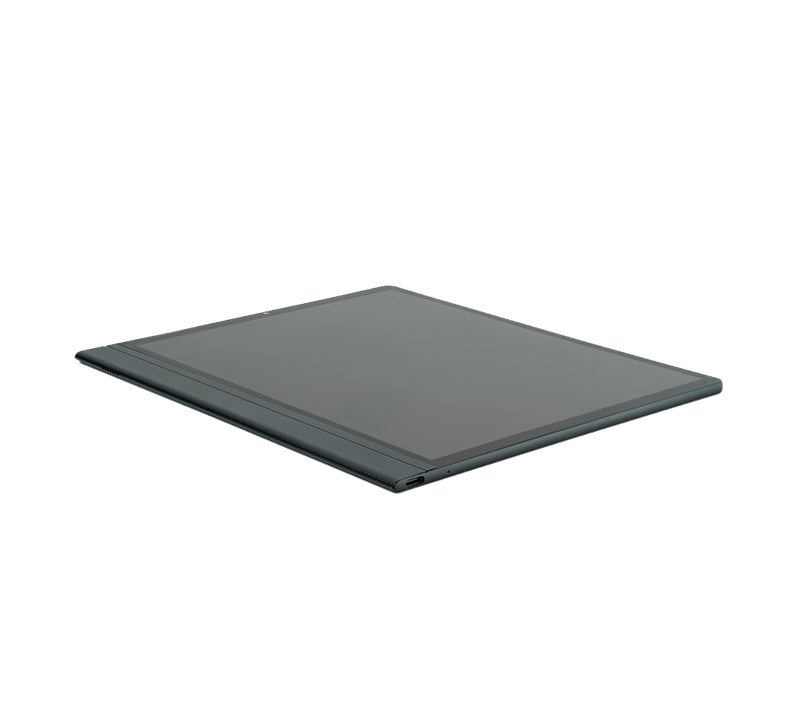

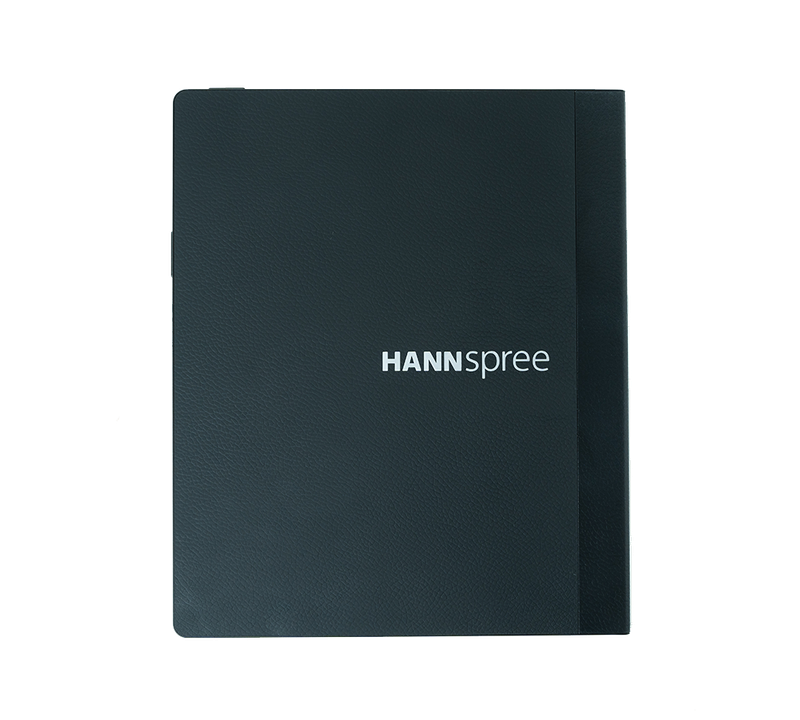

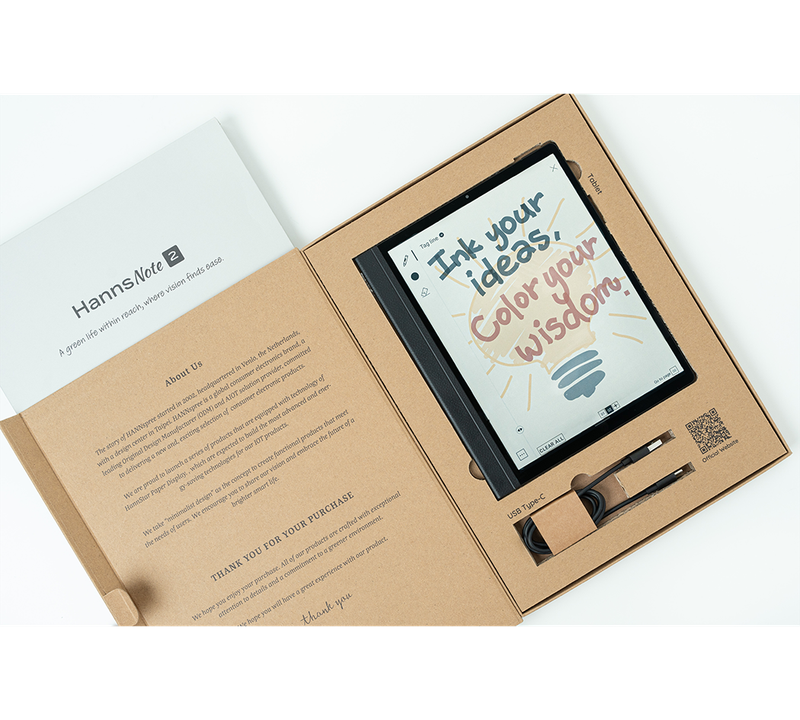

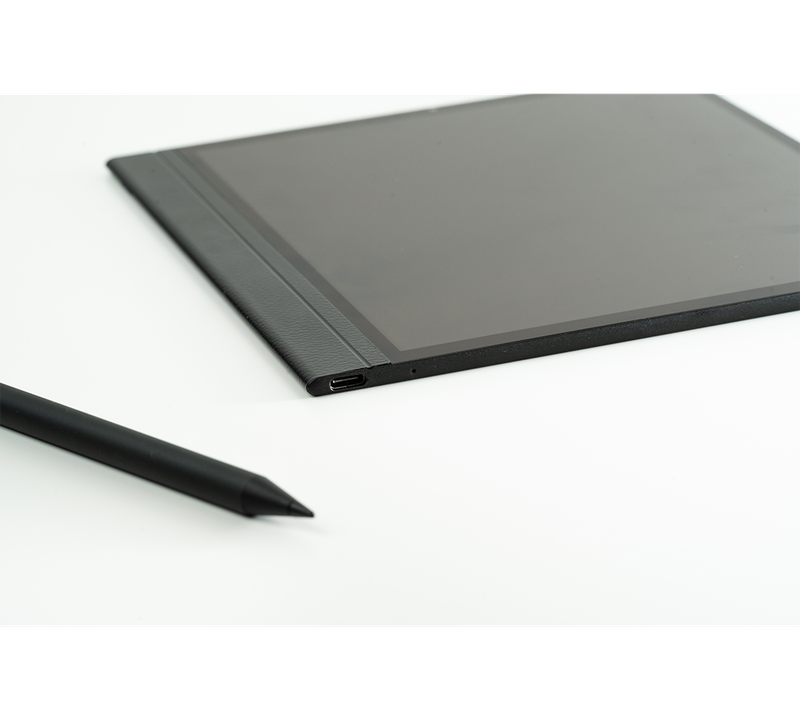

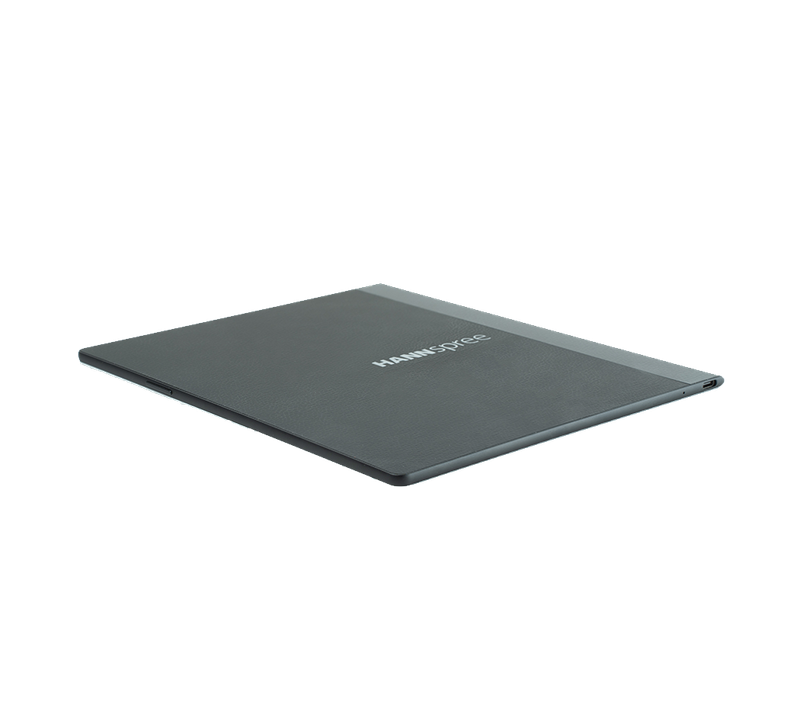

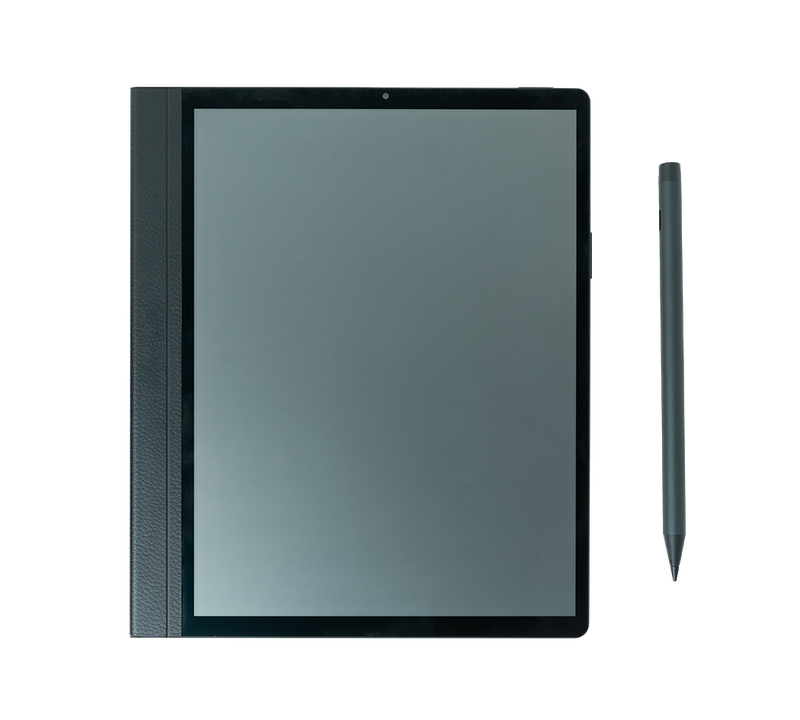

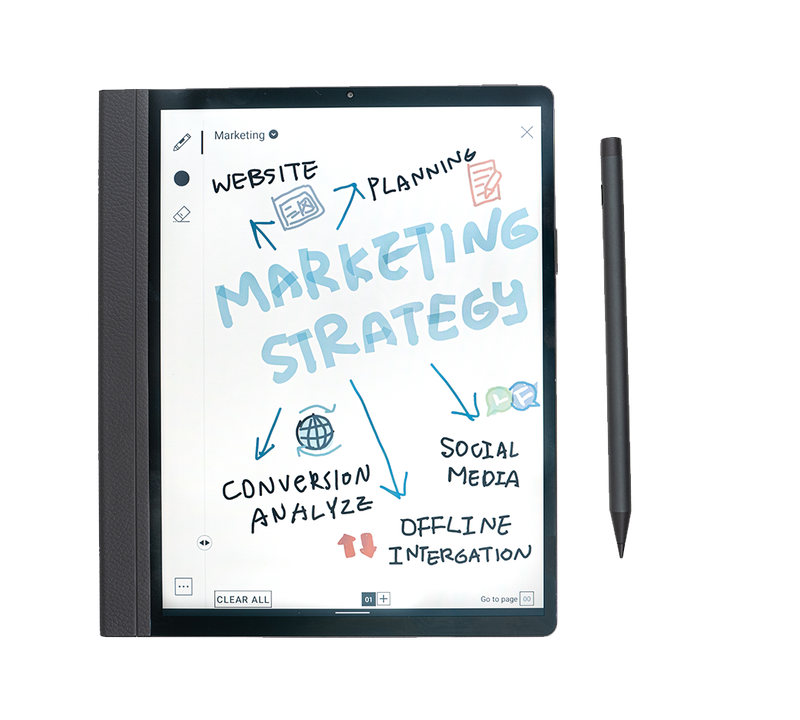

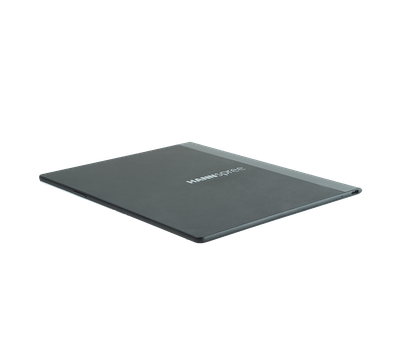

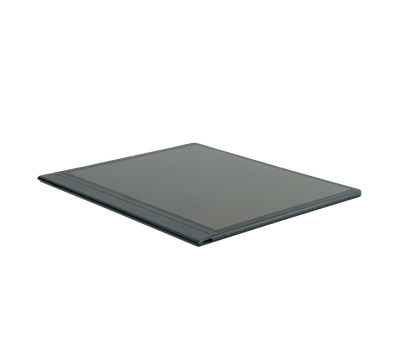

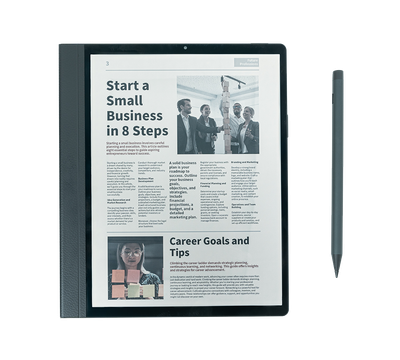

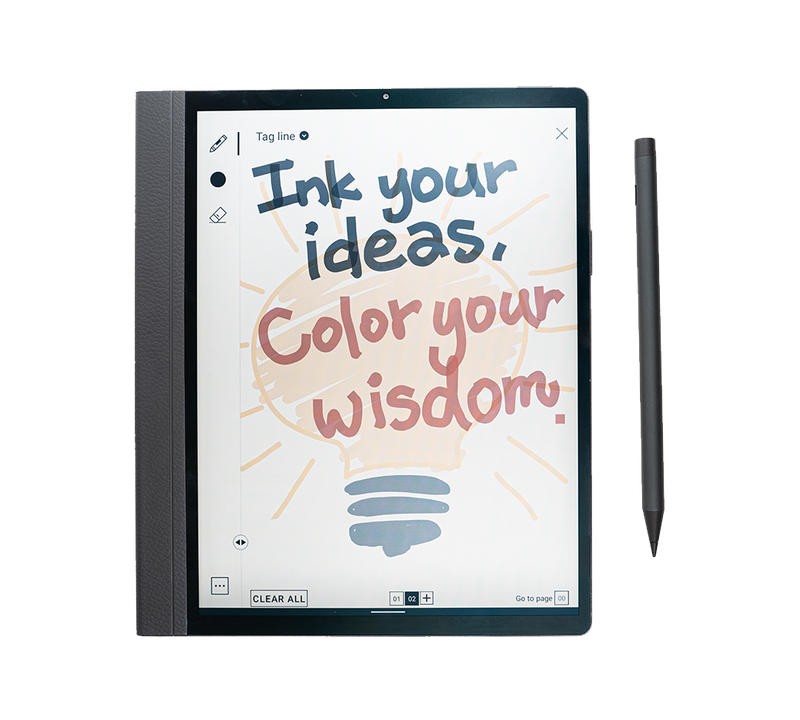

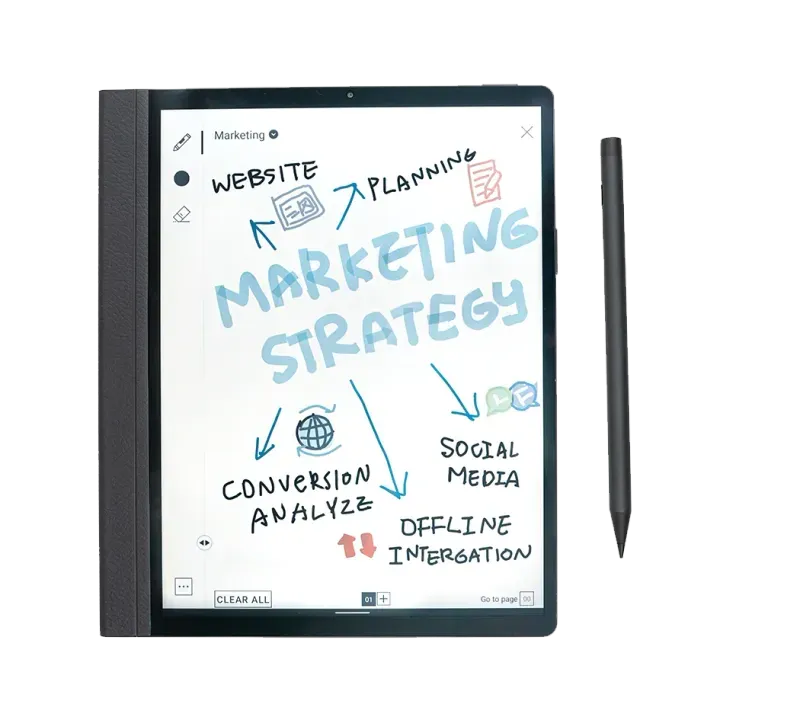

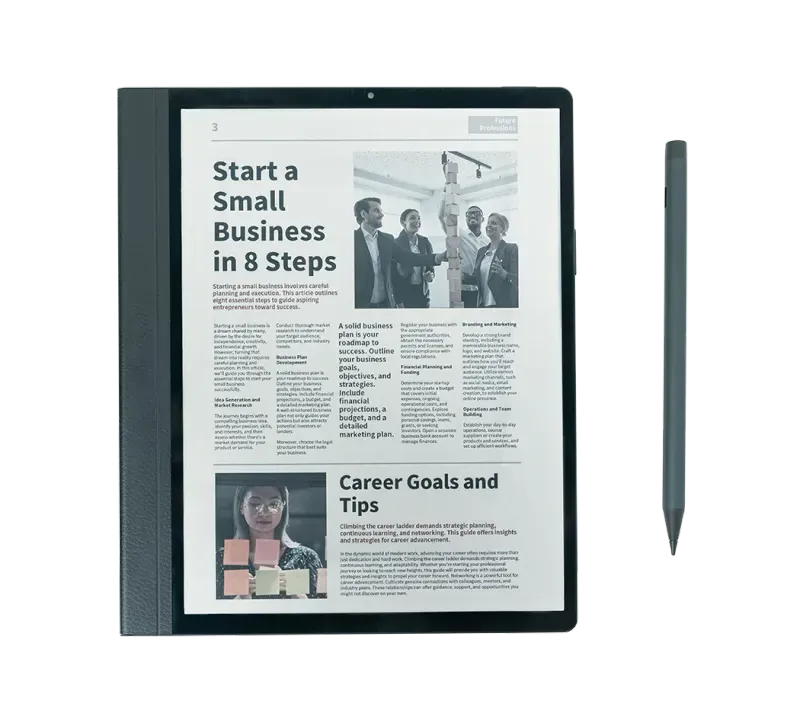

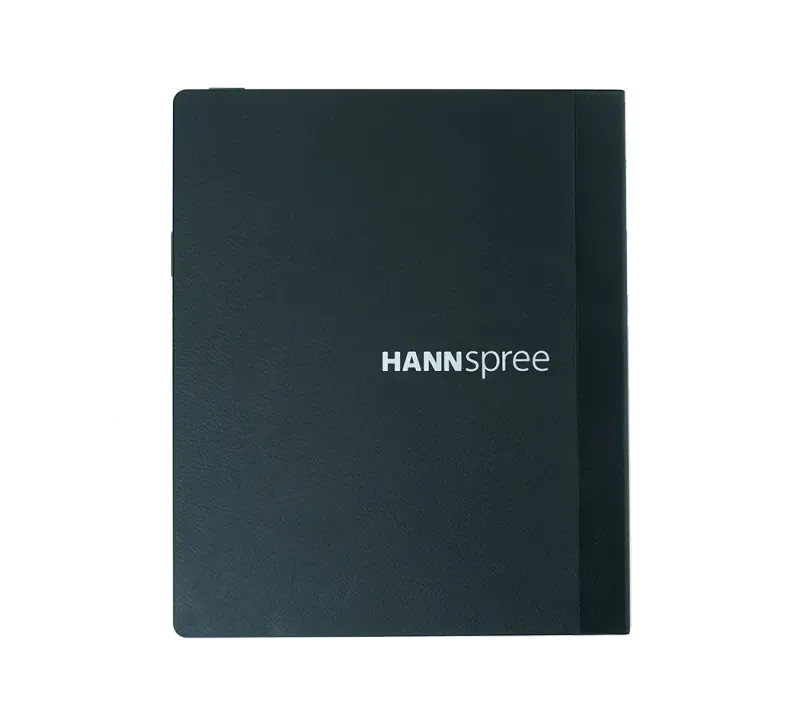

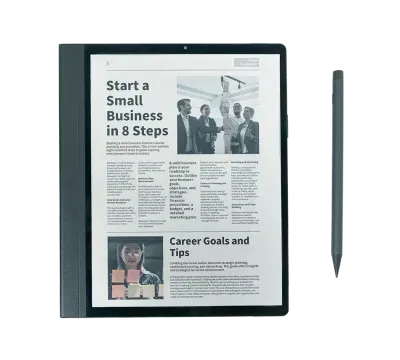

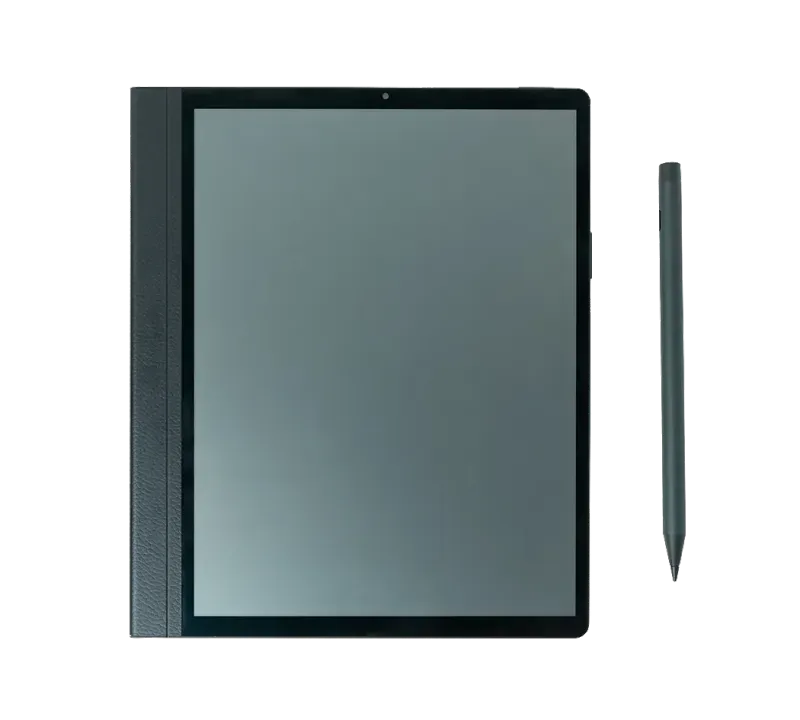

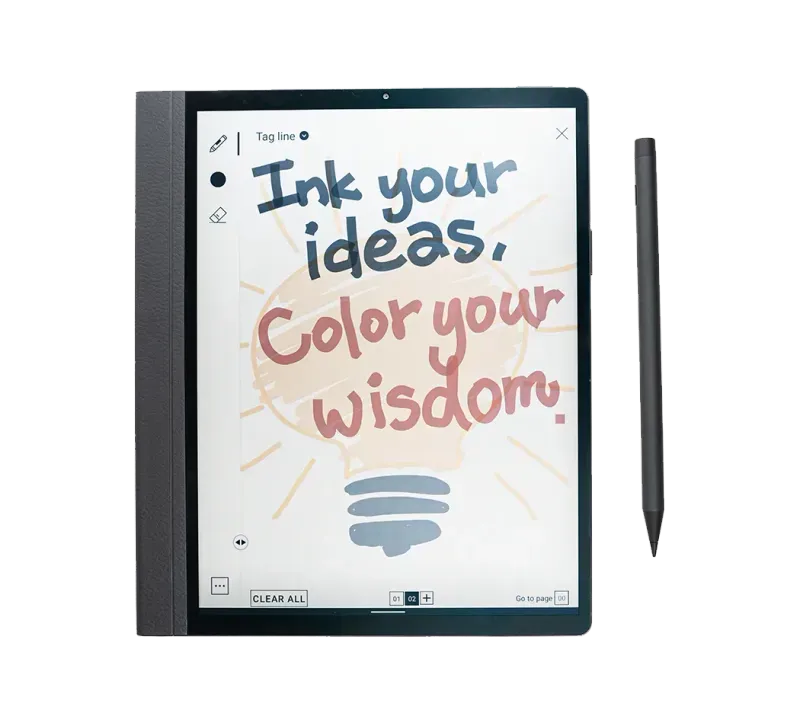

The Avalue HannsNote2 is a 10-inch digital paper tablet designed for eye-friendly reading and writing experiences. Featuring the ecoVision reflective display technology, it offers 16.7 million colors, 60Hz refresh rate, and zero blue light emission, ensuring comfortable usage even under sunlight. Powered by a quad-core RK3566 ARM A55 processor with 4GB RAM and 64GB storage, it runs on Android 13 OS, supporting a wide range of applications. The device includes a 2MP front camera, Wi-Fi, Bluetooth 5.0, and a USB Type-C port. Its ultra-thin design (4.7mm) and lightweight build (350g) make it highly portable, while the USI 2.0 stylus support enables precise note-taking and drawing.

System Information
Processor

Quad Core CPU RK3566 ARM A55 64 bit, 1.8GHz

System Memory

4GB (LPDDR4)

GPU

OpenGL ES 1.1/2.0/3.2, OpenCL 2.0 and Vulkan 1.1

Battery Type

Li-Ion Battery 2.200 mAh

Battery Life

Operation Battery Life: 3 hours (watching video);

Stand-By Battery Life: 72 hours

Camera

Front 2MP with Auto-Focus

Storage
Storage

64GB eMMC memory

Audio
Speaker Output

0.8 Watts

Software Support
OS

Android 13

External I/O
USB Port

1 x USB Type C 2.0

Panel
LCD Size

10"

Display Type

Eco-Friendly Paper Display Full Reflective type, w/o FL

Resolution

1200 x 1600

Pixel pitch

0.12705 (H) x 0.12705 (V) mm

Contrast ratio

20:1

Viewing angle

120° (H) / 120° (V)

Response time

5 ms

Touch Type

Projective capacitive multi-touch up to 10 points

Display color

16.7 M

Refresh Rate

60 Hz

Touch Input

Finger and stylus pen

Wireless Communication
Bluetooth

5.0

WLAN

Wi-Fi IEEE 802.11 b/g/n/a/ac 2.4/5GHz

Mechanical & Environmental
Operating Temp.

0°C ~ 45°C

Operating Humidity

20 ~ 80% non-condensing

Weight

350 g

Power Requirement

Input: 5V, 2A / Output: 5V, 1A

Dimension (W x H x D)

184.4 x 221.5 x 4.7mm
