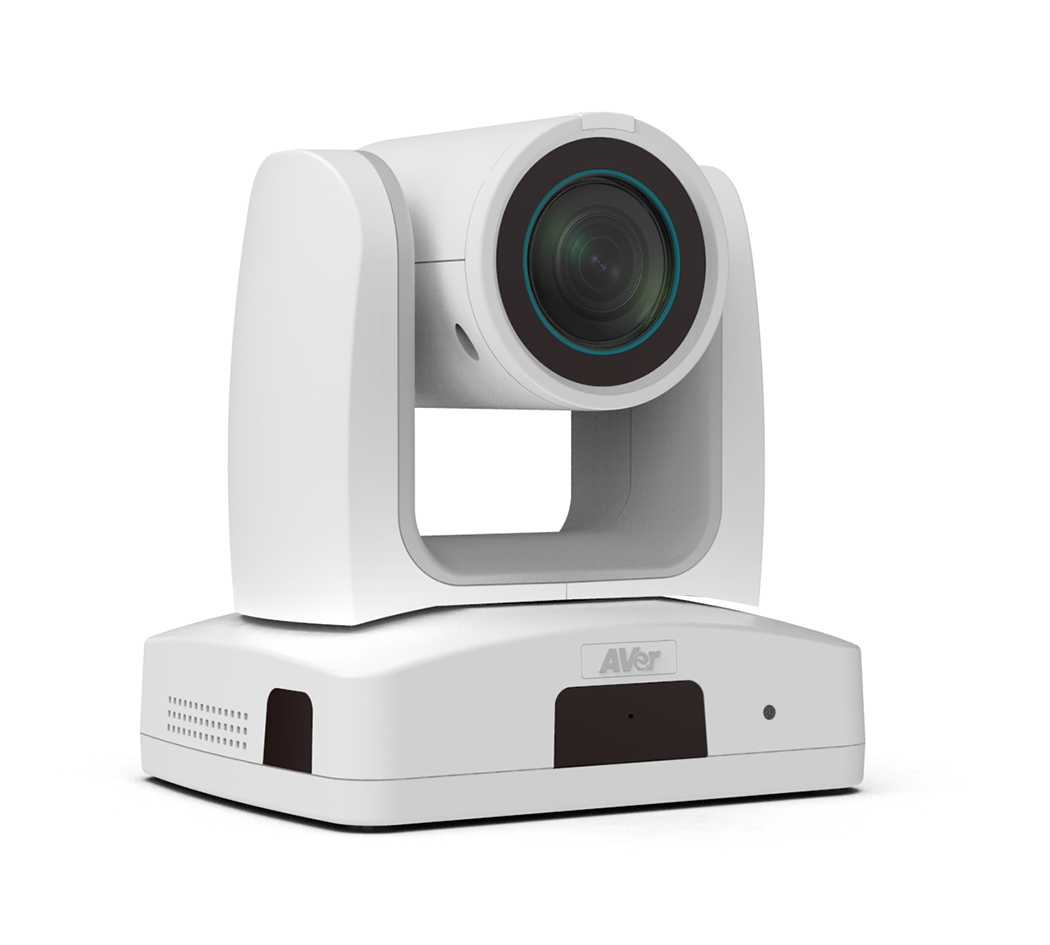

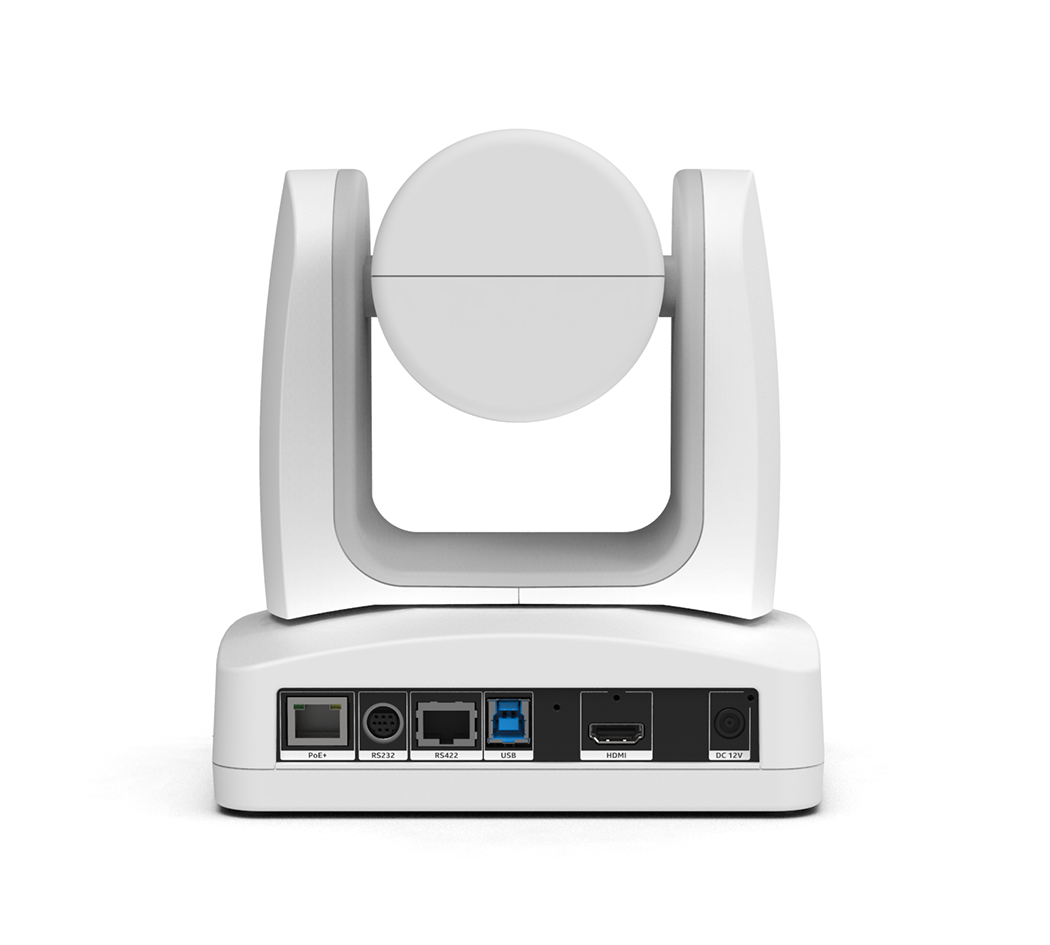

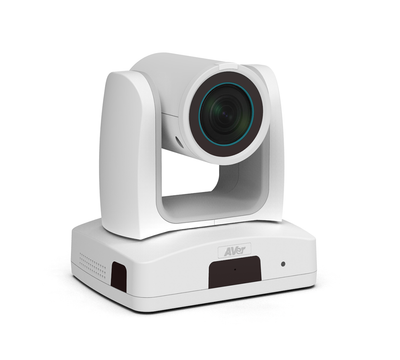

MD120UI

MD120UI FrontMD120UI FrontMD120UI FrontMD120UI Front
MD120UI FrontMD120UI FrontMD120UI FrontMD120UI Front

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Product Features

Product Description

The AVer MD120UI is a state-of-the-art medical-grade PTZ camera designed for comprehensive patient monitoring and telemedicine applications. Equipped with a 1/2.8\" Exmor CMOS sensor, it delivers ultra-clear 4K resolution and 20X optical zoom, ensuring precise imaging for clinical diagnostics.

Advanced AI algorithms facilitate automatic detection of patient body contours and specific areas of interest, such as the face and eyes, enhancing monitoring efficiency.

The camera's infrared night vision function enables 24/7 patient observation without disturbing rest, while the privacy mode ensures compliance with healthcare privacy standards.

With features like a built-in omnidirectional microphone, wide dynamic range (WDR), and compatibility with various control protocols, the MD120UI integrates seamlessly into healthcare environments.

Technical Specifications

Camera

Image Sensor

1/2.8\" CMOS

Power Frequencies

50Hz/60Hz

Image Processing

Mirror / Flip / Freeze / WDR / BLC

Camera Control - Interfaces

RS-232 / RS-422 / Ethernet

Camera Control - Protocols

VISCA (RS-232 / RS-422 / IP), CGI (IP)

Preset Positions

10 (IR), 256 (RS-232, RS-422, IP)

TV Lines

1000 (Center / Wide)

Preset Speed

Pan: 200°/sec, Tilt: 200°/sec

Pan / Tilt Speed (Manual)

Pan: 0.1° to 100°/sec, Tilt: 0.1° to 100°/sec

Pan / Tilt Angles

Pan: ±170°, Tilt: +90° / -30°

Minimum Working Distance

Wide: 0.01 m, Tele: 1.2 m

Aperture (Iris)

F = 1.8 (Wide) to 4.7 (Tele)

Focal Length

f = 4.5 mm (Wide) to 90 mm (Tele)

Total Zoom

20X

Digital Zoom

1X

Optical Zoom

20X

White Balance

Auto, Manual

Exposure Control

Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR

Shutter Speed

1/1 to 1/10,000 sec

Viewing Angles

DFOV: 69.2° (Wide) to 4.1° (Tele)

HFOV: 62.3° (Wide) to 3.6° (Tele)

VFOV: 37.7° (Wide) to 2.1° (Tele)

Gain

Auto, Manual

S/N Ratio

≥ 50dB

Minimum Illumination

0.5 lux (50 IRE, F1.6, Max. AGC, 1/30)

Output Resolutions

Resolutions: 4K / 1080p / 720p

Frame Rates: 60 / 59.94 / 50 / 30 / 29.97 / 25

Effective Picture Elements

8 Megapixels

AI Function

Mode

Eye Tracking

Audio

Channel

2ch Stereo

Codec

AAC-LC (48K)

Built-in Microphone

1 (Omni-Directional)

Interface

Video Outputs

HDMI, IP, USB

Audio Outputs

HDMI, IP, USB

General

Power Requirement

12V

PoE

PoE+ ( IEEE802.3at )

Operating Conditions

Temperature: 0°C to +40°C ; Humidity: 20% to 80%

Storage Conditions

Temperature: -20°C to +60°C; Humidity: 20% to 95%

Dimensions (W x H x D)

180 x 145 x 183.5 mm

Net Weight

1.7 ( ± 0.1 ) kg

Application

Indoor

Security

Kensington Slot

Power Consumption

24W

Housing Material

Anti-UV

IR Night Vision

Yes

IR Remote Control

Yes

Privacy

Protection Mode

Privacy Mode, Privacy Indicator

IP Streaming

Resolution

4K 60fps

Network Video Compress Formats

H.264, H.265, MJPEG

Maximum Frame Rate

4K 60fps

Bit-rate Control Mode

VBR, CBR

Range of Bit-rate Setting

512Kbps to 64Mbps

Network Interface

10 / 100 / 1000 Base-T

Multi-Stream Capability

2 (RTSP / Web page), 4K 60fps Max

Network Protocols

IPv6, IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP

RTP/RTCP, RTSP, RTMP,VISCA over IP

USB

Connector

USB 3.0 (Type-B)

Video Formats

MJPEG

USB Video Class (UVC)

UVC1.1

USB Audio Class (UAC)

UAC1.0

Maximum Video Resolution

2160p

Software Tools

IP Search and Configuration Tool

Support Windows® 7 or later

PTZ Management Aver Viewcare

Support Windows® 7 or later

PTZ Control Panel

Supports iOS & iPadOS® 11 or later

Camera Setting Tool

Supports Windows® 7 or later, macOS® 10.14 or later

Warranty

Camera

3 Years

Accessories

1 Year

WebUI

Live Video Preview

Yes

Camera PTZ Control

Pan, Tilt, Zoom, Focus, Preset Control

Camera/Image Adjustment

Exposure, White Balance, Picture

Network Configuration

DHCP, IP Address, Gateway, Subnet Mask, DNS

Package Contents

Package Contents

Camera, Drilling Paper, Ceiling Mount Bracket, Quick Start Guide, Cable Fixing Plate,

M2 x 4 mm Screw (x3), Power Adapter & Power Cord, 1/4”-20 L=6.5 mm Screw (x2),

Remote Control, M3 x 6 mm Screw (x3), USB Cable (Type-B

Optional Accessories

Optional Accessories

AVer CL01 PTZ Camera Controller, L-Type Wall Mount

What is MD120UI?

The MD120UI is a intelligent healthcare manufactured by Avalue, designed specifically for peripherals-and-accessories applications. The AVer MD120UI is a state-of-the-art medical-grade PTZ camera designed for comprehensive patient monitoring and telemedicine applications. Equipped with a 1/2.8\" Exmor CMOS sensor, it delivers ultra-clear 4K resolution and 20X optical zoom, ensuring precise imaging for clinical diagnostics. Advanced AI algorithms facilitate automatic detection of patient body contours and specific areas of interest, such as the face and eyes, enhancing monitoring efficiency. The camera's infrared night vision function enables 24/7 patient observation without disturbing rest, while the privacy mode ensures compliance with healthcare privacy standards. With features like a built-in omnidirectional microphone, wide dynamic range (WDR), and compatibility with various control protocols, the MD120UI integrates seamlessly into healthcare environments.

Key Features & Benefits

Features information coming soon.

Applications & Use Cases

The MD120UI is ideal for various industrial automation applications:

  • Comprehensive patient monitoring and telemedicine applications
  • Healthcare and medical device integration
  • Industrial automation and control
  • Manufacturing process monitoring
  • Quality assurance and inspection
  • Production line automation
