What is the FTC-07WN?

It is a Flex Touch Console for HMI applications, built on an STM32H7 MCU with a 7" 800x480 capacitive touch panel.

What MCU does the FTC-07WN use?

An STMicroelectronics STM32H7 microcontroller.

What is the display of the FTC-07WN?

A 7" capacitive touch panel at 800 x 480 resolution.

How is the FTC-07WN programmed?

Via a no-code / low-code (Python) model using Avalue's free Integrated Development Environment (IDE).

What connectivity does the FTC-07WN provide?

Wi-Fi, RS-485, RS-232 and Ethernet, plus a Micro USB OTG port and a Micro SD slot.

How is the FTC-07WN powered?

From a 12~24V DC input (AT power mode).

What is the operating temperature range of the FTC-07WN?

-15 ~ 65°C (-5 ~ 149°F), with -30 ~ 80°C storage.

What are the dimensions and weight of the FTC-07WN?

184.1 x 106.85 mm (TBD), approximately 0.29 kg.

Does the FTC-07WN run an operating system?

No — it is an MCU-based console programmed directly via the IDE rather than running a general-purpose OS.

What expansion/storage does the FTC-07WN support?

A Micro SD slot for storage and a Micro USB port used for OTG.

How does the FTC-07WN differ from the FTC-05WN?

Both are STM32H7 800x480 Flex Touch Consoles; the FTC-07WN has a larger 7" panel and adds onboard Ethernet and RS-232, while the FTC-05WN is 5" with Wi-Fi/RS-485.

What applications is the FTC-07WN best suited for?

Machine and IoT operator interfaces needing a quick-to-program, wired-and-wireless, wide-temperature touch HMI.

Avalue · IoT Solution

FTC-07WN

Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

Flex Touch Console for HMI applications
STMicroelectronics STM32H7 MCU
7" 800 x 480 capacitive touch panel
256MB system memory; Micro SD slot
Wi-Fi, RS-485, RS-232 and Ethernet
Micro USB OTG
No-code / low-code (Python) development
Free Integrated Development Environment (IDE)
DC 12~24V input; wide -15 ~ 65°C operating range

Product Description

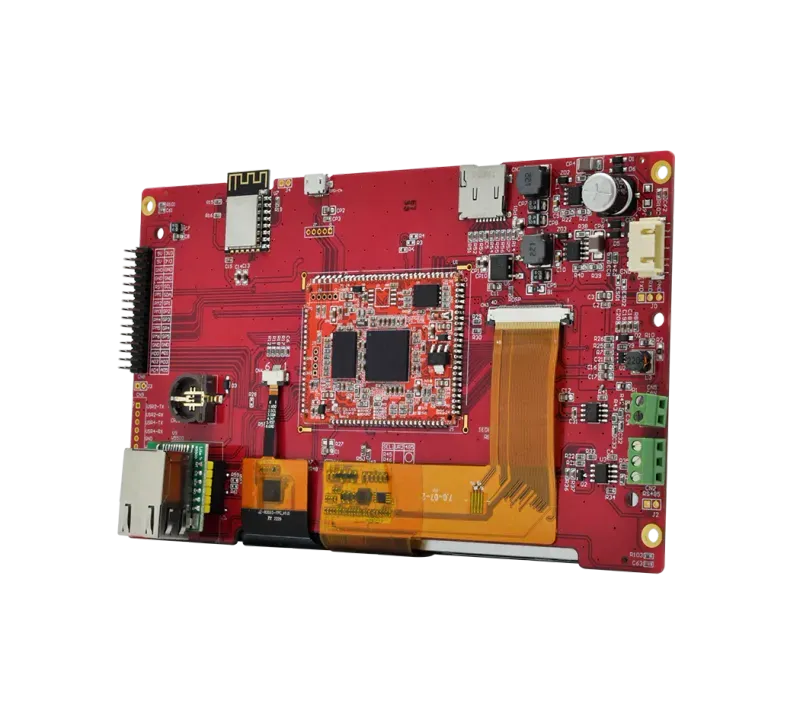

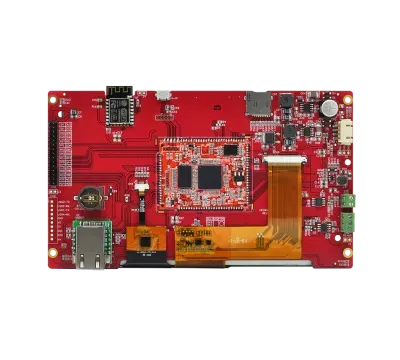

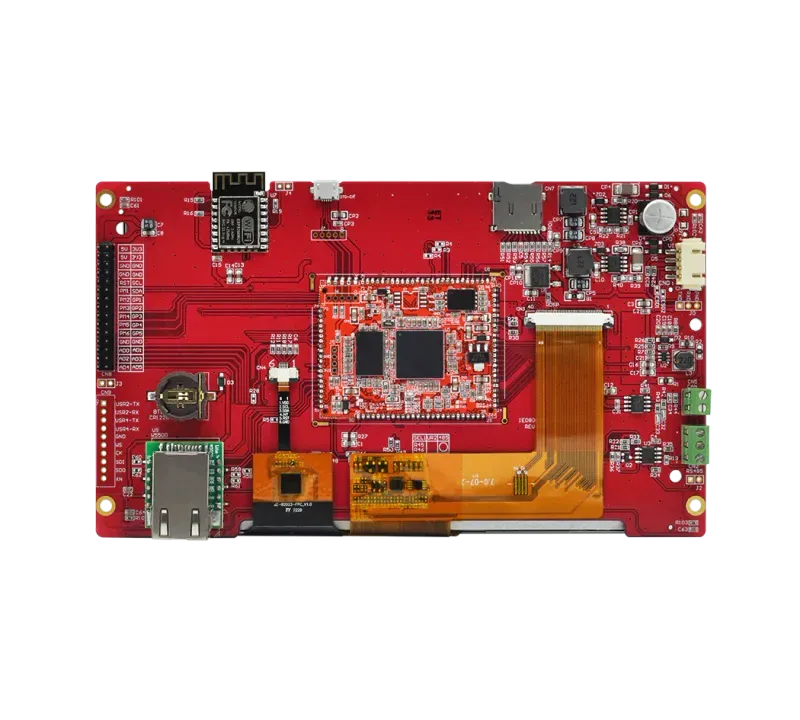

The Avalue FTC-07WN is a Flex Touch Console for HMI applications, built on an STMicroelectronics STM32H7 MCU with a 7" 800x480 capacitive touch panel, designed as an easily-programmed operator interface for machines and IoT equipment.

With 256MB system memory, a Micro SD slot and a no-code / low-code (Python) development model backed by a free Integrated Development Environment (IDE), it shortens HMI deployment.

It provides Wi-Fi, RS-485, RS-232, Ethernet and a Micro USB OTG port, on a 12~24V DC input over a wide -15 ~ 65°C range, in a 184.1 x 106.85 mm form factor, ~0.29kg.

Technical Specifications

MCU

STM32H7

System Memory

2Gb (256MB)

Touch Panel

Capacitive TP

Edge I/O

1 x Micro SD slot

1 x Micro USB (use for OTG)

1 x RS485

1 x RS232

1 x Ethernet

1 x WIFI

Resolution

800 x 480

Power Input

DC 12~24V

Power Mode

Operating Temperature

-15~65°C (-5~149°F)

Storage Temperature

-30~80°C (-22~176°F)

Dimension

184.1 x 106.85mm (TBD)

Weight

0.29 kg

OS

Non OS (no-code / low-code Python development via free IDE)

Order Information

FTC-07WN-A1-01R

What is FTC-07WN?

The FTC-07WN is a iot solution manufactured by Avalue, designed specifically for flex-touch-console-hmi applications. The Avalue FTC-07WN is a Flex Touch Console for HMI applications, built on an STMicroelectronics STM32H7 MCU with a 7" 800x480 capacitive touch panel, designed as an easily-programmed operator interface for machines and IoT equipment. With 256MB system memory, a Micro SD slot and a no-code / low-code (Python) development model backed by a free Integrated Development Environment (IDE), it shortens HMI deployment. It provides Wi-Fi, RS-485, RS-232, Ethernet and a Micro USB OTG port, on a 12~24V DC input over a wide -15 ~ 65°C range, in a 184.1 x 106.85 mm form factor, ~0.29kg.

Key Features & Benefits

Flex Touch Console for HMI applications
STMicroelectronics STM32H7 MCU
7" 800 x 480 capacitive touch panel
256MB system memory; Micro SD slot
Wi-Fi, RS-485, RS-232 and Ethernet
Micro USB OTG
No-code / low-code (Python) development
Free Integrated Development Environment (IDE)
DC 12~24V input; wide -15 ~ 65°C operating range

Applications & Use Cases

The FTC-07WN is ideal for various industrial automation applications:

DC-powered industrial installations and mobile applications
Wireless connectivity and remote monitoring applications
Legacy equipment integration and serial communication
Networked industrial systems and data communication
Interactive control interfaces and operator panels
Peripheral device connectivity and data transfer
Memory-intensive applications and multitasking
Internet of Things (IoT) and edge computing
