Product Datasheet
20 May 2026
IoT Solution · Flex-Touch-Console-HMI
FTC-07WN
Series: FTC
Manufactured byAvalue

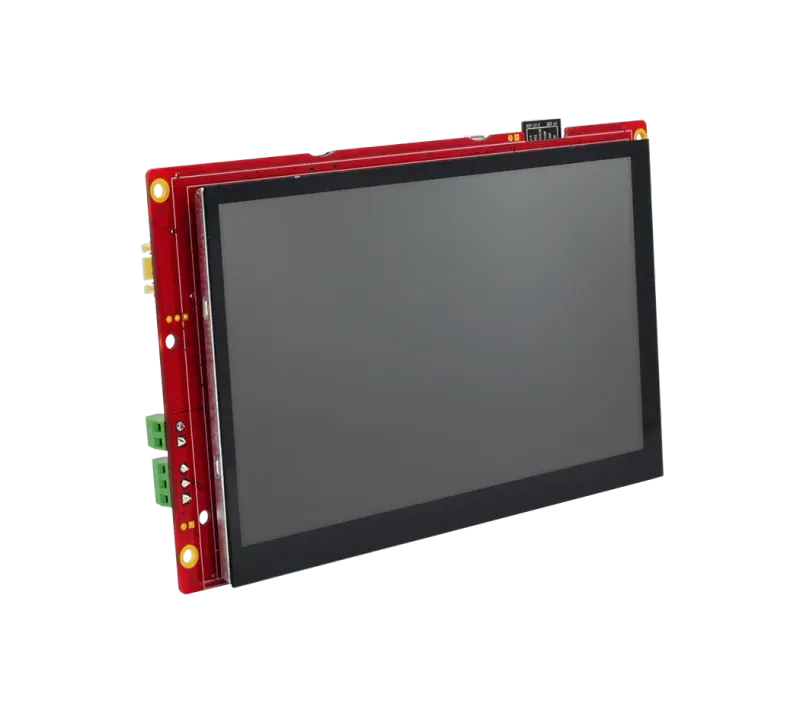

The Avalue FTC-07WN is a Flex Touch Console for HMI applications, built on an STMicroelectronics STM32H7 MCU with a 7" 800x480 capacitive touch panel, designed as an easily-programmed operator interface for machines and IoT equipment. With 256MB system memory, a Micro SD slot and a no-code / low-code (Python) development model backed by a free Integrated Development Environment (IDE), it shortens HMI deployment. It provides Wi-Fi, RS-485, RS-232, Ethernet and a Micro USB OTG port, on a 12~24V DC input over a wide -15 ~ 65°C range, in a 184.1 x 106.85 mm form factor, ~0.29kg.
Key Features
- Flex Touch Console for HMI applications
- STMicroelectronics STM32H7 MCU
- 7" 800 x 480 capacitive touch panel
- 256MB system memory; Micro SD slot
- Wi-Fi, RS-485, RS-232 and Ethernet
- Micro USB OTG
- No-code / low-code (Python) development
- Free Integrated Development Environment (IDE)
- DC 12~24V input; wide -15 ~ 65°C operating range
Technical Specifications
Specification
| MCU | STM32H7 |
|---|---|
| System Memory | 2Gb (256MB) |
| Touch Panel | Capacitive TP |
| Edge I/O | 1 x Micro SD slot, 1 x Micro USB (use for OTG), 1 x RS485, 1 x RS232, 1 x Ethernet, 1 x WIFI |
| Resolution | 800 x 480 |
Power Requirement
| Power Input | DC 12~24V |
|---|---|
| Power Mode | AT |
Mechanical & Environmental
| Operating Temperature | -15~65°C (-5~149°F) |
|---|---|
| Storage Temperature | -30~80°C (-22~176°F) |
| Dimension | 184.1 x 106.85mm (TBD) |
| Weight | 0.29 kg |
Software Support
| OS | Non OS (no-code / low-code Python development via free IDE) |
|---|
Ordering Information
| Order Information | FTC-07WN-A1-01R |
|---|
