AUX-080

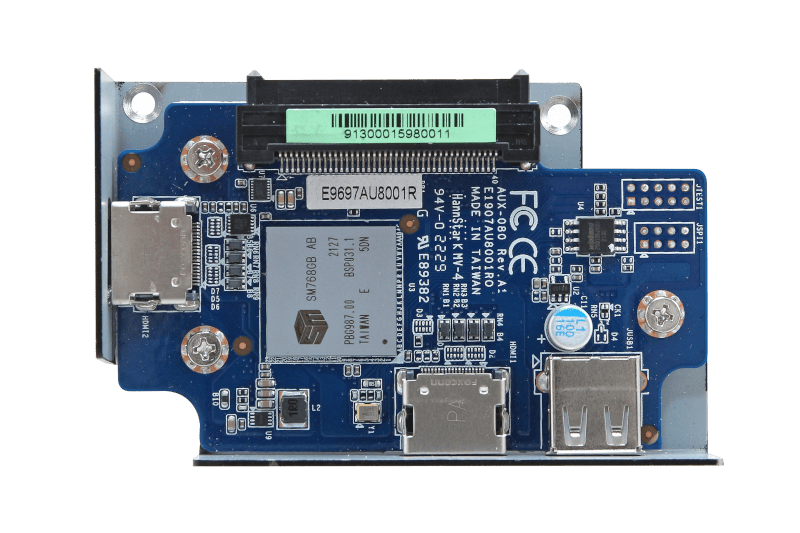

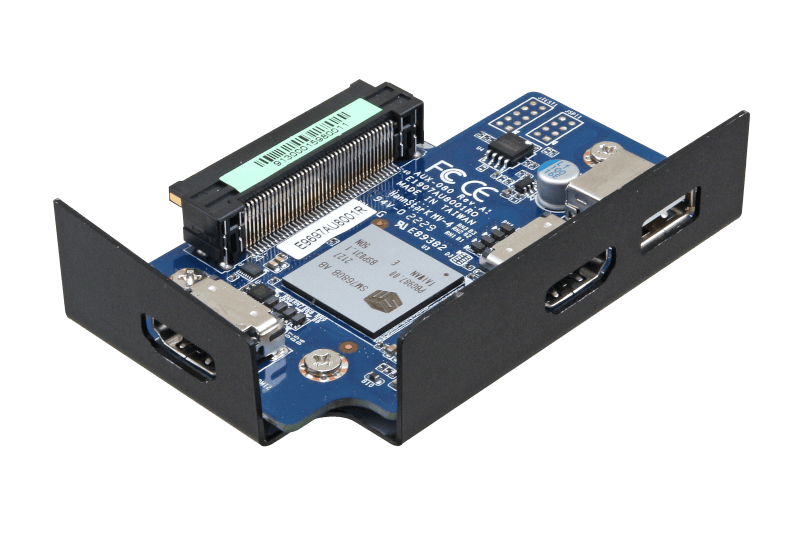

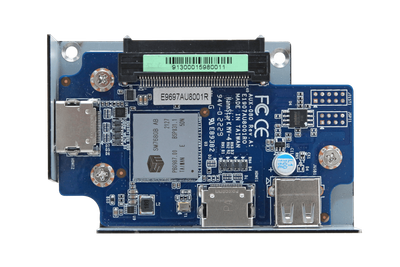

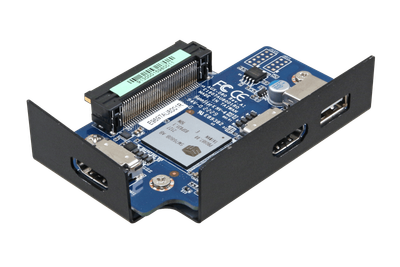

AUX-080 FrontAUX-080 Front
AUX-080 FrontAUX-080 Front

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Product Features

  • 2 x HDMI
  • 1 x USB2.0

Product Description

The Avalue AUX-080 is an industrial-grade peripheral accessory developed to complement Avalue panel PCs, monitors, and industrial computing platforms.

Built for reliable operation in demanding environments, the AUX-080 supports seamless integration with industrial systems used in automation, manufacturing, kiosks, and control applications.

Its durable design and compatibility with Avalue hardware make it a dependable accessory for expanding or supporting panel PC and monitor installations.

Technical Specifications

System Information

Board

E9697AU8001R

Display

Graphic Chipset

SiliconMotion SM768 Embedded GPU

Spec. & Resolution

HDMI: Max. resolution 4096x2160 @ 24Hz

Software Support

OS

Win10

*1. Need to use OEM BIOS when use the IET board

*2. Need install driver

*3. Chip is silicon motion SM768

Internal I/O

HDMI

2 x HDMI

USB

1 x USB2.0

Mechanical & Environmental

Weight

200 g

Storage Temp.

-20°C ~ 60°C (-4°F ~ 140°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Operating Temp.

-10°C ~ 50°C (14°F ~ 122°F)

Dimension (L x W)

86 x 55mm

Ordering Information

Ordering Information

AUX-080-2HDMI-A1R

2 x HDMI + USB2.0 for ARC Series, A1


AUX-080-HDMI-B1R

2 x HDMI + USB2.0 for ARC-xx35(New Back Cover) series

What is AUX-080?

The AUX-080 is a panel pc / monitor / mobile manufactured by Avalue, designed specifically for ipc-peripherals-and-accessories applications. The Avalue AUX-080 is an industrial-grade peripheral accessory developed to complement Avalue panel PCs, monitors, and industrial computing platforms. Built for reliable operation in demanding environments, the AUX-080 supports seamless integration with industrial systems used in automation, manufacturing, kiosks, and control applications. Its durable design and compatibility with Avalue hardware make it a dependable accessory for expanding or supporting panel PC and monitor installations.

Key Features & Benefits

  • 2 x HDMI
  • 1 x USB2.0

Applications & Use Cases

The AUX-080 is ideal for various industrial automation applications:

  • Peripheral device connectivity and data transfer
  • Manufacturing and production line applications
  • Interactive kiosk and self-service terminals
  • Industrial control and monitoring systems
  • Factory automation and process control
  • Machine control and visualization
  • SCADA and HMI applications
