What is the Nexcom APPD 1700-1?

A 17" 4:3 SXGA (1280 x 1024) industrial touch monitor with a 5-wire resistive flush-panel touchscreen, IP65 front bezel and triple video inputs (VGA, DVI-D, DisplayPort). It is sized as a second display for Nexcom NISE fanless computers, NViS surveillance systems and APPC panel PCs.

Is the APPD 1700-1 a panel PC?

No — it is a touch monitor / industrial display. It has no CPU, RAM, storage or OS. It connects to an external host via VGA, DVI-D or DisplayPort with touch reported back to the host over USB (and optionally RS-232).

What touch technology does it use?

5-wire resistive flush-panel touchscreen with 81% light transmission. Touch reports back to the host over USB type A by default, with an optional RS-232 (DB-9) channel.

What video inputs are supported?

Three rear video inputs — analog VGA (1 x DB-15), DVI-D (on a DVI-I connector) and DisplayPort.

What is the IP rating?

IP65 on the front panel — sealed against low-pressure water jets and dust ingress for use in light-washdown industrial environments. The chassis rear is not separately rated.

How is the APPD 1700-1 powered?

24 V DC ±20% through a 3-pin Phoenix terminal block. An optional 24 V / 60 W AC-DC power adapter (P/N 7400060054X00, sold separately) is available.

Panel, wall, stand or VESA 100 x 100 mm. The chassis is ultra-slim and shares the appearance of the Nexcom APPC panel PC series for a consistent visual install.

Where do I buy the Nexcom APPD 1700-1?

TSL Automation supplies the Nexcom APPD 1700-1 worldwide. Contact our team via the contact form with your target quantity, host platform and any cable / adapter options required and we will follow up with a quotation and lead time.

Nexcom · Panel PC / Monitor / Mobile

APPD 1700-1

Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Nexcom

Highlights

17" 4:3 SXGA (1280 x 1024) LED-backlit industrial touch monitor, 350 cd/m² typ., 800:1 contrast, 16.7M colours
5-wire resistive flush-panel touchscreen, 81% light transmission
Dual touch interface: USB type A + optional RS-232 (DB-9)
IP65 compliant plastic front bezel with flush touch panel
Triple video inputs: VGA (DB-15), DVI-D (on DVI-I connector), DisplayPort
Wide 24 V DC ±20% input through 3-pin Phoenix terminal block; optional 24 V / 60 W AC-DC adapter
Mounting: panel / wall / stand / VESA 100 x 100 mm; ultra-slim depth
OSD via rear keypad
Operating -20°C to 60°C; storage -20°C to 75°C; 10–90% RH non-condensing
IEC 68 2-64 vibration (2 Grms sine 5–500 Hz 1 hr/axis op); IEC 68 2-27 shock (20 G half-sine 11 ms wall mount)
Dimensions 410.42 x 340.31 x 55.9 mm; weight 4.8 kg; CE + FCC Class B
Second display for Nexcom NISE fanless computers, NViS surveillance and APPC panel PCs

Product Description

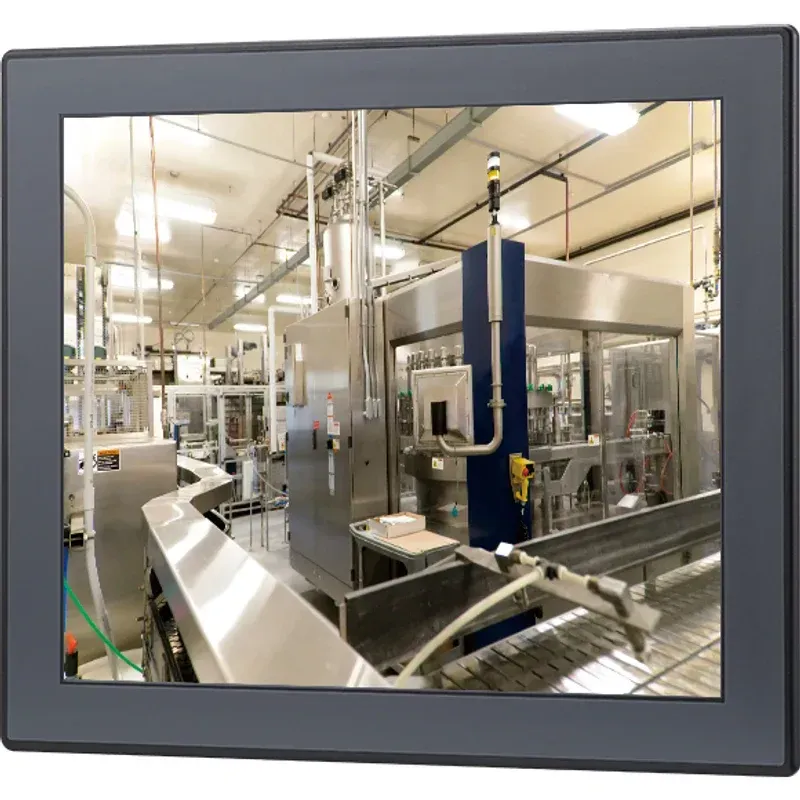

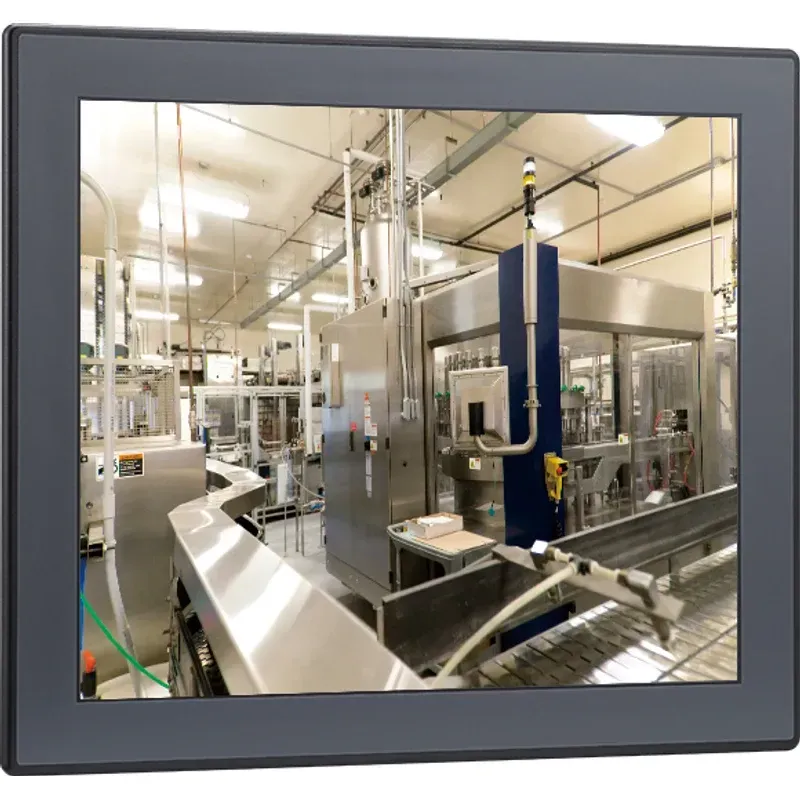

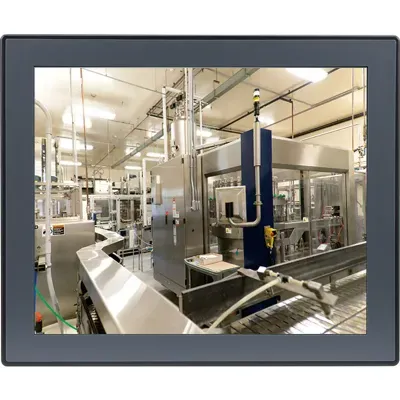

The Nexcom APPD 1700-1 is a 17" 4:3 SXGA (1280 x 1024) industrial touch monitor designed as a second display for Nexcom NISE fanless computers, NViS surveillance systems and APPC panel PCs.

The LED-backlit panel delivers 350 cd/m² typical luminance and an 800:1 contrast ratio behind a 5-wire resistive flush-panel touchscreen with 81% light transmission.

The plastic front bezel is rated IP65 and the flush face is easy to wipe down for cleanrooms, food and beverage lines and other regulated environments.

Rear I/O carries three locked video inputs — VGA (DB-15), DVI-D (on a DVI-I connector) and DisplayPort — and a dual touch interface (USB type A and optional RS-232 on a DB-9). Power is 24 V DC ±20% through a 3-pin Phoenix terminal block, with an optional 24 V / 60 W AC-DC adapter (P/N 7400060054X00).

The monitor mounts panel, wall, stand or VESA 100 x 100 mm. OSD is via a rear keypad. The APPD 1700-1 is CE-approved and FCC Class B tested, sized for industrial second-display, HMI mirroring and remote-display roles. TSL Automation supplies the Nexcom APPD 1700-1 worldwide.

Technical Specifications

LCD Size

17"

Aspect Ratio

4:3

Resolution

SXGA 1280 x 1024

Luminance

350 cd/m²

Contrast Ratio

800:1

LCD Colour

16.7M

Viewing Angle

60 (U), 80 (D), 80 (L), 80 (R)

Backlight

LED

Touch Type

5-wire resistive (flush panel type)

Touch Light Transmission

81%

Touch Interface

USB type A + optional RS-232 (DB-9)

Touch Interface Port

RS-232 (1 x DB-9) + USB type A

Video Ports

VGA (1 x DB-15)

DVI-D (1 x DVI-I connector)

DisplayPort

DC Power Input Connector

3-pin Phoenix terminal block

OSD Keypad

Yes (rear)

DC Input

24 V DC ±20%

Power Adapter (Optional)

24 V / 60 W AC-DC adapter w/o power cord (P/N 7400060054X00)

Colour

Pantone black bezel + black silver chassis box

IP Rating

IP65 (front)

Mounting

Panel / Wall / Stand / VESA 100 x 100 mm

Outline (W x H x D)

410.42 x 340.31 x 55.9 mm

Weight

4.8 kg

Operating Temp.

-20°C to 60°C

Storage Temp.

-20°C to 75°C

Operating Humidity

10–90% RH, non-condensing (limited to 90% RH at max 50°C)

Vibration

IEC 68 2-64

2 Grms sine, 5–500 Hz, 1 hr/axis (operating)

2.2 Grms random, 5–500 Hz, 0.5 hr/axis (non-operating)

Shock

IEC 68 2-27

20 G wall mount, half sine, 11 ms

Certification Information

CE approval

FCC Class B

Barebone

APPD 1700-1 (P/N: 10IA0170000X0) — 17" SXGA industrial 4:3 LCD flush touch monitor with VGA, DVI-D and DisplayPort, 24 VDC input, RS-232 and USB touch interface

Options

24 V / 60 W AC-DC power adapter w/o power cord (P/N 7400060054X00)

1.8 m DVI-D male-to-male cable (P/N 603DVI0007X00)

What is APPD 1700-1?

The APPD 1700-1 is a panel pc / monitor / mobile manufactured by Nexcom, designed specifically for industrial-display applications. It features display of 17", touch of 5-wire resistive (flush panel type) and storage of -20°C to 75°C. The Nexcom APPD 1700-1 is a 17" 4:3 SXGA (1280 x 1024) industrial touch monitor designed as a second display for Nexcom NISE fanless computers, NViS surveillance systems and APPC panel PCs. The LED-backlit panel delivers 350 cd/m² typical luminance and an 800:1 contrast ratio behind a 5-wire resistive flush-panel touchscreen with 81% light transmission. The plastic front bezel is rated IP65 and the flush face is easy to wipe down for cleanrooms, food and beverage lines and other regulated environments. Rear I/O carries three locked video inputs — VGA (DB-15), DVI-D (on a DVI-I connector) and DisplayPort — and a dual touch interface (USB type A and optional RS-232 on a DB-9). Power is 24 V DC ±20% through a 3-pin Phoenix terminal block, with an optional 24 V / 60 W AC-DC adapter (P/N 7400060054X00). The monitor mounts panel, wall, stand or VESA 100 x 100 mm. OSD is via a rear keypad. The APPD 1700-1 is CE-approved and FCC Class B tested, sized for industrial second-display, HMI mirroring and remote-display roles. TSL Automation supplies the Nexcom APPD 1700-1 worldwide.

Key Features & Benefits

17" 4:3 SXGA (1280 x 1024) LED-backlit industrial touch monitor, 350 cd/m² typ., 800:1 contrast, 16.7M colours
5-wire resistive flush-panel touchscreen, 81% light transmission
Dual touch interface: USB type A + optional RS-232 (DB-9)
IP65 compliant plastic front bezel with flush touch panel
Triple video inputs: VGA (DB-15), DVI-D (on DVI-I connector), DisplayPort
Wide 24 V DC ±20% input through 3-pin Phoenix terminal block; optional 24 V / 60 W AC-DC adapter
Mounting: panel / wall / stand / VESA 100 x 100 mm; ultra-slim depth
OSD via rear keypad
Operating -20°C to 60°C; storage -20°C to 75°C; 10–90% RH non-condensing
IEC 68 2-64 vibration (2 Grms sine 5–500 Hz 1 hr/axis op); IEC 68 2-27 shock (20 G half-sine 11 ms wall mount)
Dimensions 410.42 x 340.31 x 55.9 mm; weight 4.8 kg; CE + FCC Class B
Second display for Nexcom NISE fanless computers, NViS surveillance and APPC panel PCs

Applications & Use Cases

The APPD 1700-1 is ideal for various industrial automation applications:

Harsh industrial environments requiring dust and water protection
Rugged industrial applications with high durability requirements
Dust-sensitive environments and silent operation requirements
DC-powered industrial installations and mobile applications
Extreme temperature environments and outdoor installations
Legacy equipment integration and serial communication
Networked industrial systems and data communication
Interactive control interfaces and operator panels
