APPD 1700-1
Series: APPD

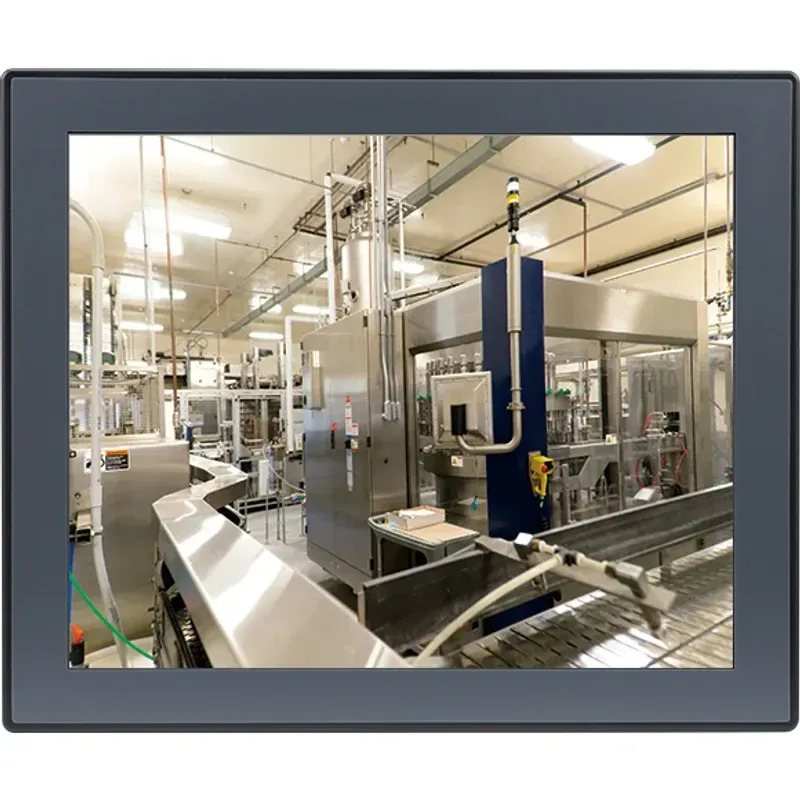

The Nexcom APPD 1700-1 is a 17" 4:3 SXGA (1280 x 1024) industrial touch monitor designed as a second display for Nexcom NISE fanless computers, NViS surveillance systems and APPC panel PCs. The LED-backlit panel delivers 350 cd/m² typical luminance and an 800:1 contrast ratio behind a 5-wire resistive flush-panel touchscreen with 81% light transmission. The plastic front bezel is rated IP65 and the flush face is easy to wipe down for cleanrooms, food and beverage lines and other regulated environments. Rear I/O carries three locked video inputs — VGA (DB-15), DVI-D (on a DVI-I connector) and DisplayPort — and a dual touch interface (USB type A and optional RS-232 on a DB-9). Power is 24 V DC ±20% through a 3-pin Phoenix terminal block, with an optional 24 V / 60 W AC-DC adapter (P/N 7400060054X00). The monitor mounts panel, wall, stand or VESA 100 x 100 mm. OSD is via a rear keypad. The APPD 1700-1 is CE-approved and FCC Class B tested, sized for industrial second-display, HMI mirroring and remote-display roles. TSL Automation supplies the Nexcom APPD 1700-1 worldwide.
Key Features
- 17" 4:3 SXGA (1280 x 1024) LED-backlit industrial touch monitor, 350 cd/m² typ., 800:1 contrast, 16.7M colours
- 5-wire resistive flush-panel touchscreen, 81% light transmission
- Dual touch interface: USB type A + optional RS-232 (DB-9)
- IP65 compliant plastic front bezel with flush touch panel
- Triple video inputs: VGA (DB-15), DVI-D (on DVI-I connector), DisplayPort
- Wide 24 V DC ±20% input through 3-pin Phoenix terminal block; optional 24 V / 60 W AC-DC adapter
- Mounting: panel / wall / stand / VESA 100 x 100 mm; ultra-slim depth
- OSD via rear keypad
- Operating -20°C to 60°C; storage -20°C to 75°C; 10–90% RH non-condensing
- IEC 68 2-64 vibration (2 Grms sine 5–500 Hz 1 hr/axis op); IEC 68 2-27 shock (20 G half-sine 11 ms wall mount)
- Dimensions 410.42 x 340.31 x 55.9 mm; weight 4.8 kg; CE + FCC Class B
- Second display for Nexcom NISE fanless computers, NViS surveillance and APPC panel PCs
Technical Specifications
Panel
| LCD Size | 17" |
|---|---|
| Aspect Ratio | 4:3 |
| Resolution | SXGA 1280 x 1024 |
| Luminance | 350 cd/m² |
| Contrast Ratio | 800:1 |
| LCD Colour | 16.7M |
| Viewing Angle | 60 (U), 80 (D), 80 (L), 80 (R) |
| Backlight | LED |
Touch
| Touch Type | 5-wire resistive (flush panel type) |
|---|---|
| Touch Light Transmission | 81% |
| Touch Interface | USB type A + optional RS-232 (DB-9) |
Rear I/O
| Touch Interface Port | RS-232 (1 x DB-9) + USB type A |
|---|---|
| Video Ports | VGA (1 x DB-15), DVI-D (1 x DVI-I connector), DisplayPort |
| DC Power Input Connector | 3-pin Phoenix terminal block |
OSD Function
| OSD Keypad | Yes (rear) |
|---|
Power Requirement
| DC Input | 24 V DC ±20% |
|---|---|
| Power Adapter (Optional) | 24 V / 60 W AC-DC adapter w/o power cord (P/N 7400060054X00) |
Mechanical & Environmental
| Colour | Pantone black bezel + black silver chassis box |
|---|---|
| IP Rating | IP65 (front) |
| Mounting | Panel / Wall / Stand / VESA 100 x 100 mm |
| Outline (W x H x D) | 410.42 x 340.31 x 55.9 mm |
| Weight | 4.8 kg |
| Operating Temp. | -20°C to 60°C |
| Storage Temp. | -20°C to 75°C |
| Operating Humidity | 10–90% RH, non-condensing (limited to 90% RH at max 50°C) |
| Vibration | IEC 68 2-64, 2 Grms sine, 5–500 Hz, 1 hr/axis (operating), 2.2 Grms random, 5–500 Hz, 0.5 hr/axis (non-operating) |
| Shock | IEC 68 2-27, 20 G wall mount, half sine, 11 ms |
Certification
| Certification Information | CE approval, FCC Class B |
|---|
Ordering Information
| Barebone | APPD 1700-1 (P/N: 10IA0170000X0) — 17" SXGA industrial 4:3 LCD flush touch monitor with VGA, DVI-D and DisplayPort, 24 VDC input, RS-232 and USB touch interface |
|---|---|
| Options | 24 V / 60 W AC-DC power adapter w/o power cord (P/N 7400060054X00), 1.8 m DVI-D male-to-male cable (P/N 603DVI0007X00) |
