IPPD 1600P
*Price on request. Contact us for a quote.
Highlights
- 15.6" 16:9 HD (1366 x 768) LED-backlit industrial touch monitor, 400 cd/m² typ., 500:1 contrast, 16.7M colours
- 10-point projected-capacitive (P-Cap) multi-touch glass, 87% light transmission, 7H anti-scratch surface, USB touch interface
- IP66 front-panel rating with robust aluminium zero-bezel flush design
- Heavy-industrial metal chassis with system-grade chassis + power grounding (in-rush current protection)
- Three locked video inputs: VGA (DB-15), DVI-D, DisplayPort — analog and digital
- Wide 12–24 V DC power input through 3-pin Phoenix terminal block; optional 12 V / 60 W AC-DC adapter
- Mounting: panel / wall / stand / VESA 100 x 100 mm (panel-mounting kit included)
- Multilanguage OSD with rear keypad
- Operating temperature -10°C to 60°C; storage -20°C to 75°C; 10–90% RH non-condensing
- IEC 68 2-64 vibration (2 Grms sine, 5–500 Hz, 1 hr/axis operating); IEC 68 2-27 shock (20 G half-sine 11 ms wall mount)
- Dimensions 417.4 x 312.4 x 51.75 mm; weight 5.48 kg; cutout 398 x 293 mm; CE (EN 61000-6-1/2/3/4) + FCC Class B
- Ideal second display for Nexcom NISE fanless computers, NViS surveillance and IPPC / APPC panel PCs
Product Description

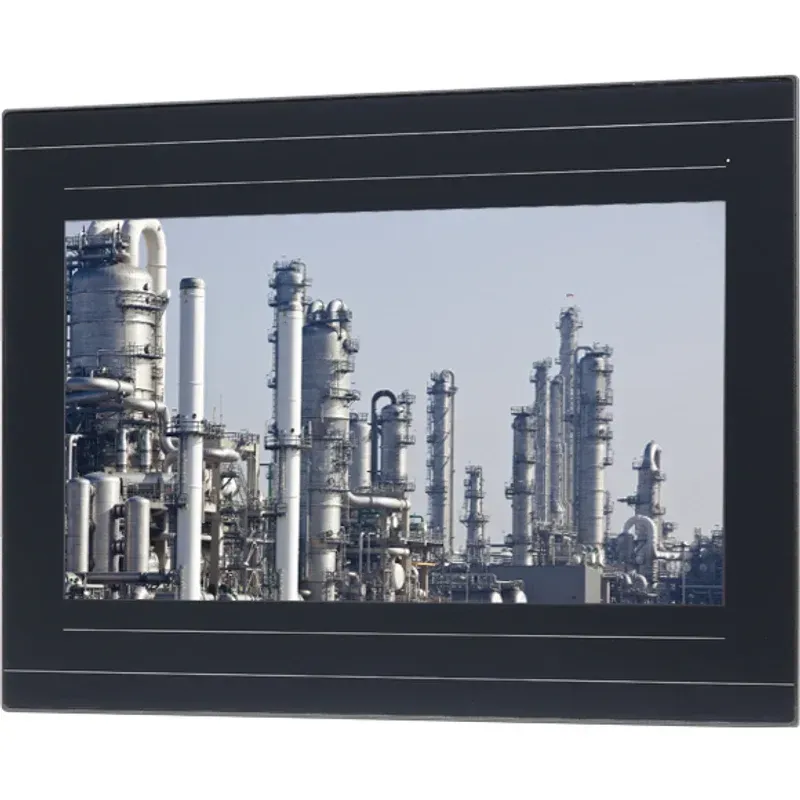

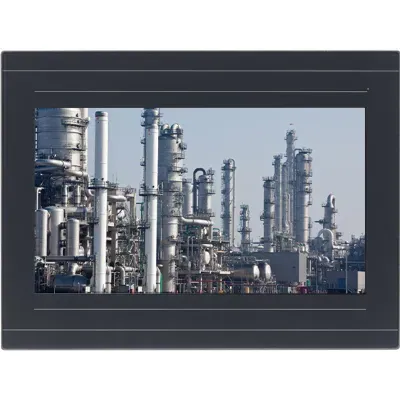

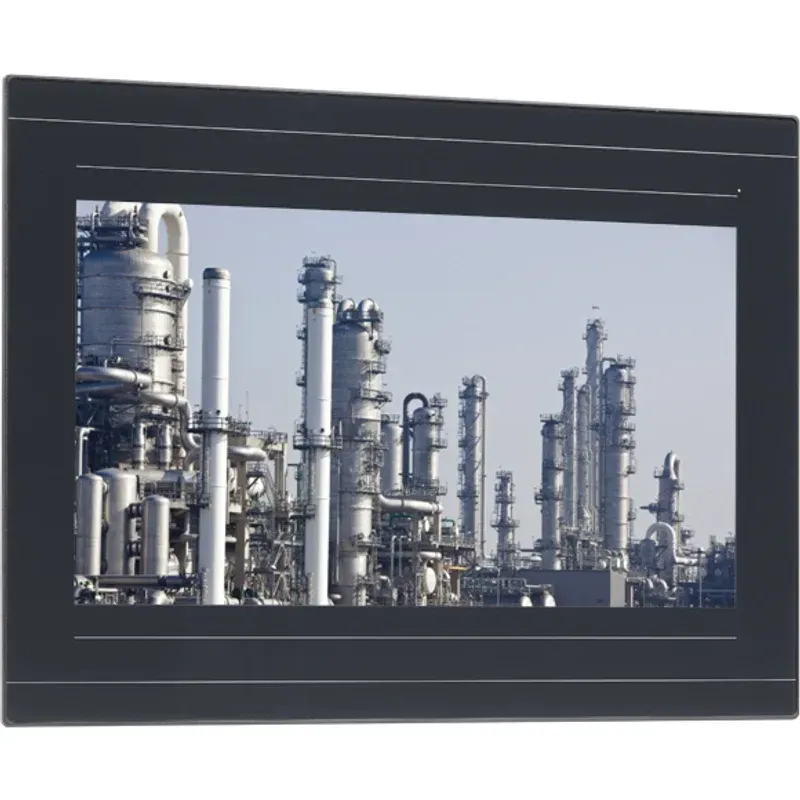

The Nexcom IPPD-1600P is a 15.6" 16:9 HD heavy-industrial touch monitor designed as a second display for Nexcom NISE fanless box PCs, NViS security-surveillance systems and IPPC / APPC industrial panel PCs.
The 1366 x 768 LED-backlit panel delivers 400 cd/m² typical luminance and a 500:1 contrast ratio behind a 10-point projected-capacitive (P-Cap) multi-touch glass with 87% light transmission and a 7H anti-scratch hardness rating.
The metal chassis carries a robust aluminium zero-bezel flush front rated to IP66 for use in heavy industrial, refinery, plant-floor and outdoor-shelter environments, and a system-grade chassis + power grounding design protects the monitor from in-rush current damage.

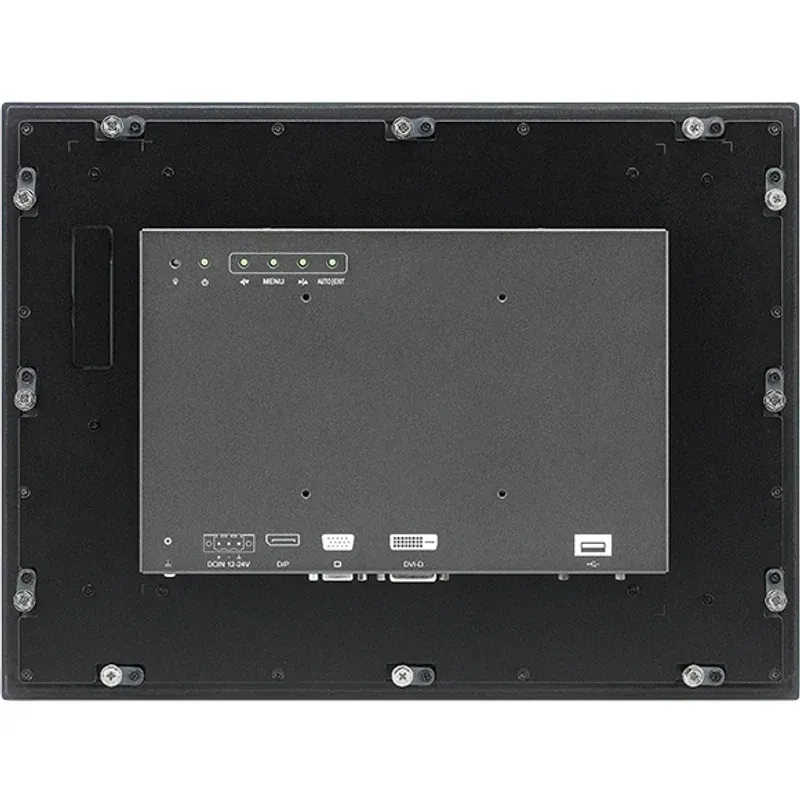

Rear I/O covers three locked video inputs — VGA (DB-15), DVI-D and DisplayPort — letting the same monitor pair with most existing Nexcom industrial computers. Power is a wide-range 12–24 V DC input through a 3-pin Phoenix terminal block, with an optional 12 V / 60 W AC-DC adapter (P/N 7400060031X00).
The monitor mounts panel, wall, stand or VESA 100 × 100 mm and ships with the system panel-mounting kit. OSD is multilanguage with a rear keypad. The IPPD-1600P is CE-marked (EN 61000-6-1 / -6-2 / -6-3 / -6-4) and FCC Class B tested. TSL Automation supplies the Nexcom IPPD-1600P worldwide.
Technical Specifications
What is IPPD 1600P?
The IPPD 1600P is a panel pc / monitor / mobile manufactured by Nexcom, designed specifically for industrial-display applications. It features display of 15.6", touch of 10-point projected-capacitive (P-Cap) multi-touch and storage of -20°C to 75°C. The Nexcom IPPD-1600P is a 15.6" 16:9 HD heavy-industrial touch monitor designed as a second display for Nexcom NISE fanless box PCs, NViS security-surveillance systems and IPPC / APPC industrial panel PCs. The 1366 x 768 LED-backlit panel delivers 400 cd/m² typical luminance and a 500:1 contrast ratio behind a 10-point projected-capacitive (P-Cap) multi-touch glass with 87% light transmission and a 7H anti-scratch hardness rating. The metal chassis carries a robust aluminium zero-bezel flush front rated to IP66 for use in heavy industrial, refinery, plant-floor and outdoor-shelter environments, and a system-grade chassis + power grounding design protects the monitor from in-rush current damage. Rear I/O covers three locked video inputs — VGA (DB-15), DVI-D and DisplayPort — letting the same monitor pair with most existing Nexcom industrial computers. Power is a wide-range 12–24 V DC input through a 3-pin Phoenix terminal block, with an optional 12 V / 60 W AC-DC adapter (P/N 7400060031X00). The monitor mounts panel, wall, stand or VESA 100 × 100 mm and ships with the system panel-mounting kit. OSD is multilanguage with a rear keypad. The IPPD-1600P is CE-marked (EN 61000-6-1 / -6-2 / -6-3 / -6-4) and FCC Class B tested. TSL Automation supplies the Nexcom IPPD-1600P worldwide.
Key Features & Benefits
- 15.6" 16:9 HD (1366 x 768) LED-backlit industrial touch monitor, 400 cd/m² typ., 500:1 contrast, 16.7M colours
- 10-point projected-capacitive (P-Cap) multi-touch glass, 87% light transmission, 7H anti-scratch surface, USB touch interface
- IP66 front-panel rating with robust aluminium zero-bezel flush design
- Heavy-industrial metal chassis with system-grade chassis + power grounding (in-rush current protection)
- Three locked video inputs: VGA (DB-15), DVI-D, DisplayPort — analog and digital
- Wide 12–24 V DC power input through 3-pin Phoenix terminal block; optional 12 V / 60 W AC-DC adapter
- Mounting: panel / wall / stand / VESA 100 x 100 mm (panel-mounting kit included)
- Multilanguage OSD with rear keypad
- Operating temperature -10°C to 60°C; storage -20°C to 75°C; 10–90% RH non-condensing
- IEC 68 2-64 vibration (2 Grms sine, 5–500 Hz, 1 hr/axis operating); IEC 68 2-27 shock (20 G half-sine 11 ms wall mount)
- Dimensions 417.4 x 312.4 x 51.75 mm; weight 5.48 kg; cutout 398 x 293 mm; CE (EN 61000-6-1/2/3/4) + FCC Class B
- Ideal second display for Nexcom NISE fanless computers, NViS surveillance and IPPC / APPC panel PCs
Applications & Use Cases
The IPPD 1600P is ideal for various industrial automation applications:
- Rugged industrial applications with high durability requirements
- Dust-sensitive environments and silent operation requirements
- DC-powered industrial installations and mobile applications
- Extreme temperature environments and outdoor installations
- Networked industrial systems and data communication
- Interactive control interfaces and operator panels
- Panel-mounted installations and control cabinets
- Peripheral device connectivity and data transfer
