IPPD 1600P

Series: IPPD

Manufactured byNexcom

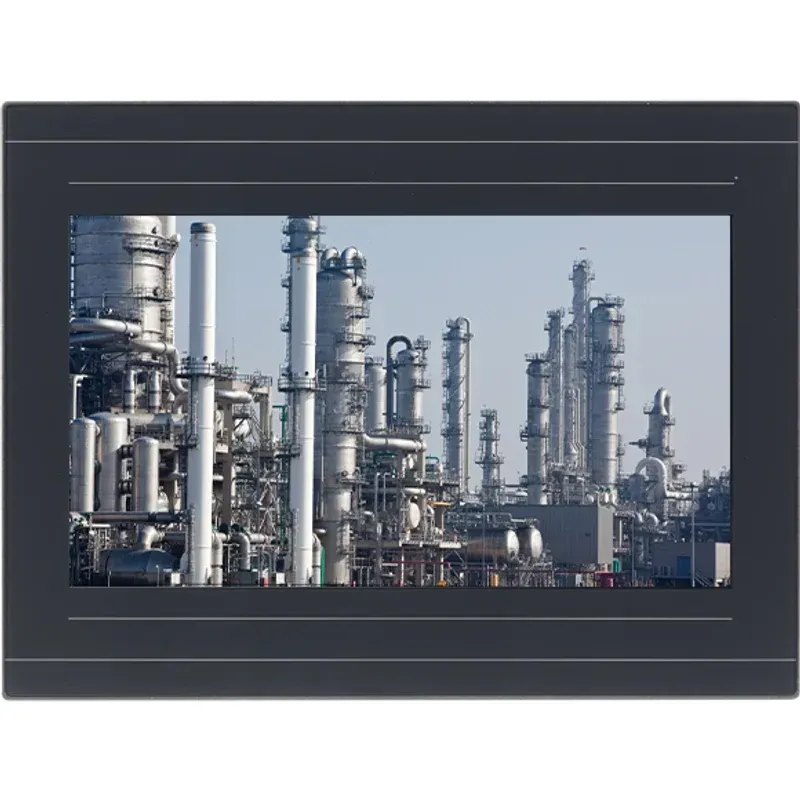

Nexcom IPPD-1600P 15.6" IP66 Industrial Touch Monitor — Front View

The Nexcom IPPD-1600P is a 15.6" 16:9 HD heavy-industrial touch monitor designed as a second display for Nexcom NISE fanless box PCs, NViS security-surveillance systems and IPPC / APPC industrial panel PCs. The 1366 x 768 LED-backlit panel delivers 400 cd/m² typical luminance and a 500:1 contrast ratio behind a 10-point projected-capacitive (P-Cap) multi-touch glass with 87% light transmission and a 7H anti-scratch hardness rating. The metal chassis carries a robust aluminium zero-bezel flush front rated to IP66 for use in heavy industrial, refinery, plant-floor and outdoor-shelter environments, and a system-grade chassis + power grounding design protects the monitor from in-rush current damage. Rear I/O covers three locked video inputs — VGA (DB-15), DVI-D and DisplayPort — letting the same monitor pair with most existing Nexcom industrial computers. Power is a wide-range 12–24 V DC input through a 3-pin Phoenix terminal block, with an optional 12 V / 60 W AC-DC adapter (P/N 7400060031X00). The monitor mounts panel, wall, stand or VESA 100 × 100 mm and ships with the system panel-mounting kit. OSD is multilanguage with a rear keypad. The IPPD-1600P is CE-marked (EN 61000-6-1 / -6-2 / -6-3 / -6-4) and FCC Class B tested. TSL Automation supplies the Nexcom IPPD-1600P worldwide.

Key Features

15.6" 16:9 HD (1366 x 768) LED-backlit industrial touch monitor, 400 cd/m² typ., 500:1 contrast, 16.7M colours
10-point projected-capacitive (P-Cap) multi-touch glass, 87% light transmission, 7H anti-scratch surface, USB touch interface
IP66 front-panel rating with robust aluminium zero-bezel flush design
Heavy-industrial metal chassis with system-grade chassis + power grounding (in-rush current protection)
Three locked video inputs: VGA (DB-15), DVI-D, DisplayPort — analog and digital
Wide 12–24 V DC power input through 3-pin Phoenix terminal block; optional 12 V / 60 W AC-DC adapter
Mounting: panel / wall / stand / VESA 100 x 100 mm (panel-mounting kit included)
Multilanguage OSD with rear keypad
Operating temperature -10°C to 60°C; storage -20°C to 75°C; 10–90% RH non-condensing
IEC 68 2-64 vibration (2 Grms sine, 5–500 Hz, 1 hr/axis operating); IEC 68 2-27 shock (20 G half-sine 11 ms wall mount)
Dimensions 417.4 x 312.4 x 51.75 mm; weight 5.48 kg; cutout 398 x 293 mm; CE (EN 61000-6-1/2/3/4) + FCC Class B
Ideal second display for Nexcom NISE fanless computers, NViS surveillance and IPPC / APPC panel PCs

Technical Specifications

Panel

LCD Size	15.6"
Aspect Ratio	16:9
Resolution	HD 1366 x 768
Luminance	400 cd/m²
Contrast Ratio	500:1
LCD Colour	16.7M
Viewing Angle	80 (U), 80 (D), 85 (L), 85 (R)
Backlight	LED

Touch

Touch Type	10-point projected-capacitive (P-Cap) multi-touch
Touch Light Transmission	87%
Anti-Scratch Surface	7H hardness
Touch Interface	USB

Rear I/O

Touch Interface Port	USB with Lock
Video Ports	VGA (1 x DB-15), DVI-D (1 x DVI-D connector), DisplayPort (1 x DP)
DC Power Input Connector	3-pin PHOENIX terminal block

OSD Function

OSD Keypad	Yes (rear keypad)
OSD Language	Multilanguage

Power Requirement

DC Input	12–24 V DC
Power Adapter (Optional)	12 V / 60 W AC-DC adapter (P/N 7400060031X00)

Mechanical & Environmental

Construction - Front	Aluminium zero-bezel flush front
Construction - Chassis	Metal housing
Colour	Black with silver front bezel
IP Rating	IP66 (front)
Mounting	Panel / Wall / Stand / VESA 100 x 100 mm
Mounting Kit	System with panel-mounting kit (no panel mounting hole)
Outline (W x H x D)	417.4 x 312.4 x 51.75 mm
Active Area	344.23 x 193.54 mm
Panel Cutout	398 ± 1 x 293 ± 1 mm (T = 12 mm max.)
Weight	5.48 kg
Operating Temp.	-10°C to 60°C
Storage Temp.	-20°C to 75°C
Operating Humidity	10–90% relative humidity, non-condensing
Vibration	IEC 68 2-64, 2 Grms sine, 5–500 Hz, 1 hr/axis (operating), 2.2 Grms random, 5–500 Hz, 0.5 hr/axis (non-operating)
Shock	IEC 68 2-27, HDD: 20 G wall mount, half sine, 11 ms

Certification

Certification Information	CE — EN 61000-6-1, CE — EN 61000-6-2, CE — EN 61000-6-3, CE — EN 61000-6-4, FCC Class B

Ordering Information

Barebone	IPPD 1600P-C (P/N: 10IZ1600P02X0) — 15.6" HD heavy-industrial 16:9 LED P-Cap touch monitor with VGA, DVI-D and DisplayPort input, 12–24 V DC input
Options	12 V / 60 W AC/DC power adapter w/o power cord (P/N: 7400060031X00), 1.8 m DVI-D male-to-male cable (P/N: 603DVI0007X00), 1.8 m DisplayPort cable (P/N: 6030000122X00)
