What are the key features of the APC-2340?

The APC-2340 is a 23.8" Full-HD (1920x1080) ultra-light fanless panel PC with 12th Gen Intel Core i5-1235U/i3-1215U (Alder Lake-P) on the EMX-ADLP-B1 SBC, dual DDR5 4800 up to 64GB, onboard TPM 2.0, a 2.5" SSD plus M.2 Key-M storage, a PCAP 10-point multi-touch panel, dual GbE, 4x USB 3.2, dual DP++, and an IP65 front running Windows 11 or Linux.

Which processors does the APC-2340 support?

It supports the 12th Generation Intel Core i3-1215U (up to 4.40 GHz) and i5-1235U (up to 4.40 GHz) Alder Lake-P processors with integrated IPU.

How much memory does the APC-2340 support?

Two 262-pin DDR5 4800MHz SO-DIMM sockets supporting up to 64GB (non-ECC).

What storage and expansion does the APC-2340 provide?

A 2.5" SATA3 SSD plus an M.2 Key-M 2280 (PCIe x4) slot for storage, an M.2 Key-B 3042/3052 for 4G/5G, and an M.2 Key-E 2230 for Wi-Fi 6E / BT 5.2.

What networking does the APC-2340 provide?

Intel I219LM Gigabit Ethernet plus Intel I226LM Gigabit Ethernet, with optional Intel Wi-Fi 6E AX210 (Wi-Fi + BT 5.0) module.

Does the APC-2340 include hardware security?

Yes, it has onboard TPM 2.0 for hardware key storage and platform integrity.

What display and touch does the APC-2340 offer?

A 23.8" 1920x1080 Full-HD panel with a high 3000:1 contrast ratio and projected-capacitive 10-point multi-touch, with an IP65-rated front.

What I/O does the APC-2340 provide?

4x USB 3.2, 2x DP++, dual LAN, and a configurable RS-232/422/485 COM port (by request); optional camera and NFC kits are available.

What power input does the APC-2340 use?

A wide +12V ~ +24V DC input via a lockable PWR DIN plug (ATX/AT mode, supplied with a 24V/3.75A adapter).

What applications is the APC-2340 best suited for?

As an expandable fanless large touch panel PC with an IP65 front, it suits self-service kiosks, modern touch HMI, and signage.

What is an Industrial Panel PC?

An Industrial Panel PC is a robust computing device designed for industrial environments, featuring a touchscreen display integrated with a computer. These systems are built to withstand harsh conditions including dust, moisture, temperature extremes, and vibration, while providing reliable operation for factory automation, control systems, and HMI applications.

What makes a Panel PC 'industrial grade'?

Industrial grade Panel PCs feature rugged construction with IP65/IP66 front panel protection, extended temperature operation, shock and vibration resistance, fanless cooling for reliability, wide voltage input tolerance, and long product lifecycles designed for 24/7 operation in challenging environments.

What is the difference between a Panel PC and an HMI?

While both provide operator interface functionality, a Panel PC is a full-featured computer running a standard operating system (Windows, Linux) that can host any software application. An HMI is typically a simpler device with an embedded operating system designed specifically for machine/process control with limited functionality beyond its control software.

What mounting options are available for Panel PCs?

Panel PCs typically offer multiple mounting options including panel mount (cutout installation in cabinets/enclosures), VESA mount (standard bracket mounting to walls or arms), and sometimes desktop stands. Some specialized models may offer additional mounting options for specific industries.

What operating systems are supported on industrial Panel PCs?

Most industrial Panel PCs support Windows 10 IoT Enterprise, Windows 11 Pro, and various Linux distributions like Ubuntu. The specific OS support depends on the hardware configuration, with some models offering pre-installed options or being compatible with multiple operating systems.

What is IP65/IP66 protection and why is it important?

IP65/IP66 protection ratings indicate dust-tight (6) protection and resistance to water jets (5/6). This is essential for industrial Panel PCs that may be exposed to harsh factory environments with dust, splashes, or washdown procedures, ensuring reliable operation and longevity in challenging conditions.

Why are fanless designs important in industrial Panel PCs?

Fanless designs eliminate moving parts that could fail, prevent dust and contaminant ingress through ventilation openings, reduce maintenance requirements, increase reliability in high-vibration environments, and allow sealed enclosures for protection against harsh industrial conditions.

What is PCAP multi-touch technology?

PCAP (Projected Capacitive) multi-touch technology allows multiple simultaneous touch points on the screen, enabling intuitive gestures like pinch-to-zoom. It offers better optical clarity than resistive touchscreens, with a durable glass surface resistant to scratches, though it requires bare finger or special stylus operation.

What is a watchdog timer and why is it important?

A watchdog timer is a hardware-based timer that triggers a system reset if the software becomes unresponsive. This is crucial for industrial systems requiring high reliability and 24/7 operation, as it automatically recovers from software crashes or freezes without human intervention.

What does wide voltage input range mean for Panel PCs?

A wide voltage input range (typically 9-36VDC) allows Panel PCs to operate reliably in industrial environments with fluctuating power conditions. This provides flexibility in power source options and protection against voltage spikes and drops common in factory settings.

What is TPM and why is it included in industrial Panel PCs?

TPM (Trusted Platform Module) is a security chip that provides hardware-based encryption capabilities and secure storage for authentication credentials. In industrial settings, it helps protect sensitive data, secure communication channels, and ensure the integrity of control systems against unauthorized access.

How are Panel PCs typically mounted in industrial environments?

Panel PCs are typically installed using panel mount (where the unit is fitted into a cutout in a control cabinet with mounting clips or screws), VESA mount (attached to arms or wall mounts using standardized mounting patterns), or sometimes with custom mounting solutions for specific applications.

What cutout dimensions are needed for panel mounting?

Cutout dimensions vary by model and screen size. It's essential to refer to the specific Panel PC's installation guide for precise measurements. Most manufacturers provide detailed dimensional drawings showing the exact cutout size and mounting hole positions required.

What environmental conditions should be considered when installing Panel PCs?

Consider operating temperature range, humidity levels, exposure to dust or liquids, vibration/shock conditions, available power supply stability, electromagnetic interference sources, and ambient light conditions that might affect screen visibility when installing Panel PCs.

Do Panel PCs require additional cooling?

Most industrial Panel PCs are designed with fanless cooling systems that dissipate heat through the chassis. While they typically don't require additional cooling, it's important to ensure adequate air circulation around the unit and to avoid installing them in locations that exceed their specified operating temperature range.

What power supply requirements should be considered for Panel PCs?

Consider voltage requirements (typically 9-36VDC), current/power consumption specifications, power supply stability, surge protection needs, and whether battery backup or uninterruptible power supply (UPS) is necessary for critical applications to prevent data loss during power interruptions.

What should I do if the touchscreen becomes unresponsive?

First, try restarting the Panel PC. If the issue persists, check if the touch driver is installed and functioning properly, verify the touchscreen cable connection, ensure the operating environment is within specifications (especially for capacitive screens in high humidity), and check for physical damage to the screen surface.

How can I resolve overheating issues with fanless Panel PCs?

To address overheating: ensure the Panel PC is installed with adequate clearance for passive cooling, check that the ambient temperature is within specified operating range, clean dust buildup on cooling fins/chassis, verify that CPU-intensive applications aren't causing excessive load, and consider adding external cooling to the enclosure if necessary.

What causes Panel PCs to restart unexpectedly?

Unexpected restarts can be caused by unstable power supply, overheating, hardware failures, software issues, or watchdog timer activations due to system hangs. Check power stability, environmental conditions, system logs for error messages, and consider disabling the watchdog timer temporarily for diagnostic purposes.

How can I improve the visibility of the Panel PC screen in bright environments?

To improve visibility in bright environments, adjust the screen brightness to maximum, install an anti-glare shield or hood, position the Panel PC to avoid direct light sources, consider a higher-brightness model (500+ cd/m²) for new installations, or apply an anti-reflective film designed for industrial displays.

What should I do if Windows fails to boot on my Panel PC?

If Windows fails to boot, try booting in Safe Mode, use System Restore to revert to a working state, run startup repair from recovery options, check for hardware issues (particularly storage drives), verify BIOS/UEFI settings are correct, or restore from a system image backup if available.

Avalue · Panel PC / Monitor / Mobile

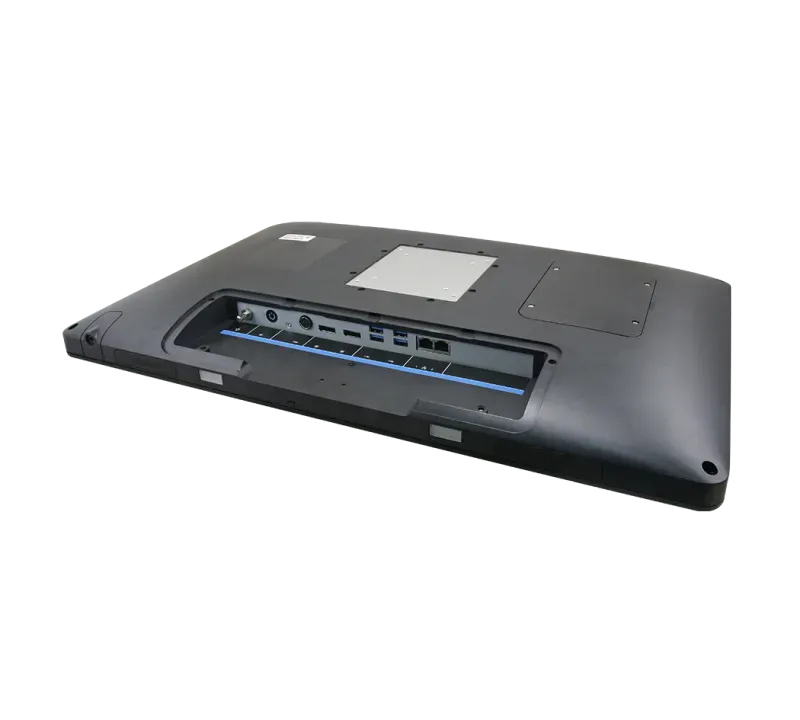

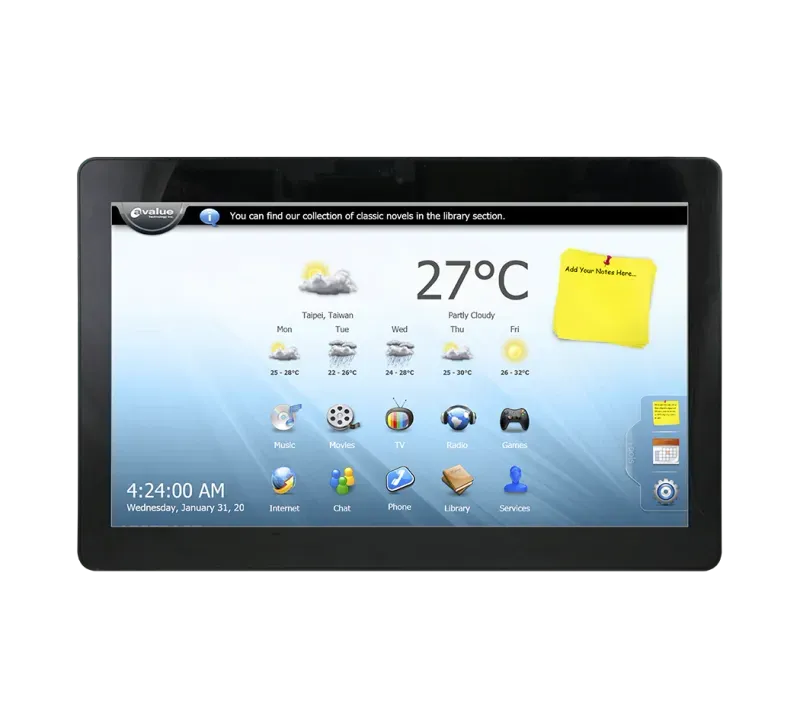

APC-2340

Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

23.8" Full-HD (1920x1080) PCAP 10-point multi-touch panel PC, fanless
12th Gen Intel Core i5-1235U / i3-1215U (Alder Lake-P, with IPU), EMX-ADLP-B1
2 x 262-pin DDR5 4800MHz SO-DIMM, up to 64GB (non-ECC)
2.5" SATA3 SSD + M.2 Key-M 2280 (PCIe x4) storage
Onboard TPM 2.0
M.2 Key-B (4G/5G), M.2 Key-E (Wi-Fi 6E / BT 5.2)
Intel I219LM + Intel I226LM GbE, 4x USB 3.2, 2x DP++
Configurable RS-232/422/485 COM, front panel IP65
Wide +12 ~ +24V locking DC input, fanless; CE / FCC Class B / VCCI / UKCA

Product Description

The Avalue APC-2340 is a 23.8" Full-HD ultra-light expandable industrial touch panel PC powered by 12th Generation Intel Core i5/i3 (Alder Lake-P, with IPU) on the EMX-ADLP-B1 SBC, designed as a sleek, fanless terminal for self-service kiosks and modern touch HMI.

With dual DDR5 4800MHz SO-DIMM (up to 64GB), onboard TPM 2.0, and triple M.2 expansion, it delivers responsive x86 performance in a slim plastic enclosure with an IP65 front.

The 1920x1080 PCAP 10-point multi-touch panel pairs with Intel I219LM Gigabit + Intel I226LM Gigabit Ethernet, 4x USB 3.2, dual DP++, and a configurable RS-232/422/485 COM port.

M.2 Key-B (4G/5G), Key-E (Wi-Fi 6E/BT), and Key-M (PCIe x4 storage) slots add flexible expansion. A wide +12~24V locking DC input and fanless operation make the APC-2340 a durable, future-ready interactive display, with optional camera and NFC kits.

Technical Specifications

Processor

12th Generation Alder Lake Intel® Core™ i3-1215U Processor

(10M Cache, up to 4.40 GHz, with IPU)

12th Generation Alder Lake Intel® Core™ i5-1235U Processor

(12M Cache, up to 4.40 GHz, with IPU)

System Memory

2 x 262-pin DDR5 4800 MHz SO-DIMM Supports Up to 64GB (Non ECC Only)

I/O Chipset

EC iTE IT5782VG

Watchdog Timer

H/W reset, 1sec. ~ 65535sec. and 1sec./step

H/W Status Monitor

CPU Temperature Monitoring

Voltage Monitoring

CPU Fan Speed Control

TPM

2.0

SBC

EMX-ADLP-B1 A1 i3-1215U

EMX-ADLP-B1 A1 i5-1235U

Expansion

1 x M.2 Key B 3042/3052 for 4G/5G

1 x M.2 Key E 2230 support WiFi module

802.11abgn+acR2+axR2 Wi-Fi 6E BT5.2

Solid State Drive

2.5" SATA3 SSD

Other Storage Device

1 x M.2 Key M 2280 (PCI-e x4) slot for storage

Audio Codec

RealTek ALC888S-VD2-G

Speaker Output

2 x 2W

DC Input

+12V~+24V

DC Input Connector

Lockable PWR DIN Plug

Power Mode

ATX / AT

OS

Win11 / Linux

Certification Information

CE/ FCC class B/VCCI/UKCA

LCD Size

23.8"

Display Type

Full HD

Resolution

1920 x 1080

Pixel pitch

274.5mm × 274.5mm

Luminance

250 cd/m²

Contrast ratio

3000

Viewing angle

89(U), 89(D), 89(L), 89(R)

Response time

16ms

Backlight

LED

Touch Type

Projective capacitive multi-touch up to 10 points

Touch Controller

EETI EXC81H5680

USB Port

2 x USB 3.2 Gen2 (USB1)

2 x USB 3.0 Gen2 (USB2)

LAN Port

1 x Intel® I219LM Gigabit Ethernet PHY

1 x Intel® I226LM Gigabit Ethernet

Wireless LAN Antenna

2 x PCB Antenna

COM Port

1 x RS-232/422/485 (by request)

Display Port

2 x DP++

WLAN

Optional Wi-Fi + Bluetooth 5.0 USB Module, Intel Wi-Fi 6E AX210

Bluetooth

Optional Wi-Fi + Bluetooth 5.0 USB Module, Intel Wi-Fi 6E AX210

Operating Temp.

0°C ~ 40°C (32°F ~ 104°F)

Storage Temp.

-10°C ~ 60°C (14°F ~ 140°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Dimension (W x L x H)

592 x 382 x 49.5mm

Weight

6.2 kg

Vibration Test

1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30min/axis

Shock Test

10Grms, IEC 60068-2-27, half sine, 11ms

IP Rating

Front IP65

Mounting Kit

VESA 75 x 75, 100 x 100

System Fan

Fanless

Construction - Front

Plastic- black

Construction - Rear

Plastic- black

Adapter

AC/DC adapter 24V/3.75A PWR DIN Plug

Ordering Information

APC-2340-121-A1R | 23.8" 1920x1080 Projected Capacitive Touch Panel PC (Plastics, Black), Intel Core i3-1215U/8GB memory/ 4USB3/ 2LAN/ 2DP/ SPK/ 90W Adapter

APC-2340-123-A1R | 23.8" 1920x1080 Projected Capacitive Touch Panel PC (Plastics, Black), Intel Core i5-1235U/8GB memory/ 4USB3/ 2LAN/ 2DP/ SPK/ 90W Adapter

E971XAP2340001R | WiFi Kit for APC-2340

E971XAP2340002R | Camera Kit for APC-2340

E971XAP2340003R | NFC Kit for APC-2340

E170203183DR | EU Power Cord

E1702031835R | US Power Cord

E17120318001R | JP Power Cord

E170P060370R | UK Power Cord

What is APC-2340?

The APC-2340 is a panel pc / monitor / mobile manufactured by Avalue, designed specifically for industrial-panel-pc applications. The Avalue APC-2340 is a 23.8" Full-HD ultra-light expandable industrial touch panel PC powered by 12th Generation Intel Core i5/i3 (Alder Lake-P, with IPU) on the EMX-ADLP-B1 SBC, designed as a sleek, fanless terminal for self-service kiosks and modern touch HMI. With dual DDR5 4800MHz SO-DIMM (up to 64GB), onboard TPM 2.0, and triple M.2 expansion, it delivers responsive x86 performance in a slim plastic enclosure with an IP65 front. The 1920x1080 PCAP 10-point multi-touch panel pairs with Intel I219LM Gigabit + Intel I226LM Gigabit Ethernet, 4x USB 3.2, dual DP++, and a configurable RS-232/422/485 COM port. M.2 Key-B (4G/5G), Key-E (Wi-Fi 6E/BT), and Key-M (PCIe x4 storage) slots add flexible expansion. A wide +12~24V locking DC input and fanless operation make the APC-2340 a durable, future-ready interactive display, with optional camera and NFC kits.

Key Features & Benefits

23.8" Full-HD (1920x1080) PCAP 10-point multi-touch panel PC, fanless
12th Gen Intel Core i5-1235U / i3-1215U (Alder Lake-P, with IPU), EMX-ADLP-B1
2 x 262-pin DDR5 4800MHz SO-DIMM, up to 64GB (non-ECC)
2.5" SATA3 SSD + M.2 Key-M 2280 (PCIe x4) storage
Onboard TPM 2.0
M.2 Key-B (4G/5G), M.2 Key-E (Wi-Fi 6E / BT 5.2)
Intel I219LM + Intel I226LM GbE, 4x USB 3.2, 2x DP++
Configurable RS-232/422/485 COM, front panel IP65
Wide +12 ~ +24V locking DC input, fanless; CE / FCC Class B / VCCI / UKCA

Applications & Use Cases

The APC-2340 is ideal for various industrial automation applications:

Harsh industrial environments requiring dust and water protection
Dust-sensitive environments and silent operation requirements
DC-powered industrial installations and mobile applications
Wireless connectivity and remote monitoring applications
Legacy equipment integration and serial communication
High-performance computing and data processing tasks
Interactive control interfaces and operator panels
Peripheral device connectivity and data transfer
