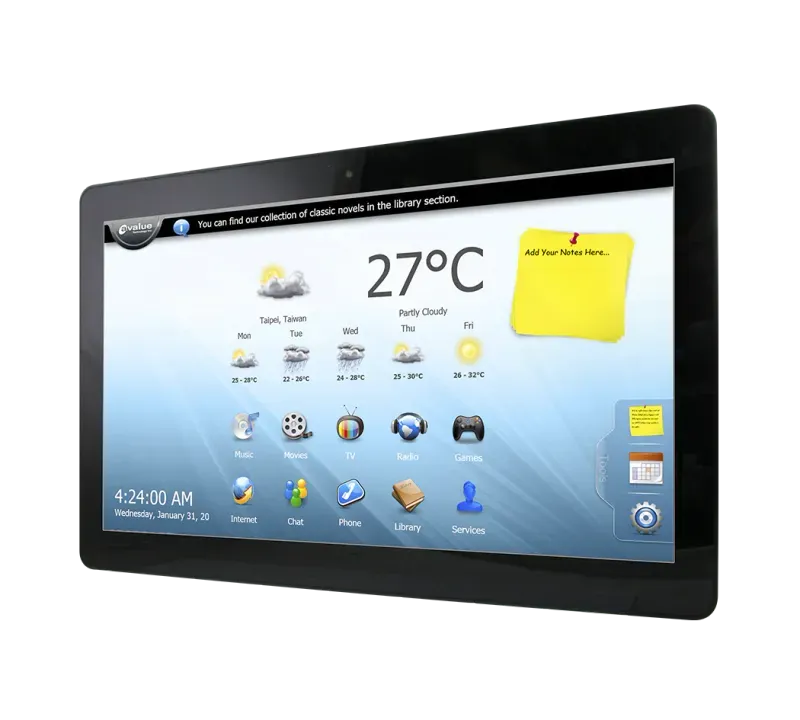

APC-2340

Series: APC

Manufactured byAvalue

The Avalue APC-2340 is a 23.8" Full-HD ultra-light expandable industrial touch panel PC powered by 12th Generation Intel Core i5/i3 (Alder Lake-P, with IPU) on the EMX-ADLP-B1 SBC, designed as a sleek, fanless terminal for self-service kiosks and modern touch HMI. With dual DDR5 4800MHz SO-DIMM (up to 64GB), onboard TPM 2.0, and triple M.2 expansion, it delivers responsive x86 performance in a slim plastic enclosure with an IP65 front. The 1920x1080 PCAP 10-point multi-touch panel pairs with Intel I219LM Gigabit + Intel I226LM Gigabit Ethernet, 4x USB 3.2, dual DP++, and a configurable RS-232/422/485 COM port. M.2 Key-B (4G/5G), Key-E (Wi-Fi 6E/BT), and Key-M (PCIe x4 storage) slots add flexible expansion. A wide +12~24V locking DC input and fanless operation make the APC-2340 a durable, future-ready interactive display, with optional camera and NFC kits.

Key Features

23.8" Full-HD (1920x1080) PCAP 10-point multi-touch panel PC, fanless
12th Gen Intel Core i5-1235U / i3-1215U (Alder Lake-P, with IPU), EMX-ADLP-B1
2 x 262-pin DDR5 4800MHz SO-DIMM, up to 64GB (non-ECC)
2.5" SATA3 SSD + M.2 Key-M 2280 (PCIe x4) storage
Onboard TPM 2.0
M.2 Key-B (4G/5G), M.2 Key-E (Wi-Fi 6E / BT 5.2)
Intel I219LM + Intel I226LM GbE, 4x USB 3.2, 2x DP++
Configurable RS-232/422/485 COM, front panel IP65
Wide +12 ~ +24V locking DC input, fanless; CE / FCC Class B / VCCI / UKCA

Technical Specifications

System Information

Processor	12th Generation Alder Lake Intel® Core™ i3-1215U Processor, (10M Cache, up to 4.40 GHz, with IPU), 12th Generation Alder Lake Intel® Core™ i5-1235U Processor, (12M Cache, up to 4.40 GHz, with IPU)
System Memory	2 x 262-pin DDR5 4800 MHz SO-DIMM Supports Up to 64GB (Non ECC Only)
I/O Chipset	EC iTE IT5782VG
Watchdog Timer	H/W reset, 1sec. ~ 65535sec. and 1sec./step
H/W Status Monitor	CPU Temperature Monitoring, Voltage Monitoring, CPU Fan Speed Control
TPM	2.0
SBC	EMX-ADLP-B1 A1 i3-1215U, EMX-ADLP-B1 A1 i5-1235U

Expansion

Expansion	1 x M.2 Key B 3042/3052 for 4G/5G, 1 x M.2 Key E 2230 support WiFi module, 802.11abgn+acR2+axR2 Wi-Fi 6E BT5.2

Storage

Solid State Drive	2.5" SATA3 SSD
Other Storage Device	1 x M.2 Key M 2280 (PCI-e x4) slot for storage

Audio

Audio Codec	RealTek ALC888S-VD2-G
Speaker Output	2 x 2W

Power Requirement

DC Input	+12V~+24V
DC Input Connector	Lockable PWR DIN Plug
Power Mode	ATX / AT

Software Support

OS	Win11 / Linux

Certification

Certification Information	CE/ FCC class B/VCCI/UKCA

Panel

LCD Size	23.8"
Display Type	Full HD
Resolution	1920 x 1080
Pixel pitch	274.5mm × 274.5mm
Luminance	250 cd/m²
Contrast ratio	3000
Viewing angle	89(U), 89(D), 89(L), 89(R)
Response time	16ms
Backlight	LED
Touch Type	Projective capacitive multi-touch up to 10 points
Touch Controller	EETI EXC81H5680

External I/O

USB Port	2 x USB 3.2 Gen2 (USB1), 2 x USB 3.0 Gen2 (USB2)
LAN Port	1 x Intel® I219LM Gigabit Ethernet PHY, 1 x Intel® I226LM Gigabit Ethernet
Wireless LAN Antenna	2 x PCB Antenna
COM Port	1 x RS-232/422/485 (by request)
Display Port	2 x DP++

Data Communication

WLAN	Optional Wi-Fi + Bluetooth 5.0 USB Module, Intel Wi-Fi 6E AX210
Bluetooth	Optional Wi-Fi + Bluetooth 5.0 USB Module, Intel Wi-Fi 6E AX210

Mechanical & Environmental

Operating Temp.	0°C ~ 40°C (32°F ~ 104°F)
Storage Temp.	-10°C ~ 60°C (14°F ~ 140°F)
Operating Humidity	40°C @ 95% Relative Humidity, Non-condensing
Dimension (W x L x H)	592 x 382 x 49.5mm
Weight	6.2 kg
Vibration Test	1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30min/axis
Shock Test	10Grms, IEC 60068-2-27, half sine, 11ms
IP Rating	Front IP65
Mounting Kit	VESA 75 x 75, 100 x 100
System Fan	Fanless
Construction - Front	Plastic- black
Construction - Rear	Plastic- black

Component

Adapter	AC/DC adapter 24V/3.75A PWR DIN Plug

Ordering Information

APC-2340-121-A1R | 23.8" 1920x1080 Projected Capacitive Touch Panel PC (Plastics, Black), Intel Core i3-1215U/8GB memory/ 4USB3/ 2LAN/ 2DP/ SPK/ 90W Adapter, APC-2340-123-A1R | 23.8" 1920x1080 Projected Capacitive Touch Panel PC (Plastics, Black), Intel Core i5-1235U/8GB memory/ 4USB3/ 2LAN/ 2DP/ SPK/ 90W Adapter, E971XAP2340001R | WiFi Kit for APC-2340, E971XAP2340002R | Camera Kit for APC-2340, E971XAP2340003R | NFC Kit for APC-2340, E170203183DR | EU Power Cord, E1702031835R | US Power Cord, E17120318001R | JP Power Cord, E170P060370R | UK Power Cord
