What are the key features of the APC-2346?

The APC-2346 is a 23.8" Full-HD (1920x1080) ultra-light fanless panel PC with a 14th Gen Intel Core Ultra 5 125U (Meteor Lake, with NPU) on the EMX-MTLP SBC, DDR5 5600 up to 32GB, onboard TPM 2.0, a 2.5" SATA3 SSD bay, a PCAP 10-point multi-touch panel, dual 2.5GbE, 5x USB, HDMI, dual RS-232/485, an M.2 Key-E for Wi-Fi, and an IP65 front running Windows 11 or Linux.

Which processor does the APC-2346 use?

It uses the 14th Generation Intel Core Ultra 5 125U (Meteor Lake, 12M cache, up to 4.30 GHz) which integrates an IPU/NPU for AI acceleration on the EMX-MTLP SBC.

Does the APC-2346 support AI workloads?

Yes, the Core Ultra 5 125U includes an integrated NPU, enabling on-device AI inferencing for vision and analytics use cases.

How much memory does the APC-2346 support?

One 262-pin DDR5 5600MHz SO-DIMM socket supporting up to 32GB.

What storage does the APC-2346 have?

A 2.5" SATA3 SSD bay for system storage.

What networking does the APC-2346 provide?

Dual Intel i226 2.5 Gigabit Ethernet (i226LM + i226V), with an M.2 Key-E slot supporting an optional Intel Wi-Fi 6E AX210 module.

Does the APC-2346 include hardware security?

Yes, it has an onboard Nuvoton NPCT760 TPM 2.0 for hardware key storage and platform integrity.

What I/O does the APC-2346 provide?

5x USB (3x USB 3.2 Gen2 including a Type-C, 2x USB 3.2 Gen1), 1x HDMI, and two configurable RS-232/485 COM ports; optional camera and NFC kits are available.

What power input does the APC-2346 use?

A wide +12V ~ +24V DC input via a locking DC jack (ATX/AT mode, supplied with a 24V/3.75A adapter).

What applications is the APC-2346 best suited for?

As an AI-capable fanless large touch panel PC with an IP65 front, it suits self-service kiosks, modern touch HMI, and edge-AI signage.

What is an Industrial Panel PC?

An Industrial Panel PC is a robust computing device designed for industrial environments, featuring a touchscreen display integrated with a computer. These systems are built to withstand harsh conditions including dust, moisture, temperature extremes, and vibration, while providing reliable operation for factory automation, control systems, and HMI applications.

What makes a Panel PC 'industrial grade'?

Industrial grade Panel PCs feature rugged construction with IP65/IP66 front panel protection, extended temperature operation, shock and vibration resistance, fanless cooling for reliability, wide voltage input tolerance, and long product lifecycles designed for 24/7 operation in challenging environments.

What is the difference between a Panel PC and an HMI?

While both provide operator interface functionality, a Panel PC is a full-featured computer running a standard operating system (Windows, Linux) that can host any software application. An HMI is typically a simpler device with an embedded operating system designed specifically for machine/process control with limited functionality beyond its control software.

What mounting options are available for Panel PCs?

Panel PCs typically offer multiple mounting options including panel mount (cutout installation in cabinets/enclosures), VESA mount (standard bracket mounting to walls or arms), and sometimes desktop stands. Some specialized models may offer additional mounting options for specific industries.

What operating systems are supported on industrial Panel PCs?

Most industrial Panel PCs support Windows 10 IoT Enterprise, Windows 11 Pro, and various Linux distributions like Ubuntu. The specific OS support depends on the hardware configuration, with some models offering pre-installed options or being compatible with multiple operating systems.

What is IP65/IP66 protection and why is it important?

IP65/IP66 protection ratings indicate dust-tight (6) protection and resistance to water jets (5/6). This is essential for industrial Panel PCs that may be exposed to harsh factory environments with dust, splashes, or washdown procedures, ensuring reliable operation and longevity in challenging conditions.

Why are fanless designs important in industrial Panel PCs?

Fanless designs eliminate moving parts that could fail, prevent dust and contaminant ingress through ventilation openings, reduce maintenance requirements, increase reliability in high-vibration environments, and allow sealed enclosures for protection against harsh industrial conditions.

What is PCAP multi-touch technology?

PCAP (Projected Capacitive) multi-touch technology allows multiple simultaneous touch points on the screen, enabling intuitive gestures like pinch-to-zoom. It offers better optical clarity than resistive touchscreens, with a durable glass surface resistant to scratches, though it requires bare finger or special stylus operation.

What is a watchdog timer and why is it important?

A watchdog timer is a hardware-based timer that triggers a system reset if the software becomes unresponsive. This is crucial for industrial systems requiring high reliability and 24/7 operation, as it automatically recovers from software crashes or freezes without human intervention.

What does wide voltage input range mean for Panel PCs?

A wide voltage input range (typically 9-36VDC) allows Panel PCs to operate reliably in industrial environments with fluctuating power conditions. This provides flexibility in power source options and protection against voltage spikes and drops common in factory settings.

What is TPM and why is it included in industrial Panel PCs?

TPM (Trusted Platform Module) is a security chip that provides hardware-based encryption capabilities and secure storage for authentication credentials. In industrial settings, it helps protect sensitive data, secure communication channels, and ensure the integrity of control systems against unauthorized access.

How are Panel PCs typically mounted in industrial environments?

Panel PCs are typically installed using panel mount (where the unit is fitted into a cutout in a control cabinet with mounting clips or screws), VESA mount (attached to arms or wall mounts using standardized mounting patterns), or sometimes with custom mounting solutions for specific applications.

What cutout dimensions are needed for panel mounting?

Cutout dimensions vary by model and screen size. It's essential to refer to the specific Panel PC's installation guide for precise measurements. Most manufacturers provide detailed dimensional drawings showing the exact cutout size and mounting hole positions required.

What environmental conditions should be considered when installing Panel PCs?

Consider operating temperature range, humidity levels, exposure to dust or liquids, vibration/shock conditions, available power supply stability, electromagnetic interference sources, and ambient light conditions that might affect screen visibility when installing Panel PCs.

Do Panel PCs require additional cooling?

Most industrial Panel PCs are designed with fanless cooling systems that dissipate heat through the chassis. While they typically don't require additional cooling, it's important to ensure adequate air circulation around the unit and to avoid installing them in locations that exceed their specified operating temperature range.

What power supply requirements should be considered for Panel PCs?

Consider voltage requirements (typically 9-36VDC), current/power consumption specifications, power supply stability, surge protection needs, and whether battery backup or uninterruptible power supply (UPS) is necessary for critical applications to prevent data loss during power interruptions.

What should I do if the touchscreen becomes unresponsive?

First, try restarting the Panel PC. If the issue persists, check if the touch driver is installed and functioning properly, verify the touchscreen cable connection, ensure the operating environment is within specifications (especially for capacitive screens in high humidity), and check for physical damage to the screen surface.

How can I resolve overheating issues with fanless Panel PCs?

To address overheating: ensure the Panel PC is installed with adequate clearance for passive cooling, check that the ambient temperature is within specified operating range, clean dust buildup on cooling fins/chassis, verify that CPU-intensive applications aren't causing excessive load, and consider adding external cooling to the enclosure if necessary.

What causes Panel PCs to restart unexpectedly?

Unexpected restarts can be caused by unstable power supply, overheating, hardware failures, software issues, or watchdog timer activations due to system hangs. Check power stability, environmental conditions, system logs for error messages, and consider disabling the watchdog timer temporarily for diagnostic purposes.

How can I improve the visibility of the Panel PC screen in bright environments?

To improve visibility in bright environments, adjust the screen brightness to maximum, install an anti-glare shield or hood, position the Panel PC to avoid direct light sources, consider a higher-brightness model (500+ cd/m²) for new installations, or apply an anti-reflective film designed for industrial displays.

What should I do if Windows fails to boot on my Panel PC?

If Windows fails to boot, try booting in Safe Mode, use System Restore to revert to a working state, run startup repair from recovery options, check for hardware issues (particularly storage drives), verify BIOS/UEFI settings are correct, or restore from a system image backup if available.

Avalue · Panel PC / Monitor / Mobile

APC-2346

Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

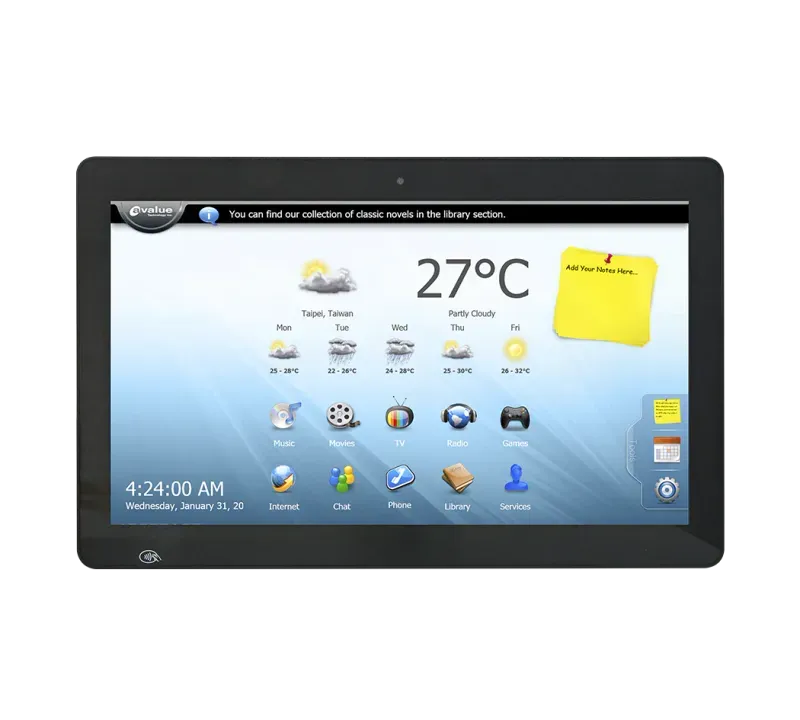

23.8" Full-HD (1920x1080) PCAP 10-point multi-touch panel PC, fanless
14th Gen Intel Core Ultra 5 125U (Meteor Lake, with IPU/NPU), EMX-MTLP
1 x 262-pin DDR5 5600MHz SO-DIMM, up to 32GB
2.5" SATA3 SSD, onboard TPM 2.0
Dual Intel i226 2.5 Gigabit Ethernet

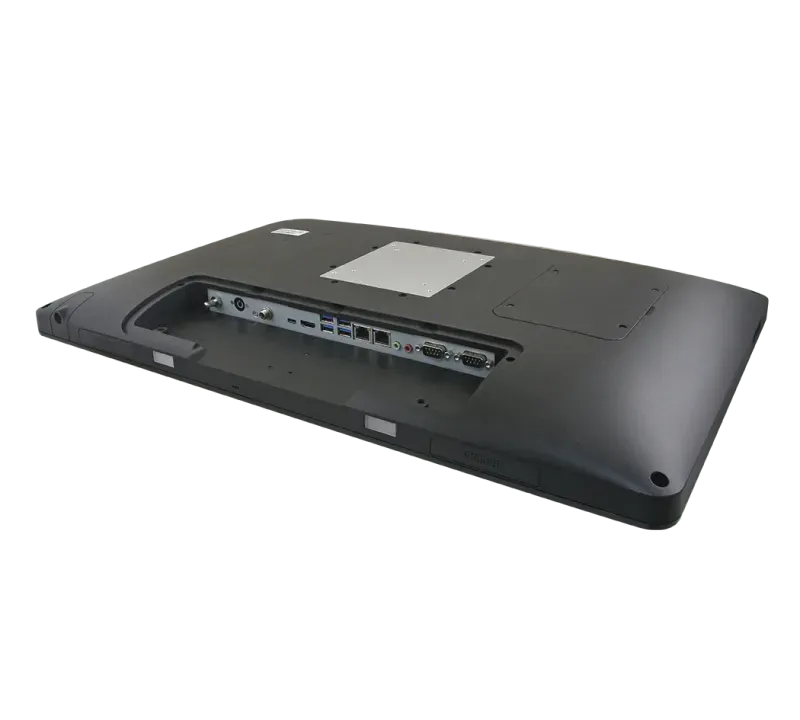

5x USB (3x USB 3.2 Gen2 incl. Type-C, 2x USB 3.2 Gen1), 1x HDMI
2x RS-232/485 COM, M.2 Key-E for optional Wi-Fi 6E
Front panel IP65, optional camera / NFC kits
Wide +12 ~ +24V locking DC input, fanless; CE / FCC Class B / VCCI / UKCA

Product Description

The Avalue APC-2346 is a 23.8" Full-HD ultra-light expandable industrial touch panel PC powered by the 14th Generation Intel Core Ultra 5 125U (Meteor Lake, with integrated NPU) on the EMX-MTLP SBC, designed as a sleek, fanless terminal for self-service kiosks and modern touch HMI.

With a DDR5 5600MHz SO-DIMM (up to 32GB), onboard TPM 2.0, and a 2.5" SATA3 SSD bay, it delivers AI-capable x86 performance in a slim plastic enclosure with an IP65 front.

The 1920x1080 PCAP 10-point multi-touch panel pairs with dual Intel i226 2.5 Gigabit Ethernet, 5x USB (incl.

USB-C), HDMI, two configurable RS-232/485 COM ports, and an M.2 Key-E slot for an optional Wi-Fi 6E module. A wide +12~24V locking DC input and fanless operation make the APC-2346 a durable, future-ready interactive display, with optional camera and NFC kits.

Technical Specifications

Processor

14th Generation Meteor Lake Intel® Core™ Ultra 5 125U Processor

(12M Cache, up to 4.30 GHz, with IPU)

System Memory

1 x 262-Pin DDR5 5600MHz SO-DIMM Socket Supports Up to 32GB

I/O Chipset

EC iTE IT5782VG

Watchdog Timer

H/W Reset: 1Sec. ~ 65535Sec./Min. and1 Sec. or 1Min./Step

H/W Status Monitor

CPU Temperature Monitoring

Voltage Monitoring

CPU Fan Speed Control

TPM

Onboard nuvoTon NPCT760AABYX support TPM 2.0

SBC

EMX-MTLP

Expansion

1 x M.2 Key E 2230 support WiFi module

Solid State Drive

2.5" SATA3 SSD

Audio Codec

Realtek ALC888S HD Audio Decoding Controller

Speaker Output

2 x 2W

DC Input

+12V~+24V

DC Input Connector

DC Jack with Lock

Power Mode

ATX / AT

OS

Win11 / Linux

Certification Information

CE/ FCC class B/VCCI/UKCA

LCD Size

23.8"

Display Type

Full HD

Resolution

1920 x 1080

Pixel pitch

274.5mm × 274.5mm

Luminance

250 cd/m²

Contrast ratio

3000

Viewing angle

89(U), 89(D), 89(L), 89(R)

Response time

16ms

Backlight

LED

Touch Type

Projective capacitive multi-touch up to 10 points

Touch Controller

EETI EXC81H5680

USB Port

3 x USB 3.2 Gen2 (1 from Type C)

2 x USB 3.2 Gen1

LAN Port

1 x Intel® i226LM 2.5 Gigabit Ethernet Controller

1 x Intel® i226V 2.5 Gigabit Ethernet Controller

Wireless LAN Antenna

2 x PCB Antenna

COM Port

2 x RS22/485 (JCOM1 and JCOM2, need to modify BIOS Setup settings and change pin header & cable)

Display Port

1 x HDMI

WLAN

Optional Wi-Fi + Bluetooth 5.0 USB Module, Intel Wi-Fi 6E AX210

Bluetooth

Optional Wi-Fi + Bluetooth 5.0 USB Module, Intel Wi-Fi 6E AX210

Operating Temp.

0°C ~ 40°C (32°F ~ 104°F)

Storage Temp.

-10°C ~ 60°C (14°F ~ 140°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Dimension (W x L x H)

592 x 382 x 49.5mm

Weight

6.2 kg

Vibration Test

1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30min/axis

Shock Test

10Grms, IEC 60068-2-27, half sine, 11ms

IP Rating

Front IP65

Mounting Kit

VESA 75 x 75, 100 x 100

System Fan

Fanless

Construction - Front

Plastic- black

Construction - Rear

Plastic- black

Adapter

AC/DC adapter 24V/3.75A PWR DIN Plug

Ordering Information

APC-2346-125-A1R | 23.8" 1920x1080 Projected Capacitive Touch Panel PC (Plastics, Black), Intel Core Ultre 5 125U/8GB memory/ 5USB/ 2LAN/ 1HDMI/ SPK/ 90W Adapter

E971XAP2340001R | WiFi Kit for APC-2346

E971XAP2340002R | Camera Kit for APC-2346

E971XAP2340003R | NFC Kit for APC-2346

E170203183DR | EU Power Cord

E1702031835R | US Power Cord

E17120318001R | JP Power Cord

E170P060370R | UK Power Cord

What is APC-2346?

The APC-2346 is a panel pc / monitor / mobile manufactured by Avalue, designed specifically for industrial-panel-pc applications. The Avalue APC-2346 is a 23.8" Full-HD ultra-light expandable industrial touch panel PC powered by the 14th Generation Intel Core Ultra 5 125U (Meteor Lake, with integrated NPU) on the EMX-MTLP SBC, designed as a sleek, fanless terminal for self-service kiosks and modern touch HMI. With a DDR5 5600MHz SO-DIMM (up to 32GB), onboard TPM 2.0, and a 2.5" SATA3 SSD bay, it delivers AI-capable x86 performance in a slim plastic enclosure with an IP65 front. The 1920x1080 PCAP 10-point multi-touch panel pairs with dual Intel i226 2.5 Gigabit Ethernet, 5x USB (incl. USB-C), HDMI, two configurable RS-232/485 COM ports, and an M.2 Key-E slot for an optional Wi-Fi 6E module. A wide +12~24V locking DC input and fanless operation make the APC-2346 a durable, future-ready interactive display, with optional camera and NFC kits.

Key Features & Benefits

23.8" Full-HD (1920x1080) PCAP 10-point multi-touch panel PC, fanless
14th Gen Intel Core Ultra 5 125U (Meteor Lake, with IPU/NPU), EMX-MTLP
1 x 262-pin DDR5 5600MHz SO-DIMM, up to 32GB
2.5" SATA3 SSD, onboard TPM 2.0
Dual Intel i226 2.5 Gigabit Ethernet
5x USB (3x USB 3.2 Gen2 incl. Type-C, 2x USB 3.2 Gen1), 1x HDMI
2x RS-232/485 COM, M.2 Key-E for optional Wi-Fi 6E
Front panel IP65, optional camera / NFC kits
Wide +12 ~ +24V locking DC input, fanless; CE / FCC Class B / VCCI / UKCA

Applications & Use Cases

The APC-2346 is ideal for various industrial automation applications:

Harsh industrial environments requiring dust and water protection
Dust-sensitive environments and silent operation requirements
DC-powered industrial installations and mobile applications
Wireless connectivity and remote monitoring applications
Legacy equipment integration and serial communication
High-performance computing and data processing tasks
Networked industrial systems and data communication
Interactive control interfaces and operator panels
