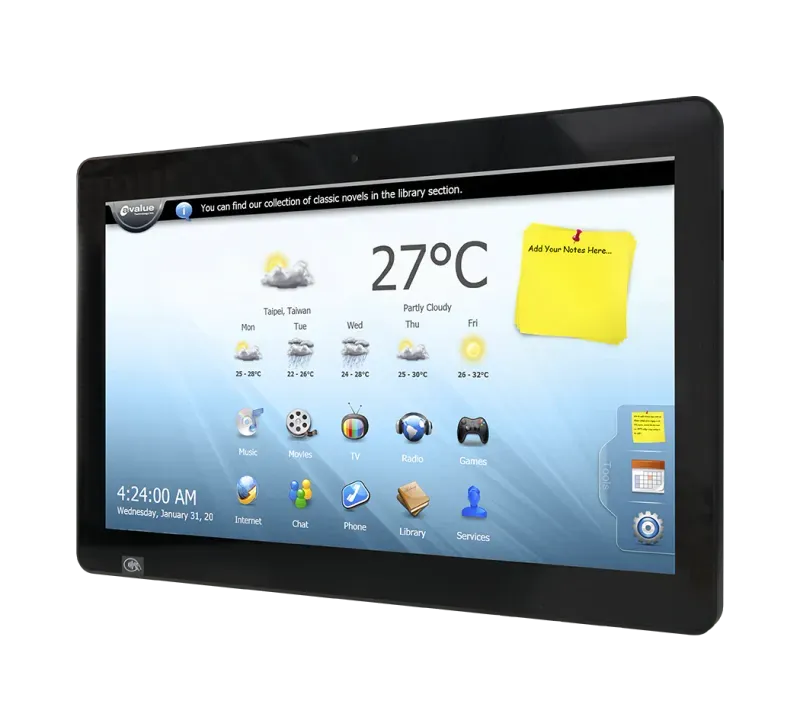

APC-2346

Series: APC

Manufactured byAvalue

The Avalue APC-2346 is a 23.8" Full-HD ultra-light expandable industrial touch panel PC powered by the 14th Generation Intel Core Ultra 5 125U (Meteor Lake, with integrated NPU) on the EMX-MTLP SBC, designed as a sleek, fanless terminal for self-service kiosks and modern touch HMI. With a DDR5 5600MHz SO-DIMM (up to 32GB), onboard TPM 2.0, and a 2.5" SATA3 SSD bay, it delivers AI-capable x86 performance in a slim plastic enclosure with an IP65 front. The 1920x1080 PCAP 10-point multi-touch panel pairs with dual Intel i226 2.5 Gigabit Ethernet, 5x USB (incl. USB-C), HDMI, two configurable RS-232/485 COM ports, and an M.2 Key-E slot for an optional Wi-Fi 6E module. A wide +12~24V locking DC input and fanless operation make the APC-2346 a durable, future-ready interactive display, with optional camera and NFC kits.

Key Features

23.8" Full-HD (1920x1080) PCAP 10-point multi-touch panel PC, fanless
14th Gen Intel Core Ultra 5 125U (Meteor Lake, with IPU/NPU), EMX-MTLP
1 x 262-pin DDR5 5600MHz SO-DIMM, up to 32GB
2.5" SATA3 SSD, onboard TPM 2.0
Dual Intel i226 2.5 Gigabit Ethernet
5x USB (3x USB 3.2 Gen2 incl. Type-C, 2x USB 3.2 Gen1), 1x HDMI
2x RS-232/485 COM, M.2 Key-E for optional Wi-Fi 6E
Front panel IP65, optional camera / NFC kits
Wide +12 ~ +24V locking DC input, fanless; CE / FCC Class B / VCCI / UKCA

Technical Specifications

System Information

Processor	14th Generation Meteor Lake Intel® Core™ Ultra 5 125U Processor, (12M Cache, up to 4.30 GHz, with IPU)
System Memory	1 x 262-Pin DDR5 5600MHz SO-DIMM Socket Supports Up to 32GB
I/O Chipset	EC iTE IT5782VG
Watchdog Timer	H/W Reset: 1Sec. ~ 65535Sec./Min. and1 Sec. or 1Min./Step
H/W Status Monitor	CPU Temperature Monitoring, Voltage Monitoring, CPU Fan Speed Control
TPM	Onboard nuvoTon NPCT760AABYX support TPM 2.0
SBC	EMX-MTLP

Expansion

Expansion	1 x M.2 Key E 2230 support WiFi module

Storage

Solid State Drive	2.5" SATA3 SSD

Audio

Audio Codec	Realtek ALC888S HD Audio Decoding Controller
Speaker Output	2 x 2W

Power Requirement

DC Input	+12V~+24V
DC Input Connector	DC Jack with Lock
Power Mode	ATX / AT

Software Support

OS	Win11 / Linux

Certification

Certification Information	CE/ FCC class B/VCCI/UKCA

Panel

LCD Size	23.8"
Display Type	Full HD
Resolution	1920 x 1080
Pixel pitch	274.5mm × 274.5mm
Luminance	250 cd/m²
Contrast ratio	3000
Viewing angle	89(U), 89(D), 89(L), 89(R)
Response time	16ms
Backlight	LED
Touch Type	Projective capacitive multi-touch up to 10 points
Touch Controller	EETI EXC81H5680

External I/O

USB Port	3 x USB 3.2 Gen2 (1 from Type C), 2 x USB 3.2 Gen1
LAN Port	1 x Intel® i226LM 2.5 Gigabit Ethernet Controller, 1 x Intel® i226V 2.5 Gigabit Ethernet Controller
Wireless LAN Antenna	2 x PCB Antenna
COM Port	2 x RS22/485 (JCOM1 and JCOM2, need to modify BIOS Setup settings and change pin header & cable)
Display Port	1 x HDMI

Data Communication

WLAN	Optional Wi-Fi + Bluetooth 5.0 USB Module, Intel Wi-Fi 6E AX210
Bluetooth	Optional Wi-Fi + Bluetooth 5.0 USB Module, Intel Wi-Fi 6E AX210

Mechanical & Environmental

Operating Temp.	0°C ~ 40°C (32°F ~ 104°F)
Storage Temp.	-10°C ~ 60°C (14°F ~ 140°F)
Operating Humidity	40°C @ 95% Relative Humidity, Non-condensing
Dimension (W x L x H)	592 x 382 x 49.5mm
Weight	6.2 kg
Vibration Test	1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30min/axis
Shock Test	10Grms, IEC 60068-2-27, half sine, 11ms
IP Rating	Front IP65
Mounting Kit	VESA 75 x 75, 100 x 100
System Fan	Fanless
Construction - Front	Plastic- black
Construction - Rear	Plastic- black

Component

Adapter	AC/DC adapter 24V/3.75A PWR DIN Plug

Ordering Information

APC-2346-125-A1R | 23.8" 1920x1080 Projected Capacitive Touch Panel PC (Plastics, Black), Intel Core Ultre 5 125U/8GB memory/ 5USB/ 2LAN/ 1HDMI/ SPK/ 90W Adapter, E971XAP2340001R | WiFi Kit for APC-2346, E971XAP2340002R | Camera Kit for APC-2346, E971XAP2340003R | NFC Kit for APC-2346, E170203183DR | EU Power Cord, E1702031835R | US Power Cord, E17120318001R | JP Power Cord, E170P060370R | UK Power Cord
