Product Datasheet
27 May 2026
Panel PC / Monitor / Mobile · Industrial-Panel-PC

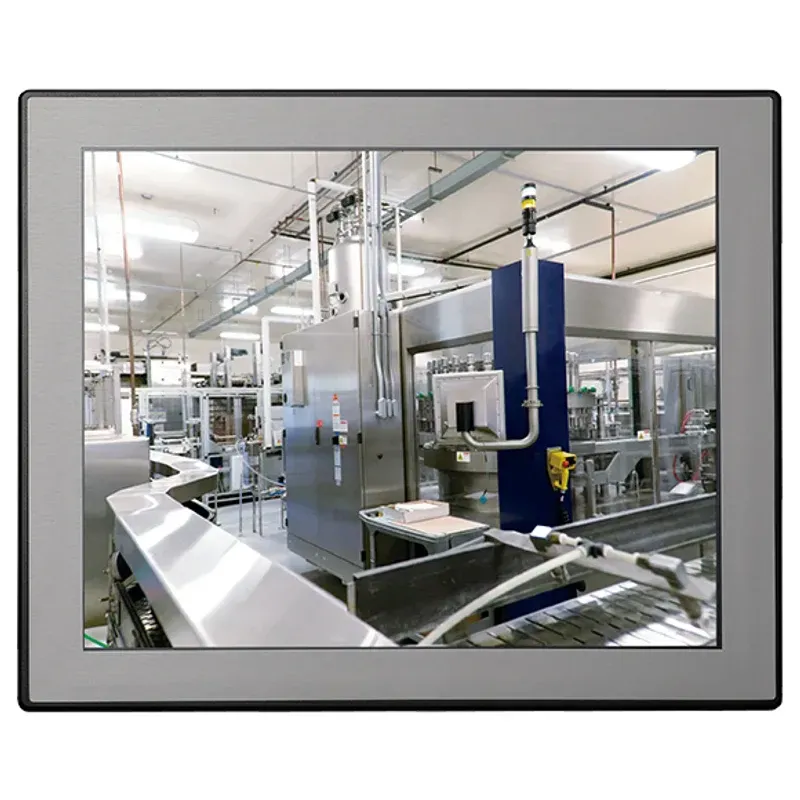

APPC 1540T
Series: APPC
The Nexcom APPC 1540T is a 15" 4:3 XGA (1024 x 768) fanless industrial panel PC for factory floor, machine automation and HMI deployments. The on-board Intel Celeron J1900 quad-core (up to 2.0 GHz) is paired with two DDR3L SO-DIMM sockets (4 GB default, up to 8 GB) and a passive thermal design with no moving parts. Storage covers one externally-locked CFast socket plus an optional 2.5" SATA HDD/SSD or SATA DOM in the internal drive bay. The 5-wire resistive flush-panel touchscreen delivers 400 cd/m² typical luminance, a 2500:1 contrast ratio and 88° viewing angle on all four axes behind an IP65-rated plastic front bezel suitable for factory and light-washdown environments. Rear I/O includes dual Intel I210 Gigabit Ethernet, two isolated RS-232/422/485 COM ports (2.5 kV isolation), one VGA secondary display, 2 x USB 2.0 and 1 x USB 3.0, Line-out audio (Realtek ALC888S-VD2), power and reset switches and a 2-pin remote power on/off, with two internal mini-PCIe sockets and a SIM card slot for optional Wi-Fi or 3.5G modules. Power is wide-range 12–30 V DC with an optional 12 V / 60 W AC-DC adapter (P/N 7400060062X00). The chassis is rated -5°C to 60°C operating, 10–90% RH non-condensing, mounts panel / wall / stand / VESA 100 x 100 mm and is CE-marked plus FCC Class A. Supports Windows 10 / 8 / 7 (32-bit + 64-bit) and Windows CE 7.0. TSL Automation supplies the Nexcom APPC 1540T worldwide.
Key Features
- 15" 4:3 XGA (1024 x 768) fanless industrial panel PC, 400 cd/m² LED backlight, 2500:1 contrast, 88° viewing
- 5-wire resistive flush-panel touchscreen with 81% light transmission, USB touch interface
- IP65 compliant plastic front bezel (flush design) — suitable for factory and light-washdown
- Intel Celeron J1900 quad-core CPU (up to 2.0 GHz, 2 MB L2), low-power fanless thermal design
- 2 x 204-pin DDR3L SO-DIMM (4 GB default, up to 8 GB DDR3L 1066/1333, non-ECC, unbuffered)
- 1 x external locked CFast socket + 1 x 2.5" SATA HDD bay (or SATA DOM)
- Dual Intel I210 Gigabit Ethernet (10/100/1000 Base-Tx)
- 2 x isolated RS-232/422/485 COM (2.5 kV isolation), 1 x VGA 2nd display, Line-out audio (Realtek ALC888S-VD2)
- 2 x USB 2.0 + 1 x USB 3.0; power switch, reset button, 2-pin remote power on/off
- 2 x internal mini-PCIe sockets (optional Wi-Fi / 3.5G) + 1 x SIM card holder
- Wide 12–30 V DC power input; optional 12 V / 60 W AC-DC adapter (P/N 7400060062X00)
- Mounting: panel / wall / stand / VESA 100 x 100 mm; -5°C to 60°C operating; CE + FCC Class A
- Dimensions 384.37 x 309.95 x 63 mm; weight 4.7 kg; cutout 371 x 297 mm (T = 5 mm max)
- OS support: Windows 10 64-bit, Windows 8 32/64-bit, Windows 7 32/64-bit, Windows CE 7.0
Technical Specifications
System Information
| Processor | On-board Intel Celeron Quad-Core J1900 up to 2.0 GHz, 2 MB L2 cache |
|---|---|
| BIOS | AMI BIOS |
| System Memory | 2 x 204-pin DDR3L SO-DIMM, 4 GB DDR3L default, up to 8 GB DDR3L 1066/1333, non-ECC and unbuffered |
| Watchdog Timer | Software-programmable 1–255 s and 1–255 min (±15% tolerance at 25°C) |
| H/W Status Monitor | System temperature and voltage monitoring |
| CPU Cooler | Passive (Fanless) |
Storage
| CFast | 1 x external locked CFast socket |
|---|---|
| HDD Bay | 1 x 2.5" SATA HDD or 1 x SATA DOM (optional) |
Panel
| LCD Size | 15" |
|---|---|
| Aspect Ratio | 4:3 |
| Resolution | XGA 1024 x 768 |
| Luminance | 400 cd/m² |
| Contrast Ratio | 2500:1 |
| LCD Colour | 16.7M |
| Viewing Angle | 88 (U), 88 (D), 88 (L), 88 (R) |
| Backlight | LED |
Touch
| Touch Type | 5-wire resistive (flush panel type) |
|---|---|
| Touch Light Transmission | 81% |
| Touch Interface | USB |
Expansion
| Mini-PCIe | 2 x mini-PCIe sockets (optional Wi-Fi / 3.5G module) |
|---|---|
| SIM | 1 x SIM card holder |
Rear I/O
| Ethernet | 2 x RJ45 (dual Intel I210 Gigabit) |
|---|---|
| 2nd Display | 1 x VGA (DB-15) |
| Audio | 1 x Line-out (Realtek ALC888S-VD2) |
| USB | 2 x USB 2.0, 1 x USB 3.0 |
| Serial | COM #1: RS-232/422/485 w/ 2.5 kV isolation, COM #2: RS-232/422/485 w/ 2.5 kV isolation |
| Switches | Power switch, Reset button, 2-pin remote power on/off switch |
Power Requirement
| DC Input | 12–30 V DC |
|---|---|
| Power Adapter (Optional) | 12 V / 60 W AC-DC adapter w/o power cord (P/N 7400060062X00) |
Software Support
| OS | Windows 10 64-bit, Windows 8 32-bit/64-bit, Windows 7 32-bit/64-bit, Windows CE 7.0 |
|---|
Certification
| Certification Information | CE approval, FCC Class A |
|---|
Mechanical & Environmental
| Colour | Pantone black / RAL 15 00 front bezel + Pantone 400C / RAL 090 80 10 metal membrane + black silver PC box |
|---|---|
| IP Rating | IP65 (front) |
| Mounting | Panel / Wall / Stand / VESA 100 x 100 mm |
| Outline (W x H x D) | 384.37 x 309.95 x 63 mm |
| Panel Cutout | 371 x 297 mm (T = 5 mm max) |
| Weight | 4.7 kg |
| Operating Temp. | -5°C to 60°C |
| Storage Temp. | -20°C to 75°C |
| Operating Humidity | 10–90% RH, non-condensing (limited to 90% RH at max 50°C) |
| Vibration | IEC 68 2-64 (with HDD), 1 Grms sine, 5–500 Hz, 1 hr/axis (HDD operating), 2 Grms sine, 5–500 Hz, 1 hr/axis (CFast operating), 2.2 Grms random, 5–500 Hz, 0.5 hr/axis (non-operating) |
| Shock | IEC 68 2-27, HDD: 20 G wall mount, half sine, 11 ms |
Ordering Information
| Barebone | APPC 1540T-C (P/N: 10IA1540T15X0) — 15" XGA LED-backlight touch panel PC, Intel Celeron J1900 up to 2.0 GHz, touch screen, 4 GB DDR3L, 2 x RS-232/422/485, Intel I210-IT Gigabit LAN, APPC 1540T-C0 (P/N: 10IA1540T15X0) — same configuration with Intel I210-AT Gigabit LAN |
|---|---|
| Options | 12 V / 60 W AC-DC power adapter w/o power cord (P/N 7400060062X00) |
