What is the Nexcom APPC 1540T?

A 15" 4:3 XGA (1024 x 768) fanless industrial panel PC built on the Intel Celeron J1900 quad-core SoC with 4 GB DDR3L (upgradable to 8 GB), CFast + 2.5" SATA HDD storage, dual Gigabit Ethernet, two isolated RS-232/422/485 COM ports and an IP65-rated flush 5-wire resistive touch front.

Which processor does the APPC 1540T use?

On-board Intel Celeron Quad-Core J1900 (Bay Trail-D) up to 2.0 GHz with 2 MB L2 cache, fanless thermal design.

How much memory and storage does it support?

Two 204-pin DDR3L SO-DIMM sockets — 4 GB DDR3L by default, up to 8 GB DDR3L-1066/1333 (non-ECC, unbuffered). Storage includes one external locked CFast socket plus an internal 2.5" SATA HDD bay (or SATA DOM).

What is the touch and IP rating?

IP65-rated plastic front bezel with a 5-wire resistive flush-panel touchscreen (81% light transmission) over a USB interface.

What is the power input?

Wide-range 12–30 V DC input. An optional 12 V / 60 W AC-DC power adapter (P/N 7400060062X00) is available for use from mains.

What is the operating temperature range?

Operating -5°C to 60°C; storage -20°C to 75°C; humidity 10–90% RH non-condensing (limited to 90% RH at max 50°C).

Panel, wall, stand or VESA 100 x 100 mm. Panel cutout 371 x 297 mm with T = 5 mm max. The 4.7 kg chassis measures 384.37 x 309.95 x 63 mm.

Which operating systems are supported?

Windows 10 64-bit, Windows 8 32/64-bit, Windows 7 32/64-bit, and Windows CE 7.0.

Where do I buy the Nexcom APPC 1540T?

TSL Automation supplies the Nexcom APPC 1540T worldwide. Contact our team via the contact form with your target quantity, LAN variant (I210-IT or I210-AT) and any wireless options needed and we will follow up with a quotation and lead time.

Nexcom · Panel PC / Monitor / Mobile

APPC 1540T

Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Nexcom

Highlights

15" 4:3 XGA (1024 x 768) fanless industrial panel PC, 400 cd/m² LED backlight, 2500:1 contrast, 88° viewing
5-wire resistive flush-panel touchscreen with 81% light transmission, USB touch interface
IP65 compliant plastic front bezel (flush design) — suitable for factory and light-washdown
Intel Celeron J1900 quad-core CPU (up to 2.0 GHz, 2 MB L2), low-power fanless thermal design
2 x 204-pin DDR3L SO-DIMM (4 GB default, up to 8 GB DDR3L 1066/1333, non-ECC, unbuffered)
1 x external locked CFast socket + 1 x 2.5" SATA HDD bay (or SATA DOM)
Dual Intel I210 Gigabit Ethernet (10/100/1000 Base-Tx)
2 x isolated RS-232/422/485 COM (2.5 kV isolation), 1 x VGA 2nd display, Line-out audio (Realtek ALC888S-VD2)
2 x USB 2.0 + 1 x USB 3.0; power switch, reset button, 2-pin remote power on/off
2 x internal mini-PCIe sockets (optional Wi-Fi / 3.5G) + 1 x SIM card holder
Wide 12–30 V DC power input; optional 12 V / 60 W AC-DC adapter (P/N 7400060062X00)
Mounting: panel / wall / stand / VESA 100 x 100 mm; -5°C to 60°C operating; CE + FCC Class A
Dimensions 384.37 x 309.95 x 63 mm; weight 4.7 kg; cutout 371 x 297 mm (T = 5 mm max)
OS support: Windows 10 64-bit, Windows 8 32/64-bit, Windows 7 32/64-bit, Windows CE 7.0

Product Description

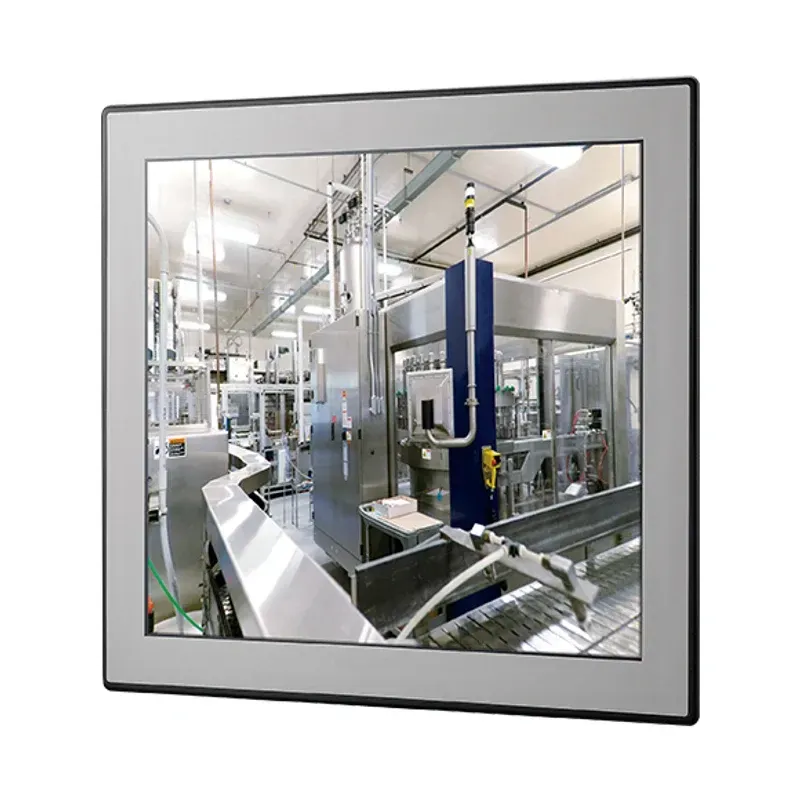

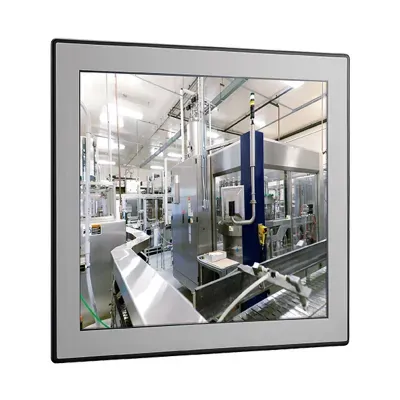

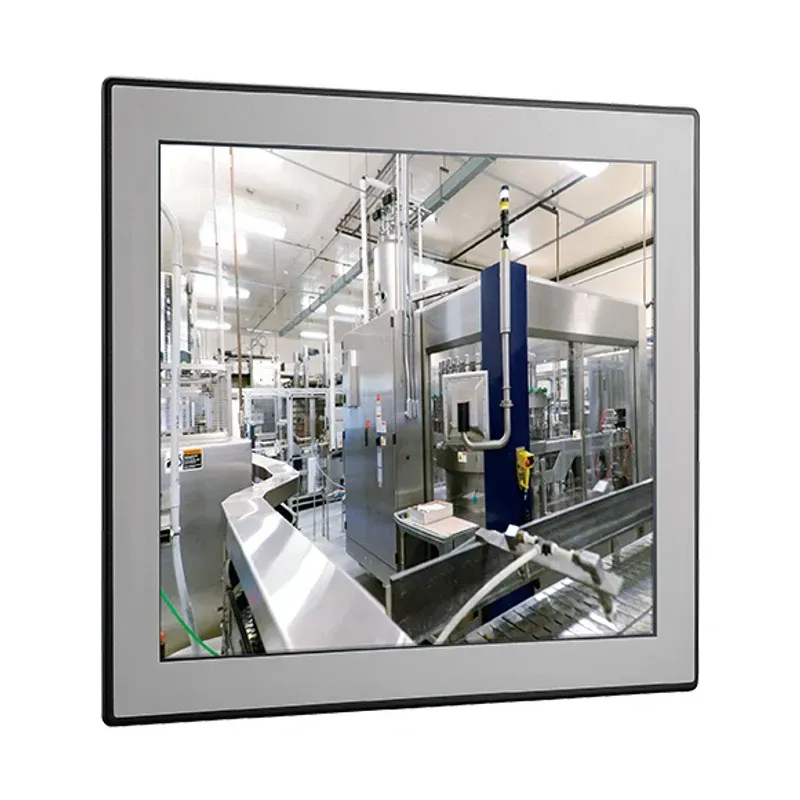

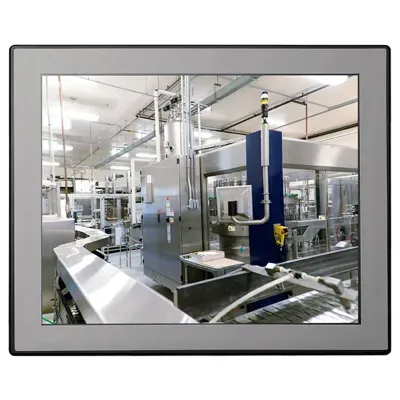

The Nexcom APPC 1540T is a 15" 4:3 XGA (1024 x 768) fanless industrial panel PC for factory floor, machine automation and HMI deployments.

The on-board Intel Celeron J1900 quad-core (up to 2.0 GHz) is paired with two DDR3L SO-DIMM sockets (4 GB default, up to 8 GB) and a passive thermal design with no moving parts. Storage covers one externally-locked CFast socket plus an optional 2.5" SATA HDD/SSD or SATA DOM in the internal drive bay.

The 5-wire resistive flush-panel touchscreen delivers 400 cd/m² typical luminance, a 2500:1 contrast ratio and 88° viewing angle on all four axes behind an IP65-rated plastic front bezel suitable for factory and light-washdown environments.

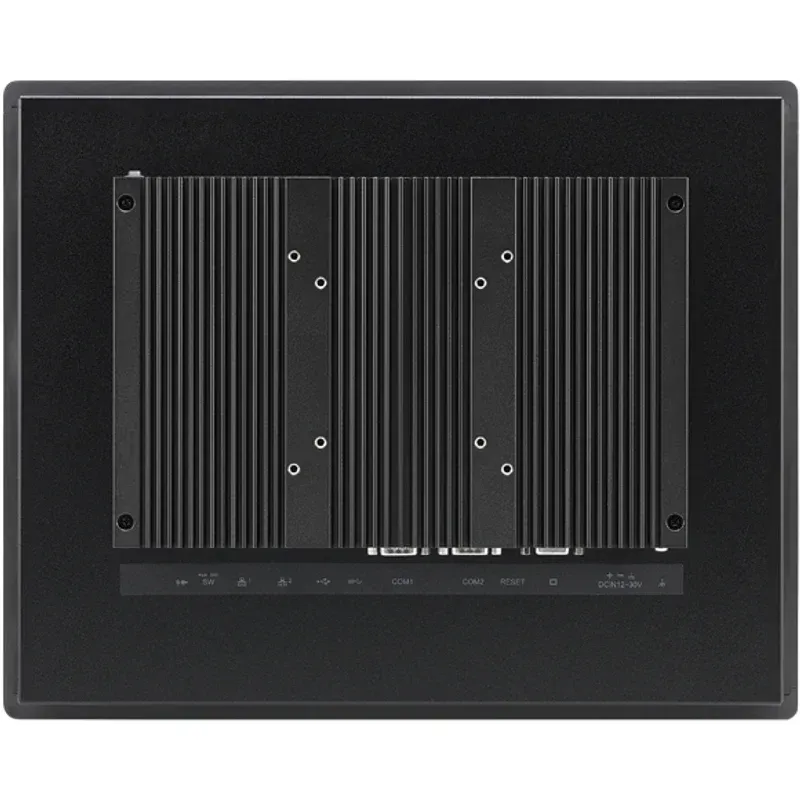

Rear I/O includes dual Intel I210 Gigabit Ethernet, two isolated RS-232/422/485 COM ports (2.5 kV isolation), one VGA secondary display, 2 x USB 2.0 and 1 x USB 3.0, Line-out audio (Realtek ALC888S-VD2), power and reset switches and a 2-pin remote power on/off, with two internal mini-PCIe sockets and a SIM card slot for optional Wi-Fi or 3.5G modules.

Power is wide-range 12–30 V DC with an optional 12 V / 60 W AC-DC adapter (P/N 7400060062X00). The chassis is rated -5°C to 60°C operating, 10–90% RH non-condensing, mounts panel / wall / stand / VESA 100 x 100 mm and is CE-marked plus FCC Class A.

Supports Windows 10 / 8 / 7 (32-bit + 64-bit) and Windows CE 7.0. TSL Automation supplies the Nexcom APPC 1540T worldwide.

Technical Specifications

Processor

On-board Intel Celeron Quad-Core J1900 up to 2.0 GHz, 2 MB L2 cache

BIOS

AMI BIOS

System Memory

2 x 204-pin DDR3L SO-DIMM, 4 GB DDR3L default, up to 8 GB DDR3L 1066/1333, non-ECC and unbuffered

Watchdog Timer

Software-programmable 1–255 s and 1–255 min (±15% tolerance at 25°C)

H/W Status Monitor

System temperature and voltage monitoring

CPU Cooler

Passive (Fanless)

CFast

1 x external locked CFast socket

HDD Bay

1 x 2.5" SATA HDD or 1 x SATA DOM (optional)

LCD Size

15"

Aspect Ratio

4:3

Resolution

XGA 1024 x 768

Luminance

400 cd/m²

Contrast Ratio

2500:1

LCD Colour

16.7M

Viewing Angle

88 (U), 88 (D), 88 (L), 88 (R)

Backlight

LED

Touch Type

5-wire resistive (flush panel type)

Touch Light Transmission

81%

Touch Interface

USB

Mini-PCIe

2 x mini-PCIe sockets (optional Wi-Fi / 3.5G module)

SIM

1 x SIM card holder

Ethernet

2 x RJ45 (dual Intel I210 Gigabit)

2nd Display

1 x VGA (DB-15)

Audio

1 x Line-out (Realtek ALC888S-VD2)

USB

2 x USB 2.0

1 x USB 3.0

Serial

COM #1: RS-232/422/485 w/ 2.5 kV isolation

COM #2: RS-232/422/485 w/ 2.5 kV isolation

Switches

Power switch

Reset button

2-pin remote power on/off switch

DC Input

12–30 V DC

Power Adapter (Optional)

12 V / 60 W AC-DC adapter w/o power cord (P/N 7400060062X00)

OS

Windows 10 64-bit

Windows 8 32-bit/64-bit

Windows 7 32-bit/64-bit

Windows CE 7.0

Certification Information

CE approval

FCC Class A

Colour

Pantone black / RAL 15 00 front bezel + Pantone 400C / RAL 090 80 10 metal membrane + black silver PC box

IP Rating

IP65 (front)

Mounting

Panel / Wall / Stand / VESA 100 x 100 mm

Outline (W x H x D)

384.37 x 309.95 x 63 mm

Panel Cutout

371 x 297 mm (T = 5 mm max)

Weight

4.7 kg

Operating Temp.

-5°C to 60°C

Storage Temp.

-20°C to 75°C

Operating Humidity

10–90% RH, non-condensing (limited to 90% RH at max 50°C)

Vibration

IEC 68 2-64 (with HDD)

1 Grms sine, 5–500 Hz, 1 hr/axis (HDD operating)

2 Grms sine, 5–500 Hz, 1 hr/axis (CFast operating)

2.2 Grms random, 5–500 Hz, 0.5 hr/axis (non-operating)

Shock

IEC 68 2-27

HDD: 20 G wall mount, half sine, 11 ms

Barebone

APPC 1540T-C (P/N: 10IA1540T15X0) — 15" XGA LED-backlight touch panel PC, Intel Celeron J1900 up to 2.0 GHz, touch screen, 4 GB DDR3L, 2 x RS-232/422/485, Intel I210-IT Gigabit LAN

APPC 1540T-C0 (P/N: 10IA1540T15X0) — same configuration with Intel I210-AT Gigabit LAN

Options

12 V / 60 W AC-DC power adapter w/o power cord (P/N 7400060062X00)

What is APPC 1540T?

The APPC 1540T is a panel pc / monitor / mobile manufactured by Nexcom, designed specifically for industrial-panel-pc applications. It features processor of On-board Intel Celeron Quad-Core J1900 up to 2.0 GHz, 2 MB L2 cache, display of 15" and touch of 5-wire resistive (flush panel type). The Nexcom APPC 1540T is a 15" 4:3 XGA (1024 x 768) fanless industrial panel PC for factory floor, machine automation and HMI deployments. The on-board Intel Celeron J1900 quad-core (up to 2.0 GHz) is paired with two DDR3L SO-DIMM sockets (4 GB default, up to 8 GB) and a passive thermal design with no moving parts. Storage covers one externally-locked CFast socket plus an optional 2.5" SATA HDD/SSD or SATA DOM in the internal drive bay. The 5-wire resistive flush-panel touchscreen delivers 400 cd/m² typical luminance, a 2500:1 contrast ratio and 88° viewing angle on all four axes behind an IP65-rated plastic front bezel suitable for factory and light-washdown environments. Rear I/O includes dual Intel I210 Gigabit Ethernet, two isolated RS-232/422/485 COM ports (2.5 kV isolation), one VGA secondary display, 2 x USB 2.0 and 1 x USB 3.0, Line-out audio (Realtek ALC888S-VD2), power and reset switches and a 2-pin remote power on/off, with two internal mini-PCIe sockets and a SIM card slot for optional Wi-Fi or 3.5G modules. Power is wide-range 12–30 V DC with an optional 12 V / 60 W AC-DC adapter (P/N 7400060062X00). The chassis is rated -5°C to 60°C operating, 10–90% RH non-condensing, mounts panel / wall / stand / VESA 100 x 100 mm and is CE-marked plus FCC Class A. Supports Windows 10 / 8 / 7 (32-bit + 64-bit) and Windows CE 7.0. TSL Automation supplies the Nexcom APPC 1540T worldwide.

Key Features & Benefits

15" 4:3 XGA (1024 x 768) fanless industrial panel PC, 400 cd/m² LED backlight, 2500:1 contrast, 88° viewing
5-wire resistive flush-panel touchscreen with 81% light transmission, USB touch interface
IP65 compliant plastic front bezel (flush design) — suitable for factory and light-washdown
Intel Celeron J1900 quad-core CPU (up to 2.0 GHz, 2 MB L2), low-power fanless thermal design
2 x 204-pin DDR3L SO-DIMM (4 GB default, up to 8 GB DDR3L 1066/1333, non-ECC, unbuffered)
1 x external locked CFast socket + 1 x 2.5" SATA HDD bay (or SATA DOM)
Dual Intel I210 Gigabit Ethernet (10/100/1000 Base-Tx)
2 x isolated RS-232/422/485 COM (2.5 kV isolation), 1 x VGA 2nd display, Line-out audio (Realtek ALC888S-VD2)
2 x USB 2.0 + 1 x USB 3.0; power switch, reset button, 2-pin remote power on/off
2 x internal mini-PCIe sockets (optional Wi-Fi / 3.5G) + 1 x SIM card holder
Wide 12–30 V DC power input; optional 12 V / 60 W AC-DC adapter (P/N 7400060062X00)
Mounting: panel / wall / stand / VESA 100 x 100 mm; -5°C to 60°C operating; CE + FCC Class A
Dimensions 384.37 x 309.95 x 63 mm; weight 4.7 kg; cutout 371 x 297 mm (T = 5 mm max)
OS support: Windows 10 64-bit, Windows 8 32/64-bit, Windows 7 32/64-bit, Windows CE 7.0

Applications & Use Cases

The APPC 1540T is ideal for various industrial automation applications:

Harsh industrial environments requiring dust and water protection
Dust-sensitive environments and silent operation requirements
DC-powered industrial installations and mobile applications
Extreme temperature environments and outdoor installations
Wireless connectivity and remote monitoring applications
Food and beverage processing with hygiene requirements
Legacy equipment integration and serial communication
High-performance computing and data processing tasks
